Premium 303Cu Stainless Steel Gringding Rod for Enhanced Corrosion Resistance

Products Specification

Premium 303Cu Stainless Steel Grinding Rod for Enhanced Corrosion Resistance

The Premium 303Cu Stainless Steel Grinding Rod represents a refined evolution of the austenitic free-machining stainless steel family, engineered specifically for superior corrosion performance, machining efficiency, and dimensional stability. With the strategic addition of copper (Cu) and an optimized sulfur content, 303Cu offers exceptional chip control, improved lubricity during grinding, and enhanced resistance to deformation in high-speed manufacturing environments.

As a grinding rod, this material is precision-processed through centerless grinding or precision turning to produce a smooth, accurate, and uniform surface ideal for applications requiring tight tolerances. The alloy’s unique metallurgical structure makes it particularly suitable for machining-intensive industries such as instrumentation, fluid-control systems, micro-mechanical assemblies, and high-end hardware.

This document provides an in-depth technical profile designed to support engineers, procurement specialists, and manufacturers who require a reliable, high-performance stainless steel solution.

1. Product Definition and Technical Background

The 303Cu stainless steel grinding rod belongs to the 18Cr-8Ni class of austenitic stainless steels but has been modified with additional copper content, typically around 1.0–1.8%. Copper improves plasticity and machinability without compromising strength and corrosion behavior. This makes 303Cu a preferred choice when large quantities of small, highly detailed metal parts must be produced efficiently.

Unlike standard 303 or 304 stainless steels, 303Cu is optimized for grinding, turning, milling, thread cutting, and high-precision CNC machining. The alloy displays stable cutting performance, reduced tool wear, and excellent material flow characteristics.

When processed into a grinding rod, the material undergoes surface conditioning that enhances dimensional precision, straightness, and wear resistance—essential for moving, sliding, or rotating components.

2. Features and Technical Advantages

✔ Enhanced Corrosion Resistance

The copper addition improves resistance to weak acids, industrial atmospheric environments, and water-based corrosion. This makes the rod suitable for valves, fittings, fluid controllers, and outdoor hardware.

✔ Exceptional Grinding Performance

The microstructure supports stable grinding behavior with minimal vibration and heat buildup. This ensures:

• smooth surface finish

• reduced grinding wheel wear

• improved consistency in large-scale production

✔ High Machinability for Automated Production

303Cu is engineered for:

• automatic lathes

• multi-axis CNC machining centers

• high-feed-rate milling

• micro-machining of precision parts

Chip formation is clean and controlled, lowering the risk of tool jamming or machine downtime.

✔ Superior Surface Quality

Grinding rods undergo surface conditioning to achieve:

• bright metallic appearance

• controlled surface roughness

• reduced pitting tendency

• low friction during assembly or operation

✔ Non-magnetic in Annealed State

Ideal for sensors, instruments, and applications sensitive to magnetic interference.

3. Chemical Composition (Typical Range)

The sulfur and copper synergy is what differentiates 303Cu from other austenitic stainless steels.

4. Mechanical and Physical Properties

The following properties represent typical values for cold-finished 303Cu grinding rods:

These properties make the alloy compatible with demanding industrial machining routines.

5. Dimensional Availability and Tolerance Control

Standard Diameter Range for Grinding Rods

• 5 mm – 6 mm – 8 mm – 10 mm – 12 mm – 14 mm – 16 mm – 18 mm – 20 mm – 25 mm – 30 mm – 35 mm – 40 mm

Custom diameters up to 80 mm are available upon request.

Dimensional Tolerances

The grinding process produces extremely consistent roundness and diameter uniformity.

6. Manufacturing and Surface Processing Route

The production of a Premium 303Cu Stainless Steel Grinding Rod follows a strict metallurgical and finishing process:

1. Raw Material Melting

   • Electric furnace + argon oxygen decarburization (AOD) refinement

   • Controlled addition of Cu and S

2. Hot Rolling or Forging

   • Produces initial rod structure

   • Improves grain uniformity

3. Solution Annealing

   • Restores austenitic structure

   • Enhances corrosion resistance

4. Cold Drawing / Precision Turning

   • Reduces diameter and improves dimensional accuracy

5. Centerless Grinding

   • Produces ultra-smooth finish

   • Ensures roundness, straightness, and consistent diameter

6. Cutting to Length and Quality Inspection

   • Lengths: 1 m, 2 m, 3 m, 6 m, or customized

   • Each rod inspected for surface defects, tolerance, hardness, and alignment

This advanced process guarantees material stability for precision machining.

7. Application Fields

The superior grinding quality and corrosion resistance of 303Cu make it ideal for high-precision and high-durability applications.

Mechanical Engineering & CNC Components

• Bearing sleeves

• Miniature shafts

• Gears and sprockets

• Threaded connectors

Fluid Control and Valve Systems

• Valve stems

• Pump components

• Spray nozzles

• Pressure control fittings

Electrical and Instrumentation

• Sensor housings

• Electrical terminals

• Measuring instrument components

Hardware and Decorative Products

• Architectural hardware

• Luxury furniture fittings

• Hinges and rotating parts

Automotive and Transportation

• Fuel line connectors

• Precision screws

• Automated system parts

303Cu excels in sectors requiring consistency, high machining speed, and excellent surface finish.

8. Advantages of 303Cu Compared with Standard 304 or 303

303Cu is the preferred choice for manufacturers who process large volumes of intricate parts.

9. Quality Standards and Certifications

The product meets global stainless steel manufacturing and inspection standards, including:

• ASTM A582 (Free-Machining Stainless Steel Bars)

• EN 10088-3 (Stainless Steel for Mechanical Applications)

• JIS G4303

• ISO 9001 Quality Management

• Mill Test Certificate (EN 10204 3.1)

Additional testing such as ultrasonic inspection, hardness testing, and surface roughness measurement can be provided upon request.

10. Packaging and Logistics

To ensure safe transportation and long-term storage, multiple packaging options are available:

• Waterproof plastic wrap

• Anti-rust oil coating

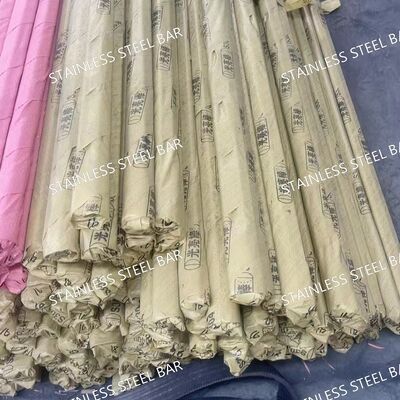

• Hexagonal or square bundles with steel straps

• Fumigation-free wooden crates for export

• Custom-length cutting to reduce wastage

Each batch is labeled with full traceability information, including heat number, size, and material grade.

11. Summary Table of Technical Specifications

12. Conclusion

The Premium 303Cu Stainless Steel Grinding Rod for Enhanced Corrosion Resistance is engineered for industries where precision, efficiency, and durability are essential. Its copper-reinforced structure delivers excellent machinability, superior grinding behavior, and improved resistance to corrosion—all in a high-quality, dimensionally stable form.
