ASTM A240 316 Stainless Steel Plate 6-16mm Thickness
| Place of Origin | China |
|---|---|
| Brand Name | TISCO BAOSTEEL |
| Certification | ISO |
| Model Number | 304 304L 316L 310S 321 2205 2507 904L 254SMO.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 5000 - 7200 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Plate | Grade | 304 304L 316L 310S 321 2205 2507 904L 254SMO.etc |
|---|---|---|---|
| Thickness | 0.6 - 30.0mm | Width | 1219mm 1500mm 1800mm 2000mm |
| Surface | NO.1 2B | Brand | BAOSTEEL TISCO |
| Standard | ASTM A240/240M | Loading Port | Shanghai Port |
| Highlight | 316 stainless steel plate,SA240 stainless steel sheet,6-16mm thick steel plate |
||
Product Description
SA240 316 Stainless Steel Plate Sheet 6.0mm 8.0mm 10.0mm 12.0mm 14.0mm 16.0mm Thickness
Products Specification
| Products Name | 316 Stainless Steel Plate |
| Main Grades | Stainless Steel J1, J2, J4, 201, 202, 301, 304, 304H, 304L, 309, 309S, 310, 310S, 316, 316L, 316TI, 317L, 321, 321H, 347, 409, 410, 410S, 420, 430, 441, 904L,630,631,254SMO,654SMO,253MA,2205,2507.etc |
| Thickness | 0.6 - 30.0mm |
| Width | 1250mm,1500mm ,1800mm,2000mm, or custom other size as request |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, AS PER CUSTOMER’S REQUIREMENT |
| Service | Laser Cutting |
| Form | Plate / sheet |
| Cutting Shape | Round , Square, or any special shape as request |
| Test Certificate | Yes. |
| Finish | NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA. |
| Brand | TISCO, LISCO,BAOSTEEL , POSCO, JISCO |
316 stainless - steel plate is an austenitic stainless - steel alloy renowned for its excellent corrosion resistance, especially in chloride - containing environments
Here is a detailed introduction:
Parameters
| Parameter | Value |
|---|---|
| Carbon (C) content | ≤0.08% (for 316); ≤0.03% (for 316L) |
| Silicon (Si) content | ≤1.00% |
| Manganese (Mn) content | ≤2.00% |
| Phosphorus (P) content | ≤0.045% |
| Sulfur (S) content | ≤0.030% |
| Chromium (Cr) content | 16.00 - 18.00% |
| Nickel (Ni) content | 10.00 - 14.00% (for 316); 12.00 - 15.00% (for 316L) |
| Molybdenum (Mo) content | 2.0 - 3.0% |
| Yield strength (YS) | ≥205 Mpa (for 316); ≥175 Mpa (for 316L) |
| Tensile strength (TS) | ≥520 Mpa (for 316); ≥480 Mpa (for 316L) |
| Elongation (EI) | ≥40% |
| Hardness (Hv) | ≤200 |
Specification316 stainless - steel plates are available in a variety of sizes. The thickness typically ranges from 0.3 mm to 100 mm, the width can be up to 2000 mm, and the length can reach up to 6000 mm.
StandardIt complies with international standards such as ASTM A240 and JIS G4304, ensuring quality and consistency in production.
Similar Grades
| Country/Region | Grade |
|---|---|
| USA | UNS S31600 (316), UNS S31603 (316L) |
| Japan | SUS316, SUS316L |
| European Union | 4401 (316), 4404 (316L) |
| China | 06Cr17Ni12Mo2 (316), 022Cr17Ni12Mo2 (316L) |

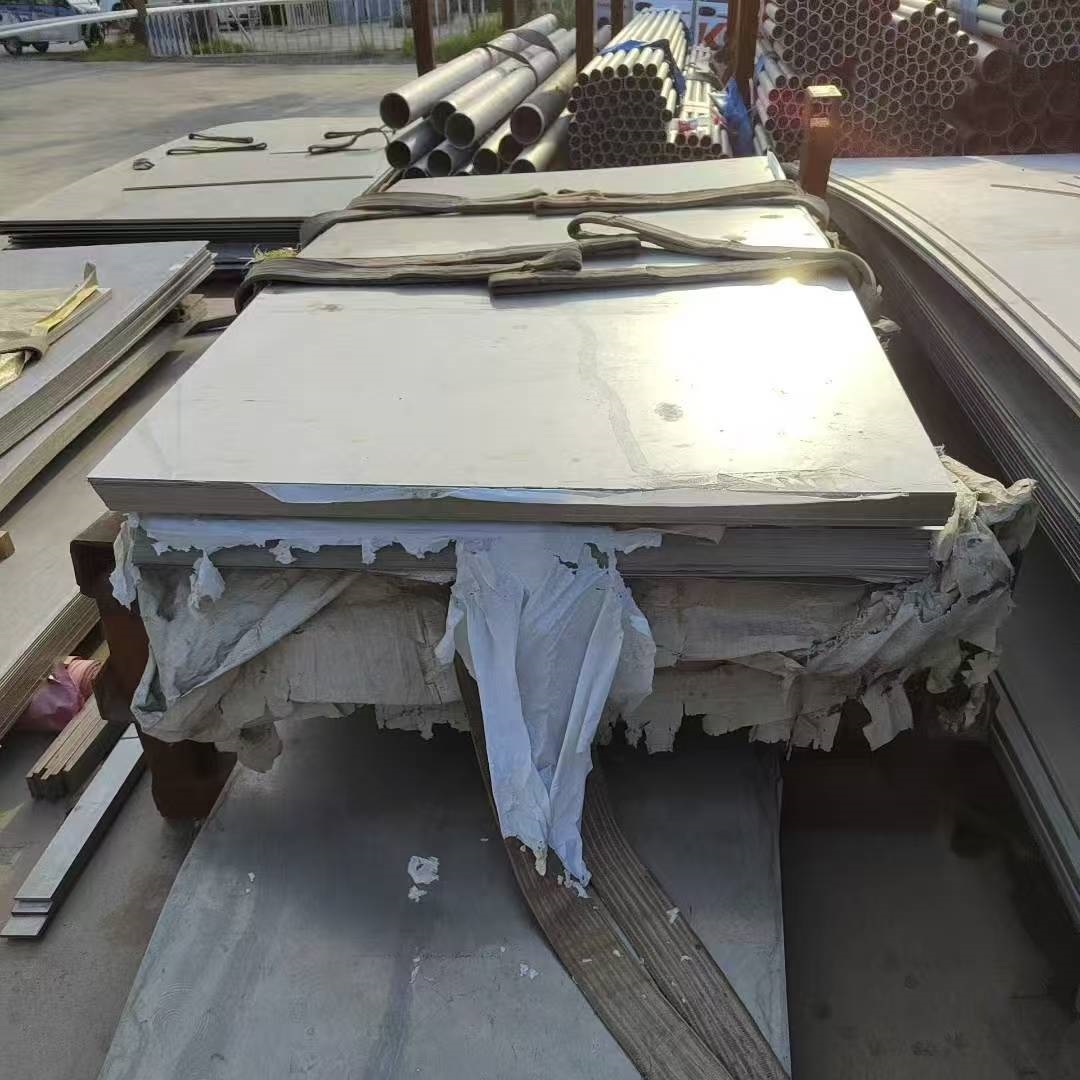

Packaging
316 stainless - steel plates are usually packaged in bundles or wrapped with protective materials to prevent scratches and corrosion during transportation and storage. Some may also be packed in wooden cases for better protection, especially for high - value or large - sized plates.
Application
-
Marine industry: Due to its good resistance to seawater corrosion, it is used for shipbuilding, marine platforms, and other marine equipment.
- Chemical and petrochemical processing: Applied in pressure vessels, storage tanks, heat exchangers, and pipeline systems to withstand corrosive media.
- Food and beverage processing: Because of its corrosion resistance and hygienic properties, it is suitable for food processing equipment.
- Medical equipment: Used to manufacture surgical instruments and implants due to its antibacterial properties and corrosion resistance.
- Pharmaceutical industry: Applied in drug processing equipment to ensure that drugs are not contaminated.
- Paper and textile industry: Used in processing equipment to resist corrosive media.
