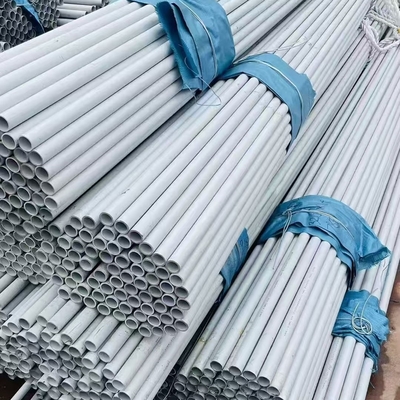

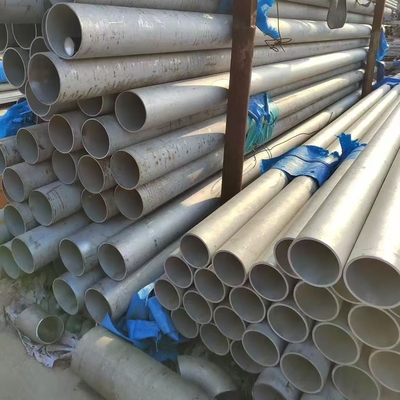

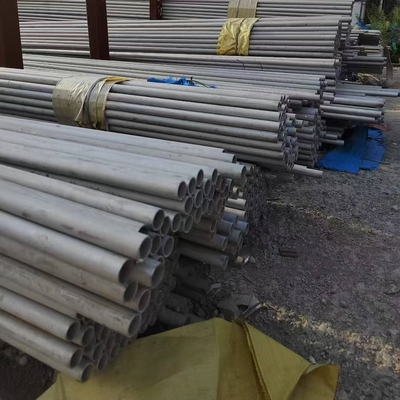

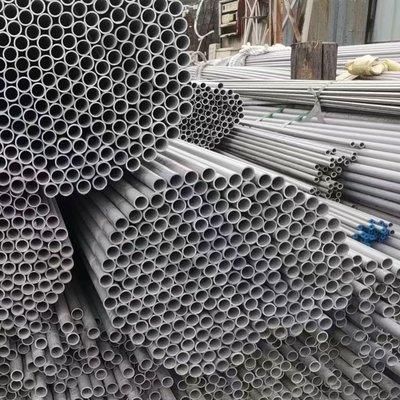

SS Pipe Hollow Tubing 304L / S30403 / Alloy 1.4306 Stainless Steel Pipe DN100 DN120
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304L |
| Minimum Order Quantity | 500 kgs |
| Price | 2.5-4 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Seamless Pipe | Grade | 304L |
|---|---|---|---|
| Diameter | DN10 - DN400 | Length | 6m Or Custom Cutting Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Thickness | 4.0 - 50.0mm |
Product Description
SS Pipe Hollow Tubing 304L / S30403 / Alloy 1.4306 Stainless Steel Pipe DN100 DN120
Products Specification
| Products Name | 304L Stainless Steel Seamless Pipe |
Grade: |
304 304L 309S 310S 314 316L 316Ti 321 329 347H 410 2205 2507 S32760 904L 254SMO and equal grade in GB JIS EN DIN Standard |
| Standards: | ASTM A213M-94b ASTM A249M-94a ASTM A269-94a ASTM A312M-94b,ect. |
| DIN 17456-85 DIN 17458-85 DIN 17459-92.ect | |
| JIS G3446-1994 JIS G3448-1997 JIS G3459-1997 JIS G3463-1994,ect. | |
| GB13296-1991 GB14975-2002 GB14976-2002,ect. | |
| Size: | ND5 - DN400 |
| Length: | 6m length or cutting any length as request |
| Applications: | fluid and gas transport, structure , boiler, heat exchanger, super heater |
304L stainless steel is an ultra-low-carbon austenitic stainless steel designed to minimize carbide precipitation and enhance resistance to intergranular corrosion, especially after welding or stress relief. It is widely used in corrosive environments where post-weld heat treatment is impractical.
1. Key Parameters and Properties
Chemical Composition
The low carbon content (≤0.03%) is critical for reducing susceptibility to intergranular corrosion139.
| Element | Content (%) |
|---|---|
| C | ≤0.030 |
| Cr | 18.0–20.0 |
| Ni | 10.0–13.0 |
| Mn | ≤2.00 |
| Si | ≤1.00 |
| P | ≤0.045 |
| S | ≤0.030 |
Mechanical & Physical Properties19:
-
Tensile Strength: ≥480 MPa
-
Yield Strength: ≥177 MPa
-
Elongation: ≥40%
-
Density: 7.9 g/cm³
-
Melting Point: ~1,400°C
-
Thermal Conductivity: 16.3–21.5 W/(m·K) (100–500°C)
2. International Standards
304L tubes comply with diverse global standards for seamless/welded tubes:
| Region | Standard | Scope |
|---|---|---|
| USA | ASTM A312/A269 | Seamless/welded pipes for high-temperature/corrosive service |
| Europe | EN 10216-2 | Technical delivery conditions |
| China | GB/T 20878-2007 | Dimensions, technical requirements |
| Japan | JIS G3459 | Pipes for mechanical applications |
3. Equivalent Grades
304L is designated differently across standards19:
| Region | Equivalent Grade |
|---|---|
| ISO | X2CrNi18-9 / X2CrNi19-11 |
| USA (UNS) | S30403 |
| Europe (DIN) | 1.4306 / 1.4307 |
| Japan (JIS) | SUS304L |
| China (GB) | 022Cr19Ni10 / 00Cr19Ni10 |
4. Packaging Methods
Packaging ensures corrosion protection and transport safety258:
-
Standard: Plastic caps on tube ends, bundled with steel straps (max 2 tons/bundle).
-
Options:
-
Wooden crates (small batches).
-
Antirust oil coating + woven bags.
-
Sealed plastic bags for sanitary applications (e.g., food/pharmaceutical).
-
-
Special: Mirror-polished surfaces wrapped in non-woven fabric to prevent scratches.
5. Applications
304L tubes excel in corrosive and high-purity environments135:
| Industry | Use Cases |
|---|---|
| Chemical/Petrochemical | Reactors, pipelines, heat exchangers |
| Food & Beverage | Sanitary tubing, fermentation tanks |
| Pharmaceutical | Clean gas/liquid transfer systems |
| Energy | Boiler condensers, exhaust systems |
| Construction | Structural components (corrosion-resistant) |
6. Special Processing Options
-
Surface Finishes:
-
Acid pickling, mechanical polishing (180–600# grit), electrolytic polishing56.
-
-
Dimensional Tolerances:
-
Outer diameter: ±0.1 mm; surface roughness: ≤0.6 μm5.
-
-
Customization:
-
Non-standard sizes (e.g., capillary tubes: Ø0.5–6 mm), laser-cut shapes710.
-
Summary Table: Key Features of 304L Stainless Steel Tubes
| Aspect | Details |
|---|---|
| Core Strength | Superior intergranular corrosion resistance |
| Key Standard | ASTM A312 (Global benchmark) |
| Sizes | OD: 1/8"–10" (or 3–630 mm); Thickness: 0.5–25 mm |
| Temperature Range | -196°C to 800°C |
| Welding | No post-weld annealing required |
304L stainless steel tubes balance cost, weldability, and corrosion resistance, making them indispensable for critical industrial infrastructure. When selecting, prioritize standards-compliant suppliers and specify surface finishes/packaging based on application hygiene requirements.
