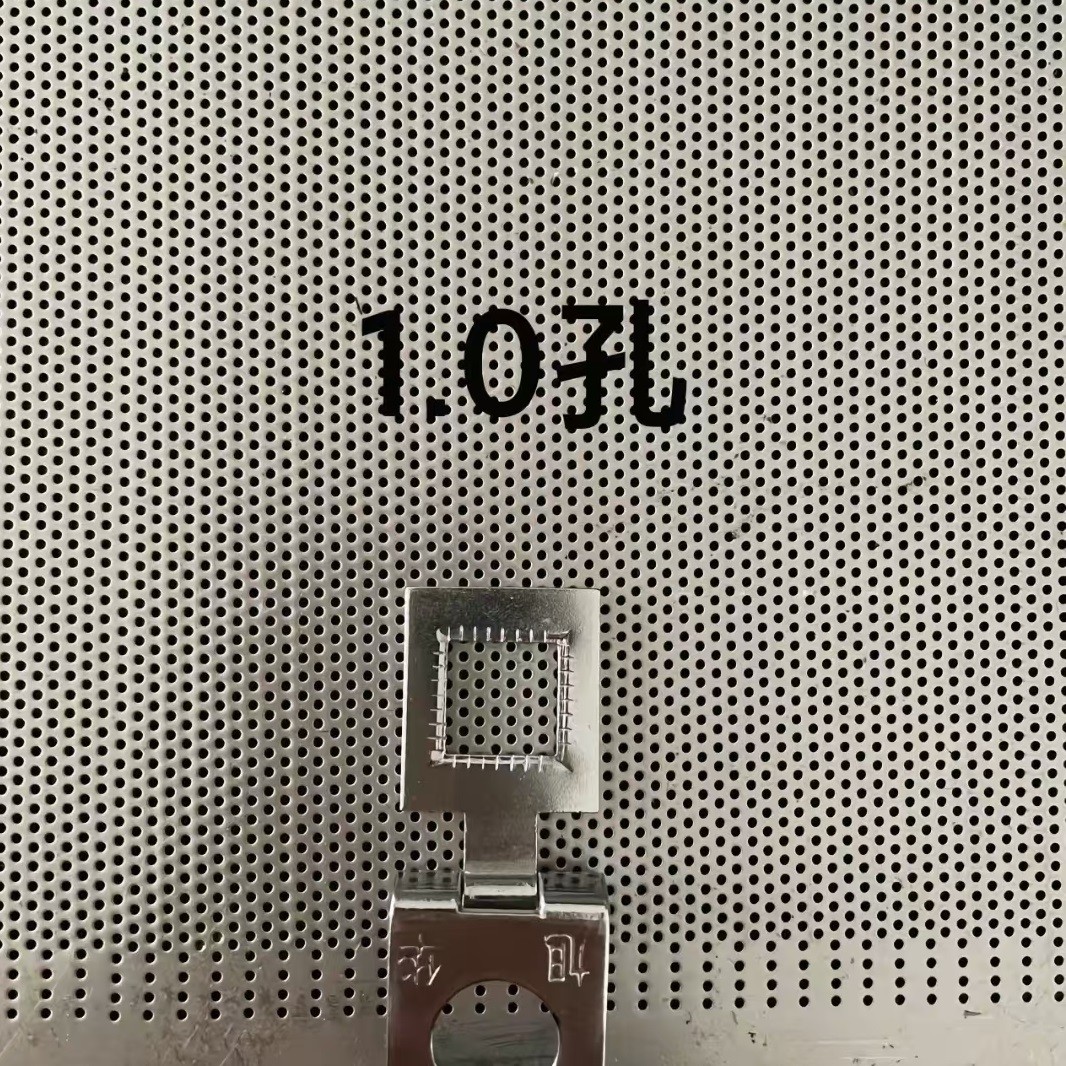

254SMO Stainless Steel Perforated Sheet With Hole Diameter 1.0 - 3.0mm
| Place of Origin | CHINA |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 254SMO |
| Minimum Order Quantity | 20 kgs |
| Price | 10 - 12 USD/Kg |
| Packaging Details | standard export packing |
| Delivery Time | 5 - 12 days |
| Payment Terms | T/T |
| Supply Ability | 3 ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Stainless Steel Perforated Sheet | Grade | 254SMO / S31254 |
|---|---|---|---|
| Thickness | 0.4 - 3.0mm | Hole Diameter | 0.1 - 3.0mm |
| Standard Size | 1219*2438mm | Surface | 2B |
| Other Grade | 304 304L 309S 310S 321 316L 254SMO 253MA 2205 2507 904L.etc |
Product Description
254SMO Stainless Steel Perforated Sheet With Hole Diameter 1.0 - 3.0mm
Products Specification:
| Product Name | Stainless Steel Perforated Sheet |
| Grade | 201 304L 304 309S 310S 321 317L 316L 316Ti 2205 2507 904L 254SMO 409L 436 441.etc |
| Hole Shape | Diamond, Round, Square, Hexagon |
| Size for mesh panel | 1000*2000mm, 1200*2400mm, 1250mm*2500mm, as customized |
| Hang Thickness | 0.3mm-10mm |
| Hole Size | Diameter 0.1 - 10.0mm |
| Techniqe | Perforated |
| Application | Office Ceiling, Building protection, Indoor decoration |
Material Overview
Our 254SMO Perforated Mesh Plate is crafted from Super Austenitic Stainless Steel (UNS S31254), renowned for its exceptional corrosion resistance. Containing high levels of molybdenum (6%), nitrogen, and chromium (20%), 254SMO outperforms standard stainless steels in harsh environments, resisting pitting, crevice corrosion, and stress corrosion cracking. This makes it ideal for applications where durability and longevity are critical.
Technical Specifications
- Material Grade: 254SMO (UNS S31254)
- Thickness: Ranges from 0.5mm to 6mm, customizable to meet specific project requirements
- Hole Patterns: Standard patterns include round, square, slot, hexagonal, and custom designs upon request
- Hole Sizes: Diameters or side lengths vary from 0.5mm to 50mm, ensuring flexibility for different filtration, ventilation, and aesthetic needs
- Plate Sizes: Available in various dimensions, with the maximum size up to 2000mm x 6000mm; cut-to-size options are also provided
Product Advantages
- Superior Corrosion Resistance: Withstands aggressive chemicals, seawater, and chloride-rich atmospheres, extending service life even in the most challenging conditions.
- High Strength & Durability: Offers excellent mechanical properties, maintaining structural integrity under heavy loads and extreme temperatures.
- Versatile Design: Customizable hole patterns and sizes enable applications ranging from industrial filtration to architectural facades.
- Easy Maintenance: Smooth surface reduces debris accumulation, facilitating effortless cleaning and upkeep.
- Aesthetic Appeal: Provides an attractive, modern look, enhancing both functionality and visual appeal in architectural projects.
Applications
- Chemical Processing: Used in reactors, heat exchangers, and filtration systems, where exposure to corrosive chemicals is frequent.
- Marine Engineering: Ideal for shipbuilding, offshore platforms, and coastal structures due to its outstanding resistance to seawater corrosion.
- Food & Beverage Industry: Meets hygiene standards for food processing equipment, ensuring product safety and compliance.
- Architectural Projects: Enhances building facades, sunshades, and interior partitions with a combination of style and functionality.
- Air Filtration: Effectively filters dust, debris, and pollutants in ventilation systems, improving air quality.
Customization Services
We offer comprehensive customization options, including custom hole patterns, special surface treatments (such as polishing, electroplating), and non-standard sizes, to perfectly match your unique project needs.
Quality Assurance
All 254SMO Perforated Mesh Plates undergo strict quality control processes, including material testing, dimensional inspection, and corrosion resistance testing. Each batch is accompanied by a Mill Test Certificate, ensuring compliance with international standards such as ASTM and EN.
For inquiries, quotes, or to discuss your specific requirements, please contact our sales team. We are committed to providing high-quality products and excellent customer service to meet your project goals.
