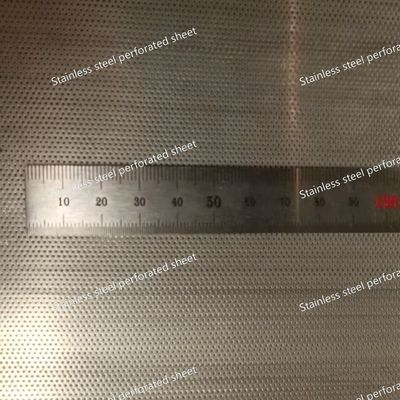

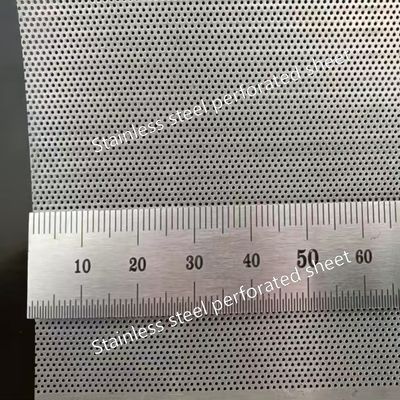

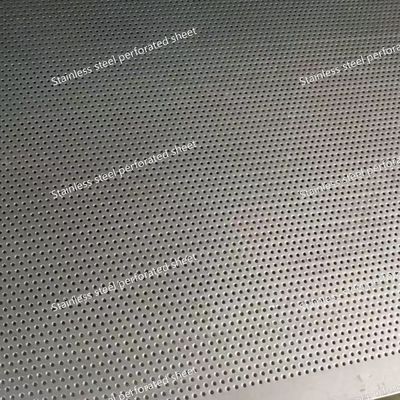

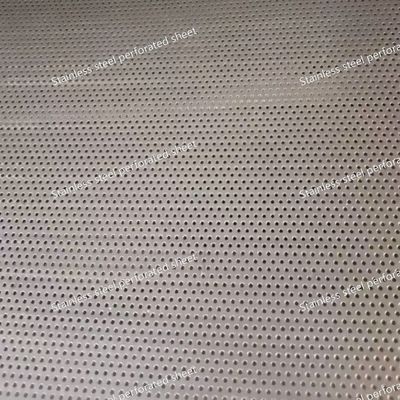

Duplex 2205 / S31803 / 1.4462 Stainless Steel Perforated Sheet With Small Diameter Round Hole 0.4mm 0.5mm 0.6mm 0.8mm for Chemail Area
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 304 316L 2205 2507 904L 254SMO.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 2100 - 3200 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Micro Perforated Sheet | Grade | 304 316L 2205 2507 904L 254SMO.etc |
|---|---|---|---|
| Hole Diameter | 0.1 - 10.0mm | Size | 1000*2000mm 1219*2438mm 1500*3000mm |
| Thickness | 0.3 - 3.0mm | Type | Cold Rolled |
| Surface | 2B | Application | Industrial |
| Packing | Wooden Pallets |
Product Description
Duplex 2205 / S31803 / 1.4462 Stainless Steel Perforated Sheet With Small Diameter Round Hole 0.4mm 0.5mm 0.6mm 0.8mm for Chemail Area
Products Specification:
| Product Name | Stainless Steel Perforated Sheet |
| Grade | 201 304L 304 309S 310S 321 317L 316L 316Ti 2205 2507 904L 254SMO 409L 436 441.etc |
| Hole Shape | Diamond, Round, Square, Hexagon |
| Size for mesh panel | 1000*2000mm, 1200*2400mm, 1250mm*2500mm, as customized |
| Hang Thickness | 0.3mm-10mm |
| Hole Size | Diameter 0.1 - 10.0mm |
| Techniqe | Perforated |
| Application | Office Ceiling, Building protection, Indoor decoration |
2205 Dual Phase Stainless Steel Perforated Plate Product Information
Product Overview
Our 2205 dual phase stainless steel perforated plates are fabricated by leveraging the unique characteristics of 2205 stainless steel, a duplex alloy that combines the advantages of austenitic and ferritic stainless steels. The plates feature precisely punched holes in various patterns, providing customized solutions for multiple industrial and engineering applications.
Parameters of Duplex 2205 Stainless Steel Perforated Sheets
- Material Composition: 2205 dual phase stainless steel consists of approximately 22% chromium, 5.5% nickel, 3% molybdenum, 0.15% nitrogen, with a balanced ferrite-austenite microstructure. This composition endows it with excellent resistance to chloride stress corrosion cracking, pitting, and crevice corrosion.
- Tensile Strength: ≥800 MPa, ensuring high mechanical strength to withstand heavy loads and harsh working conditions.
- Yield Strength: ≥550 MPa, offering remarkable structural stability and durability.
- Elongation: ≥25%, providing certain formability during processing while maintaining strength.
- Density: 7.8 g/cm³, which contributes to its lightweight yet sturdy nature.
Specifications of Duplex 2205 Stainless Steel Perforated Sheets
- Thickness: Available from 0.5mm to 8.0mm, meeting different load-bearing and design requirements.
- Hole Patterns: A diverse range of patterns including round holes (diameter 1mm - 60mm), square holes (side length 2mm - 60mm), slot holes (width 2mm - 15mm, length customizable), and special custom patterns according to client needs.
- Plate Sizes: Standard sizes range from 1220mm×2440mm to 1500mm×6000mm, and non - standard sizes can be tailored to specific project specifications.
- Surface Finish: Options include 2B (smooth cold - rolled finish), BA (bright annealed), sandblasted finish, and brushed finish, enhancing both functionality and visual appeal.
Advantages of Duplex 2205 Stainless Steel Perforated Sheets
- Exceptional Corrosion Resistance: With a unique dual - phase microstructure and specific alloying elements, 2205 stainless steel demonstrates superior resistance to a wide range of corrosive media, such as seawater, chloride - containing solutions, and various acids and alkalis. It is highly suitable for use in highly corrosive environments like marine and chemical processing industries.
- High Strength and Toughness: Combining the high strength of ferritic stainless steel and the good toughness and ductility of austenitic stainless steel, 2205 dual phase stainless steel perforated plates can endure significant mechanical stress and impact, reducing the risk of deformation and breakage, and ensuring a long service life.
- Cost - effectiveness: Although with excellent performance, compared with some high - alloy austenitic stainless steels, 2205 dual phase stainless steel offers a better cost - performance ratio. Its high strength allows for thinner plate usage in some applications, reducing material costs while maintaining performance requirements.
- Good Weldability: It has good welding performance, which enables easy fabrication and assembly during construction and manufacturing processes, facilitating the creation of complex structures and components.
Corresponding Standards and Grades
- Standards: Complies with international standards such as ASTM A240/A240M (for pressure vessels and general - purpose applications), EN 10088 - 2 (European standard for stainless steels), and JIS G4305 (Japanese industrial standard).
- Grades: Internationally recognized grades include ASTM S32205, EN 1.4462, and JIS SUS329J3L.
Applications of Duplex 2205 Stainless Steel Perforated Sheets
- Marine Engineering: Widely used in shipbuilding, offshore platforms, and marine equipment, providing reliable protection against seawater corrosion and ensuring the structural integrity of marine structures.
- Chemical Processing: Applied in chemical reactors, heat exchangers, pipelines, and storage tanks in chemical plants, handling various corrosive chemicals with high efficiency and safety.
- Petrochemical Industry: Used for equipment and components in oil refineries, gas processing plants, and petrochemical facilities, withstanding harsh operating conditions and corrosive media in the petrochemical environment.
- Desalination Plants: Ideal for components in desalination systems, where it can resist the corrosion of seawater and high - salt - concentration solutions, ensuring the stable operation of desalination equipment.
- Paper and Pulp Industry: Employed in equipment such as digesters, bleach plants, and paper machines, enduring the corrosive effects of chemicals and pulp slurries in the papermaking process.
