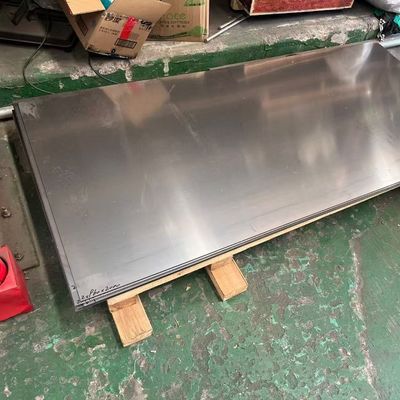

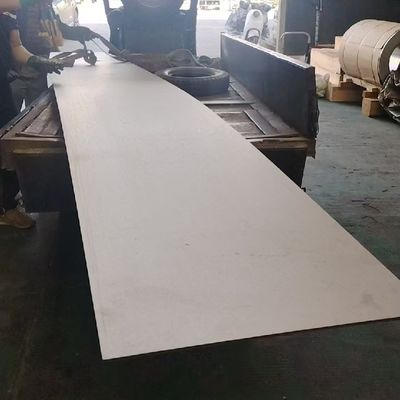

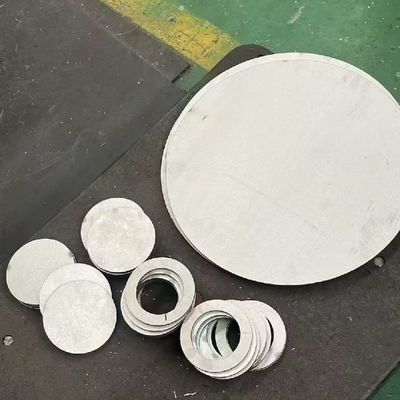

6mm 8mm 10mm 12mm Thickness Hastelloy C276 Plate Laser Cutting Round Square Irregular Shape
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | hastelloy C276 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Plate | Grade | Hastelloy C276 |
|---|---|---|---|
| Thickness | 1.0 - 20.0mm | Width | 1000mm 1219mm 1500mm |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | 2B NO.1 |
| Highlight | 10mm Thickness Hastelloy C276 Plate,12mm Thickness Hastelloy C276 Plate,8mm Thickness Hastelloy C276 Plate |
||
Product Description
6mm 8mm 10mm 12mm Thickness Hastelloy C276 Plate Laser Cutting Round Square and Irregular Shape
Products Specification
| Product Type | Hastelloy C276 ASTM B575 Sheet, Hastelloy C276 ASTM B575 Plate |
|---|---|
| Specification | ASTM B575 / ASME SB575 |
| Tolerances (width / thickness) |
|
| Dimensions |
|
| Thickness | 1.0 - 25.0mm |
| Width | 10 - 1500mm |
| Length | 2m, 2.44m, 3m, or as required |
| Finish | SATIN, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled, 1D, No.4, BA, 8K, hairline, brush, mirror etc. |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard |
| variety of shapes | Coils, Foils, Plates, Sheet, Strip, Plain Sheet, Checker Plates, Rolling Sheet, Flats, Clad Plates, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), Rolling Plates, Flat Shim, soft annealed, descaled, tread Plates, sheared, annealed |
Description of Hastelloy C276
Hastelloy C-276 is a nickel-molybdenum-chromium-tungsten alloy with excellent general corrosion resistance and good fabricability. The alloy should be considered for use in environments where resistance to hot contaminated mineral acids, organic and inorganic chloride-contaminated media, chlorine, formic and acetic acids, acetic , acetic anhydride, sea water and brine solutions is desired.
Hastelloy C-276 has resisted the formation of grain boundary precipitates in the weld heat-affected zone, making it a candidate for most chemical and petrochemical processing applications in the as-welded condition. The alloy has resisted both general and localized corrosion, including pitting, crevice corrosion, and stress corrosion cracking.
Hastelloy C-276 is readily fabricated by welding, using methods similar to those utilized for nickel-based alloys.

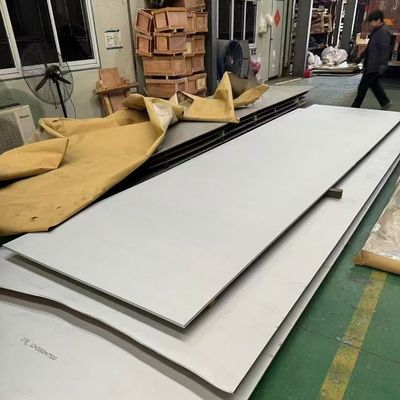

Our Hastelloy C276 Sheet and Plate in Stock
Cold Rolled Hastelloy C276 Sheet
- Thickness: 1.0mm ,1.2mm,1.5mm,2.0mm,2.5mm,3.0mm
- Standard Size: 1219*2438mm(4ft*8ft)
Hot Rolled Hastelloy C276 Plate
- Thickness: 4.0mm,5.0mm,6.0mm,8.0mm,10.0mm,12.0mm,14.0mm,16.0mm,20.0mm,25.0mm
- Standard Size: 1500*6000mm, custom laser cutting any size as request
Forged Hastelloy C276 Plate
- Thickness: >25.0mm custom as request
- Size: any size as request
Small MOQ Quantity at least 2KG
Standard Specifications
- Plate, Sheet & Strip: ASTM B575, ASME SB575
- Rod & Bar: ASTM B574, ASME SB574
- Seamless Pipe & Tube: ASTM B622, ASME SB622
- Welded Pipe & Tube: ASTM B619, ASME SB619
- Fittings: ASTM B366, ASME SB366
- Forgings: ASTM B564, ASME SB564
- Technischer Überwachungsverein (TÜV): Werkstoffblatt 400, Kennblatt 320, Kennblatt 319
- Others: NACE MR0175, ISO 15156
Hastelloy C276 Composition
The chemical makeup of Hastelloy C276 is what provides its robust resistance to corrosion and its mechanical strength. The alloy primarily consists of the following chemical composition range as defined in ASTM B574 specification:
- 57% – Nickel (Ni)
- 15% – 17% – Molybdenum (Mo)
- 14.5 – 16.5% – Chromium (Cr)
- 4% – 7% – Iron (Fe)
- 3% – 4.5% – Tungsten (W)
- ≤2.5% – Cobalt (Co)
- ≤1% – Manganese (Mn)
- ≤0.35% – Vanadium (V)
- ≤0.04% – Phosphorus (Ph)
- ≤0.03% – Sulfur (S)
- ≤0.010% – Carbon (C)
