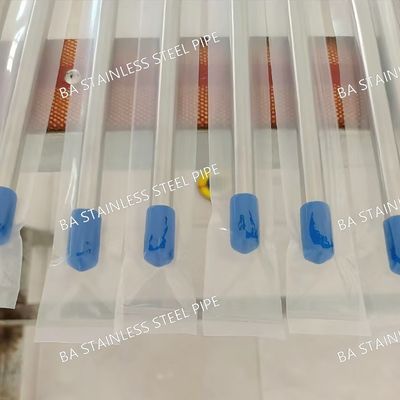

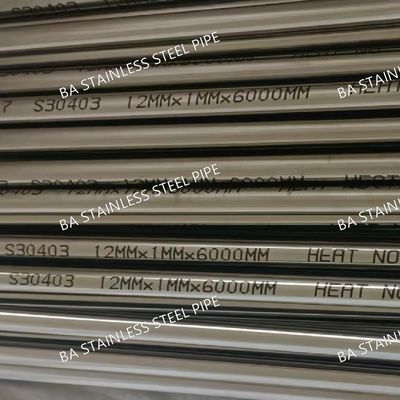

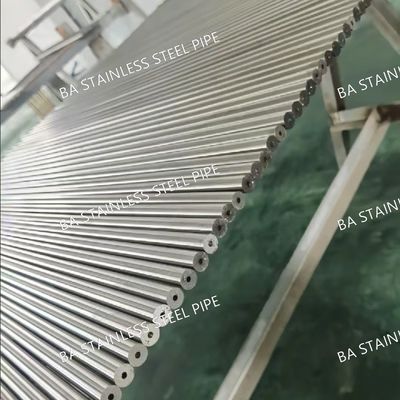

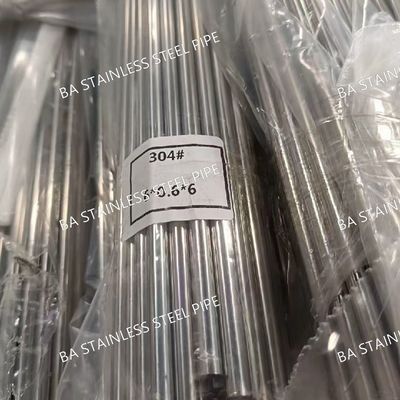

ASTM A269 TP304 BA Stainless Steel Pipe 6*0.6mm/6*1mm/8*1.0mm ±0.03mm Tolerance in 6m Length
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316L 321 310S 314 347 2205 2507 904L.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | BA Stainless Steel Pipe | Grade | 304 316L 321 2205 310S 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or As Request |
| Diameter | 6 - 219mm Or As Clients Request | Wall Thickness | 0.4 - 8.0mm |
| Type | Seamless Pipe | Service | Cutting |
| Other Shape | Square, Rectangle | ||
| Highlight | BA Stainless Steel Pipe,8*1.0mm Stainless Steel Pipe,6*0.6mm Stainless Steel Pipe |
||
Product Description
ASTM A269 TP304 BA Stainless Steel Pipe 6*0.6mm / 6*1.0mm / 8*1.0mm ±0.03mm Tolerance in 6m Length
Products Specification
| Standard | ASTM A213, ASTM A269, ASME SA213, ASME SA269 |
| Pipe Type | Bright Annealed Stainless Steel Tubing |
| Grades | 304, 304L, 316, 316L, 321, 310S, 2205, 2507 |
| Dimensions | Outer Diameter (OD): 1.00 mm to 76.2 mm |
| Wall Thickness | 0.2 mm to 6.0 mm |
| Length | Up to 12 meters (custom lengths available upon request) |
| Manufacturing Process | Cold Drawn, Bright Annealed, Seamless |
| Material Surface Finish | Bright Annealed (BA), Mirror Polished, No. 4 Finish |
| End Type | Plain End (PE), Beveled End (BE), Threaded End (TE) |
| Certifications | ISO 9001, EN 10204 3.1 / 3.2, PED, ASME |
BA Stainless Steel Tube is a part of stainless steel annealing process which is conducted in atmosphere of hydrogen protection or vacuum. The thermal process technology delivers resistance to oxidation and certain brightness to surface. Therefore, inner surface roughness is less than 0.4μm, and outer surface is less than 0.6μm.This product is the time-verified pipe fitting for ultra-pure and special gas piping system. It also finds extensive applications in industries of photoelectricity, semi-conductor, solar chemical, medicine and food, etc. Furthermore, BA pipe is the base material for EP pipe.
More Specification of Bright annealed Stainless steel pipe
| Outside Diameter (OD) | 6.35 to 44.5mm, Other Sizes as Per Requested |
| Wall Thickness (WT) | 0.71 to 3.05 mm, Other Sizes as Per Requested |
| Type | Seamless, Round Tubes |
| Delivery Condition | Annealed and Pickled, Stress Relived, Hardened, Tempered, Cold Drawn or Cold rolled |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Beveled End, Treaded |
| Outside Finish | Electropolish, Bright Annealed, Passivated, Mechanical Polished as per customer Requirements |
| Material Certifications | Manufacture Test Certificates EN10204 3.2; Third Party Inspection SGS, TUV, DNV, LLORDS, ABS etc. |
| Packing | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
BA stainless steel pipe, also known as stainless steel clean pipe, bright annealed pipe or welded pipe (seamless pipe), is a special type of stainless steel pipe. Its inner surface is very smooth, but it is not achieved through polishing technology, but through a specific manufacturing process. This smooth surface has a certain finish, making the inside of the pipe very neat. In addition, BA stainless steel pipes are weldable.
BA stainless steel pipes are usually made of high-quality materials such as 304 precision stainless steel pipes or 316L materials, and are mainly used to transport special gases and fluid media. Because its internal surface is smooth, it is not easy for particles in the medium to stay and accumulate. It is especially suitable for use in clean workshops, biopharmaceuticals, clean laboratories, high-purity gases, and liquid crystal displays. In these environments with high purity requirements, BA stainless steel pipes show their unique advantages.
Advantages of Using Bright-Annealed Stainless Steel
Bright-annealed stainless steel pipes and tubes have several advantages over other materials:
- TheyThey are extremely durable and can withstand harsh environments, making them ideal for industrial applications.
- They are corrosion-resistant, making them suitable for use in corrosive environments.
- They are highly flexible, allowing for easy fabrication and installation.
- They have an aesthetically pleasing appearance, making them suitable for architectural applications.
