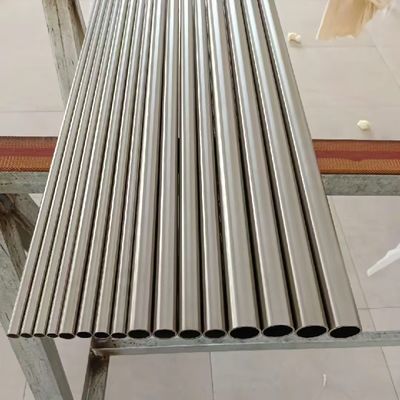

SMLS Stainless Steel Pipe Bright Annealed TP316L / 316L / 1.4404 For Instruments And Apparatus
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316L 321 310S 314 347 2205 2507 904L.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | BA Stainless Steel Pipe | Grade | 304 316L 321 2205 310S 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or As Request |
| Diameter | 6 - 219mm Or As Clients Request | Wall Thickness | 0.4 - 8.0mm |
| Type | Seamless Pipe | Service | Cutting |
| Other Shape | Square, Rectangle | ||
| Highlight | 1.4404 Stainless Steel Pipe,SMLS Stainless Steel Pipe,Instruments Bright Annealed Stainless Steel Pipe |
||
Product Description
SMLS Stainless Steel Pipe Bright Annealed TP316L / 316L / 1.4404 For Instruments And Apparatus
Products Specification
| Standard | ASTM A213, ASTM A269, ASME SA213, ASME SA269 |
| Pipe Type | Bright Annealed Stainless Steel Tubing |
| Grades | 304, 304L, 316, 316L, 321, 310S, 2205, 2507 |
| Dimensions | Outer Diameter (OD): 1.00 mm to 76.2 mm |
| Wall Thickness | 0.2 mm to 6.0 mm |
| Length | Up to 12 meters (custom lengths available upon request) |
| Manufacturing Process | Cold Drawn, Bright Annealed, Seamless |
| Material Surface Finish | Bright Annealed (BA), Mirror Polished, No. 4 Finish |
| End Type | Plain End (PE), Beveled End (BE), Threaded End (TE) |
| Certifications | ISO 9001, EN 10204 3.1 / 3.2, PED, ASME |
What are Bright-Annealed Stainless Steel Pipes and Tubes?
Bright-annealed (BA) stainless steel pipe tubes are highly corrosion resistant, with a bright finish and precise tolerance. The high quality of the product is achieved by exposing the material to an extremely reducing atmosphere created in a controlled roller hearth furnace. This process gives the product superior surface reflectivity and excellent durability and strength even under corrosive attack. The result is an ultra-smooth, layer-free surface that withstands repeated washings and intense wear or abrasion. BA stainless steel pipes and tubes offer excellent ease of cleaning due to their zero porosity, thus eliminating any bacterial growth which could cause hygiene problems in medical plants or food processing facilities. These products also have high ductility, allowing them to be cold formed into complex shapes for use in various applications such as tubing for heat exchangers, condensers, evaporators, etc., thus providing cost-effective solutions for modern engineering requirements.
| Types | Out diameter | Sizes | Length |
|---|---|---|---|
| NB Sizes (in stock) | .0035” ~ 8” | 1/8", 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1.25", 1.5", 2", 2.5", 3", 4", 5", 6" | Cut to length |
| Stainless Steel 316L Seamless Tube (Custom Sizes) | 6.35 OD To 101.6 mm OD | As per requirement | Cut to length |
| Stainless Steel 316L Welded Tube (ERW Tube) (in Stock + Custom Sizes) | 6.35 OD To 152 mm OD | As per requirement | Cut to length |
Stainless Steel 316L Seamless Tubes Surface Finish
| Surface Finish | Internal Surface(ID) | Exterbal Surface(OD) | |||
| Roughness Average(RA) | Roughness Average(RA) | ||||
| μ inch | μm | μ inch | μm | ||
| AP | Annealed & Pickled | Not defined | Not defined | 40 or Not defined | 1.0 or Not defined |
| BA | Beight Annealed | 40,32,25,20 | 1.0,0.8,0.6,0.5 | 32 | 0.8 |
| MP | Mechanical Polish | 40,32,25,20 | 1.0,0.8,0.6,0.5 | 32 | 0.8 |
| EP | Electro Polish | 15,10,7,5 | 0.38,0.25,0.20;0.13 | 32 | 0.8 |
Applications of Bright-Annealed Stainless Steel
Bright-annealed stainless steel pipes and tubes are used in various industries, including automotive, aerospace, medical, and construction. In the automotive and aerospace industries, they are used in exhaust systems, fuel lines, and hydraulic systems because of their high strength and resistance to corrosion. In the medical industry, they are used in medical equipment, such as surgical instruments and implants, because of their biocompatibility and resistance to corrosion. They are used in architectural structures in the construction industry, such as handrails and fittings, because of their durability and resilience.
Advantages of Using Bright-Annealed Stainless Steel
Bright-annealed stainless steel pipes and tubes have several advantages over other materials:
- TheyThey are extremely durable and can withstand harsh environments, making them ideal for industrial applications.
- They are corrosion-resistant, making them suitable for use in corrosive environments.
- They are highly flexible, allowing for easy fabrication and installation.
- They have an aesthetically pleasing appearance, making them suitable for architectural applications.
