UNS N08904 Alloy 904L Stainless Steel Sheet Plate Thickness 0.5 - 16.0mm Laser Cutting
| Place of Origin | China |
|---|---|
| Brand Name | TISCO BAOSTEEL |
| Certification | ISO |
| Model Number | 904L |
| Minimum Order Quantity | 500 kgs |
| Price | 2100-2500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Plate | Grade | 904L |
|---|---|---|---|
| Width | 1500mm 1219mm 1000mm | Surface | NO.1 2B |
| Brand | POSCO TISCO BAOSTEEL | Standard | ASTM A240/240M |
| Loading Port | Shanghai Port | Thickness | 0.6 - 30.0mm |
| Highlight | Laser Cutting Stainless Steel Sheet,Alloy 904L Stainless Steel Sheet,UNS N08904 Stainless Steel Sheet |
||
Product Description

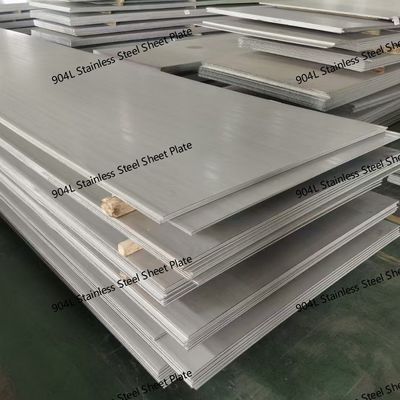

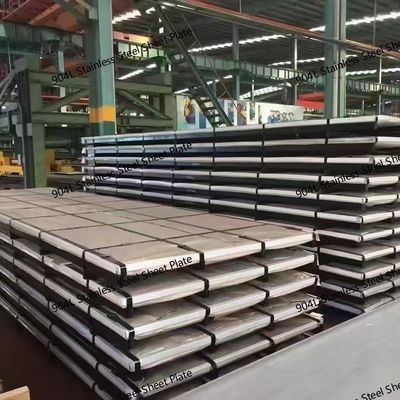

UNS N08904 Alloy 904L Stainless Steel Sheet Plate Thickness 0.5 - 16.0mm Laser Cutting
Products Specification
| Product name | 904L Stainless steel plate |
| Standard | GB,JIS,DIN,AISI,ASTM,AISI,ASME |
| Thickness | 0.6 - 30.0mm |
| Width | 1219 ,1500mm, or as your requirements |
| Length | 3000,6000mm, or as your requirements |
| MOQ | 1MT |
| Surface | 2B NO.1 HL NO.4 8K |
| Other Grade |
201 304 304L 309S 310S 316L 317L 316LN 321 347 329 409L 410 415 416 420 430 431 436L 439 440A/B/C 444 446 904L 2205 2507 254SMO 253MA ,1.4539,1.4828 Monel400 k500, Inconel 600,601,625,718, Incoloy 800 800H,C276.etc |
| Packing | standard export packing (inside:water proof paper,outside:steel covered with strips and pallets) |
| Cargo ready date | within 25-35 days after confirming orders |
| Delivery Time | About 5-7 days after receive the deposit. |
904L stainless steel plate introduction
904L stainless steel is a high-alloy austenitic stainless steel known for its excellent corrosion resistance and high strength, especially in sulfuric acid environments. Its low carbon content and high molybdenum, nickel, chromium content make it have excellent corrosion resistance in a variety of corrosive media.
Main parameter of 904L Stainless Steel Plate
Chemical composition (typical value, %) :
- Carbon (C) : ≤0.02
- Silicon (Si) : ≤1.00
- Manganese (Mn) : ≤2.00
- Phosphorus (P) : ≤0.045
- Sulfur (S) : ≤0.035
- Chromium (Cr) : 19.0-23.0
- Nickel (Ni) : 23.0-28.0
- Molybdenum (Mo) : 4.0-5.0
- Copper (Cu) : 1.0-2.0
Mechanical properties of 904L Stainless Steel Plate
- Tensile strength: ≥490 MPa
- Yield strength: ≥220 MPa
- Elongation: ≥35%
- Hardness: ≤90 HRB
Standard of 904L Stainless Steel Plate
904L stainless steel plates meet the following standards:
- ASTM A240/A240M: Chromium and chromel stainless steel sheets, sheets and strips for pressure vessels and general purpose.
- EN 1.4539: the European standard, corresponding to UNS N08904.
- UNS N08904: United States Uniform Numbering System.
Specification of 904L Stainless Steel Plate
- Thickness: 0.6mm-30mm
- Width: 1000mm-2000mm
- Length: 2000mm-6000mm
Peculiarity of 904L Stainless Steel Plate
- Corrosion resistance: Excellent performance in strong corrosive media such as sulfuric acid, phosphoric acid and acetic acid.
- High strength: high alloy composition gives it good mechanical properties.
- Weldability: Good welding performance, no heat treatment after welding.
- High temperature resistance: It still maintains good corrosion resistance and mechanical properties at high temperatures.
Apply of 904L Stainless Steel Plate
- 904L stainless steel plate is widely used in the following fields:
- Chemical industry: Used to manufacture reactors, heat exchangers, storage tanks, etc.
- Oil and gas: Used on offshore platforms, pipelines and valves.
- Pharmaceutical industry: for production equipment and storage tanks.
- Food processing: Equipment for contact with acidic foods.
- Environmental protection project: used for flue gas desulfurization equipment and waste water treatment equipment.
With its excellent corrosion resistance and mechanical properties, 904L stainless steel plate is widely used in many industrial fields, especially in strong corrosion environments.
