Inconel 600 Plate Sheet UNS N06600 Thickness 0.5 - 16.0mm 4ft*8ft /5ft*10ft
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | UNS N08810 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Plate | Grade | UNS N06600 |
|---|---|---|---|
| Thickness | 0.5 - 16.0mm | Width | 1000mm 1219mm 1500mm |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | 2B NO.1 |
| Highlight | 4ft*8ft Inconel 600 Plate Sheet,16.0mm Inconel 600 Plate Sheet,UNS N06600 Inconel 600 Plate Sheet |
||
Product Description

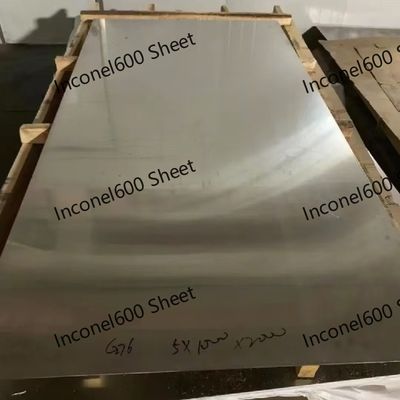

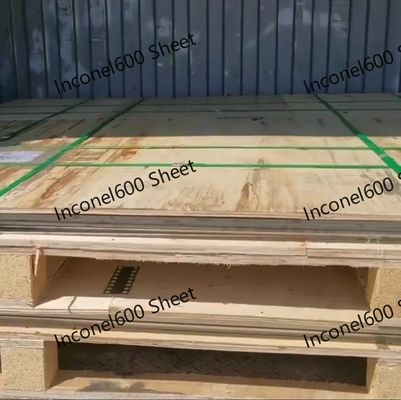

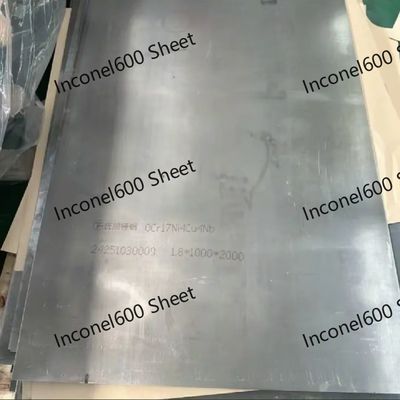

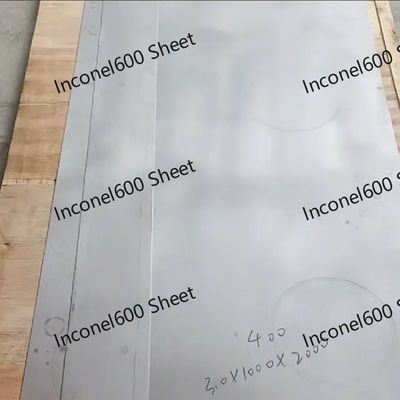

Inconel 600 Plate Sheet UNS N06600 Thickness 0.5 - 16.0mm 4ft*8ft /5ft*10ft
Products Specification
| Product Name | UNS 06600 Nickel Alloy Plate |
|---|---|
|
Standard |
ASTM EN DIN GB JIS |
| Thickness |
Cold Rolled: 0.6mm,0.8mm,1.0mm,1.2mm,1.5mm,2.0mm,2.5mm,3.0mm Hot Rolled:4.0mm,5.0mm,6.0mm,8.0mm,10.0mm,12.0mm,14.0mm,16.0mm,20.0mm Forged : 20 - 200mm custom any size as request |
| Standard Size |
Cold rolled Sheet 1219*2438mm Hot rolled Plates 1500*6000mm |
| Main Grade | 600,601,625,718,800,800H,800HT,926,C276,C4,Monel400 K500 904L 254SMO 654SO 317L.etc |
| Service | Laser Cutting any size as request |
| Other Products | Coil, Sheet, Plate, Wire, Round Bar, Square Bar,Pipe,Tube.etc |
Inconel 600 is a nickel-chromium alloy with excellent corrosion resistance, high temperature strength and oxidation resistance. It is widely used in high temperature and corrosive environments.
Chemical composition of Inconel 600 Plate
- Nickel (Ni): ≥72%
- Chromium (Cr): 14-17%
- Iron (Fe): 6-10%
- Manganese (Mn): ≤1.0%
- Copper (Cu): ≤0.5%
- Carbon (C): ≤0.15%
- Silicon (Si): ≤0.5%
- Sulfur (S): ≤0.015%
Physical properties of Inconel 600 Plate
- Density: 8.47 g/cm³
- Melting point: 1354-1413°C
- Coefficient of thermal expansion: 13.3µm /m°C (20-100°C)
- Thermal conductivity: 14.9 W/m·K (100°C)
- Resistivity: 1.12µΩ ·m (20°C)
Mechanical properties of Inconel 600 Plate
- Tensile strength: ≥550 MPa
- Yield strength: ≥240 MPa
- Elongation: ≥30%
Standard of Inconel 600 Plate
- ASTM B168: Standard Specification for nickel-chromium iron Alloy Plates, Sheets, and strips
- AMS 5540: Nichrome plates, sheets and strips
- DIN 17750: Nickel and nickel alloy plates, sheets and strips
Peculiarity of Inconel 600 Plate
- Corrosion resistance: Performs well in high temperature and corrosive environments.
- High temperature strength: maintain high mechanical strength at high temperatures.
- Oxidation resistance: It has good antioxidant properties in high temperature oxidation environment.
- Good workability: easy to process and weld.
Advantage of Inconel 600 Plate
- Wide application: Suitable for a variety of high temperature and corrosive environment.
- Long life: It can maintain long-term stable performance under harsh conditions.
- Versatility: Can be used in a variety of industrial applications.
Apply of Inconel 600 Plate
- Aerospace: Used in the manufacture of high-temperature components such as turbine blades and combustion chambers.
- Chemical: For the manufacture of reactors, heat exchangers and pipes.
- Nuclear industry: Used to manufacture nuclear reactor components.
- Heat treatment: Used to manufacture heat treatment equipment and fixtures.
- Electronics: Used to manufacture electronic components and semiconductor devices.
Inconel 600 boards are the material of choice in many industrial fields due to their excellent performance and wide range of applications.
