UNS N08810 Nickel Alloy Plate Sheet Alloy 800H / 800HT
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | UNS N08810 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Plate | Grade | UNS N08810 |
|---|---|---|---|
| Thickness | 1.0 - 20.0mm | Width | 1000mm 1219mm 1500mm |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | 2B NO.1 |
| Highlight | Alloy 800H Nickel Alloy Plate,Sheet Alloy 800H Nickel Alloy Plate,UNS N08810 Nickel Alloy Plate |
||
Product Description

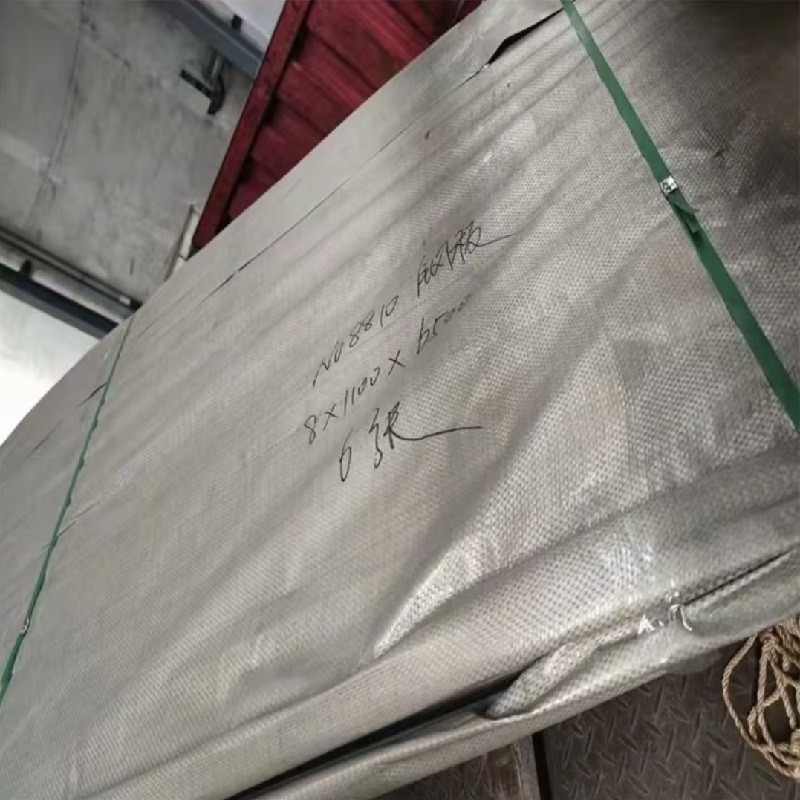

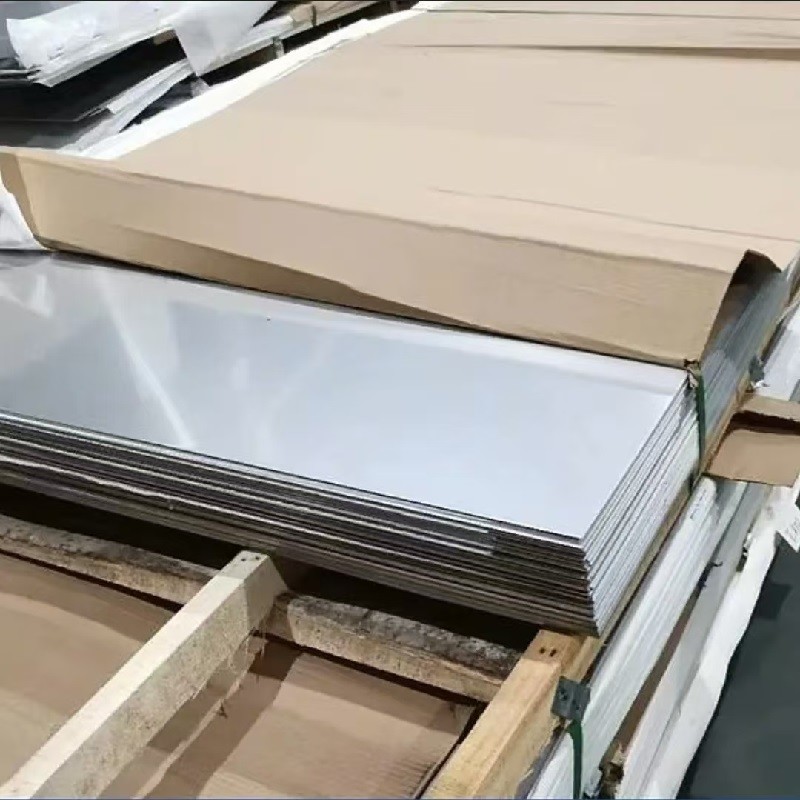

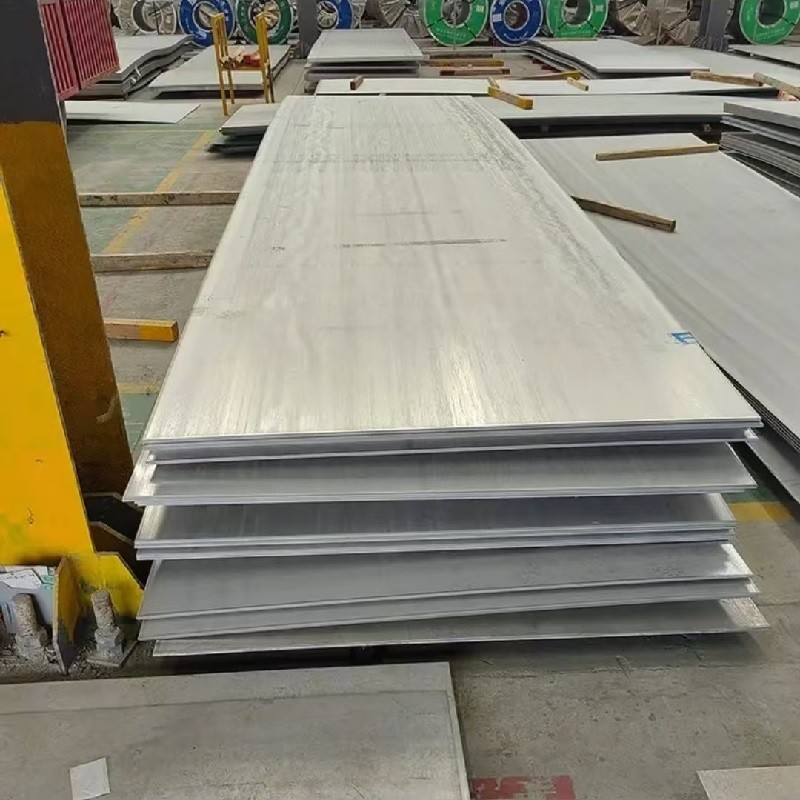

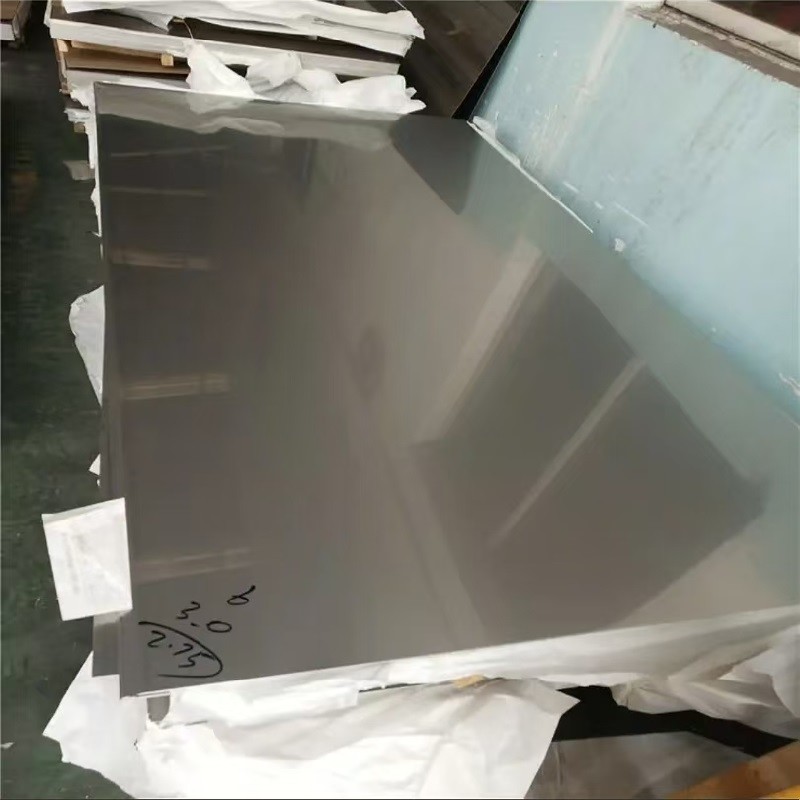

UNS N08810 Nickel Alloy Plate ,Sheet Alloy 800H / 800HT
Products Specification
| Product Name | UNS N08810/ 800H Nickel Alloy Plate |
|---|---|
|
Standard |
ASTM EN DIN GB JIS |
| Thickness |
Cold Rolled: 0.6mm,0.8mm,1.0mm,1.2mm,1.5mm,2.0mm,2.5mm,3.0mm Hot Rolled:4.0mm,5.0mm,6.0mm,8.0mm,10.0mm,12.0mm,14.0mm,16.0mm,20.0mm Forged : 20 - 200mm custom any size as request |
| Standard Size |
Cold rolled Sheet 1219*2438mm Hot rolled Plates 1500*6000mm |
| Service | Laser Cutting any size as request |
| Other Products | Coil, Sheet, Plate, Wire, Round Bar, Square Bar,Pipe,Tube.etc |
UNS N08810 This section describes UNS N08810
UNS N08810 is a nickel-iron-chromium alloy, also known as Incoloy 800H. It has excellent high temperature strength, oxidation resistance and corrosion resistance, and is widely used in high temperature and corrosive environments.
Main parameter of UNS N08810 Plate
Chemical composition (typical value, %) :
- Nickel (Ni): 30.0-35.0
- Chromium (Cr): 19.0-23.0
- Iron (Fe): 39.5 min
- Carbon (C): 0.05-0.10
- Manganese (Mn): ≤1.5
- Silicon (Si): ≤1.0
- Copper (Cu): ≤0.75
- Aluminum (Al): ≤0.60
- Titanium (Ti): ≤0.60
- Sulfur (S): ≤0.015
Mechanical properties of UNS N08810 Plate
- Tensile strength: ≥450 MPa
- Yield strength: ≥180 MPa
- Elongation: ≥30%
- Hardness: ≤200 HB
Physical properties of UNS N08810 Plate
- Density: 7.94 g/cm³
- Melting point: 1350-1400 °C
- Coefficient of thermal expansion: 14.4μm /m·°C (20-100 °C)
- Thermal conductivity: 11.2W /m·K (100 °C)
- Resistivity: 1.03 μΩ·m
Standard of UNS N08810 Plate
ASTM: ASTM B409
EN: EN 1.4958
JIS: JIS NCF800H
GB: GB/T 15007
Size Range of UNS N08810 Plate
- Thickness: 0.5mm-50mm
- Width: 1000mm-2000mm
- Length: 2000mm-6000mm
Peculiarity of UNS N08810 Plate
- High temperature strength: maintain high strength and good mechanical properties at high temperatures.
- Oxidation resistance: Excellent performance in high temperature oxidation environment.
- Corrosion resistance: Good corrosion resistance in a variety of corrosive media.
- Good processing performance: easy to weld, cut and form.
- Low temperature performance: maintain good mechanical properties at low temperatures.
Advantage of UNS N08810 Plate
- Wide range of applications: suitable for high temperature and corrosive environments.
- Long life: Long service life in harsh environments.
- Easy maintenance: Corrosion resistance and oxidation resistance reduce maintenance requirements.
- Versatility: Suitable for a variety of processing and manufacturing processes.
Equal Grade of UNS N08810 Alloy
- Incoloy 800: UNS N08800
- Incoloy 800H: UNS N08810
- Incoloy 800HT: UNS N08811
Apply of UNS N08810 Plate
- Chemical industry: Used to manufacture reactors, heat exchangers, pipelines, etc.
- Oil and gas: Used in refining equipment, oil well components, etc.
- Power industry: Used in power generation equipment, heat exchangers, etc.
- Heat treatment industry: Used for heat treatment furnace components, radiation tubes, etc.
- Environmental protection project: Used for flue gas desulfurization equipment.
- Nuclear industry: Used for nuclear reactor components.
UNS N08810 is widely used in chemical, oil and gas, power, heat treatment, environmental engineering and nuclear industry due to its excellent high temperature strength, oxidation resistance and corrosion resistance. Its versatility and long life make it an ideal material for high temperature and corrosive environments.
