UNS N10276 / Hastelloy C276 Sheet And Plate Thickness 1.0 - 16.0mm In Stock
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | hastelloy C276 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Plate | Grade | Hastelloy C276 |
|---|---|---|---|
| Thickness | 1.0 - 20.0mm | Width | 1000mm 1219mm 1500mm |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | 2B NO.1 |
| Highlight | Hastelloy C276 Plate,16.0mm Hastelloy C276 Sheet,Hastelloy C276 Sheet |
||
Product Description

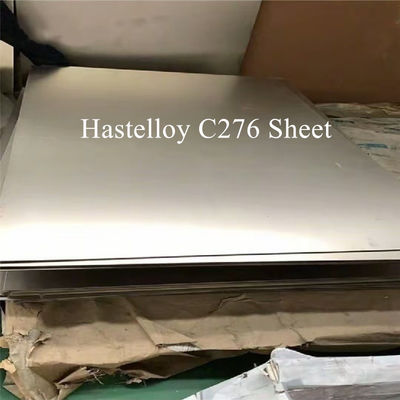

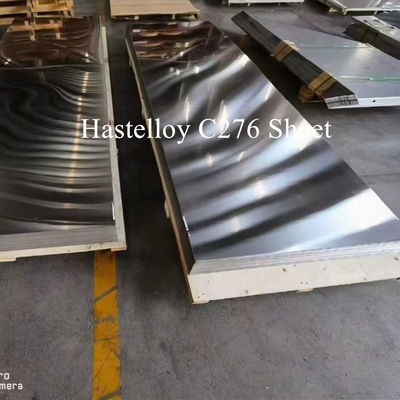

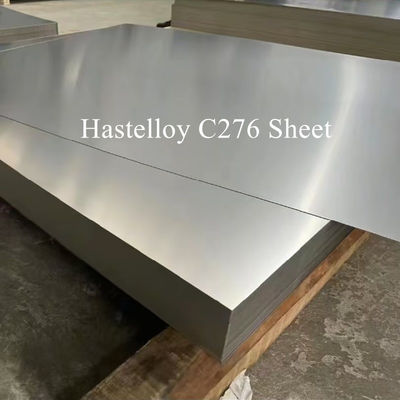

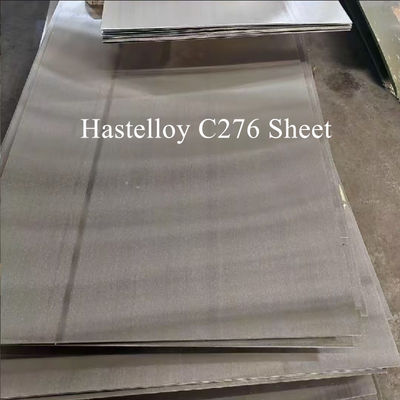

UNS N10276 / Hastelloy C276 Sheet and Plate Thickness 1.0 - 16.0mm in stock
Products Specification
| Product Type | Hastelloy C276 ASTM B575 Sheet, Hastelloy C276 ASTM B575 Plate |
|---|---|
| Specification | ASTM B575 / ASME SB575 |
| Tolerances (width / thickness) |
|
| Dimensions |
|
| Thickness | 0.5 - 20.0mm |
| Width | 10 - 1500mm |
| Length | 2m, 2.44m, 3m, or as required |
| Finish | SATIN, 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), No.1 finish hot rolled, 1D, No.4, BA, 8K, hairline, brush, mirror etc. |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard |
| variety of shapes | Coils, Foils, Plates, Sheet, Strip, Plain Sheet, Checker Plates, Rolling Sheet, Flats, Clad Plates, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), Rolling Plates, Flat Shim, soft annealed, descaled, tread Plates, sheared, annealed |
ASTM B575 UNS N10276 Hastelloy C276 Sheet is widely used in a variety of sectors, which include petrochemicals, chemical oil and gas, power production, pharmaceuticals, pulp and paper processing, and wastewater treatment. Hastelloy C276 Coil has a high tolerance to matching, stress degradation, and oxidising conditions. ASME SB 575 UNS N10276 content is often resistant to salt water corrosion in crevice environments, which may trigger aggressive assault in other products which are used on a large scale. UNS N10276 plate is normally remedy heat-treated at 2050 degrees Fahrenheit and easily quenched.
Hastelloy C276 Sheet Plate is supplied by Siddhagiri Metals and Tubes at reasonabe prices. We are a global exporter of ASTM B575 UNS N10276. With almost 50 years in the business, we can offer the finest expertise to build practically any type of metal, alloys or steel. All of our manufactured products are subject to the rigirous audit process, which allow us to deliver quality products that meet customer requirements at low cost.
- Finish:Mirror Finish, BA Finish, 2B Finish, No. 4 Finish
- Form: Hot Rolled, Cold Rolled, Perforated, chequered
- Origin: Indian Origin, European Origin, Japanese Origin
- Packing: Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests
- Testing and Documents: Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports
Hastelloy C276 Alloy Sheet Plate Sizes in Stock
| Material | Size | Thickness | Specification |
|---|---|---|---|
|
Hastelloy C276 Plate / Sheet / Flat / Coil |
1250 mm x 2500 mm | 0.1mm to 12 mm Thk | IS, BS, ASTM, UNS |
| 1000 mm x 2000 mm | |||
| 1220 mm x 2440 mm (4' x 8') | |||
| 1500 mm x 3000 mm | |||
| 2000 mm x 2000 mm | |||
| 2000 mm x 4000 mm |
HS Code of UNS N10276 plate
| Grade | HS Code |
|---|---|
| Hastelloy C276 Plate | 75071200 |
Alloy C276 Sheet Properties
Find ASME SB575 NW 0276 shim sheet and foils chemical, mechanical and physical properties
| C | W | Mn | Fe | S | Si | Cr | Ni | Co | Mo | P | V | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | - | 3.000 | - | 4.000 | - | - | 14.500 | Bal | - | 15.000 | - | - |
| MAX | 0.010 | 4.500 | 1.000 | 7.000 | 0.030 | 0.080 | 16.500 | 2.500 | 17.000 | 0.040 | 0.035 |
| Yield Strength0.2% Proof(MPa) | Tensile strength(MPa) | Elongation (% in 50mm) | Hardness (HRB) | |
|---|---|---|---|---|
| MIN | 283 | 690 | 40.00 | - |
| MAX | - | - | - | 100 |
| Density | lb/in³ | 0.321 |
|---|---|---|
| g/cm³ | 8.89 | |
| Specific Heat | Btu/lb•°F | 0.102 |
| J/kg•°C | 427 | |
| Melting Range | °F | 2415-2500 |
| °C | 1325-1370 | |
| Thermal Conductivity | Btu•in/ft²•h•°F | 67.9 |
| W/m•°C | 427 | |
| Young's Modulus | 103 ksi | 29.8 |
| GPa | 205 | |
| Shear Modulus | 103 ksi | 11.4 |
| GPa | 79 | |
| Permeability | 200 oersted (15.9 kA/m) | 1.0002 |
| Poisson's Ratio | 0.307 |
Refer cold and hot rolled nickel alloy C276 plate prices with Mill TC
