F60 / S32205 / Duplex 2205 Stainless Steel Round Bar Diameter 4 - 300mm Bright Black Bars
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316L 316Ti 317L 321 309S 310S 2205 17-4PH XM-19 440C |
| Minimum Order Quantity | 500 kgs |
| Price | 2200 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Round | Standard | ASTM EN GB JIS |
|---|---|---|---|
| Grade | 201 304 316L 316Ti 309S 310S 317L 321 329 2205 2507,440C.etc | Application | Construction,Industry,surgical Tools,seawater Equipment.,kitchenware |
| Length | Customers' Requirements,5.8m,6m,2m-6m,or As Required | Size | Custom As Request |
| Packing | Standard Seaworthy Package,In Wooden Cases(for FCL/ LCL Shipment) | Service | Cutting, Surface Finishing |
| Highlight | Duplex 2205 Stainless Steel Round Bar,Bright Black Stainless Steel Round Bar,S32205 Stainless Steel Round Bar |
||
Product Description

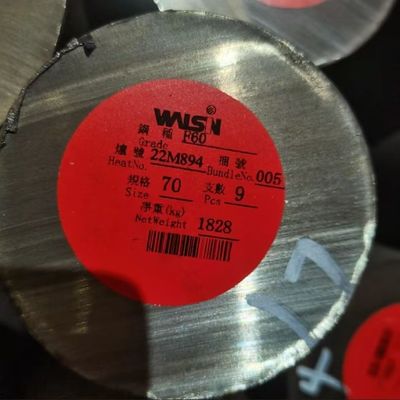

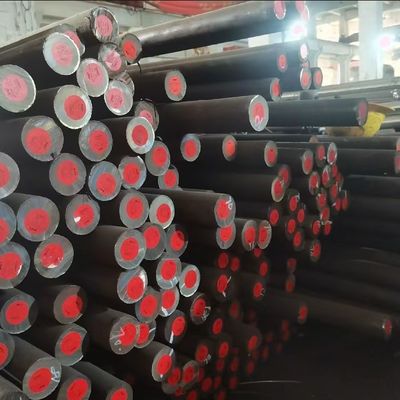

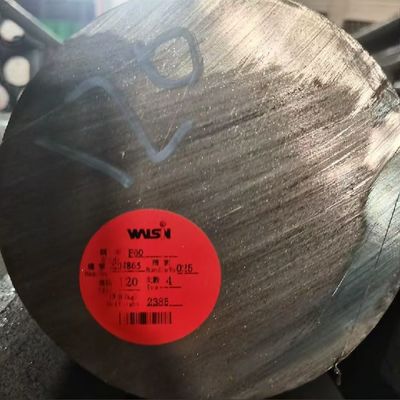

F60 / S32205 / Duplex 2205 Stainless Steel Round Bar Diameter 4 - 300mm Bright Black Bars
Products Specification
| Products | Stainless Steel Bar |
| Grade | F60 / 1.4462 / S32205 / 2205 |
| Diameter | 5 - 350mm |
| Length | 6m or custom cutting any length as request |
| Finishing | Bright Bar / Black Surface |
| Heat Treatment | Solid Solution , ageing |
| Surface Process | Polishing , Peeling |
| Other Grade |
201 303 304 304L 309S 310S 316L 316Ti 317L 321 347 410 420 430 431 2205 2507 904L 254SMO 416 440A/B/C.etc |
| MOQ | 500 Kgs |
| Loading Port | Shanghai Port |
| Processing | Cutting |
| Packing | Wooden box or wrapping by PP bag |
2205 Duplex Stainless Steel Bar Description
Duplex 2205 is a two-phase, ferritic, austenitic, 22% chromium, 3% molybdenum, 5% to 6% nickel alloy stainless steel. It is the most widely used duplex stainless steel grade and is characterized by high yield strength, which is twice that of standard austenitic stainless steel grades. It also exhibits good fatigue strength and excellent resistance to stress corrosion, cracking, pitting, erosion and general corrosion in harsh environments.
Chemical Composition
| C | Si | Mn | Cr | Ni | Mo | S | P |
| ≤ 0.03 | ≤ 1.0 | ≤ 2.0 | 21.0～23.0 | 4.5～6.5 | 2.5～3.5 | ≤ 0.02 | ≤ 0.03 |
Mechanical Properties
| Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
| ≥620 | ≥450 | ≥25 | ≤ 293HB |
Physical Performance
| Density(g/cm³) | Modulus of Elasticity(Gpa) | Coefficient of Thermal Expansion(10-6/°C) | Coefficient of Thermal Conductivity(W/m*K) | Resistivity(ΜΩ. cm) |
| 7.88 | 190 | 13.7 | 19.0 | 80 |
Standards Of Duplex 2205 Round Bar
| Grade | EN 10088-3 | EN 10272 | AD2000- W2/W10 |
ASTM A 479 | ASME SA 479 | NACE MR 0175 |
|---|---|---|---|---|---|---|
| Duplex 2205 Round Bars | 20-450 mm | 20-160 mm | - | 20-450 mm | 20-450 mm | Independent of size |
Why Use Duplex 2205 Round Bar?
- Very Good weldability and workability
- High resistance to chloride stress corrosion cracking
- Good general corrosion resistance
- Resistance to chloride pitting and crevice corrosion
- Good sulfide stress corrosion resistance
- High Strength
Surface Finishes Of Duplex Steel UNS S32205 Round Bar
| CD | Cold drawn | P | Polished |
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
Duplex 2205 Round Bar Suppliers
|
|
Industrial Uses Of ASTM A276 Type 2205 Round Bar
- used for Oil and gas industry
- for Desalination plants
- Off-Shore Oil Drilling Companies
- Mechanical components requiring high strength
- Salt evaporation industry
- used for Pulp and paper industry
- used in Refineries and petrochemical plants
- for Seawater cooling
- to manufacturing Fasteners
- for Geothermal wells
