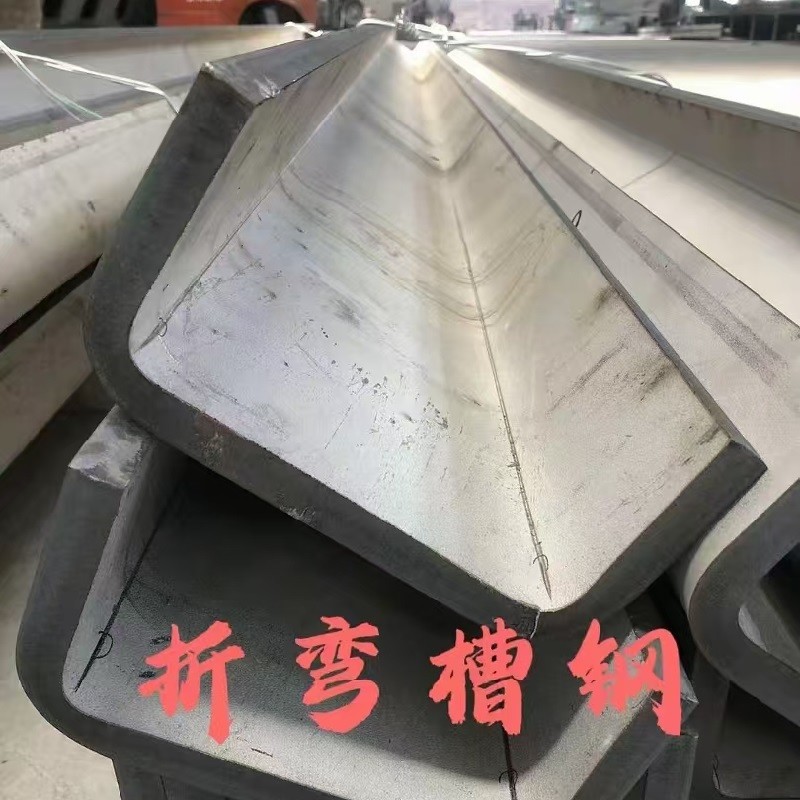

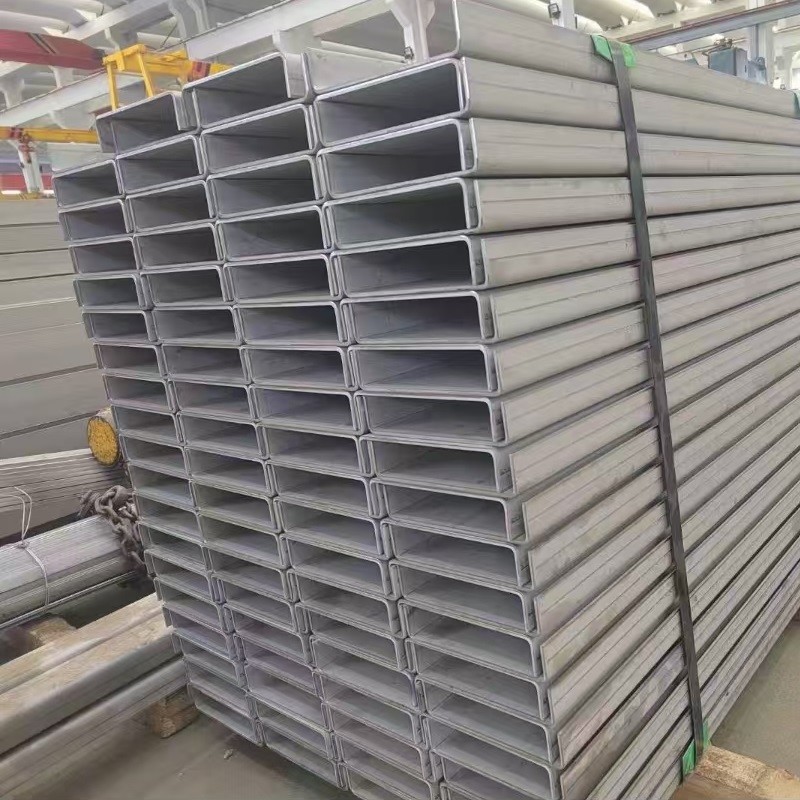

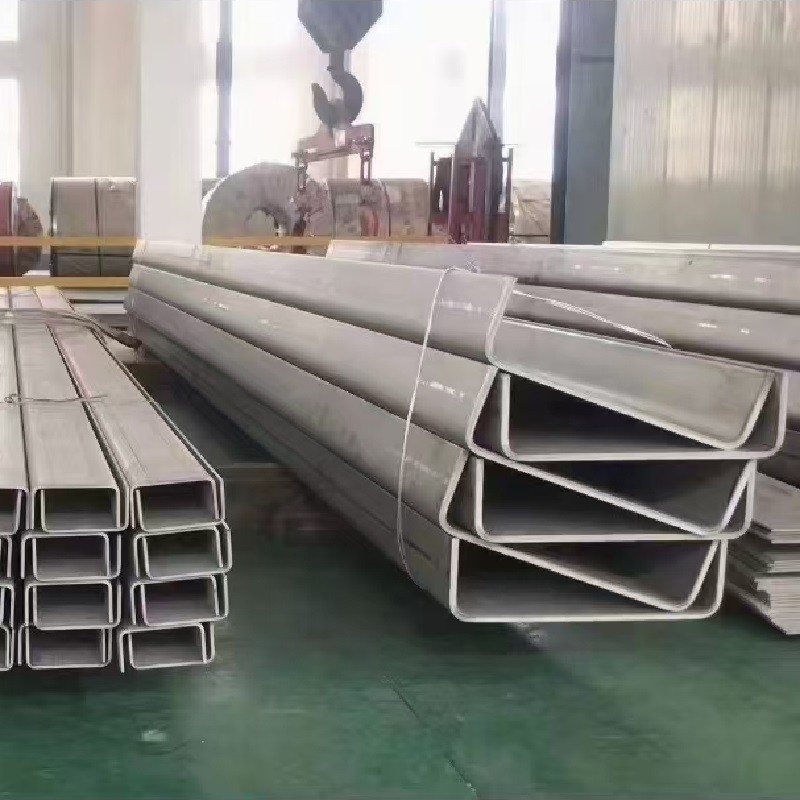

201/304/316L/310S/321/2205 Stainless Steel Channel Bar / Channel Beam
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316L 321 309S 310S 2205 17-4PH 2507 |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Angle Bar / Channel Bar | Standard | ASTM EN GB JIS |
|---|---|---|---|
| Grade | 201 304 316L 309S 310S 321 2205 2507.etc | Application | Construction,Industry,surgical Tools,seawater Equipment.,kitchenware |
| Length | Customers' Requirements,5.8m,6m,2m-6m,or As Required | Size | Custom As Request |
| Packing | Standard Seaworthy Package,In Wooden Cases(for FCL/ LCL Shipment) | Service | Cutting, Surface Finishing |
| Highlight | 316L Stainless Steel Channel Bar,201 Stainless Steel Channel Bar,304 Stainless Steel Channel Bar |
||
Product Description
201/304/316L/310S/321/2205 Stainless Steel Channel Bar / Channel Beam
Products Specification
| Products | Stainless Steel Channel Bar |
| Technique | bending , hot rolled |
| Shape | U Channel, C Channel |
| Size | 50*37-400*104mm or custom size as request |
| Length | 6m/pcs or cutting short pieces |
| Material Grade | 201 304 304L 309S 310S 316L 321 2205 2507 904L.etc |
| Material Standard | ASTM ,GB, EN |
| MOQ | 200 kgs |
| Loading port | Shanghai Port |
| Other products | angle bar, round bar, H beam.etc |
| Packing | standard export packing |
Stainless steel channel steel is a long strip of steel with a groove-shaped cross-section. Same as the I-beam, stainless steel channel steel is also divided into ordinary channel steel and light channel steel. The representation method of model and specification is also represented by waist height (h) × leg width (b) × waist thickness (d) in millimeters. Such as 120 × 53 × 5 channel steel, that is, waist height 120mm, round steel, need to add a, b, c, etc. on the right side of the model to distinguish. Usually, the stainless steel channel steel is expressed in centimeters of the waist height, such as the above channel steel is called 12# channel steel. The specification range of channel steel is 5-40#. Including and marking requirements shall be implemented according to the provisions of GB2101-80.
Bar Channel
| Dimensions | D | F | Tw | Tf | Est. Wt |
|---|---|---|---|---|---|
| 1.25 x .5 x .125 | 1.25 | .5 | .125 | .125 | 1.01 |
| 1.5 x .5 x .125 | 1.5 | .5 | .125 | .125 | 1.12 |
| 1.5 x .75 x .125 | 1.51-1/2 | .75 | .125 | .125 | 1.17 |
| 2 X 1 X .125 | 2 | 1 | .125 | .125 | 1.59 |
| 2 X 1 X .188 | 2 | 1 | .188 | .188 | 2.32 |
| 2 X 1 X .25 | 2 | 1 | .25 | .25 | 2.88 |
Channel - Misc
| Dimensions | D | F | Tw | Tf | Est. Wt | Availability |
|---|---|---|---|---|---|---|
| 3 x 1.375 x .188 | 3 | 1.375 | .188 | .188 | ||
| 3 x 1.5 x .188 | 3 | 1.5 | .188 | .188 | ||
| 3 x 1.5 x .25 | 3 | 1.5 | .25 | .25 | ||
| 4 x 1.75 x .25 | 4 | 1.75 | .25 | .25 | ||
| 4 x 2 x .25 | 4 | 2 | .25 | .25 | ||
| 5 x 1.87 x .375 | 5 | 1.87 | .375 | .375 | ||
| 5 x 2.5 x .25 | 5 | 2.5 | .25 | .25 | ||
| 6 x 3 x .25 | 6 | 3 | .25 | .25 | ||
| 6 x 3 x .375 | 6 | 3 | .375 | .375 | ||
| 8 x 4 x .25 | 8 | 4 | .25 | .25 | ||
| 8 x 4 x .375 | 8 | 4 | .375 | .375 | C |
C Channel
| Dimensions | D | F | Tw | Tf | Est. Wt | Availability |
|---|---|---|---|---|---|---|
| 3 X 4.10 | 3 | 1.410 | 0.170 | 0.273 | 4.10 | |
| 3 X 5.00 | 3 | 1.498 | 0.258 | 0.273 | 5.00 | C |
| 4 X 5.40 | 4 | 1.584 | 0.184 | 0.296 | 5.40 | |
| 4 X 7.25 | 4 | 1.721 | 0.321 | 0.296 | 7.25 | |
| 5 X 6.70 | 5 | 1.750 | 0.190 | 0.320 | 6.70 | |
| 5 X 9.00 | 5 | 1.885 | 0.325 | 0.320 | 9.00 | |
| 6 X 8.20 | 6 | 1.920 | 0.200 | 0.343 | 8.20 | |
| 6 X 10.50 | 6 | 2.034 | 0.314 | 0.343 | 10.50 | |
| 6 X 13.00 | 6 | 2.157 | 0.437 | 0.343 | 13.00 | |
| 7 X 9.80 | 7 | 2.090 | 0.210 | 0.366 | 9.80 | C |
| 7 X 12.25 | 7 | 2.194 | 0.314 | 0.366 | 12.25 | C |
| 8 X 11.50 | 8 | 2.260 | 0.220 | 0.390 | 11.50 | |
| 8 X 13.75 | 8 | 2.343 | 0.303 | 0.390 | 13.75 | |
| 8 X 18.75 | 8 | 2.527 | 0.487 | 0.390 | 18.75 | |
| 9 X 15.00 | 9 | 2.485 | 0.285 | 0.413 | 15.00 | C |
| 9 X 20.00 | 9 | 2.648 | 0.448 | 0.413 | 20.00 | C |
| 10 X 15.30 | 10 | 2.600 | 0.240 | 0.436 | 15.30 | |
| 10 X 20.00 | 10 | 2.739 | 0.379 | 0.436 | 20.00 | |
| 10 X 25.00 | 10 | 2.886 | 0.526 | 0.436 | 25.00 | C |
| 10 X 30.00 | 10 | 3.033 | 0.673 | 0.436 | 30.00 | C |
| 12 X 20.70 | 12 | 2.942 | 0.282 | 0.501 | 20.70 | |
| 12 X 25.00 | 12 | 3.047 | 0.387 | 0.501 | 25.00 | C |
| 12 X 30.00 | 12 | 3.170 | 0.510 | 0.501 | 30.00 | C |
| 15 X 33.90 | 15 | 3.400 | 0.400 | 0.650 | 33.90 | C |
| 15 X 40.00 | 15 | 3.520 | 0.520 | 0.650 | 40.00 | C |
