Large Diameter Stainless Steel U Channel / C Channel AISI304 AISI316L AISI310S
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316L 321 309S 310S 2205 17-4PH 2507 |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Angle Bar / Channel Bar | Standard | ASTM EN GB JIS |
|---|---|---|---|
| Grade | 201 304 316L 309S 310S 321 2205 2507.etc | Application | Construction,Industry,surgical Tools,seawater Equipment.,kitchenware |
| Length | Customers' Requirements,5.8m,6m,2m-6m,or As Required | Size | Custom As Request |
| Packing | Standard Seaworthy Package,In Wooden Cases(for FCL/ LCL Shipment) | Service | Cutting, Surface Finishing |
| Highlight | AISI316L Stainless Steel U Channel,AISI304 Stainless Steel U Channel,AISI310S Stainless Steel U Channel |
||
Product Description

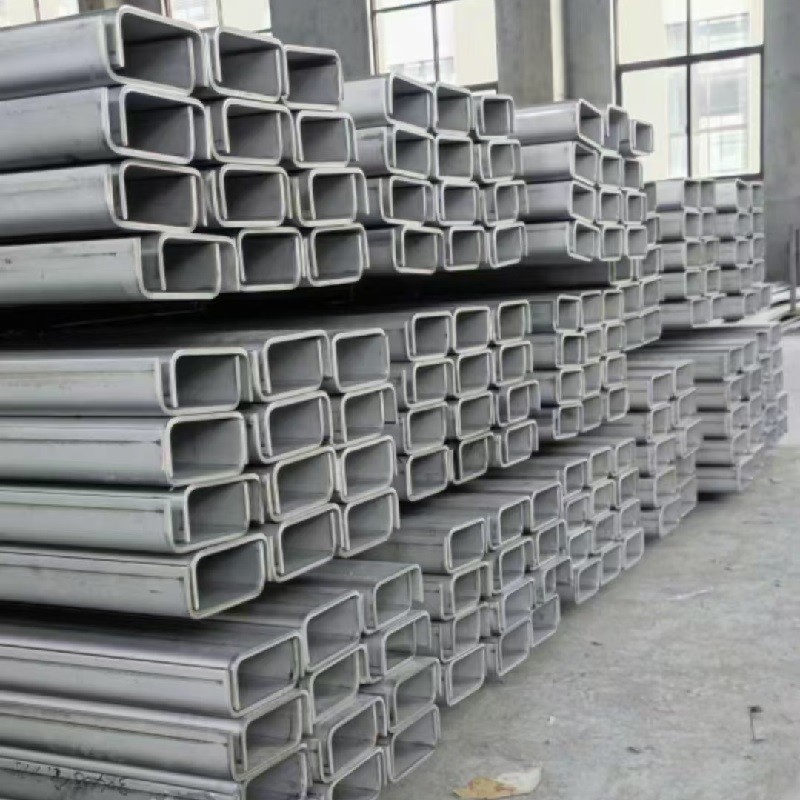

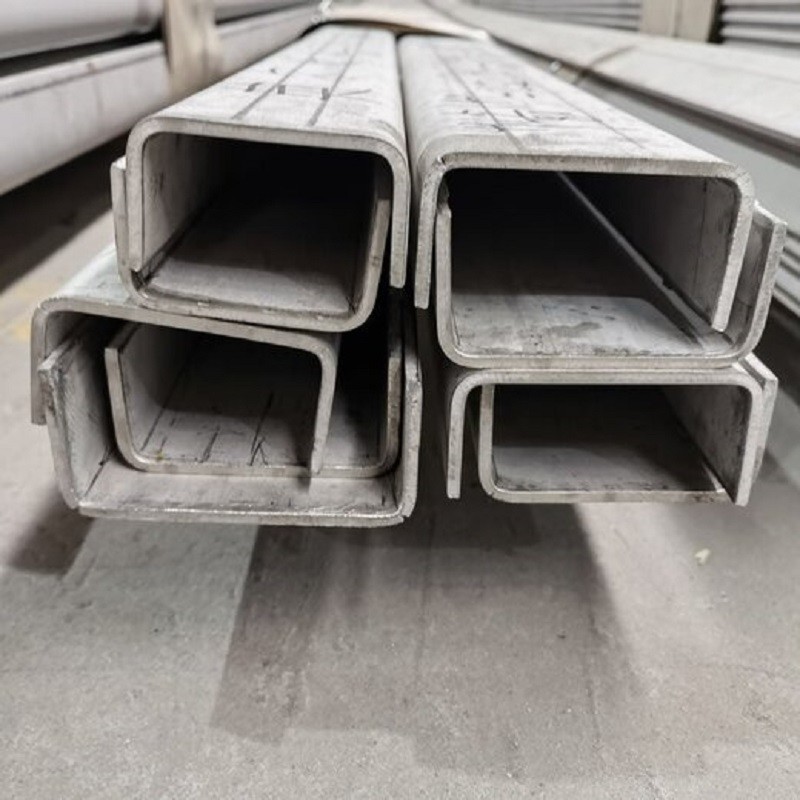

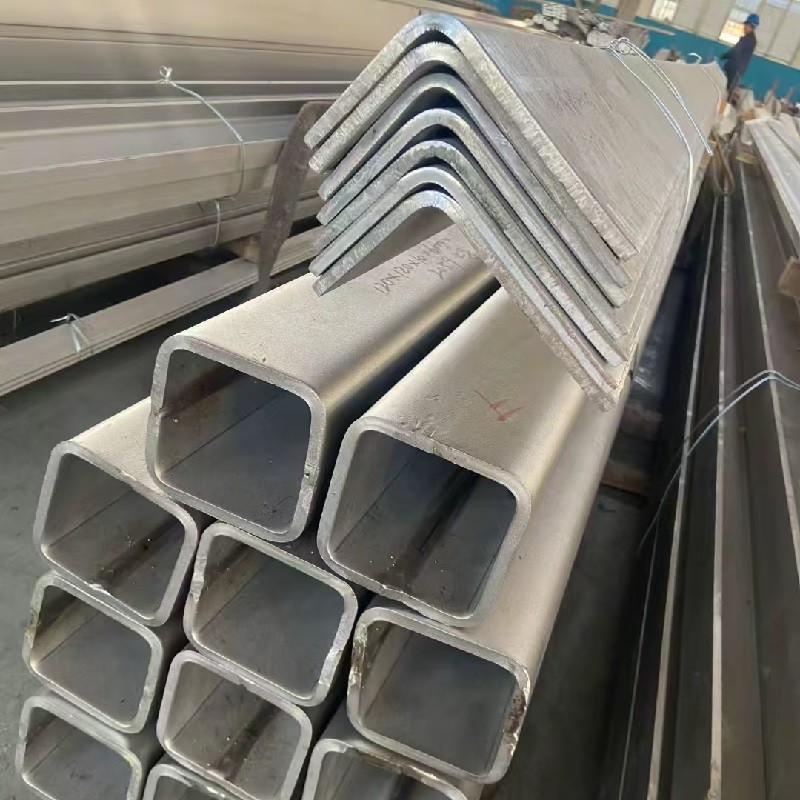

Large Diameter Stainless Steel U Channel / C Channel AISI304 AISI316L AISI310S
Products Specification
| Products | Stainless Steel Channel Bar |
| Technique | bending , hot rolled |
| Shape | U Channel, C Channel |
| Size | 50*37-400*104mm or custom size as request |
| Length | 6m/pcs or cutting short pieces |
| Material Grade | 201 304 304L 309S 310S 316L 321 2205 2507 904L.etc |
| Material Standard | ASTM ,GB, EN |
| MOQ | 200 kgs |
| Loading port | Shanghai Port |
| Other products | angle bar, round bar, H beam.etc |
| Packing | standard export packing |
Stainless steel bend channel steel introduction
Stainless steel bending channel steel is the stainless steel plate processed into a trough section by bending process, with corrosion resistance, high strength, beautiful and other characteristics, widely used in construction, machinery, chemical industry and other fields.
Major Grade of Stainless Steel Channel
Common grades of stainless steel bending channel include:
Austenitic stainless steel:
- 304: Universal stainless steel, good corrosion resistance, excellent processing performance.
- 304L: low carbon version, better welding performance, suitable for welding parts.
- 316: Added molybdenum element, corrosion resistance is stronger, especially suitable for Marine environment.
- 316L: Low carbon version, better welding performance.
- Ferritic stainless steel:
- 430: Corrosion resistance is general, but the cost is low, suitable for general environment.
- Martensitic stainless steel:
- 410: High hardness, good wear resistance, but poor corrosion resistance.
Machining dimension
Stainless steel bending channel sizes can be customized according to requirements, common specifications include:
- Height (H) : 100mm-1000mm
- Width (B) : 20mm-400mm
- Thickness (t) : 1.5mm-30mm
- Length (L) : usually 6 meters, can also be customized according to requirements.
peculiarity
- Corrosion resistance: Stainless steel makes it excellent in wet, acid and alkali environments.
- High strength: the bending process enhances the structural strength of the channel steel.
- Aesthetics: Smooth surface, easy to clean, suitable for decorative use.
- Good processing performance: easy to cut, welding, drilling and other secondary processing.
- Environmental protection: 100% recyclable, in line with environmental requirements.
Application area of stainless steel U channel
- Construction field:Used for curtain wall support, roof structure, stair railings, etc.
- Machinery Manufacturing:Used for equipment frame, conveyor belt support, mechanical protective cover, etc.
- Chemical industry:Used for corrosion resistant equipment support, pipeline support, etc.
- Food and Medicine:Used for equipment frames, conveying systems, etc. with high hygienic requirements.
- Decoration field:Used for indoor and outdoor decoration, furniture frame, etc.
Stainless steel bending channel steel is widely used in construction, machinery, chemical industry and other fields because of its excellent corrosion resistance, high strength and aesthetics. Commonly used grades include 304, 316, etc., the size can be customized according to demand, and it is a multi-functional profile.
