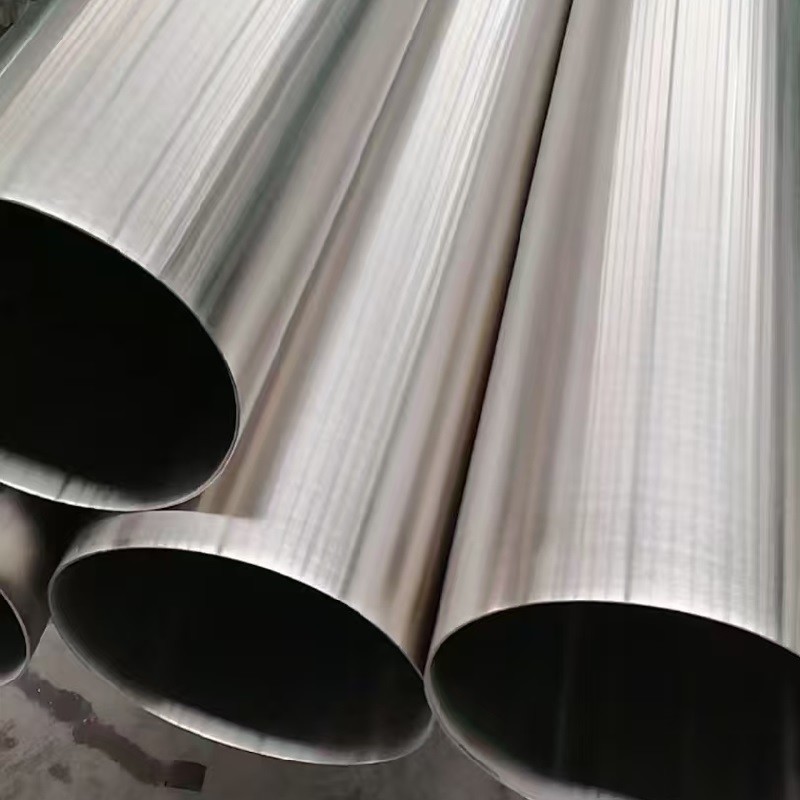

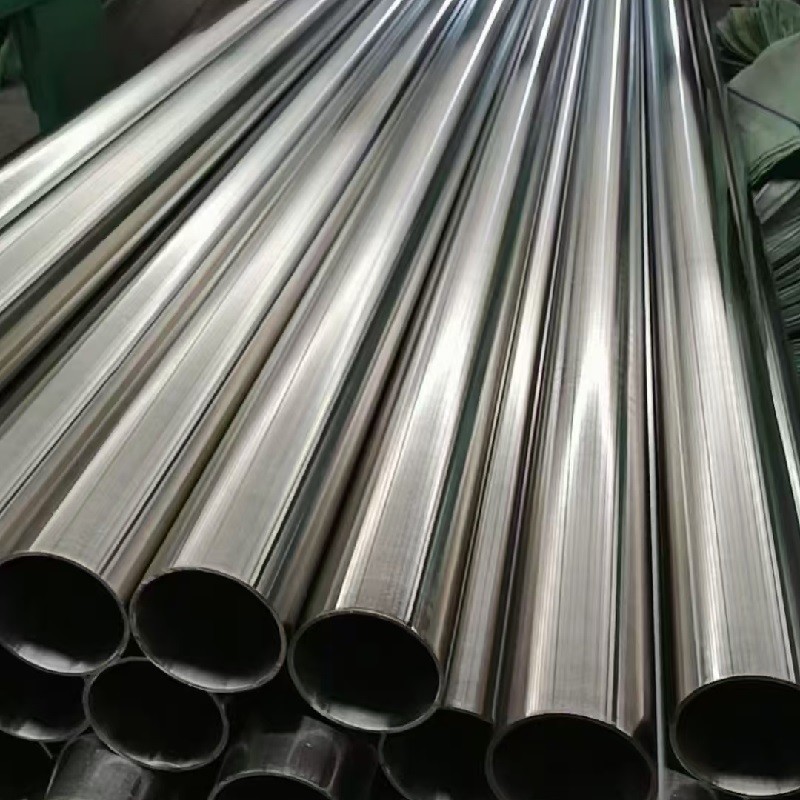

316L Stainless Steel Pipe Bright Polished Both Side ASTM A270 Standard
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 201 304 316L 321 310S 314 347 2205 2507 904L.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 2400 - 3500 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Bright Polished Stainless Steel Pipe | Grade | 304 316L 321 2205 310S 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or As Request |
| Diameter | 6 - 219mm Or As Clients Request | Wall Thickness | 0.4 - 8.0mm |
| Type | Welded Pipe | Service | Cutting |
| Other Shape | Square, Rectangle | ||
| Highlight | ASTM A270 Stainless Steel Pipe,Standard Bright Polished Stainless Steel Pipe,316L Stainless Steel Pipe |
||
Product Description
316L Stainless Steel Pipe Bright Polsihed Both Side ASTM A270 Standard
Products Specification
|
Product Name
|
Welded Stainless steel pipe
|
|
Standard
|
ASTM AISI DIN, EN, GB, JIS
|
|
Steel Grade
|
200 Series: 201,202
300 Series: 301,304,304L,316,316L,316Ti,317L,321,309s,310s 400 Series: 409L,410,410s,420j1,420j2,430,444,441,436 Duplex Steel: 904L,2205,2507,2101,2520,2304 |
|
Outer Diameter
|
6-325mm(as required)
|
|
Thickness
|
0.4mm - 10.0mm |
|
Length
|
6m / pcs or custom other fixed length as request
|
|
Technique
|
Seamless/Welded
|
|
Surface
|
pickling finishing, 2B , Hairline , polishing |
|
MOQ
|
500 kgs
|
|
Price Terms
|
FOB,CFR,CIF
|
Introduction of 316L sanitary stainless steel pipe
316L Sanitary stainless steel pipe is a low carbon austenitic stainless steel pipe designed for industries with high hygiene standards. After precision machining and polishing treatment, it has smooth internal and external surfaces to ensure no pollution and easy cleaning, and is widely used in food, pharmaceutical, biological engineering and other fields.
argument
Material: 316L stainless steel (low carbon austenitic stainless steel)
- Chemical composition:
- Carbon (C): ≤0.03%
- Silicon (Si): ≤1.00%
- Manganese (Mn): ≤2.00%
- Phosphorus (P): ≤0.045%
- Sulfur (S): ≤0.030%
- Nickel (Ni): 10.0-14.0%
- Chromium (Cr): 16.0-18.0%
- Molybdenum (Mo): 2.0-3.0%
Mechanical properties:
- Tensile strength: ≥485 MPa
- Yield strength: ≥170 MPa
- Elongation: ≥40%
Surface treatment: internal and external surface polishing, Ra ≤ 0.8μm (higher finish can be customized according to demand).
Corrosion resistance: Excellent corrosion resistance to corrosive media such as chloride, acid and alkali.
specification
- Outer diameter: Common range is 6mm to 200mm, can be customized according to demand.
- Wall thickness: Common range is 0.5mm to 5mm.
- Length: usually 6 meters, can also be customized according to customer requirements.
- Connection mode: welding, clamp connection, thread connection, etc.
- Standard: In line with ASTM A270, DIN 11850, ISO 2037 and other sanitary stainless steel pipe standards.
peculiarity
- High hygiene: smooth internal and external surfaces, no dead corners, easy to clean and disinfect, in line with health standards.
- Corrosion resistance: Excellent corrosion resistance to chloride, acid, alkali and other corrosive media, suitable for harsh environments.
- Low carbon content: Low carbon design reduces carbide precipitation during welding and reduces the risk of intergranular corrosion.
- High strength: Good mechanical properties at high and low temperatures.
- Biocompatibility: Suitable for food, pharmaceutical and medical industries, non-toxic and harmless.
- Polished surfaces: The inner and outer surfaces are precisely polished to reduce dirt and bacterial buildup.
Apply
316L sanitary stainless steel pipe is widely used in the following fields:
- Food and Beverage Industry:Pipeline, storage tank, fermenter.
- Milk, beer, juice and other liquid food delivery.
- Pharmaceutical Industry:Bioreactor, clean pipeline system.
- High purity medium delivery in drug production.
- Bioengineering:Cell culture, biopharmaceutical equipment.
- Cosmetics Industry:Transportation and storage of high purity raw materials.
- Medical equipment:Surgical instruments, medical gas pipeline.
- Chemical Industry:High purity chemical pipeline.
- Dairy industry:Production and delivery of milk, yogurt and other dairy products.
316L sanitary stainless steel pipe with its high hygiene, corrosion resistance and low carbon characteristics, become the ideal choice for food, pharmaceutical, bioengineering and other industries. Its precision polishing and international standard design ensure its reliability and safety in harsh environments.
