ASTM A312 TP317L Stainless Steel Pipe Tube DN10 - DN300 SS Pipe UNS S31703
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | TP317L |
| Minimum Order Quantity | 500 kgs |
| Price | 5000-6000 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe Tube | Other Grade | 304 304L 410s 316L 316Ti 316ln 321 317L 2205 S32760 254smo 2507 310S 347 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Heat Exchanger | Packing | Wooden Box Or PP Bag |
| Highlight | TP317L Stainless Steel Pipe,ASTM A312 Stainless Steel Pipe,DN10 Stainless Steel Pipe |
||
Product Description
ASTM A312 TP317L Stainless Steel Pipe Tube DN10 - DN300 SS Pipe UNS S31703
Products Specification
|
Product name
|
stainless steel pipe / tube
|
|
Material
|
201,202,301,302,304,304L,310S,316,316L, 317L,2205,2507,904L,254SMO,ect.
|
|
Processing Service
|
Punching, Cutting
|
|
Surface
|
BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
|
|
Technique
|
Cold Rolled Hot Rolled
|
|
Application
|
high-temperature and electric industry
|
|
Type
|
pipe / tube
|
|
Tolerance
|
±1%
|
|
Width
|
10-1500mm Customized
|
|
Thickness
|
0.4-30mm or customized
|
|
OD
|
6mm-630mm or customized
|
The 317L is a lower carbon version of the 317 material and it is easy to weld and produces less carbide precipitation during welding. The SS UNS S31703 ERW Pipe is produced through electric resistant welding. The ASTM A312 TP 317L Square Pipe is intended for high temperature services and the DIN 1.4438 SS 317L schedule 40 pipe is one of the medium range scheduled pipe. The ASTM A312 TP 317 Rectangular Pipe is used in structurally strong applications. We manufacture the SS UNS S31700 Welded Pipe, seamless and ERW pipes as well. Please contact us to place your order.
Different Sizes of 317L Stainless Steel Pipe
- SS A312 TP317L ERW Pipes : 1/2″ NB – 16″ NB
- 317L Stainless Steel Seamless Pipe : 1/2″ NB – 24″ NB
- UNS S31700 EFW Pipe : 6″ NB – 100″ NB
- 317 SS Pipe : 1/8″NB TO 30″NB IN
Chemical Properties of SA312 TP317L Pipes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 317L | min. | - | - | - | - | - | 18.0 | 3.00 | 11.0 | - |
| max. | 0.03 | 2.0 | 0.75 | 0.040 | 0.03 | 20.0 | 4.00 | 15.0 | - | |
Mechanical Characteristics of TP317L SS Seamless Pipe
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 317L | 515 | 205 | 35 | 95 | 217 |
Equivalent material of A312 TP 317L Stainless Steel
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 317L | S31703 | - | - | 1.4438 | - | - | - |
Standard Size of Our Stainless Steel Pipe

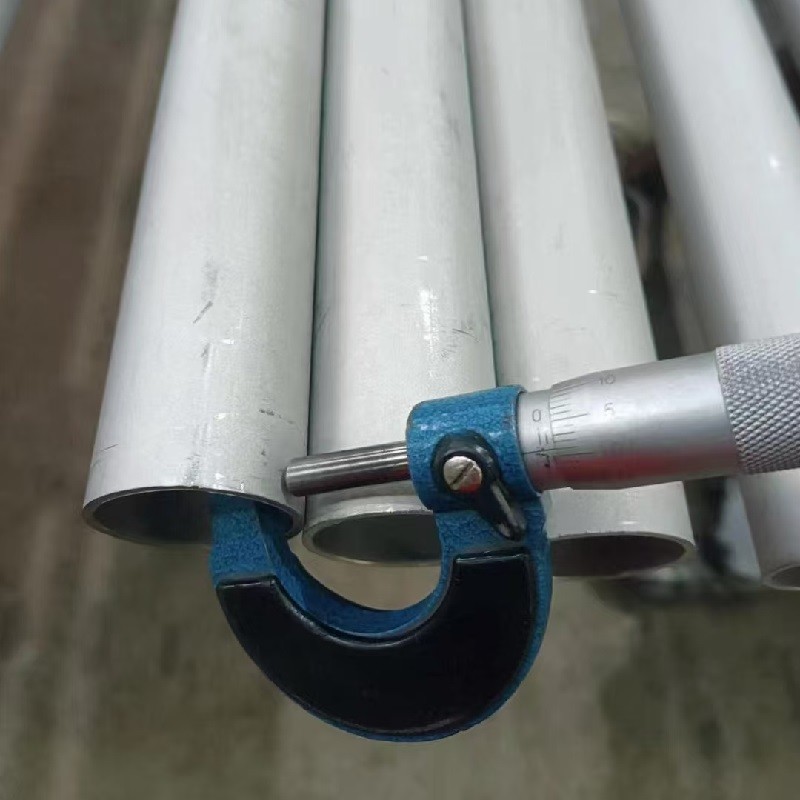

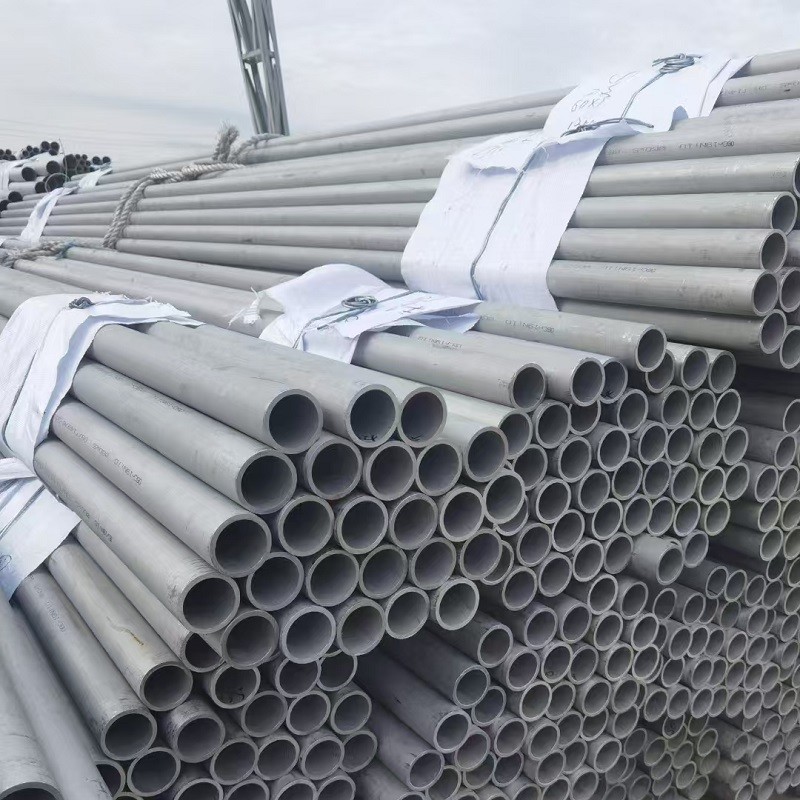

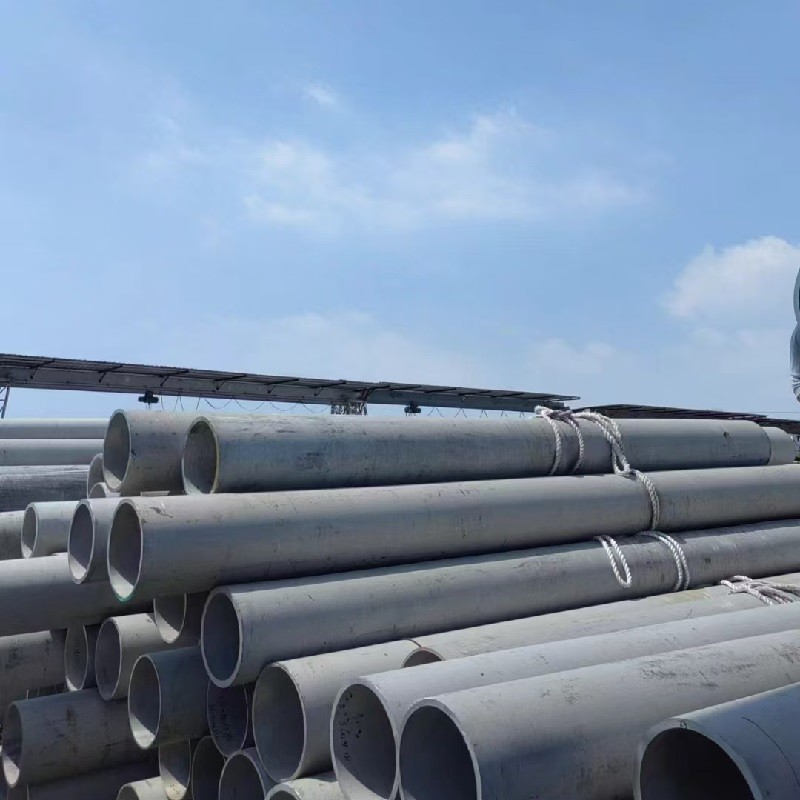

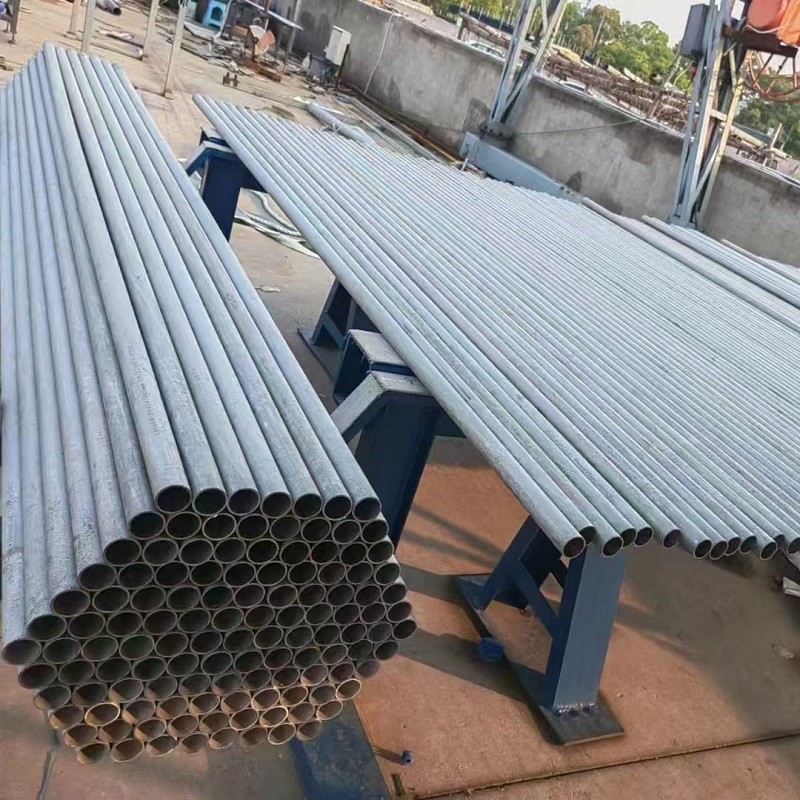

Products Picture
