Stainless Steel Slotted Perforated Sheet Metal 201 304 316L Thin Sheet Round Hole Perforated Sheet
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 201 304 304L 310S 316L 317L 321.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 2100 - 3200 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Perforated Sheet | Grade | 304 201 316L 430 410S.etc |
|---|---|---|---|
| Hole Diameter | 1.0 - 20.0mm | Size | 1000*2000mm 1219*2438mm 1500*3000mm |
| Thickness | 0.3 - 3.0mm | Type | Cold Rolled |
| Surface | 2B | Application | Industrial |
| Packing | Wooden Pallets | ||
| Highlight | 304 Perforated Sheet Metal,316L Perforated Sheet Metal,201 Perforated Sheet Metal |
||
Product Description
Stainless Steel Slotted Perforated Sheet Metal 201 304 316L Thin Sheet Round Hole Perforated Sheet
Products Specification of our Perforated Metal Sheet
| Name | Perforated Metal Sheet |
| Material | SS 304 316L 201;Aluminum;Aluminum alloy;Iron;Gavanized steel;Q235,Q195;Mn steel |
| Hole Diameter | 0.1-30mm (0.1-0.4mm is etching hole;More than 30mm is laser cutting) |
| Size | Normal size is 1x2m 1.22x2.44m 1.5x3m (Other size we can customize.) |
| Thickness | 0.1-10mm |
| Coating | PVC Coating; Powder spraying; Galvanized Coating; |
| Applications | Industrial proccesing, Machinery, Food processing, Building & Constructions, Agriculture,Communication industries, automotive industries, hardward&household industries. |
| Hole shape | Round perforation, Square perforation, Rectangular, Hexagonal perforation, Slots perforation |
| Angle degree | 45°;60°;90° |
Perforated Metals are sheets of steel,aluminum,stainless steel or specialty alloys
that are punched with round,square or ornamental holes in a uniform pattern.
Popular sheet thickness ranges from 26 gauge through 1/4" plate(thicker plates are
available on special order). Common hole size range from 0.20 to 1" and greater.

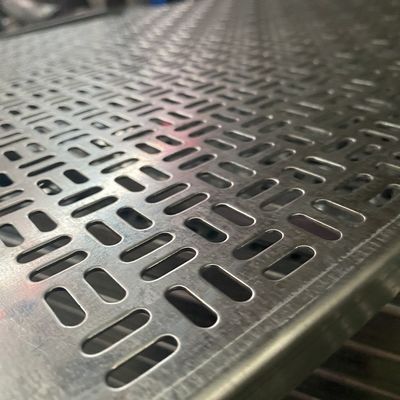

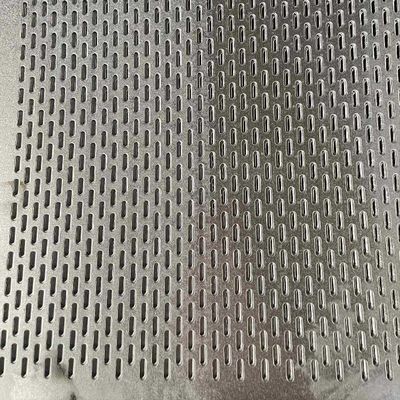

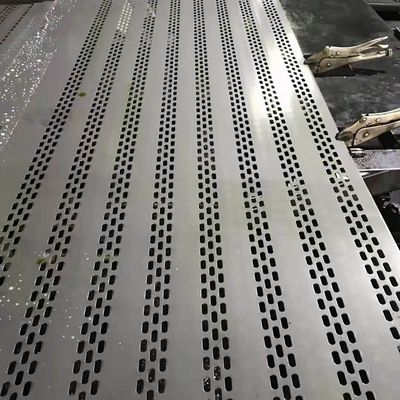

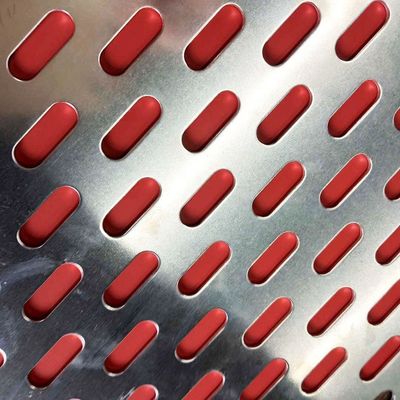

Slotted Hole Options
Materials: Aluminum, Galvanized Steel, Stainless Steel, Copper, Brass, etc
Slot Width: 0.125″ – 0.2″
Slot Length: 0.1″ – 0.75″
Slot Shape: Round end and square end
Slot Side Bar: 0.125″ – 0.25″
Slot End Bar: 0.125″ – 0.25″
Hole Pattern: Straight rows, staggered and arbitrary patterns
Sheet Width: 36″ – 48″
Sheet Length: 24″ – 120″
Thickness: 14 gauge – 22 gauge
Open Area: 41% – 74%
Benefits of Slotted Hole Perforated Metal
Different hole types can change the characteristics of sheet metal to a great extent.
Decorative Appearance
Any perforation pattern can be used for decorative purposes, and slotted holes are no exception. Oval or rectangular slotted holes, both designs provide a distinct, unique look for the final application.
Functional Design
Slotted perforated metal has a special design that allows a large amount of material to pass through without adversely affecting the overall strength and performance of the metal sheet.
Available Materials
The most common materials used for slotted perforated panels include mild steel, carbon steel, stainless steel, aluminum, copper, brass and any other material suitable for perforation.
Benefits of Slotted Hole Perforated Metal
Within the slotted perforated category, we can use the corresponding arrangement according to your specific application needs. The pattern can be changed in many ways, round or rectangular slotted holes are available in a variety of arrangements including staggered and straight.
Various Applications
- Wall & Ceiling Panels
- Safety and Security
- Diffusers, Strainers and Grills
- Cladding and Sunshade
- Screens and Vents
- Ventilation of Air, Light, Sound and Gases
- Fences and Protective Panels
- Decorative Applications
- Act as sieves for grain & seeds cleaning and drying machine
- Anything involving the efficient separation of liquids and solids
Perforated Metal Custom Manufacturing Supplier
As a leading supplier in China, we can provide perforated metal products that meet the needs of companies in a wide range of industries. With a wide range of advanced and versatile production facilities, our factory can provide customized perforated metal solutions for all your specialized applications.
Our punching machines can produce perforated plates up to 1.5m wide(any length) and support hole diameters up to 80mm (more than 80mm will be used with laser equipment).
In addition, if you need perforated panels cut to specific sizes and shapes, welded or bent into strange styles, we also have the equipment and capabilities to help you.
