Stainless Steel / Galvanized Steel Perforated Metal Sheet Round Hole Opening Slotted Hole Square Hole Dimple Perforated Non Slip
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 201 304 304L 310S 316L 317L 321.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 2100 - 3200 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Perforated Sheet | Grade | 304 201 316L 430 410S.etc |
|---|---|---|---|
| Hole Diameter | 1.0 - 20.0mm | Size | 1000*2000mm 1219*2438mm 1500*3000mm |
| Thickness | 0.3 - 3.0mm | Type | Cold Rolled |
| Surface | 2B | Application | Industrial |
| Packing | Wooden Pallets | ||
| Highlight | Slotted Hole Perforated Metal Sheet,Dimple Perforated Metal Sheet,Galvanized Steel Perforated Metal Sheet |
||
Product Description

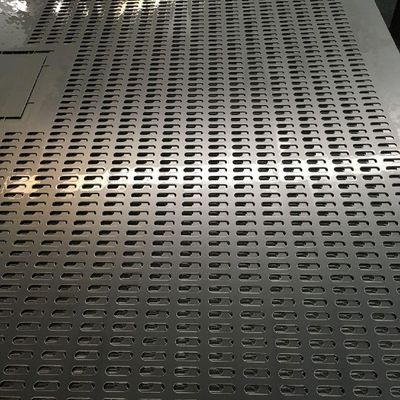

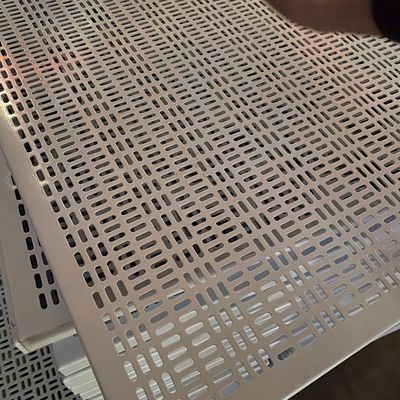

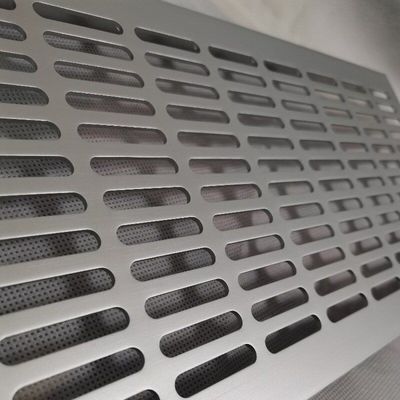

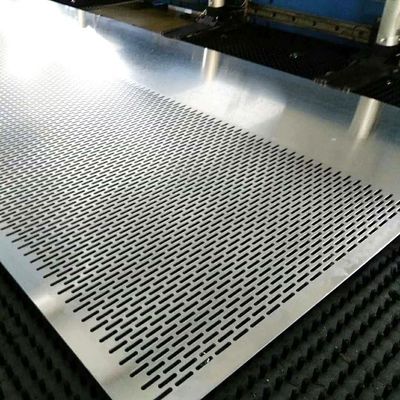

Stainless Steel / Galvanized Steel Perforated Metal Sheet Round Hole Opening, Slotted Hole, Square Hole, Dimple, Perforated Non Slip
Products Specification of our Perforated Metal Sheet
| Name | Perforated Metal Sheet |
| Material | SS 304 316L 201;Aluminum;Aluminum alloy;Iron;Gavanized steel;Q235,Q195;Mn steel |
| Hole Diameter | 0.1-30mm (0.1-0.4mm is etching hole;More than 30mm is laser cutting) |
| Size | Normal size is 1x2m 1.22x2.44m 1.5x3m (Other size we can customize.) |
| Thickness | 0.1-10mm |
| Coating | PVC Coating; Powder spraying; Galvanized Coating; |
| Applications | Industrial proccesing, Machinery, Food processing, Building & Constructions, Agriculture,Communication industries, automotive industries, hardward&household industries. |
| Hole shape | Round perforation, Square perforation, Rectangular, Hexagonal perforation, Slots perforation |
| Angle degree | 45°;60°;90° |
We use high-quality raw materials and supply Carbon Steel (MS) Perforated Sheet in hot rolled, cold rolled and galvanized sheets:
Perforated steel sheets are popular industrial products made of high quality carbon steel, also known mild steel. Mostly treated with electro galvanizing or hot dipped galvanizing.
Metal, Galvanized, Sheet, 24 Gauge, in 4 ft x 10 ft Sheets, ASTM A653/A653M, Z275 Coating, G90
Metal, Galvanized, Sheet, 22 Gauge, in 4 ft x 10 ft Sheets, ASTM A653/A653M, Z275 Coating, G90
Metal, Galvanized, Sheet, 24 Gauge, in 4 ft x 10 ft Sheets, ASTM A653/A653M, Z275 Coating,Non-Beaded
Metal, Galvanized, Sheet, 22 Gauge, in 4 ft x 10 ft Sheets, ASTM A653/A653M, Z275 Coating,Non-Beaded
Q195 galvanized steel sheet, 1.5 mm electric galvanized
Galvanized sheet, 4’ x 8’ 14gauge, Electro Galvanized Sheet (Electrolyte Zinc Coated Steel)
Embossed metal sheet galvanized, in 3mm thickness
Carbon Steel Perforated Sheet 8ftx4ftx2mm with 10mm holes
Galvanized MS Perforated Sheet 8ftx4ftx2mm with 10mm holes
Perporate metal plate, galvanized, in 12 m x 900 mm x 4 mm thickness with 19mm holes
Round perforated, straight sheets 1m x 2m or 4 feet x 8 feet hot dip galvanized after punching
The size of the punching sheet produced:
Hole size: 1.15 to 10mm hole
Pitch : 2.5 to 12mm
Thickness: 1.2 to 4 mm
Newly developed products with the following specifications:
- Slotted Hole Sheet: 1/2" round slot ends by 3" long, staggered pattern.
10 to 16 gauge thickness, ordinary steel or galvanized.
Sheet size minimum 3 feet by 4 feet.
Material used to fabricate bilge strainers, with flow rate requirements.
Sheet(s) of perforated, slotted, 2.5 mm, galvanized steel. 16 or 22 gauge.
3”X3” square hole .25 inch rod stock 31” tall x either 5 ft or 10 ft sections - Galvanized Steel Perforated Sheet 275 GSM coating: Staggered Hole Dia:4 mm, Pitch: 6 mm 40% Free Area, Staggered Hole Dia: 5 mm Pitch: 7 mm 47 % Free Area.
Galvanised steel plate, 3mm thick, in 4 x 8 feet or 5 x 10 feet, any standard dimensions.
Perforated Sheets or Panels, to control the particles in the air in order to comply with environmental regulations:
Perforated sheet in Galvanized Steel, and Black Steel
Hole diameter : 5mm
Pitch ( from center to cent ) : 10mm
Margin : 10 mm
Galvanized steel sheet size:
1.22 mm x 2.44 mm x 0.7 mm
1.22 mm x 2.44 mm x 0.9 mm
1.22 mm x 2.44 mm x 1mm
Black steel sheet size:
1.22 mm x 2.44 mm x 0.8 mm
1.22 mm x 2.44 mm x 1mm
Perforated MS Sheet ( Mild Steel), Round Hole Dimple Pattern
In 3mm thickness in 40Mx2.2M sheet
Round diameter 3 mm
Thickness plate 1 mm
Size: 4' (w) x 8' (h)
Finish: Bright galvanised
Industries Served:
Oil field drilling,
Mine screening,
Engineering,
Sifting of grains as grain screen,
Decorations and designs of buildings, as sound isolation sheet, decorative sheet for stairs, metal floor plate,
Fencing,
Decorative sheet and grille, various metal mesh sheet covers,
Making of kitchenware such as fruit basket, also tables, chairs and other furnitures.
Major Steel Sheet Products:
Description:
Galvanized perforated metal provides a durable slip resistant surface that easily retrofits over existing metal
structures or can be incorporated into new construction. And it is protected against rust which makes them ideal for
outdoor applications where corrosion is a concern. This kind of perforated metals enjoy the features of rust
resistance and corrosion resistance therefore it's widely used in corrosive environments.
Specification
Hole patterns: diamond hole, round hole, rectangular, scale hole, hexagonal hole and so on.
Surface treatment: Hot-dipped galvanized and electro galvanized.
Characteristic:
can be readily formed
can be painted or polished
easy installation
attractive apperance
wide range of thickness available
largest selection of hole size pattern and configuration
uniform sound abatement
light weight
excellent wear life and durable
superior abrasion resistance
accuracy of size
Surface treatment :
- galvanzed or not
- PE or PVC in many colors
Benefits: Perforated sheet metal flooring is easy to install and should provide a long service life.
Finish: Zinc coated.
Patterns available for steel sheets perforated:
Round is the most common opening;
Diamond;
Others.
Perforated Steel Sheet, 5 mm, 5 mm Round Hole, 1000mm x 500mm x 0.55mm
| Pattern | Hole(mm) | Open Area | Pitch I (mm) | Pitch II (mm) | Hole Configeration |
| 1 | 1.2 ø | 42% | 1.7 | 3.2 | 60° |
| 2 | 1.5 ø | 22% | 4 | 4 | 45° |
| 3 | 1.7 ø | 45% | 2.4 | 4.1 | 60° |
| 4 | 2.0 ø | 47% | 2.8 | 4.8 | 60° |
| 5 | 3.0 ø | 33% | 5 | 8.7 | 60° |
| 6a | 3.0 ø | 51% | 4 | 6.9 | 60° |
| 6 | 4.8 ø | 50% | 6.5 | 11.2 | 60° |
| 7 | 6.4 ø | 43% | 9.2 | 16 | 60° |
| 8 | 8.0 ø | 68% | 9.2 | 16 | 60° |
| 9 | 6.0 x 6.0 | 62% | 7.6 | 7.6 | Square |
| 10 | 6.0 x 6.0 | 52% | 9.1 | 7.6 | Staggered |
| 11 | 4.7 x 4.7 | 35% | 8 | 8 | Square |
| 12 | 2.4 x 12.7 | 34% | 4.8 | 15.1 | Rect |
| 13 | 6.0 A/F | 79% | 6.76 | 11.63 | Hex |
We also offer:
- 0.1mm Stainless Steel Perforated Sheet Decorative;
- 2mm Stainless Steel Perforated Metal Screen Sheet;
- 3mm Thick Round Hole Perforated Stainless Steel Sheet.
