Slotted Hole Perforated Metal Sheet Stainless Steel Galvanized Steel Mild Steel Long Hole Sheet
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 201 304 304L 310S 316L 317L 321.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 2100 - 3200 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Perforated Sheet | Grade | 304 201 316L 430 410S.etc |
|---|---|---|---|
| Hole Diameter | 1.0 - 20.0mm | Size | 1000*2000mm 1219*2438mm 1500*3000mm |
| Thickness | 0.3 - 3.0mm | Type | Cold Rolled |
| Surface | 2B | Application | Industrial |
| Packing | Wooden Pallets | ||
| Highlight | Long Hole Perforated Metal Sheet,Galvanized Steel Perforated Metal Sheet,Stainless Steel Perforated Metal Sheet |
||
Product Description
Slotted Hole Perforated Metal Sheet Stainless STeel , Galvanized Steel , Mild Steel Long Hole Sheet
Products Specification of our Perforated Metal Sheet
| Name | Perforated Metal Sheet |
| Material | SS 304 316L 201;Aluminum;Aluminum alloy;Iron;Gavanized steel;Q235,Q195;Mn steel |
| Hole Diameter | 0.1-30mm (0.1-0.4mm is etching hole;More than 30mm is laser cutting) |
| Size | Normal size is 1x2m 1.22x2.44m 1.5x3m (Other size we can customize.) |
| Thickness | 0.1-10mm |
| Coating | PVC Coating; Powder spraying; Galvanized Coating; |
| Applications | Industrial proccesing, Machinery, Food processing, Building & Constructions, Agriculture,Communication industries, automotive industries, hardward&household industries. |
| Hole shape | Round perforation, Square perforation, Rectangular, Hexagonal perforation, Slots perforation |
| Angle degree | 45°;60°;90° |

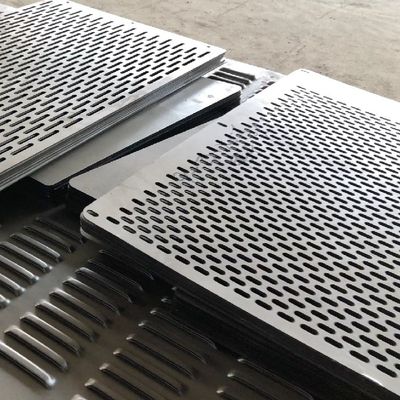

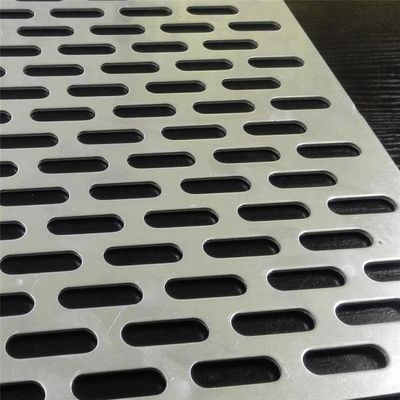

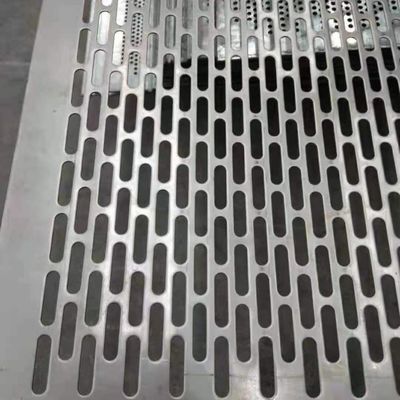

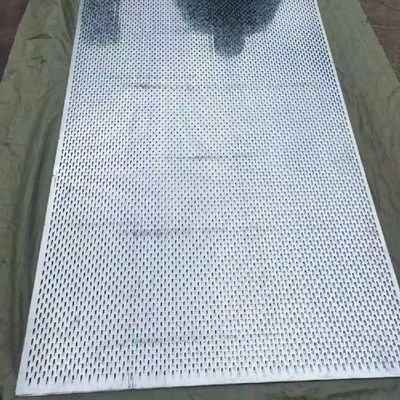

Slotted hole perforated metal sheet pattern is an extended hole with round or square ends.
This hole shape is designed with the concept of allowing the necessary amount of material to pass through the metal sheet while maintaining the desired strength and performance characteristics.
Popular sheet thickness ranges from 26 gauge through 1/4″ plate(thicker plates are available on special order). Common hole size ranges from 0.02 to 1″ and greater.
Features & Benefits
- Decorative Appearance
Any perforation pattern can be used for decorative purposes, and slotted holes are no exception. Oval or rectangular slotted holes, both designs provide a distinct, unique look for the final application. - Functional Design
Slotted perforated metal has a special design that allows a large amount of material to pass through without adversely affecting the overall strength and performance of the metal sheet. - Available Materials
The most common materials used for slotted perforated panels include mild steel, carbon steel, stainless steel, aluminum, copper, brass, and any other materials suitable for perforation.
Application of Slotted Hole Perforated Sheet
- Perforated sheets are used extensively for both industrial and architectural applications:
- Industry for sieving
- Industry for protection & ventilation
- Architecture for function and appearance both internally and externally including:
- Energy saving benefits, sound control and lighting effects
Slotted Hole Perforated Metal Sheet Specification
| Description | Hole dia | Hole pitch | Open area | Thickness | ||||
| (mm) | (mm) | (%) | 1.0mm | 1.5mm | 2.0mm | 2.5mm | 3.0mm | |
| LR1 X 10Z | 1 x 10 | 7 x 14 | 20% | ** | ||||
| LR1.5 X 12Z | 1.5 x 12 | 10.3 x 16 | 21% | ** | ||||
| LR1.5 X 20Z | 1.5 x 20 | 4 x 50 | 30% | ** | ||||
| LR2 X 10Z | 2 x 10 | 10 x 15 | 26% | ** | ||||
| LR2 X 20Z | 2 x 20 | 10 x 25 | 31% | ** | ||||
| LR3 X 20Z | 3 x 20 | 6 x 26 | 74% | ** | ** | ** | ||
| LR3 X 20Z | 3 x 20 | 14 x 26 | 32% | ** | ** | ** | ||
| LR4 X 20Z | 4 x 20 | 10 x 25 | 61% | ** | ** | ** | ** | |
| LR4 X 25Z | 4 x 25 | 6.5 x 45 | 66% | ** | ** | ** | ** | |
| LR4.5 X 25Z | 4.5 x 25 | 7 x 60 | 51% | ** | ** | ** | ** | |
| LR4.75 X 20Z | 4.75 x 20 | 15 x 25 | 48% | ** | ** | ** | ** | |
| LR5 X 20Z | 5 x 20 | 20 x 25 | 38% | ** | ** | ** | ** | |
| LR6 X 20Z | 6 x 20 | 24 x 24.8 | 38% | ** | ** | ** | ** | ** |
| LR 6 X 20Z | 6 x 20 | 26 x 40 | 22% | ** | ** | ** | ** | ** |
| LR7 X 20Z | 7 x 20 | 13 x 47.5 | 42% | ** | ** | ** | ** | ** |
| LR7 X 25Z | 7 x 25 | 30 x 30 | 37% | ** | ** | ** | ** | ** |
| LR8 X 40Z | 8 x 40 | 26 x 47.5 | 50% | ** | ** | ** | ** | ** |
| LR10 X 40Z | 10 x 40 | 20 x 50 | 76% | ** | ** | ** | ** | ** |
| LR2.1 X 20U | 2.1 X20 | 5 X 25 | 33% | ** | ** | |||
| LR2.4 X 20U | 2.4 X 20 | 5 X 25 | 38% | ** | ** | |||
| LR3 X 20U | 3 X 20 | 5.5 X 25 | 41% | ** | ** | ** | ||
| LR4.5 X 20U | 4.5 X 20 | 8 X 25 | 44% | ** | ** | ** | ** | ** |
| LR5 X 30U | 5 X 30 | 9 X 35 | 46% | ** | ** | ** | ** | ** |
| LR7 X 25U | 7 X 25 | 12 X 30 | 45% | ** | ** | ** | ** | ** |
Packing & Shipping
- Waterproof paper and free-fumigation wooden box;
- In bulk or bundle
- According to customers’ requirement
