0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm Thickness Stainless Steel Perforated Sheet
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 201 304 304L 310S 316L 317L 321.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 2100 - 3200 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Product Details
| Products | Stainless Steel Perforated Sheet | Grade | 304 201 316L 430 410S.etc |
|---|---|---|---|
| Hole Diameter | 1.0 - 20.0mm | Size | 1000*2000mm 1219*2438mm 1500*3000mm |
| Thickness | 0.3 - 3.0mm | Type | Cold Rolled |
| Surface | 2B | Application | Industrial |
| Packing | Wooden Pallets | ||
| Highlight | 0.8mm Stainless Steel Perforated Sheet,1.0mm Stainless Steel Perforated Sheet,1.2mm Stainless Steel Perforated Sheet |
||
Product Description

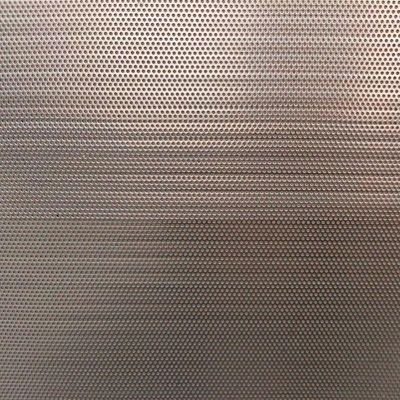

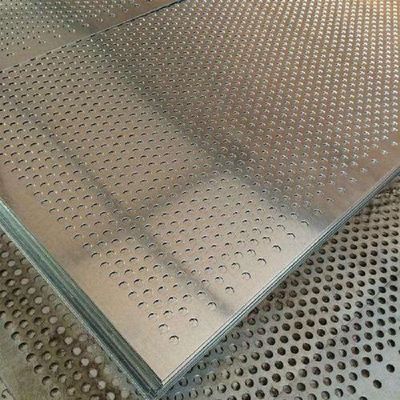

0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm Thickness Stainless Steel Perforated Sheet
Products Specification of our Perforated Metal Sheet
| Name | Perforated Metal Sheet |
| Material | SS 304 316L 201;Aluminum;Aluminum alloy;Iron;Gavanized steel;Q235,Q195;Mn steel |
| Hole Diameter | 0.1-30mm (0.1-0.4mm is etching hole;More than 30mm is laser cutting) |
| Size | Normal size is 1x2m 1.22x2.44m 1.5x3m (Other size we can customize.) |
| Thickness | 0.1-10mm |
| Coating | PVC Coating; Powder spraying; Galvanized Coating; |
| Applications | Industrial proccesing, Machinery, Food processing, Building & Constructions, Agriculture,Communication industries, automotive industries, hardward&household industries. |
| Hole shape | Round perforation, Square perforation, Rectangular, Hexagonal perforation, Slots perforation |
| Angle degree | 45°;60°;90° |

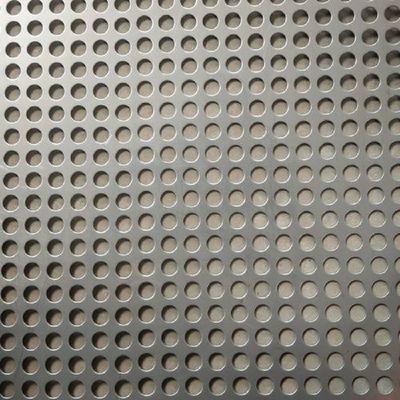

Pattern of Perforated Sheet
Description
| Length x Width | 2000 x 1000 mm 2500 x 1250 mm |
| Holes | Round 0.5 – 15.00 mm |
| Pitch | Triangular 1.00 – 21.00 mm |
| Thickness | 0.4 – 2.0 mm |
| Percentage Open | 19 – 63 % |
| Grade | 304 & 316 |
| Finish | Mill |
Diameter Informations
| HOLE ROUND MM | PITCH TRIANGULAR MM | THICKNESS MM | APPROX % OPEN | GRADE | SHEET SIZES | |
| 0.5 | 1.1 | 0.4 | 19 | 304 | 2000 x 1000mm | |
| 0.8 | 1.5 | 0.5 | 26 | 304 | 2000 x 1000mm | |
| 1 | 2 | 0.5 | 23 | 304 | 2000 x 1000mm | |
| 1 | 2 | 1 | 23 | 304 | 2000 x 1000mm | |
| 1.1 | 2 | 0.8 | 23 | 316 | 2000 x 1000mm | |
| 1.5 | 2.6 | 1 | 30 | 304 | 2000 x 1000mm | |
| 2 | 3 | 1 | 40 | 304/316 | 2000 x 1000mm | |
| 2 | 3.5 | 1 | 30 | 304/316 | 2000 x 1000mm | |
| 2 | 3.5 | 1.5 | 30 | 304/316 | 2000 x 1000mm | |
| 3 | 4 | 1 | 51 | 304 | 2000 x 1000mm | |
| 3 | 5 | 1 | 33 | 304/316 | 2000 x 1000mm | 2500 x 1250mm |
| 3 | 5 | 1.5 | 33 | 304/316 | 2000 x 1000mm | 2500 x 1250mm |
| 3 | 5 | 2 | 33 | 304/316 | 2000 x 1000mm | 2500 x 1250mm |
| 4 | 5 | 1 | 58 | 304 | 2000 x 1000mm | |
| 5 | 6 | 1 | 63 | 304 | 2000 x 1000mm | |
| 5 | 7 | 1 | 46 | 304/316 | 2000 x 1000mm | |
| 5 | 8 | 1.5 | 35 | 304/316 | 2000 x 1000mm | 2500 x 1250mm |
| 6 | 9 | 1.5 | 40 | 304 | 2000 x 1000mm | |
| 8 | 11 | 1 | 47 | 304 | 2000 x 1000mm | |
| 8 | 11 | 1.5 | 47 | 304 | 2000 x 1000mm | |
| 8 | 12 | 1.5 | 40 | 304 | 2000 x 1000mm | |
| 10 | 12.7 | 1 | 53 | 304 | 2000 x 1000mm | 2500 x 1250mm |
| 10 | 15 | 1.5 | 40 | 304/316 | 2000 x 1000mm | 2500 x 1250mm |
| 10 | 15 | 2 | 40 | 304 | 2000 x 1000mm | 2500 x 1250mm |
| 12 | 16 | 1.5 | 51 | 304 | 2000 x 1000mm | |
| 15 | 21 | 1.5 | 46 | 304 | 2000 x 1000mm |
|
