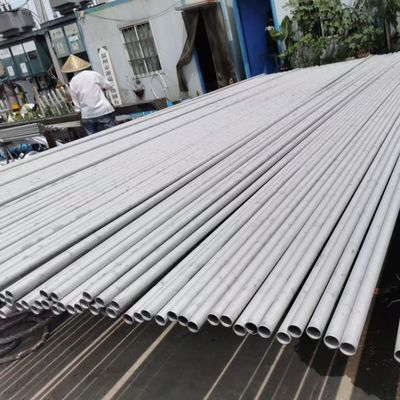

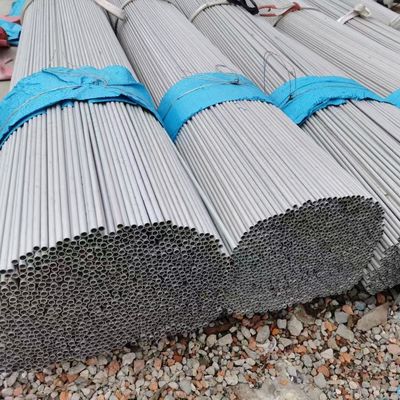

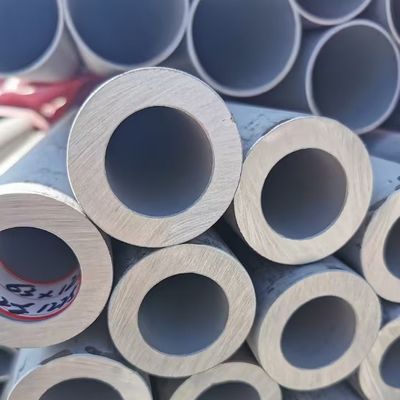

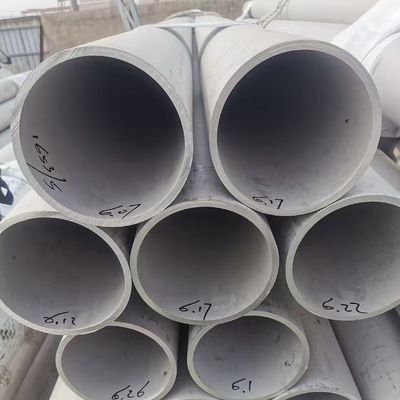

ASTM JIS 316 316L SUS316L 1.4404 Stainless Steel Pipe / SS Pipe Tube OD6 - 426mm
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 4000-5000 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe Tube | Grade | 304 304L 410s 316L 316Ti 316ln 321 317L 2205 S32760 254smo 2507 310S 347 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Heat Exchanger | Packing | Wooden Box Or PP Bag |
| Highlight | ASTM JIS Stainless Steel Pipe,1.4404 Stainless Steel Pipe,SUS316L Stainless Steel Pipe |
||
Product Description
ASTM JIS 316 316L SUS316L 1.4404 Stainless Steel Pipe / SS Pipe Tube OD6 - 426mm
Stainless steel pipe is a hollow strip of circular steel, mainly widely used in petroleum, chemical, medical, food, light industry, mechanical instrument and other industrial pipeline and mechanical structure parts. In addition, in the same bending, torsional strength, light weight, so it is also widely used in manufacturing machinery parts and engineering structures. It is also commonly used as furniture and kitchenware.
ASTM A312 TP 316L Stainless Steel Seamless Pipe Grade And Specification
|
Stainless Steel Pipes
|
|||||
|---|---|---|---|---|---|
|
Sr. No.
|
Material
|
Size
|
Sch.
|
Specification
|
Manufacturer
|
|
1
|
ASTM A312 Stainless Steel 316L Seamless Pipe
|
15 NB
To 300 NB |
Sch. 5s
Sch. 10s Sch. 40s Sch. 80s Sch. 160s Sch. XXS |
ASTM A-312
|
Imported
Choksi Remi & Ratnamani |
|
2
|
ASTM A312 Stainless Steel 316L Welded (ERW) Pipe
|
15 NB
To 300 NB |
Sch. 5s
Sch. 10 Sch. 40s & Sch. 80s |
ASTM A-312
|
Remi
Ratnamani Vishal Suraj C.D. Prakash Heavy Imported Etc. |
|
3
|
ASTM A358 Stainless Steel 316L Welded (ERW) Pipe
|
150 NB
To 600 NB |
Sch. 5s
Sch. 10s Sch. 40s & Sch. 80s |
ASTM A-358
|
Fabricated at Famous
Prakash Vishal (with Radiography) |
| Note:- | ||||
|---|---|---|---|---|
| Specification | ASTM A 269/A 213 / EN 10216-5 / NACE MR0175/PED 97/23 EC | |||
| Outside Diameter: | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock | |||
| Thickness Range | 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS | |||
| Type | Seamless / ERW / Welded / Fabricated / CDW | |||
| End | Plain End, Beveled End, Threaded | |||
| End Protection | Plastic Caps | |||
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements | |||
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn | |||
|
Special Pipes
|
Stainless Steel 304 Fabricated Pipe (with radiography) | |||
|
In Form of
|
Round Pipe /Tubes
Square Pipe /Tubes Rectangle Pipe /Tubes Coiled Tubes |
Oval Pipe /Tubes
Coil Flexible Pipe Pan Cake Coils, |
Shaft
‘U’ Shape Hydraulic Pipe/ Tubes etc. |
|
|
In Length of
|
Single Random, Double Random , Standard & Cut length | |||
|
Value Added Service
|
Draw & Expansion as per required Size & Length Polish (Electro & Commercial) Heat Treatment Bending Annealed & Pickled Sand Blasting Machining Etc. |
|||
Chemical Composition Of ASTM A312 TP 316L Stainless Steel Seamless Pipe
| GRADE |
|
C
|
MN
|
SI
|
P
|
S
|
CR
|
MO
|
NI
|
N
|
|---|---|---|---|---|---|---|---|---|---|---|
|
316L
|
Min
|
-
|
-
|
-
|
-
|
-
|
16.0
|
2.00
|
10.0
|
-
|
|
Max
|
0.03
|
2.0
|
0.75
|
0.045
|
0.03
|
18.0
|
3.00
|
14.0
|
0.10
|
|
|
316H
|
Min
|
0.04
|
0.04
|
0
|
-
|
-
|
16.0
|
2.00
|
10.0
|
-
|
|
max
|
0.10
|
0.10
|
0.75
|
0.045
|
0.03
|
18.0
|
3.00
|
14.0
|
-
|
Mechanical Properties Of ASTM A312 TP 316L Stainless Steel Seamless Pipe
| GRADE | TENSILE STR (MPA) MIN |
YIELD STR 0.2% PROOF (MPA) MIN |
ELONG (% IN 50MM) MIN |
HARDNESS | |
|---|---|---|---|---|---|
| ROCKWELL B (HR B) MAX | BRINELL (HB) MAX | ||||
|
316L
|
485
|
170
|
40
|
95
|
217
|
|
316H
|
515
|
205
|
40
|
95
|
217
|
Physical Properties Of ASTM A312 TP 316L Stainless Steel Seamless Pipe
| GRADE | DENSITY (KG/M3) |
ELASTIC MODULUS (GPA) |
MEAN CO-EFF OF THERMAL EXPANSION (ΜM/M/°C) | THERMAL CONDUCTIVITY (W/M.K) |
SPECIFIC HEAT 0-100°C (J/KG.K) |
ELEC RESISTIVITY (NΩ.M) |
|||
|---|---|---|---|---|---|---|---|---|---|
| 0-100°C | 0-315°C | 0-538°C | AT 100°C | AT 500°C | |||||
| 316L/H | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 74 |
Grade Specifications For 316L Stainless Steel Pipe
|
GRADE
|
UNS
NO |
OLD BRITISH
|
EURONORM
|
SWEDISH
SS |
JAPANESE
JIS |
||
|---|---|---|---|---|---|---|---|
|
BS
|
EN
|
NO
|
NAME
|
||||
|
316L
|
S31603
|
316S11
|
-
|
1.4404
|
X2CrNiMo17-12-2
|
2348
|
SUS 316L
|
|
316H
|
S31609
|
316S51
|
-
|
-
|
-
|
-
|
-
|
ASTM A312 TP 316L Stainless Steel Seamless Pipe Available Size
|
NB SIZES
|
SCH 5 | SCH 10 | SCH 40 | SCH 80 | SCH 160 |
|---|---|---|---|---|---|
|
1/8″
|
√
|
√
|
√
|
√
|
√
|
|
1/4″
|
√
|
√
|
√
|
√
|
√
|
|
3/8″
|
√
|
√
|
√
|
√
|
√
|
|
1/2″
|
√
|
√
|
√
|
√
|
√
|
|
3/4″
|
√
|
√
|
√
|
√
|
√
|
|
1″
|
√
|
√
|
√
|
√
|
√
|
|
1 1/4″
|
√
|
√
|
√
|
√
|
√
|
|
1 1/2″
|
√
|
√
|
√
|
√
|
√
|
|
2″
|
√
|
√
|
√
|
√
|
√
|
|
2 1/2″
|
√
|
√
|
√
|
√
|
√
|
|
3″
|
√
|
√
|
√
|
√
|
√
|
|
4″
|
√
|
√
|
√
|
√
|
√
|
|
5″
|
√
|
√
|
√
|
√
|
√
|
|
6″
|
√
|
√
|
√
|
√
|
√
|
ASTM A312 TP 316L Stainless Steel Seamless Pipe Value Added Service
Polishing |
Victor Steel can polish nearly any stainless steel pipe item to a #4 polish, #6 Polish, #7 polish or a #8 mirror finish. Stainless steel polished pipes can also be cut to size. |
Beveling |
Victor Steel can bevel stainless steel pipe to prepare for welding or other processes. |
Honing/Turning |
Victor Steel can hone pipe and tube, using a precision abrasion process in order to obtain a desired finish or close dimensional tolerance. |
Heatreating & Annealing |
Some grades of stainless steel pipe and tube can be heatreated to change the mechanical properties. Precipitation Hardening Stainless Steels such as 17-4PH can be heatreated. 410 stainless steel plate can also be heatreated. In some cases, secondary annealing 300 series stainless steel may be required depending on the application |
Positive Material Identification (PMI) |
Victor Steel can perform PMI testing in house for most stainless steel grades, or we can work with independent labs to complete PMI in order to meet customer specifications. |
UT Testing |
In some cases, UT testing of the stainless steel pipe and tueb may be required. We can assist you with this requirement. |
