TP316L Ss316 Seamless Pipe SCH40S SCH80S In 6m Length
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc |
| Minimum Order Quantity | 500 kgs |
| Price | 4000-5000 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe Tube | Grade | 304 304L 410s 316L 316Ti 316ln 321 317L 2205 S32760 254smo 2507 310S 347 904L.etc |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Heat Exchanger | Packing | Wooden Box Or PP Bag |
| Highlight | SCH80S Stainless Steel Pipe,SCH40S Stainless Steel Pipe,6m Stainless Steel Pipe |
||
Product Description

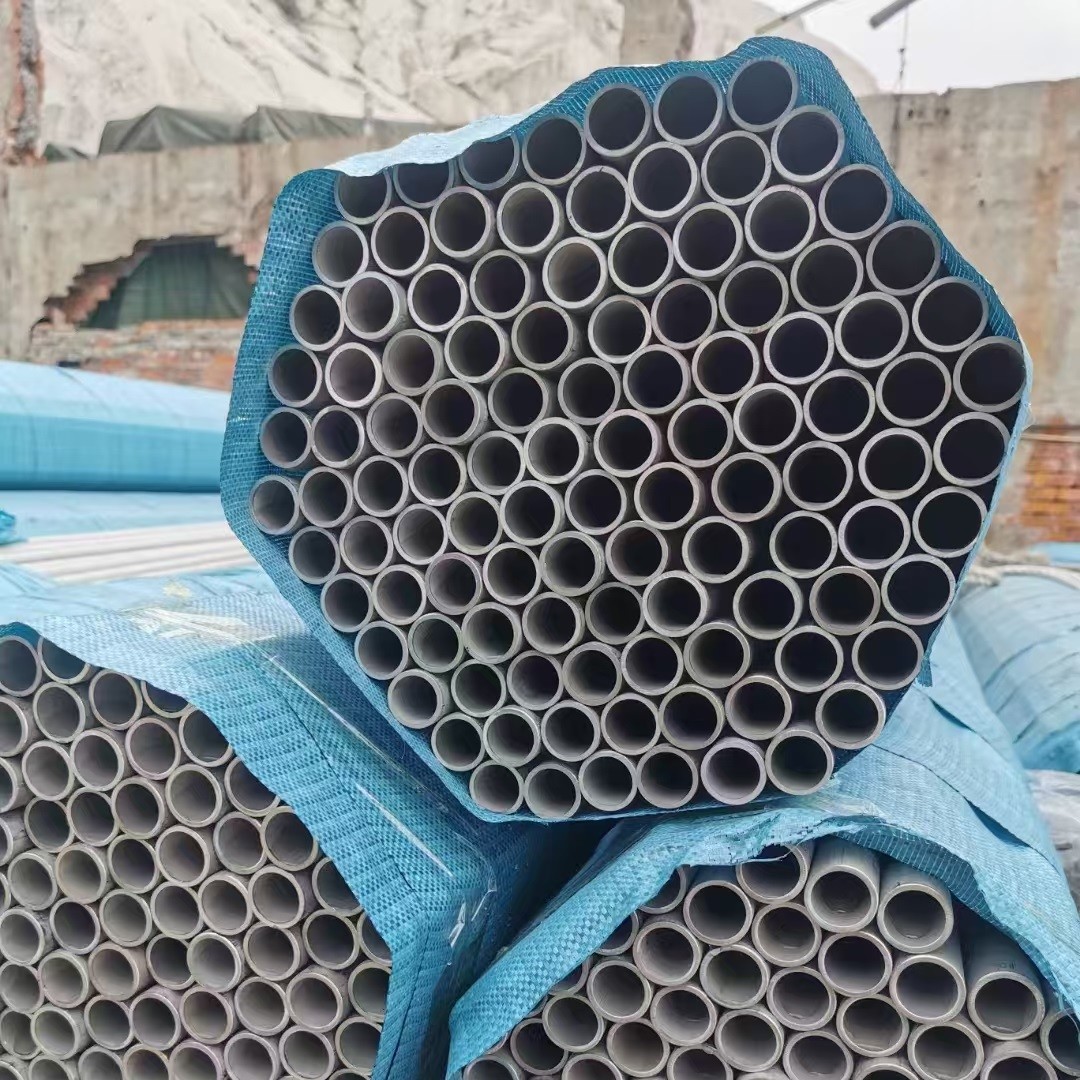

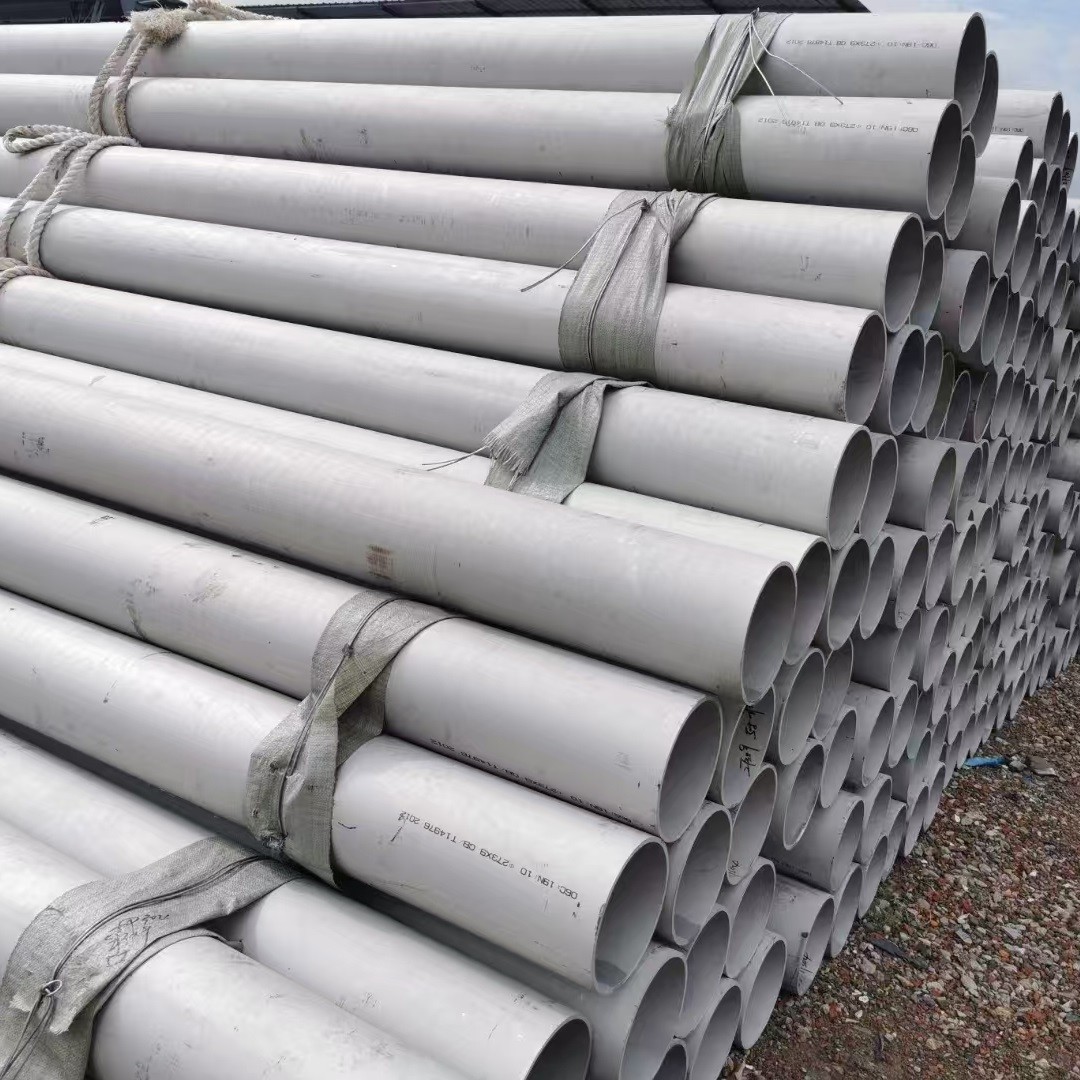

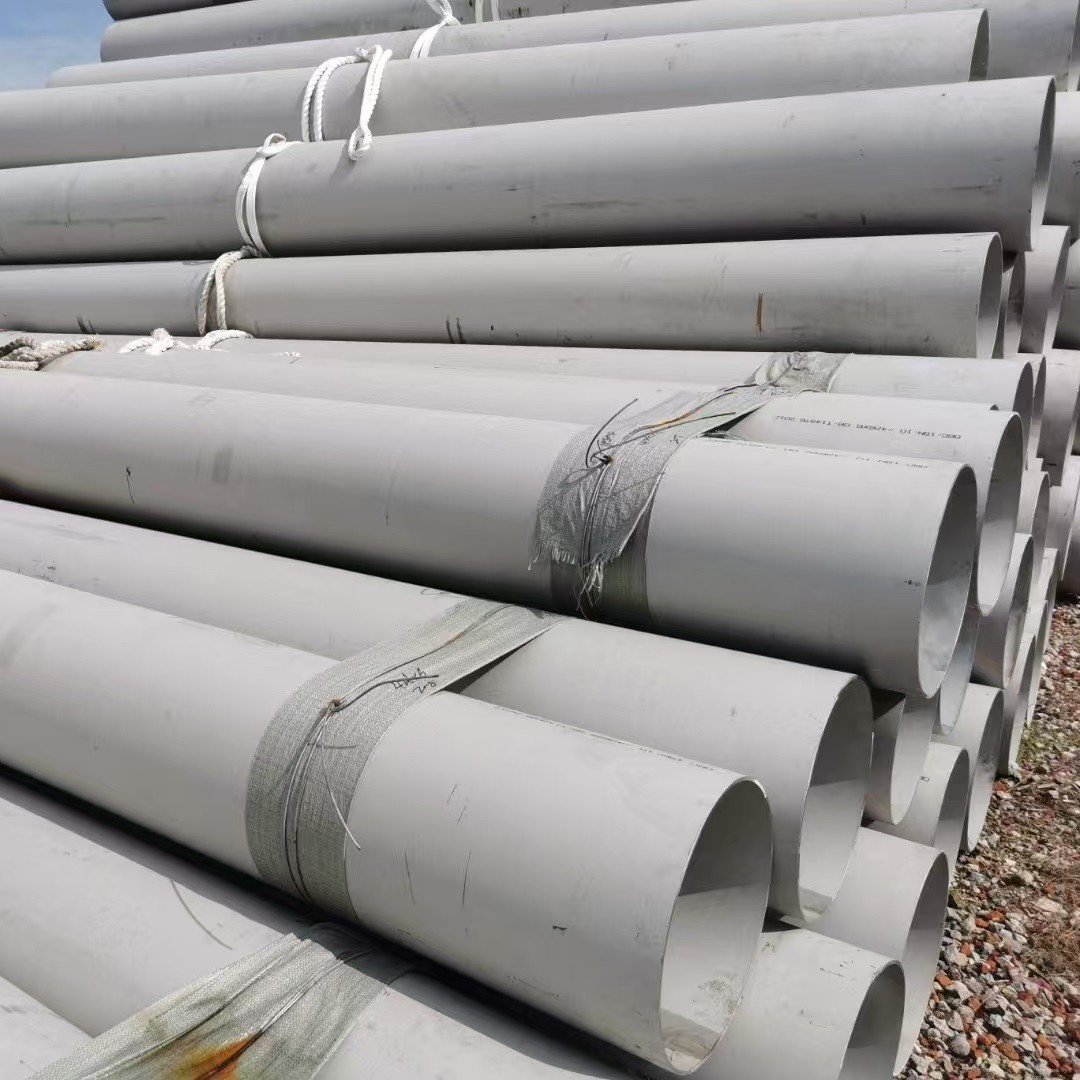

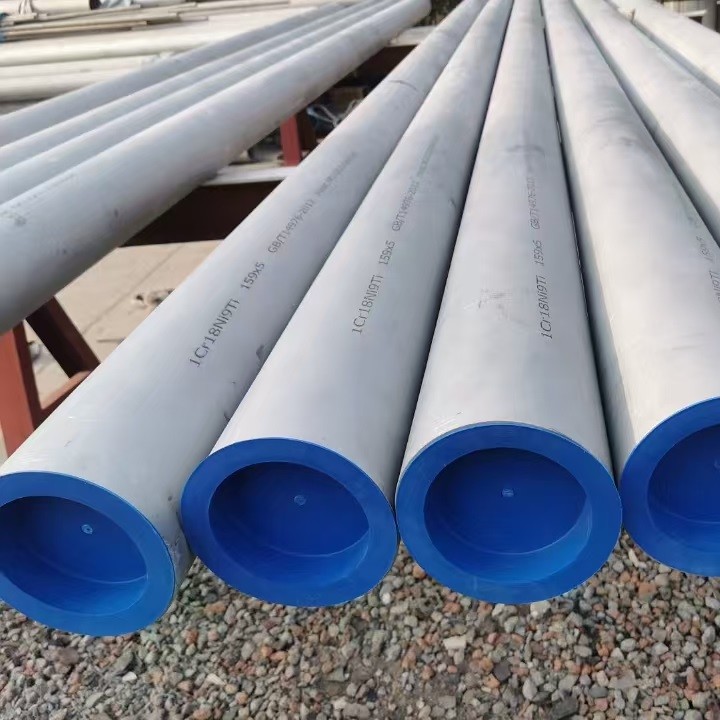

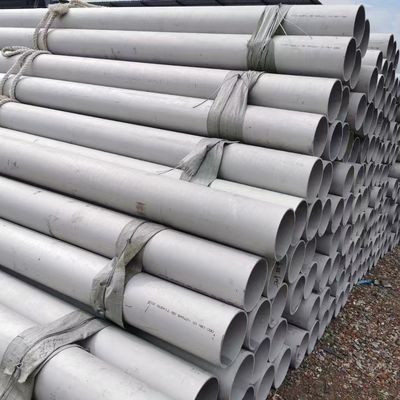

TP316L Stainless Steel Pipe / Seamless Pipe SCH40S SCH80S in 6m Length
316 Stainless Steel Pipe has a unique material composition with additions of 0.08 Carbon, 0.75 Si, 2.0 Manganese, 0.03 Sulfur, 0.045 Phosphorous, 2.0-3.0 Molybdenum, chromium 16.0-18.0, Nickel 10.0-14.0, N 0.10 shows a min. tensile strength of 515 Mpa and a min. yield strength of 205 Mpa, hardness of 95 max for Rockwell B, hardness of 217 max for Brinell (HB ) and elongation min 40% in 50mm as per the mechanical properties.
316 – 316L SS Electropolished Pipes Specification
| Products | 316L Stainless Steel Pipe |
|---|---|
| Out Diameter | DN 10 - DN400 |
| Thickness Schedul | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Other wall thickness | 1mm - 60mm custom as request |
| 316L SS Length | Single Random, Double Random, Standard & Cut length Pipe & Tube |
| 316 SS Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| SS 316L Form | Round, Hydraulic, ‘U’ bent or Hollow,LSAW, Boiler, Straight Pipe, Clad Pipe, Rectangular, Square Pipe Etc |
| Stainless Steel 316 / 316L Type | Welded, Seamless, ERW, EFW, Fabricated Pipe, ‘U’ bent or Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Tube etc |
| 316L SS End | Plain End, Beveled End, Treaded Pipe |
| SS UNS S31603 Marking | All 316 SS Pipe are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| SS 316 Application | Oil Pipe & Tube, Gas Pipe & Tube, Fluid Pipe & Tube, Boiler Pipe & Tube, Heat exchanger Tube |
| We can also cut, thread, and groove 316 Stainless Steel Pipe to meet your specifications. Pipe Dimension ANSI/ ASME B36.10, B36.19, B2.1 | |
316L Stainless Steel Pipe Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316 | min. | – | – | – | – | – | 16.0 | 2.0 | 10.0 | – |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.0 | 14.0 | 0.10 | |
Stainless Steel 316 Round Pipes mechanical properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 316 | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Equivalent Grades for SS 316L Stainless SteelPipes
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 316L | S31603 | 304S11 | 58E | 1.4404 | X5CrNiMo17-12-2 | 2347 | SUS 316L |
