Grade 2.4066 / Alloy 200 / UNS N02200 Pure Nickel Alloy Bars Custom Free Cutting Any Length
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 2.4066 2.4068 Alloy 200 Alloy 201 |
| Minimum Order Quantity | 500 kgs |
| Price | 24-35USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Bar | Grade | 2.4066 2.4068 Alloy 200 Alloy 201 |
|---|---|---|---|
| Diameter | 4 - 200mm | Length | Custom Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | Bright |
| Highlight | UNS N02200 Nickel Alloy Bars,Custom Free Cutting Nickel Alloy Bars,Alloy 200 Nickel Alloy Bars |
||
Product Description

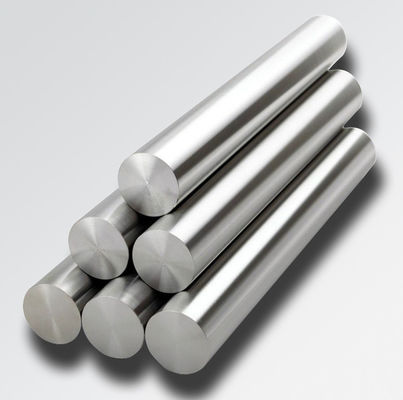

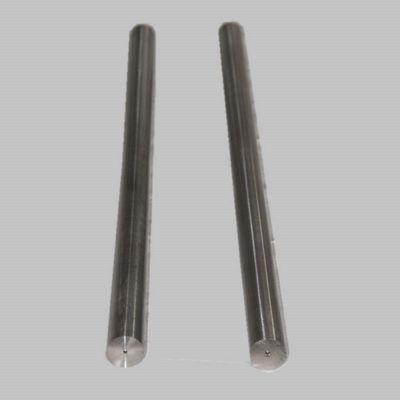

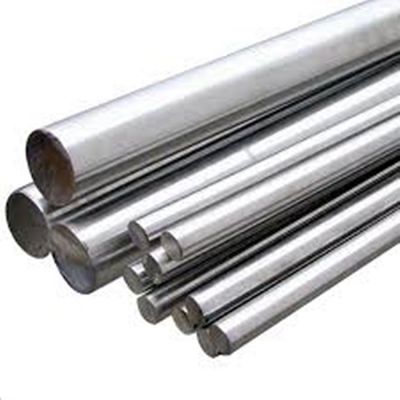

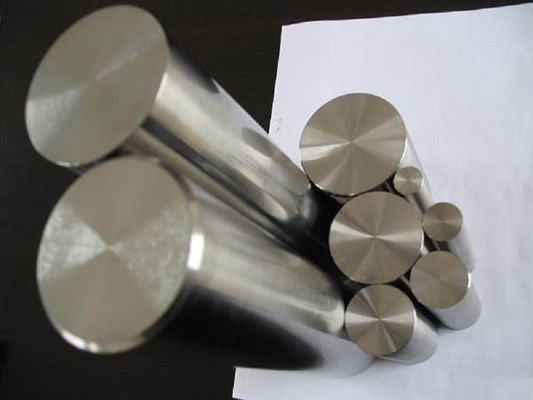

Grade 2.4066 / Alloy 200 / UNS N02200 Pure Nickel Alloy Bars Custom Free Cutting Any Length
Specification of Nickel Bar
| Name | Nickel Round Bar |
| Grade | Alloy 200 / Alloy 201 / 2.4068 / 2.4066 |
| Density | 8.9g/cm3 |
| Diameter | 4 - 200mm or other special diameter as request |
| Length | 1m 2m 3m 4m 6m or cutting any length free |
| Surface | Bright |
| Lead time | 7 to 10 working days after the receipt of deposit |
| Other Shape | Plate, Pipe, Flat Bar, Coil |
| MOQ | 50 kgs |
| Payment terms | 30%TT for deposit, 70% balance before shipment |
| Price Term | FOB,CIF,EXW |
| Port of Loading | Shanghai Port |
| Deliver method | By Sea, UPS, DHL, Fedex |
| Packing | standard packing with plastic bags and strapped bundles, and can be customized; In bundles tied with steel strips. End plastic |
| caps, external packing by PVC or according to customer's request |
MATERIAL DESCRIPTION
Material 2.4066 is an unalloyed, technically pure nickel. The material has a high corrosion resistance and excellent resistance to alkaline media. In addition, 2.4066 (Alloy 200) has good mechanical properties over a wide temperature range.
This material also offers good resistance in oxidising and reducing conditions as well as high ductility. Good thermal conductivity and excellent resistance to a range of corrosive media, acids and natural salt solutions finish off the positive material properties of 2.4066.
200 Nickel Round Bar Chemical Composition
| Grade | C | Mn | Si | Cu | S | Fe | Mo | Ni | Cr |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.25 max | 0.01 min | 0.40 max | – | 99 min | – |
Nickel Alloy 200 Rods Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67,000 , MPa – 462 | Psi – 21,500 , MPa – 148 | 45 % |
AN OVERVIEW OF THE PROPERTIES OF 2.4066:
- High corrosion resistance
- Good mechanical properties (over a wide temperature range)
- Resistance to alkaline media, corrosive media, acids and natural salt solutions, among others
- Resistance to oxidising and reducing conditions
- High ductility
- Good thermal conductivity
APPLICATIONS
- Chemical and petrochemical industry
- Food industry
- Transport systems for chemical agents
Other Nickel Alloy Grade
|
DIN
|
WERKSTOFF NR.
|
UNS
|
Grade
|
|---|---|---|---|
| Ni 99.2 LC-Ni 99 |
2.4066 2.4068 |
N 02200 N 02201 |
NICKEL 200/201 |
| NiCu 30 Fe | 2.4360 | N 04400 | MONEL 400 |
| NiCr 20 CuMo | 2.4660 | N 08020 | ALLOY 20 |
| NiCr 21 Mo | 2.4858 | N 08825 | INCOLOY 825 |
| NiCr 29 Fe | 2.4642 | N 06690 | INCONEL 690 |
| NiCr 25 FeAIY | 2.4633 | N 06025 | ALLOY 602 CA |
| NiCr 15 Fe | 2.4816 | N 06600 | INCONEL 600 |
| NiCr 23 Fe | 2.4851 | N 06601 | INCONEL 601 |
| NiCr 21 Mo 14W | 2.4602 | N 06022 | HASTELLOY C22 |
| NiCr 23Mo 16Al | 2.4605 | N 06059 | ALLOY 59 |
| NiMo 16 Cr 15W | 2.4819 | N 10276 | HASTELLOY C 276 |
