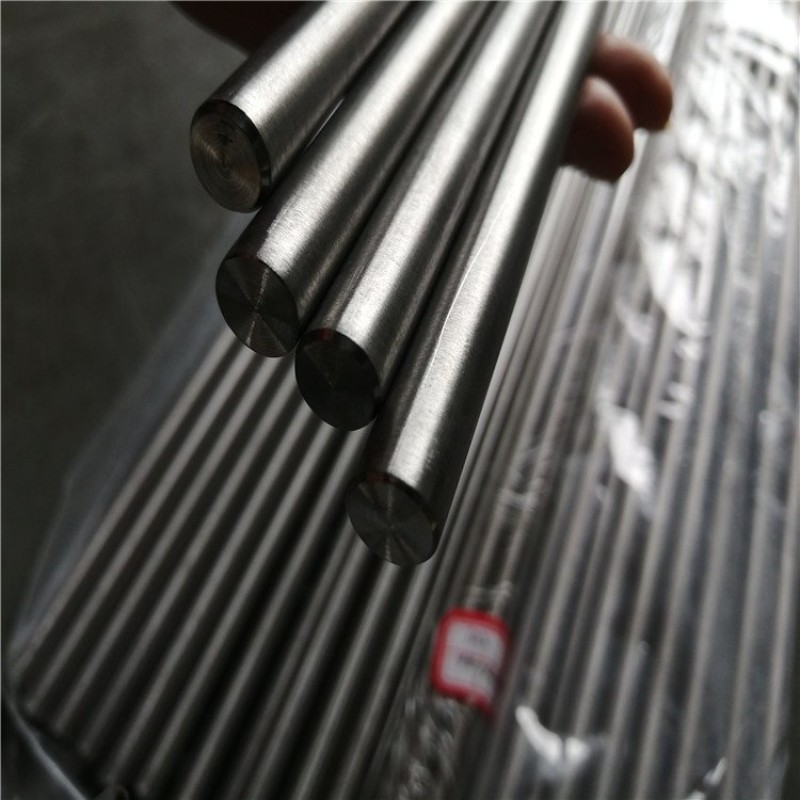

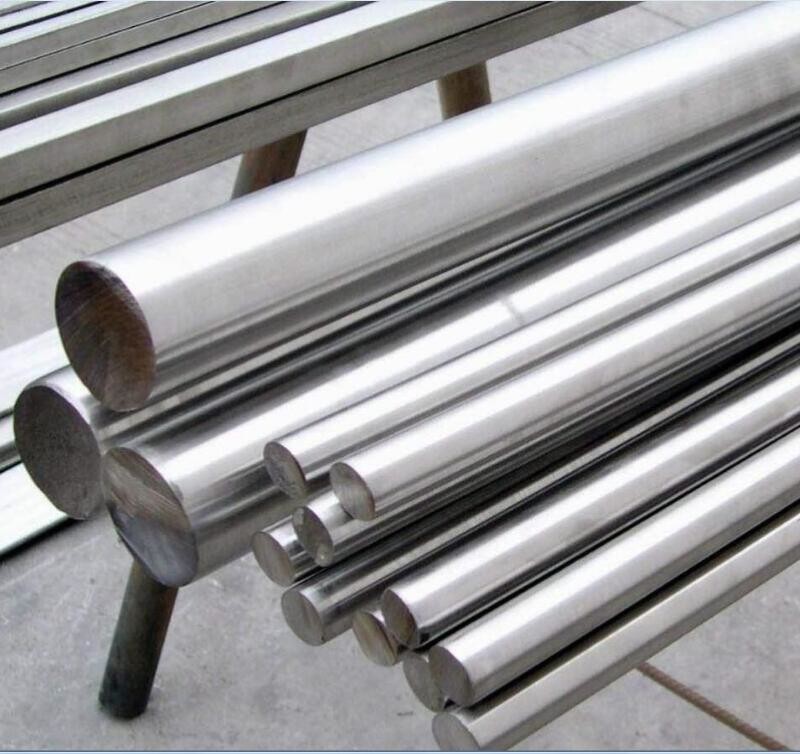

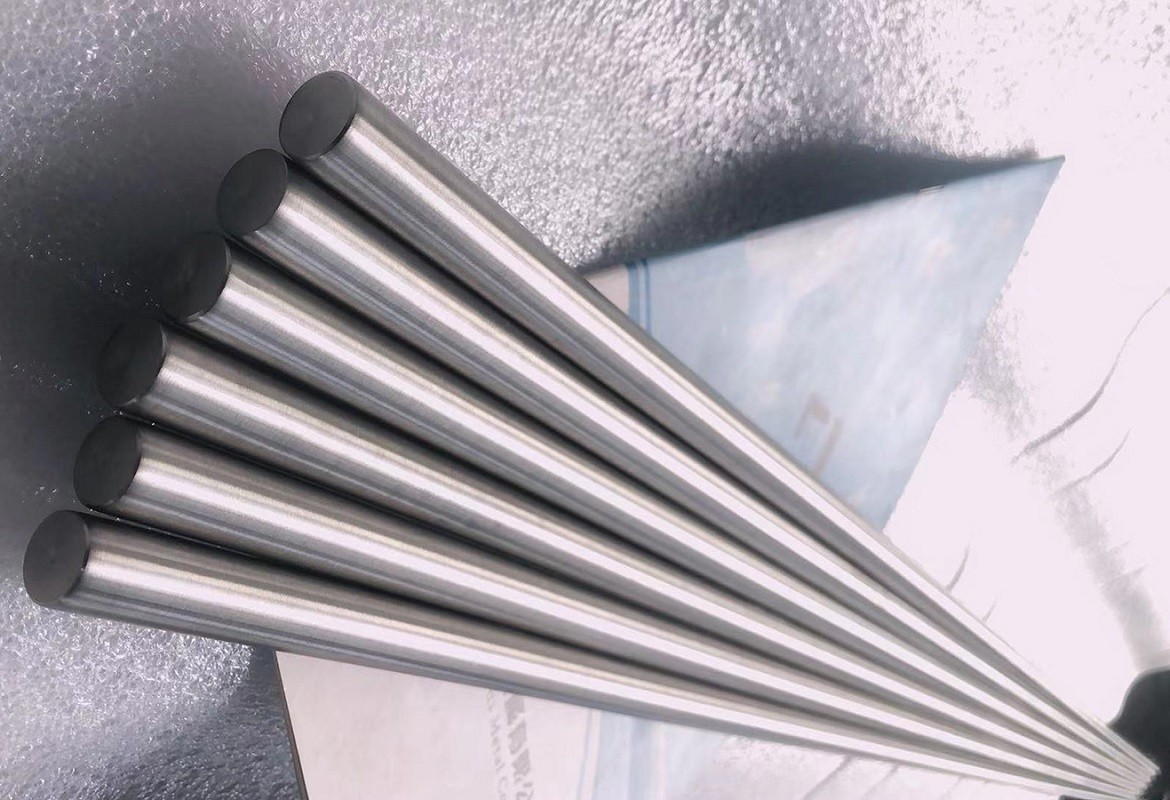

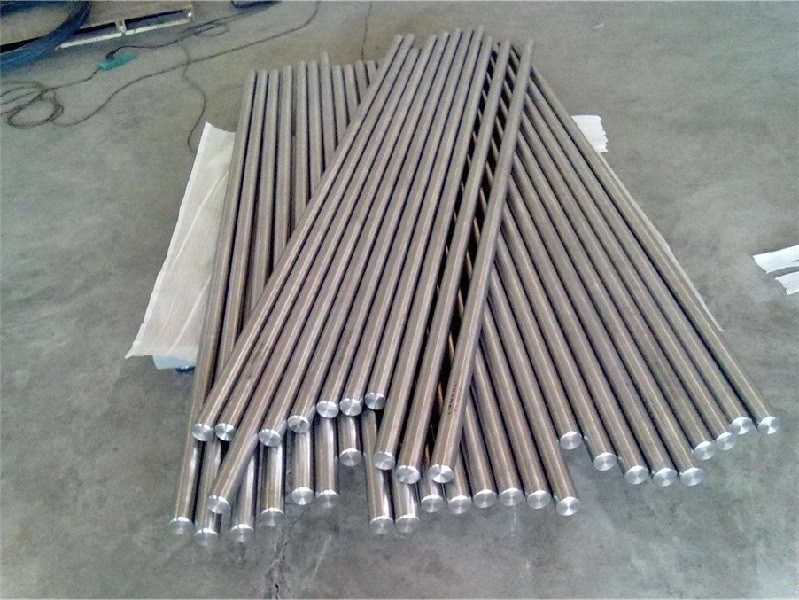

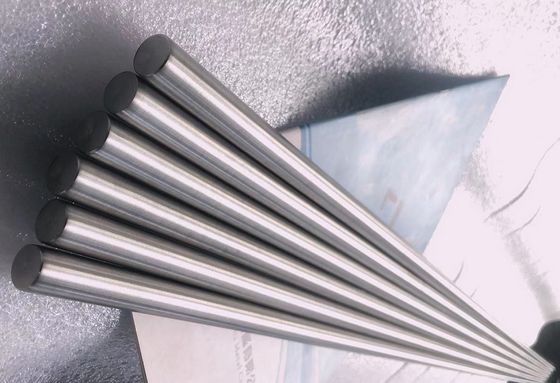

Pure Nickel Rod ASTM No2200 Ni200 Ni201 Nickel Round Bar ASTM EN Standard
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | N4 N6 Ni200 Ni201 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Bar | Grade | N4 N6 Ni200 Ni201 |
|---|---|---|---|
| Diameter | 4 - 300mm | Length | Custom Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | Bright |
| Highlight | ASTM EN Standard Nickel Rod,ASTM No2200 Nickel Rod,Pure Nickel Rod |
||
Product Description
Pure Nickel Rod ASTM No2200 Ni200 Ni201 Nickel Round Bar ASTM EN Standard
| Specifications | ASTM B160 / ASTM SB160 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | 5 mm To 500 mm |
| Diameter | 0.1 mm to 100 mm |
| Length | 100 mm To 3000 mm Long & Above |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
201 Nickel Round Bar Chemical Composition
| Grade | C | Mn | Si | Cu | S | Fe | Mo | Ni | Cr |
| Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.25 max | 0.01 min | 0.40 max | – | 99 min | – |
Nickel Alloy 201 Rods Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67,000 , MPa – 462 | Psi – 21,500 , MPa – 148 | 45 % |
Equivalent Grades for 201 Nickel Round Bar
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | НП-2 | LC-Ni 99 |
Nickel 201 Round Bar Application Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
201 Nickel Rods Test Certificates
We provide Manufacturer TC (Test Certificate) in accordance to EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report. We also provide Standard certificates like EN 10204 3.1 and additional requirement like. NACE MR 01075. FERRIT CONTENT as per norms if requested by clients.
• EN 10204/3.1B,
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc
Material Testing
We ensure that all our materials go through strict quality tests before dispatching them to our clients.
• Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and Macro Test
• Pitting Resistance Test
• Flaring Test
• Intergranular Corrosion (IGC) Test
Documentation
• Commercial Invoice which includes HS Code
• Packing List including net weight and gross weight, number of boxes, Marks and Numbers
• Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
• Fumigation Certificates
• Raw Material Test Reports
• Material Traceability Records
• Quality Assurance Plan (QAP)
• Heat Treatment Charts
• Test Certificates certifying NACE MR0103, NACE MR0175
• Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
• Guarantee Letter
• NABL approved Laboratory Test Reports
• Welding Procedure Specification/Procedure Qualification Record, WPS/PQR
• Form A for the purposes of the Generalized System of Preferences (GSP)
Material: pure nickel and nickel alloy
Grade: (Chinese) N4 N6 ; (American) Ni201 Ni200
Type: Nickel Pipe,Seamless,welding tube
Dimensions: Wall Thickness 1mm min. accept customized
Type: Nickel Pipe,Seamless,welding tube
Dimensions: Wall Thickness 1mm min. accept customized
Features:
(1)Low Density and High Specification Strength
(2)Excellent Corrosion Resistance
(3)Good resistance to effect of heat
(4)Excellent Bearing to cryogenic property
(5)Nonmagnetic and Non-toxic
(2)Excellent Corrosion Resistance
(3)Good resistance to effect of heat
(4)Excellent Bearing to cryogenic property
(5)Nonmagnetic and Non-toxic
Characteristic and Differences
Nickel 200 is commercially pure wrought nickel. It is highly resistant to various reducing chemicals. It can also be used in oxidizing conditions that cause the formation of a passive oxide film, for instance its unexcelled resistance to caustic alkalis.
Nickel 200 is limited to service at temperatures below 315ºC, because at higher temperatures it suffers from graphitization which results in severely compromised properties. In that circumstance, Nickel 201 is used instead. It has a high Curietemperature and good magnetostrictive properties. Its thermal and electrical conductivities are higher than nickel alloys.
Nickel 201 is the low-carbon version of Nickel 200. Because of its low carbon content, Nickel 201 is not subject to embrittlement by intergranularly precipitated carbon or graphite when exposed to temperatures of 315 to 760ºC for prolonged time if carbonaceous materials are not in contact with it. Therefore, it is a substitute for Nickel 200 in Applications above 315ºC. However it does suffer from intergranular embrittlement by sulfur compounds at temperatures above 315ºC. Sodium peroxide can be used to change them to sulfates to counteract their effect.
Nickel 200 is commercially pure wrought nickel. It is highly resistant to various reducing chemicals. It can also be used in oxidizing conditions that cause the formation of a passive oxide film, for instance its unexcelled resistance to caustic alkalis.
Nickel 200 is limited to service at temperatures below 315ºC, because at higher temperatures it suffers from graphitization which results in severely compromised properties. In that circumstance, Nickel 201 is used instead. It has a high Curietemperature and good magnetostrictive properties. Its thermal and electrical conductivities are higher than nickel alloys.
Nickel 201 is the low-carbon version of Nickel 200. Because of its low carbon content, Nickel 201 is not subject to embrittlement by intergranularly precipitated carbon or graphite when exposed to temperatures of 315 to 760ºC for prolonged time if carbonaceous materials are not in contact with it. Therefore, it is a substitute for Nickel 200 in Applications above 315ºC. However it does suffer from intergranular embrittlement by sulfur compounds at temperatures above 315ºC. Sodium peroxide can be used to change them to sulfates to counteract their effect.
Chemical Composition
|
Grade
|
Ni+Co
|
Cu
|
Si
|
Mn
|
C
|
Mg
|
S
|
P
|
Fe
|
|
N4
|
99.8
|
0.015
|
0.03
|
0.002
|
0.01
|
0.01
|
0.001
|
0.001
|
0.04
|
|
N6
|
99.6
|
0.10
|
0.10
|
0.05
|
0.10
|
0.10
|
0.005
|
0.002
|
0.10
|
|
Ni201
|
≥99.0
|
≤0.25
|
≤0.35
|
≤0.35
|
≤0.02
|
/
|
≤0.01
|
/
|
≤0.40
|
|
Ni200
|
≥99.2
|
≤0.25
|
≤0.35
|
≤0.35
|
≤0.15
|
/
|
≤0.01
|
/
|
≤0.40
|
