Pure Nickel Bar Chemical Processing N4 N6 Ni200 Ni201 99.9% Pure Nickel Bar
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | N4 N6 Ni200 Ni201 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Bar | Grade | N4 N6 Ni200 Ni201 |
|---|---|---|---|
| Diameter | 4 - 300mm | Length | Custom Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | Bright |
| Highlight | N4 N6 Pure Nickel Bar,Chemical Processing Pure Nickel Bar,99.9% Pure Nickel Bar |
||
Product Description

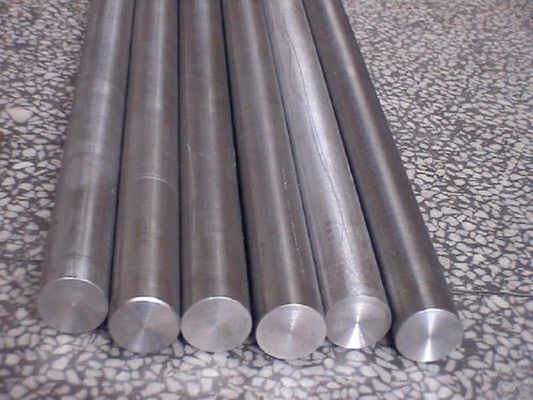

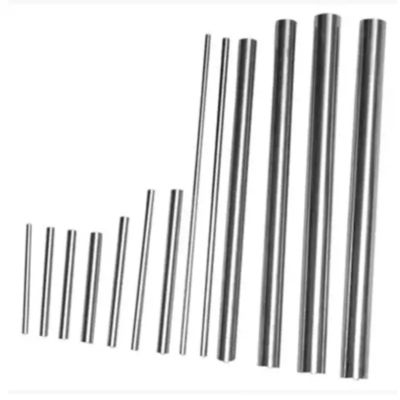

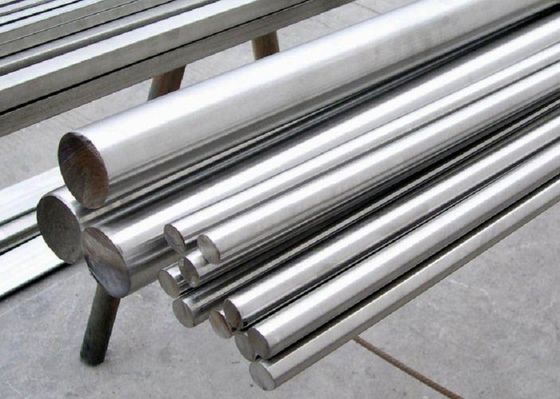

Pure Nickel Bar Chemical Processing N4 N6 Ni200 Ni201 99.9% Pure Nickel Bar
Ni200 and Ni201 is used in Electronic parts, aerospace and missile components, handling equipment and food proccessing, rechargeable batteries, surgical equipment.
Nickel 201 is a low carbon variety compared with Nickel 200, possessing low annealed hardness and a very low work-hardening rate, desirable for cold forming operations. It is highly resistant to corrosion by neutral and alkaline salt solutions, fluorine and chlorine, but in oxidising salt solutions severe attack will occur.
The applications of pure nickel includes food and synthetic fiber processing equipment, electronic parts, aerospace and missile components, handling of sodium hydroxide above 300ºC.
Chemical Composition
|
Grade
|
Ni+Co
|
Cu
|
Si
|
Mn
|
C
|
Mg
|
S
|
P
|
Fe
|
|
N4
|
99.8
|
0.015
|
0.03
|
0.002
|
0.01
|
0.01
|
0.001
|
0.001
|
0.04
|
|
N6
|
99.6
|
0.10
|
0.10
|
0.05
|
0.10
|
0.10
|
0.005
|
0.002
|
0.10
|
|
Ni201
|
≥99.0
|
≤0.25
|
≤0.35
|
≤0.35
|
≤0.02
|
/
|
≤0.01
|
/
|
≤0.40
|
|
Ni200
|
≥99.2
|
≤0.25
|
≤0.35
|
≤0.35
|
≤0.15
|
/
|
≤0.01
|
/
|
≤0.40
|
Physical Data
| Density | 8.9g/cm3 |
| Specific Heat | 0.109(456 J/kg.ºC) |
| Electrical Resistivity | 0.085×10-6ohm.m |
| Melting Point | 1435-1445ºC |
| Thermal Conductivity | 79.3 W/m-K |
| Mean Coeff Thermal Expansion | 13.1×10-6m/m.ºC |
Typical Mechanical Properties
| Mechanical Properties | Nickel 201 |
| Tensile Strength | 403 Mpa |
| Yield Strength | 103 Mpa |
| Elongation | 50% |
Our Production Standard
| Bar | Forging | Pipe | Sheet/Strip | Wire | |
| ASTM | ASTM B160 | ASTM B564 | ASTM B161/B163/B725/B751 | AMS B162 | ASTM B166 |
Application:
Electroplating, Aluminum Coloring: Its mechanical properties make it excellent for applications in the aerospace and defense industries and in moderately corrosive environments, such as food processing equipment and chemical shipping drums. construction
of the railroad, highway and so on,different kinds of mechanical equipment, electronics, battery, chemical processing, marine engineering.
1) For vacuum coating
(2) For making valves grid, inner components of valves
(3) For making lead, supporting wire
of the railroad, highway and so on,different kinds of mechanical equipment, electronics, battery, chemical processing, marine engineering.
1) For vacuum coating
(2) For making valves grid, inner components of valves
(3) For making lead, supporting wire
