EN 10204-3.1 Certificate Titanium Rod GR2 GR5 Titanium And Titanium Alloy Rod Bars
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | GR1 GR2 GR3 GR4 GR5 GR7 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Titanium Bar | Grade | GR1 GR2 GR3 GR4 GR5 GR7 |
|---|---|---|---|
| Diameter | 4 - 300mm | Length | Custom Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | Bright |
| Highlight | Titanium Alloy Rod Bars,EN 10204-3.1 Titanium Rod,GR2 GR5 Titanium Rod |
||
Product Description
EN 10204-3.1 Certificate Titanium Rod GR2 GR5 Titanium And Titanium Alloy Rod Bars
| Description | Titanium bar/Titanium rod |
| Material | Gr1, Gr2, Gr3,Gr4,Gr5, Gr7, Gr6,Gr9, Gr11, Gr12 ,Gr16, Gr17,Gr25 TA0,TA1,TA2,TA5,TA6,TA7,TA9,TA10,TB2,TC1,TC2,TC3,TC4 |
| Standard | ASTM B265,ASME SB265,DIN17851,TiA16Zr5Mo1.5,JIS4100-2007,GB3461-2007 |
| MOQ | 1kg |
| Equepment used | CNC lathes, Milling machine, Machining Center,Thread rolling machine Magnetic needle polishing machine |
| Package | Standard export package,suit for all kinds of transport ,or as required. |
| Application | 1.Based on High intensity,titanium products tensile strength can be up to 180Kg/mm².2.Titanium and titanium alloy in aviation industry, is called “space metal”; In addition,in the shipbuilding industry, chemical industry, manufacturing machinery parts,telecommunications equipment, hard alloy, etc have increasingly extensive application3.In addition, because of the titanium alloy with the human body has very good compatibility,so the titanium alloy can also be artificial bone. |
Specialist of Manufacturing Ti Gr 2 Bright Bars, Standard Size Titanium Alloy Threaded Rods Stockist, ASTM B348 Titanium Hex Bars.
ASTM B348, B863 Titanium Alloy Round Bars Specification :
Size : 8mm - 200mm
Length : Random, Fix & Cut Length
Specifications : ASTM B348 / ASME B348, ASTM B 863 / ASME SB 863.
Dimensions : ASTM, ASME, AMS
Form : Round, Square, Hex (A/F), Bush, Rectangle , Flat, Wire Mesh
Finish : Bright, Polish & Black
Titanium Gr 2 / Gr 5 Round Bars Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr2 | 3.7035 | R50400 |
| Titanium Gr5 | 3.7165 | N56400 |
Titanium Gr 2 / Gr 5 Round Bars Chemical Composition
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | - | - |
| Ti Grade5 | 90 min | - | 0.25 max | - | - | 0.2 max | 6 min | 4 min |
Titanium Gr 2 / Gr 5 Round Bars Mechanical & Physical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Ti Gr2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Ti Gr5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |

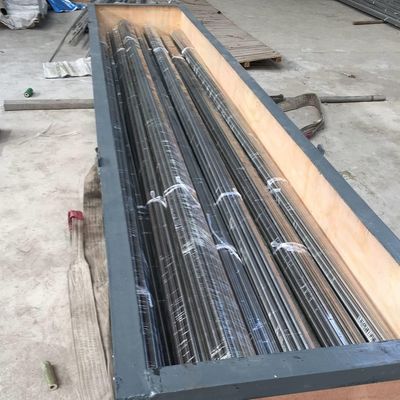

Packaging With the standard plastic bags inside, wooden case or as per client’s requirement.
Production process Titanium Sponge—Compacting electrodes—Multiple melting—Titanium ingots—Machining—UT testing—Chemical composition inspection—Forged
billets—Forged/Rolled—Annealed—-Straightening—Machining—UT testing—Visual and Dimension Inspection—UT testing—Marking—Packaging—Delivery
Titanium bar is highly resistant to chloride-containing media, practically all salt solutions, seawater, a range of acids, organic and inorganic chemicals and gases. The high environmental resistance is primarily based on a very thin, tenacious and highly protective surface oxide film. The oxide film provides high resistance to erosion in high velocity process streams. It is non-magnetic and characterized by a high melting point, high strength-to-weight ratio and a low modulus of elasticity. We provide high quality titanium bar with competitive prices and unrivaled customer service.
