Titanium Round Bar Rod ASTM Standard GR1 GR2 GR3 GR5 GR7 Bars Diameter 4 - 300mm

  • Titanium Round Bar Rod ASTM Standard GR1 GR2 GR3 GR5 GR7 Bars Diameter 4 - 300mm
  • Titanium Round Bar Rod ASTM Standard GR1 GR2 GR3 GR5 GR7 Bars Diameter 4 - 300mm
  • Titanium Round Bar Rod ASTM Standard GR1 GR2 GR3 GR5 GR7 Bars Diameter 4 - 300mm
  • Titanium Round Bar Rod ASTM Standard GR1 GR2 GR3 GR5 GR7 Bars Diameter 4 - 300mm
Place of Origin China
Brand Name DELTA
Certification ISO
Model Number GR1 GR2 GR3 GR4 GR5 GR7
Minimum Order Quantity 500 kgs
Price 40-45 USD/Kg
Packaging Details standard packing for export
Delivery Time 5 - 12 days based on the quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 3 Ton per week
Product Details
Products Titanium Bar Grade GR1 GR2 GR3 GR4 GR5 GR7
Diameter 4 - 300mm Length Custom Any Length As Request
Standard ASTM EN Service Cutting
Loading Port Shanghai Port Surface Bright
Highlight

ASTM Standard Titanium Round Bar

,

GR1 Titanium Round Bar

,

GR2 Titanium Round Bar
Leave a Message
Product Description

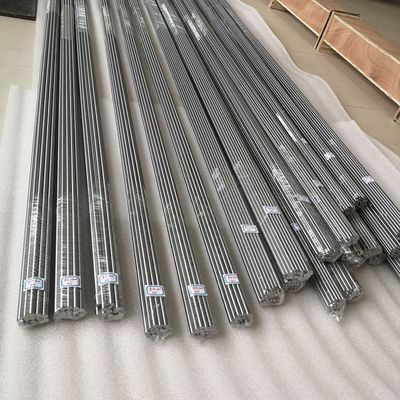

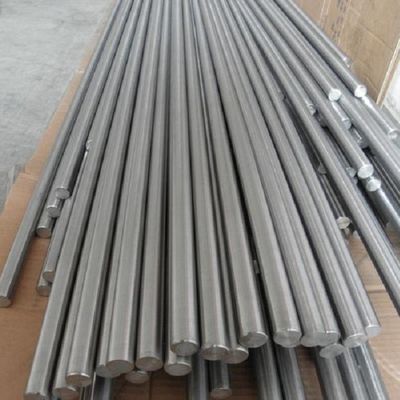

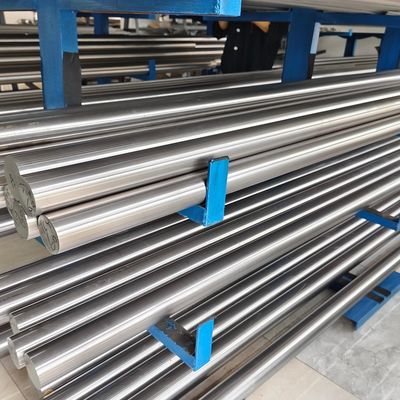

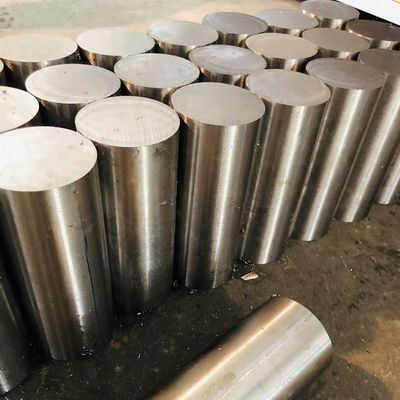

Titanium Round Bar & Rod ASTM Standard GR1 GR2 GR3 GR5 GR7 Bars Diameter 4 - 300mm

Titanium rods and round bars are a very popular go-to for many products. These require a much more automated process to make than plate and block, which still involve a manual process. Typically manufactured in 8-12 ft. lengths and can be easily cut to custom sizes and shipped. Rods are a universal go-to product for many components made from titanium. Round bar lends itself to a multitude of products, from fasteners to jewelry.

Titanium bar is available in the majority of the almost 40 grades, with the most common being grade 5 and grade 2. The medical field often uses small-diameter round bar for body implantable fasteners and dental appliances. Rods are made from very small diameters for welding, all the way up to larger diameters (such as the 14″ diameter), used for clutch and flywheels.

AVAILABLE SIZES:

  • 4 - 300mm custom any diameter as request

AVAILABLE GRADES

  • 6-4, 6-4 Eli, 6-2-4-2, 6-2-4-6, CP Grades 1,2,3,4,5,7

AVAILABLE SPECIFICATIONS

  • AMS-4928, 4930,4965, 4967, MIL-T-9047, AMS-T-9047,ASTM-F-367, AMS04975, AMS-4978, AMS-4926, 4966,B50TF22, AMS-4972, 4973, AMS-4921, MIL-9047, ASTM-B-348, ASTM-F-67

EXAMPLE APPLICATIONS

  • Rings, flywheels, clutch hats, medical screws, dental implant studs, fasteners, tube adapters, drive plates, suppressors, spacers and pins.

Chemical Composition



Grade N C H Fe O Al V Pa Mo Ni Ti
Gr1 0.03 0.08 0.015 0.2 0.18 / / / / / Bal
Gr2 0.03 0.08 0.015 0.3 0.25 / / / / / Bal
Gr3 0.05 0.08 0.015 0.3 0.35 / / / / / Bal
Gr4 0.05 0.08 0.015 0.5 0.4 / / / / /
Gr5 0.05 0.08 0.015 0.4 0.2 5.5-6.75 3.5-4.5 / / / Bal
Gr7 0.03 0.08 0.015 0.3 0.25 / / 0.12-0.25 / / Bal
Gr9 0.03 0.08 0.015 0.25 0.15 2.5-3.5 2.0-3.0 / / / Bal
Gr12 0.03 0.08 0.015 0.3 0.25 / / / 02-0.4 0.6-0.9 Bal


Mechanical properties Requirements

Grade Tensile strengt(min) Yield strength(min) Elongaion(%)
Ksi MPa Ksi Mpa
Gr1 35 240 20 138 24
Gr2 50 345 40 275 20
Gr3 65 450 55 380 18
Gr4 80 550 70 483 15
Gr5 130 895 120 828 10
Gr7 50 345 40 275 20
Gr9 90 620 70 438 15
Gr12 70 438 50 345 18



Titanium Round Bar Rod ASTM Standard GR1 GR2 GR3 GR5 GR7 Bars Diameter 4 - 300mm 0Titanium Round Bar Rod ASTM Standard GR1 GR2 GR3 GR5 GR7 Bars Diameter 4 - 300mm 1Titanium Round Bar Rod ASTM Standard GR1 GR2 GR3 GR5 GR7 Bars Diameter 4 - 300mm 2Titanium Round Bar Rod ASTM Standard GR1 GR2 GR3 GR5 GR7 Bars Diameter 4 - 300mm 3
