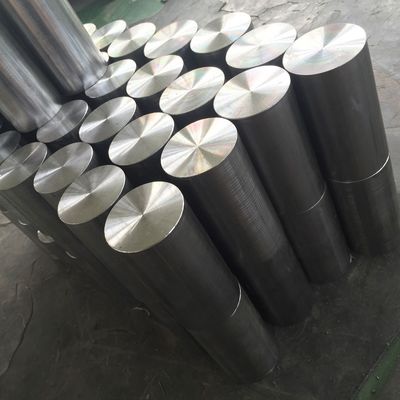

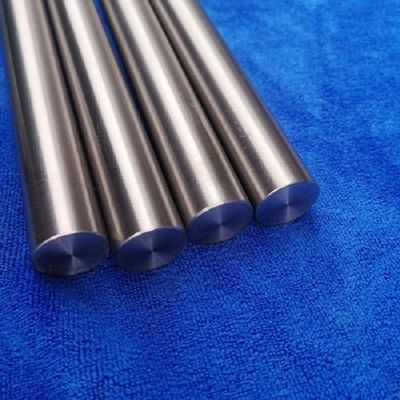

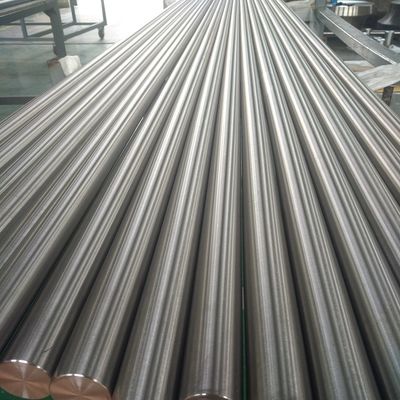

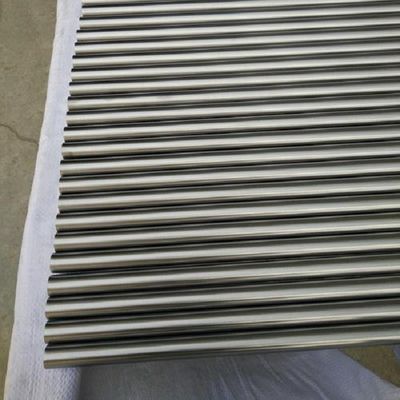

ASTM Standard Gr1 Gr2 Gr5 Titanium Alloy Rod Titanium Alloy Round Bars With EN 10204-3.1 Certificate
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | GR1 GR2 GR3 GR4 GR5 GR7 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Titanium Bar | Grade | GR1 GR2 GR3 GR4 GR5 GR7 |
|---|---|---|---|
| Diameter | 4 - 300mm | Length | Custom Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | Bright |
| Highlight | EN 10204-3.1 Titanium Alloy Rod,Gr5 Titanium Alloy Rod,ASTM Standard Titanium Alloy Rod |
||
Product Description
ASTM Standard Gr1 Gr2 Gr5 Titanium Alloy Rod Titanium Alloy Round Bars With EN 10204-3.1 Certificate
We offers a complete range of titanium and titanium alloy mill products in sheet, strip, plate, billet, bar, rod, extrusions and tubulars. We also offer metal processing services including hot-forming (e.g super plastic forming), extrusion,seamless pipe production, water jet and saw cutting, and machining.
| Product Name | Titanium |
| Titanium Bars/ Rods/Ingots | Ф3mm~Ф1020mm,the maximum weight is up to 12t |
| Titanium Slab | (80~400)mm×(~1500)mm×(~2600)mm |
| Titanium Forgings | Weight per piece≤2000kg |
| Titanium Hot-rolled plates | (4~100)mm×(800~2600)mm×(2000~12000)mm |
| Titanium Cold-rolled plates | (0.01~4.0)mm×(800~1560)mm×( ~6000) mm |
| Titanium Strips | (0.01~2.0)mm×(800~1560)mm×L |
| Titanium Tubes / Pipes | Ф(3~114)mm×( 0.2~5)mm × (~15000)mm |
| Standards | GB,GJB,ASTM,AMS,BS,DIN,DMS,JIS,ГОСт |
| Titanium Grade |
|
Chemical Composition
| Titanium | Composition Requirements, weight percent | |||||||||
| Grade | C | O | N | H | Fe | Al | V | Pd | Ni | Mo |
| 1 | ≤0.08 | ≤0.18 | ≤0.03 | ≤0.015 | ≤0.20 | - | - | - | - | - |
| 2 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | - | - | - |
| 3 | ≤0.08 | ≤0.35 | ≤0.05 | ≤0.015 | ≤0.30 | - | - | - | - | - |
| 4 | ≤0.08 | ≤0.40 | ≤0.05 | ≤0.015 | ≤0.50 | - | - | - | - | - |
| 5 | ≤0.08 | ≤0.20 | ≤0.05 | ≤0.015 | ≤0.40 | 5.5~6.75 | 3.5~4.5 | - | - | - |
| 7 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | 0.12~0.25 | - | - |
| 9 | ≤0.08 | ≤0.15 | ≤0.03 | ≤0.015 | ≤0.25 | 2.5~3.5 | 2.0~3.0 | - | - | - |
| 11 | ≤0.08 | ≤0.18 | ≤0.03 | ≤0.015 | ≤0.20 | - | - | 0.12~0.25 | - | - |
| 12 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | - | 0.6~0.9 | 0.2~0.4 |
| 16 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | 0.04~0.08 | - | - |
| 17 | ≤0.08 | ≤0.18 | ≤0.03 | ≤0.015 | ≤0.20 | - | - | 0.04~0.08 | - | - |
| 23 | ≤0.08 | ≤0.13 | ≤0.03 | ≤0.0125 | ≤0.25 | 5.5-6.5 | 3.5~4.5 | - | - | - |
Tensile Requirements
| Titanium | Tensile Strength | Yield Strength | Elongation | Bend Test(Radius of Mandrel) | |
| Grade | ksi [MPa] | 0.2% offset, ksi [MPa] | in 2", % | t<1.8 mm | 1.8 mm≤t<4.75 mm |
| 1 | ≤35 [240] | 20~45 [138~310] | 24 | 1.5T | 2T |
| 2 | ≤50 [345] | 40~65 [275~450] | 20 | 2T | 2.5T |
| 3 | ≤65 [450] | 55~80 [380~550] | 18 | 2T | 2.5T |
| 4 | ≤80 [550] | 70~95 [483~655] | 15 | 2.5T | 3T |
| 5 | ≤130 [895] | ≤120 [828] | 10 | 4.5T | 5T |
| 7 | ≤50 [345] | 40~65 [275~450] | 20 | 2T | 2.5T |
| 9 | ≤90 [620] | ≤70 [483] | 15 | 2.5T | 3T |
| 11 | ≤35 [240] | 20~45 [138~310] | 24 | 1.5T | 2T |
| 12 | ≤70 [483] | ≤50 [345] | 18 | 2T | 2.5T |
| 16 | ≤50 [345] | 40~65 [275~450] | 20 | 2T | 2.5T |
| 17 | ≤ 35[240] | 20~45 [138~310] | 24 | 1.5T | 2T |
| 23 | ≤120 [828] | ≤110 [759] | 10 | 4.5T | 5T |
| TITANIUM MATERIALS SUPPLY SCOPE | ||||||||||
| TITANIUM GRADE | UNS NO. | WIRE | BAR | SHEET | PLATE | TUBE | PIPE | FITTING | FORGING | FASTENER |
| Ti Grade 1 | R50250 | √ | √ | √ | √ | √ | √ | X | √ | √ |
| Ti Grade 2 | R50400 | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Ti Grade 3 | R50550 | √ | √ | √ | √ | X | X | X | √ | √ |
| Ti Grade 4 | R50700 | √ | √ | √ | √ | X | X | X | √ | √ |
| Ti Grade 5 (6Al 4V) | R56400 | √ | √ | √ | √ | X | X | X | √ | √ |
| Ti Grade 7 (0.2Pd) | R52400 | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Ti Grade 9 (3Al 2.5V) | R56320 | √ | √ | √ | √ | √ | X | X | √ | √ |
| Ti Grade 11 | R52250 | √ | √ | √ | √ | √ | √ | X | √ | √ |
| Ti Grade 12 (0.3Mo 0.8Ni) | R53400 | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Ti Grade 17 | R52252 | X | √ | √ | √ | √ | √ | X | √ | √ |
| Ti Grade 23 (6Al 4V Eli) | R56401 | √ | √ | √ | √ | X | X | X | √ | √ |
| Notes 1) √-Available, X-Unavailable | ||||||||||
| Notes 2) For other grades like Ti6Al2Sn4Zr2Mo, Ti6Al6V2Sn, Ti8Al1Mo1V, Ti6Al2Sn4Zr6Mo, Ti15V3Cr3Sn3Al, please contact us for details. | ||||||||||
| Notes 3) It may differs a little for materials in different sizes, please also contact us. | ||||||||||
| Category | Material | Dimension(mm) | Specification |
| Ti & Alloy ingots & bars | CP Ti, Ti-6Al-4V, Ti-6Al-4V Eli, Ti-3Al-2.5V, Ti-5Al-2.5Sn, Ti-5Al-2.5Sn Eli, Ti-0.05Pd, Ti-0.2Pd, Ti-6Al-7Nb, Ti-13Nb-13Zr, Ti-0.1Ru, Ti-3Al-8V-6Cr-4Mo-4Zr, Ti-6Al-4V-0.1Ru, etc. |
Standard Or Customized |
GB/T 2965, ASTM B348 |
| Ti & Alloy castings | GB/T 6614, ASTM B367 | ||
| Ti & Alloy forgings | GB/T 25137, ASTM B381 | ||
| Ti & Alloy plates | GB/T 3621, ASTM B265 | ||
| Ti & Alloy strips & foils | GB/T 3622, ASTM B265 | ||
| Cold rolled Ti & Alloy strip coils | GB/T 26723, ASTM B265 | ||
| Ti & Alloy wires | GB/T 3623, ASTM B863 | ||
| Ti & Alloy seamless tubes | GB/T 3624, ASTM B861 | ||
| Ti & Alloy welded tubes | GB/T 26057, ASTM B862 | ||
| PM Ti & Alloy components | GB/T 6887, ASTM B817 |
