Width 800 - 2000mm Pure Titanium Plate GR1 TA0 3.7025 Sheet
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | GR1 GR2 GR3 GR4 GR5 GR7 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Bars | Grade | GR1 GR2 GR3 GR4 GR5 GR7 |
|---|---|---|---|
| Thickness | 0.4-30.0mm | Length | Custom Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | Pickled , Bright |
| Highlight | Width 800 - 2000mm pure titanium plate,GR1 TA0 pure titanium plate,3.7025 pure titanium plate |
||
Product Description

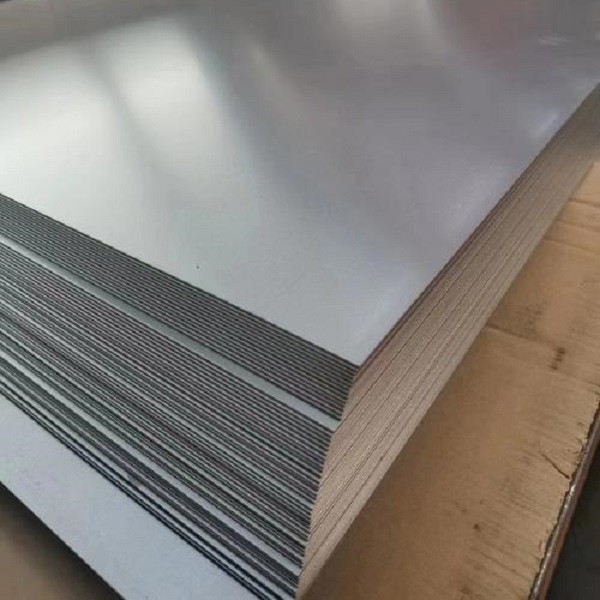

Pure Titanium Plate GR1 Width 800 - 2000mm GR1 TA0 3.7025 Plate Sheet
| Grade | TA1, TA2, TA3, TA4, TA10, TA15, TA17, GR1, GR2, GR3, GR4, GR5, GR7, GR9, GR11, GR12 |
| Size | T(3.0mm~120mm)*W(800mm~2200mm)*L T(0.4mm~3mm)*W(1500mm max)*L |
| Standard | ASTM B 265, ASME SB265 AMS491 |
| Application | Chemical, industry, sports etc. |
| Feature | High corrosion resistance, low density, good thermal stability |
| Surface | Bright, Polished, Pickling, Acid cleaning, Sandblasting |
| Quality and test | Hardness test, Bending test, Hydrostatic etc. |
| Finish | Roll-up(Hard) |
| Surface | Polished |
GR 1 pure titanium plate, industrial titanium plate, spot cutting plate standard, material, specifications, process, use and characteristics of titanium plate are introduced as follows:
GR 1 titanium plate implementation standard: ASTM B265
Titanium plate brand: GR 2, GR 1, GR 5
Processing services: bending, welding, unwinding, cutting, punching
Shape: square, flat, thin sheet
Standard: ASME SB265 / ASTM B265
Advantages: extension and elongation
Surface: bright polished
Thickness: 0.8mm-50mm Width: 1000-2000mm Length: 6000mm can be customized according to the size specifications.
GR 1 titanium plate product advantages: good plasticity, forming performance, easy melting welding, high temperature working temperature up to 300℃. Uses: mainly used as corrosion resistant mechanism materials, such as pressure vessels, pumps and valves, seawater desalination, petroleum, chemical industry, mechanical equipment, electric power equipment, automobile and motorcycle parts, sports and leisure, medical parts, steel and metallurgy, high-tech fields and other industries.
Product description:
| Medical titanium plate | ||||
| No | Grade | Size/mm | State | Standard |
| 1 | Gr2~Gr3 | 3×11×( 500~1000 ) | bright | ASTM F 67 |
| 2 | Gr2~Gr3 | 3.5×12×( 500~1000 ) | bright | ASTM F 67 |
| 3 | Gr2~Gr3 | 4×14×( 500~1000 ) | bright | ASTM F 67 |
| 4 | Gr5 | Thk3~60 | bright | ASTM F 136 |
| titanium sheet for plate heat exchanger | |||||
| Grade | Size / mm | States | standard | ||
| thickness | width | length | |||
| Gr1,Gr7 | 0.5-0.8 | 200-500 | 500-2000 | M | ASTM B265 |
| 0.9~1.0 | 200-500 | 500-2000 | M | ASTM B265 | |
| 0.5-0.8 | 500-800 | 800-2000 | M | ASTM B265 | |
| 0.9~1.0 | 500-800 | 800-2000 | M | ASTM B265 | |
| Name | Titanium sheet & plate | |||
| Classification | Pure titanium/Titanium alloy | |||
| Standard | ASTM B265, ASME SB265, AMS 4902, AMS 4911 | |||
| Grade | Gr1-Gr4, Gr5(Gr5 Eli), Gr6, Gr7(Gr11), Gr12, Gr9, Gr16(Gr17) | |||
| Size | Thickness(0.6mm-60mm)*Width(≤1000mm)*Length(≤4000mm) | |||
| Processing method | Hot rolling/Cold rolling | |||
| Test | Ultrasonic testing, X-ray testing | |||
| Alloy | Specifications | UTS (psi) | YS (psi) | EI (%) | RA (%) |
| ksi min. | ksi min. | % min. | % min. | ||
| CP-1 | ASTM B265 / B348 Grade 1 | 35 | 20 | 24 | 30 |
| CP-2 | ASTM B265 / B348 Grade 2 | 50 | 40 | 20 | 30 |
| CP-3 | ASTM B265 / B348 Grade 3 | 65 | 55 | 18 | 30 |
| CP-4 | ASTM B265 / B348 Grade 4 | 80 | 70 | 15 | 25 |
| Ti 6AI-4V | ASTM B265 / B348 Grade 5 | 130 | 120 | 10 | 25 |
| Ti 6AI-4v ELI | ASTM B265 / B348 Grade 23 | 120 | 110 | 10 | 15 |
| Ti-Pd | ASTM B265 / B348 Grade 7 | 50 | 40 | 20 | 30 |
| TiCode 12 | ASTM B265 / B348 Grade 12 | 70 | 50 | 18 | 25 |
FAQ
Q1:Are you a manufacturer or a trading company, first?
A1: We are both a manufacturing and a trading company.
Q2: How long does it take for deliveries?
A2: The average wait time is 3-5 days if the goods are available. 7–10 days if the item is out of stock.
Q3:Do you offer samples, question 3? Is it included or not?
A3: Yes, we can provide samples for free, but you'll need to pay for postage.
Q4:How do you ensure quality, question 4?
A4: We include the product's mill certificate upon delivery.
Additionally, if necessary, we can perform TPI (Third Party Inspection) on the products.
Q5:What are your terms for payment?
Payment of $1000 in full ahead. When paying more than $1,000 USD, send a check for 30% of the total before delivery.
