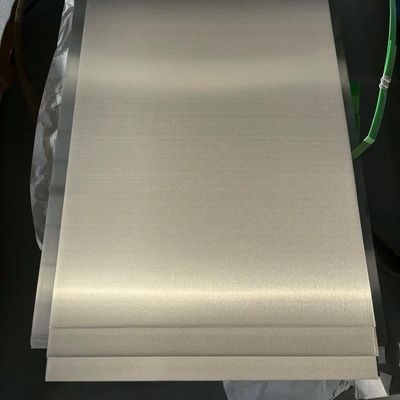

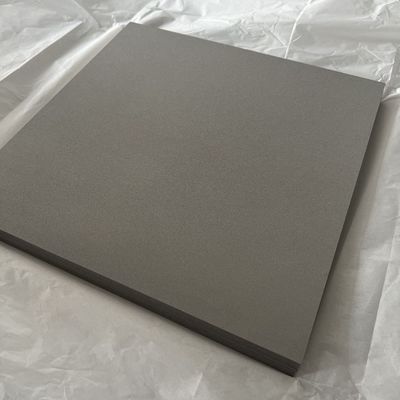

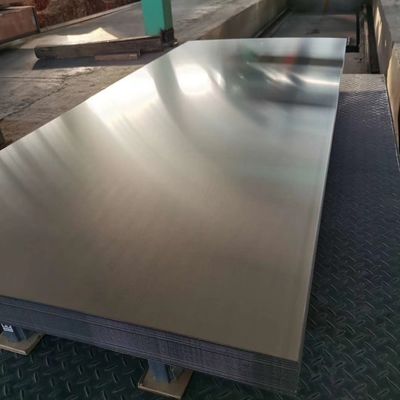

Grade 1 Pure Titanium Sheet / Plate 4.0mm 5.0mm 6.0mm 8.0mm ASTM B265
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | GR1 GR2 GR3 GR4 GR5 GR7 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Bars | Grade | GR1 GR2 GR3 GR4 GR5 GR7 |
|---|---|---|---|
| Thickness | 0.4-30.0mm | Length | Custom Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | Pickled , Bright |
| Highlight | Grade 1 Pure Titanium Sheet,6.0mm Pure Titanium Sheet,ASTM B265 Pure Titanium Plate |
||
Product Description
Grade 1 Pure Titanium Sheet/Plate 4.0mm 5.0mm 6.0mm 8.0mm ASTM B265 Pure Titanium Plate
| Grade | TA1, TA2, TA3, TA4, TA10, TA15, TA17, GR1, GR2, GR3, GR4, GR5, GR7, GR9, GR11, GR12 |
| Size | T(3.0mm~120mm)*W(800mm~2200mm)*L T(0.4mm~3mm)*W(1500mm max)*L |
| Standard | ASTM B 265, ASME SB265 AMS491 |
| Application | Chemical, industry, sports etc. |
| Feature | High corrosion resistance, low density, good thermal stability |
| Surface | Bright, Polished, Pickling, Acid cleaning, Sandblasting |
| Quality and test | Hardness test, Bending test, Hydrostatic etc. |
| Finish | Roll-up(Hard) |
| Surface | Polished |
Titanium Grade 1 Plate is considered a superior combination of high strength and low weight ratios when compared to steel. Ti Grade 1 Plate can be only brushed not polished. Ti Grade 1 Sheet has the chemical symbol Ti & also known as SB 265 Gr 1. Titanium Alloy Grade 1 plate is a silvered colored metal with low density and high strength. The major producers of Titanium Grade 1 Flat Sheet are U.S.A, Russia, Germany, Japan and France. Titanium Grade 1 Rolling Plate are used in aircraft and aerospace application as per ASTM B265/ASTM SB265. Titanium Grade 1 Clad Plate has been used exclusively as an aerospace material, and it is slowly penetrating many markets, including power plants, watch industry etc. Titanium Grade 1 Rolling Sheet is harder to mark and you will see less scratches.
Standard Thickness of Titanium Plate & Sheet we can Supply
|
0.4mm |
0.5mm | 0.6mm | 0.8mm | 1.0mm |
| 1.2mm | 1.5mm | 2.0mm | 2.5mm | 3.0mm |
| 4.0mm | 5.0mm | 6.0mm | 8.0mm | 10.0mm |
| 12.0mm | 14.0mm | 15.0mm | 16.0mm | 18.0mm |
| 20.0mm | 22.0mm | 24.0mm | 25.0mm | 30.0mm |
Titanium Grade 1 Sheet And Plates Chemical Properties
| Grade | C | N | O | H | Ti | Fe |
| Titanium Gr 1 | .08 max | .03 max | .18 max | .015 max | bal | .20 max |

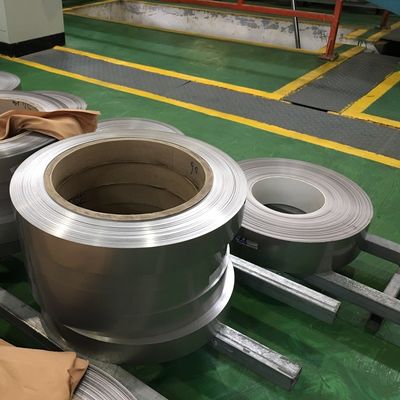

TYPES OF B265 GR1 SHEETS, PLATES & COILS
| Titanium Gr 1 Sheets | Titanium Gr 1 Foils |
| ASTM B265 Grade 1 Titanium Plates | Gr 1 Titanium Shim Sheet |
| Titanium Alloy Gr 1 Shim Sheets | CP Gr 1 Titanium Polished Plates |
| Titanium Alloy UNS R50250 Coil | Ti. Alloy Gr 1 Hot Rolled Plates |
| Grade 1 Titanium Chequered Plate | Titanium Alloy Gr 1 Cold Rolled Plates |
| Titanium DIN 3.7025 Perforated Sheets | Titanium UNS R50250 Coils |
| Grade 1 Titanium Cold Rolled Sheets | ASME SB265 Titanium Gr 1 Strips |
| Titanium UNS R50250 Hot Rolled Plates Suppliers | ASTM / ASME SB265 Titanium Gr 1 Coils |
| Titanium DIN 3.7025 Cold Drawn Plates Exporter | Gr 1 Titanium Cold Rolled Plates |
SHEET / PLATE (Ti Grade 1)
| UNS: | R50250 |
| Specifications: | ASTM B265 (Grade 1), ASME SB-265 |
| International Specifications: | W. NR. 3.7025, W. NR. 3.7024 |
ASTM B265 Gr1 titanium plate is a widely used material in various industries due to its excellent corrosion resistance, high strength, and low density. In order to produce high-quality titanium plates, the production process and thickness tolerance requirements need to be strictly controlled. Additionally, understanding the market demand for the product is crucial for the success of the production.
The production process of ASTM B265 Gr1 titanium plate usually includes the following steps:
1. Raw material selection: High-quality titanium sponge is selected as the raw material for the production of titanium plates.
2. Melting: The titanium sponge is melted in a vacuum furnace and then cast into rectangular ingots.
3. Forging: The ingots are then forged into a desired shape, typically a flat plate.
4. Annealing: The plates are annealed to reduce internal stresses, improve ductility and uniformity of material properties.
5. Finishing: The plates are then machined to the desired thickness and surface finish.
Throughout the production process, quality control is performed at each step to ensure that the final product meets the expected standards. The thickness tolerance requirement of ASTM B265 Gr1 titanium plate is typically within ±0.005 inches (0.13mm) for the thickness range of 0.1875 inches (4.5mm) to 1.000 inches (25mm). For thinner plates, the tolerance is even tighter.
As for the market demand for ASTM B265 Gr1 titanium plate, it is expected to increase in the future due to the wide range of applications and the increasing demand for lightweight and corrosion-resistant materials. The aerospace industry, medical industry, and chemical processing industry are the main consumers of titanium plates. In addition, there is also a growing demand for titanium plates in the automotive and marine industries.
In conclusion, the production of ASTM B265 Gr1 titanium plate requires strict control over the production process and thickness tolerance requirements. The market demand for this product is expected to continue to grow, making it a promising material for various industries. With proper attention to quality control and market trends, manufacturers of ASTM B265 Gr1 titanium plate can stay competitive and meet the needs of their customers.
