GR1 Pure Titanium Plate ASTM EN DIN GB JIS Standard Ti Plate
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | GR1 GR2 GR3 GR4 GR5 GR7 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Bars | Grade | GR1 GR2 GR3 GR4 GR5 GR7 |
|---|---|---|---|
| Thickness | 0.4-30.0mm | Length | Custom Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | Pickled , Bright |
| Highlight | DIN Titanium Plate,Pure Titanium Plate,ASTM Titanium Plate |
||
Product Description

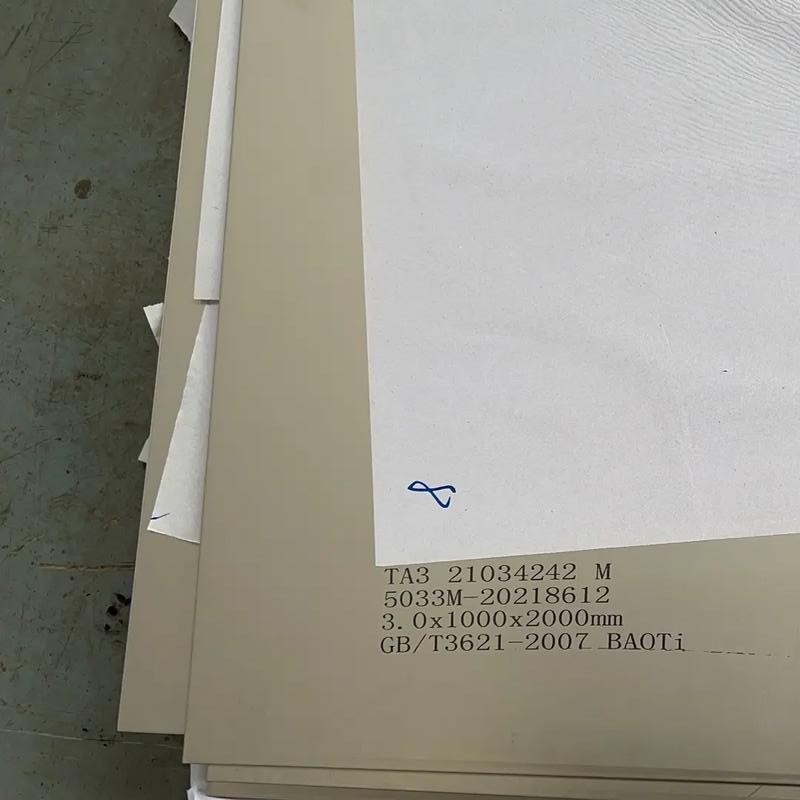

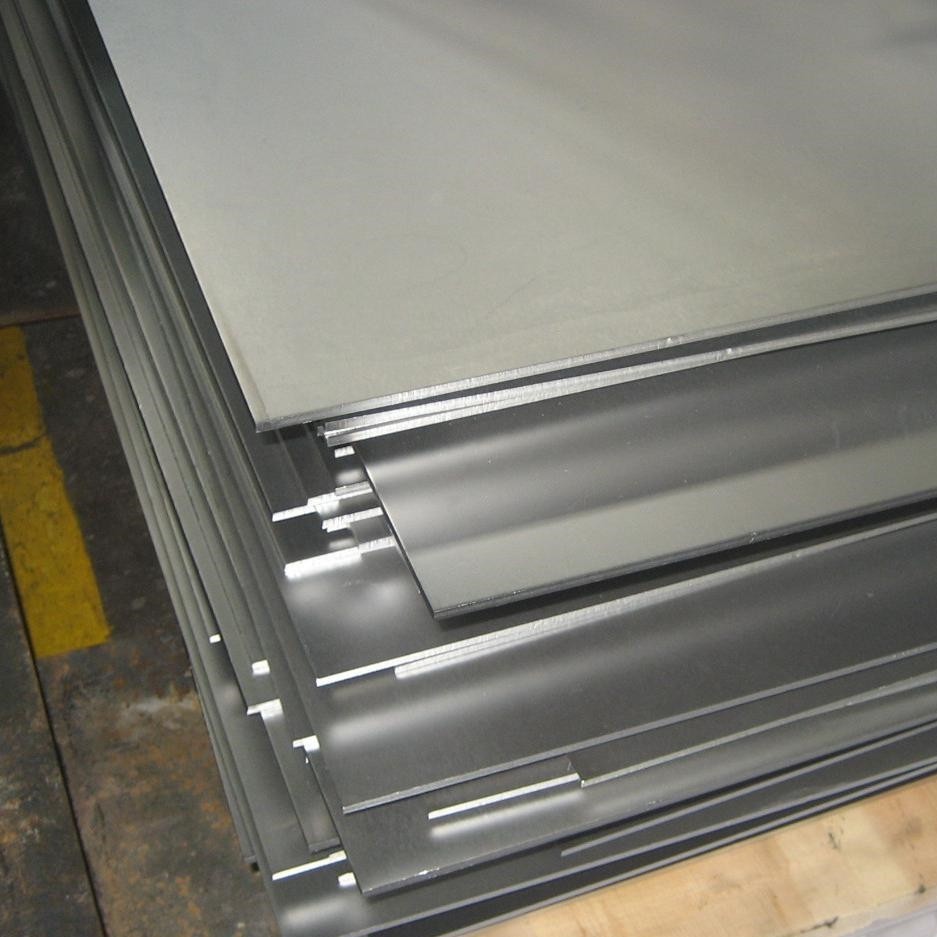

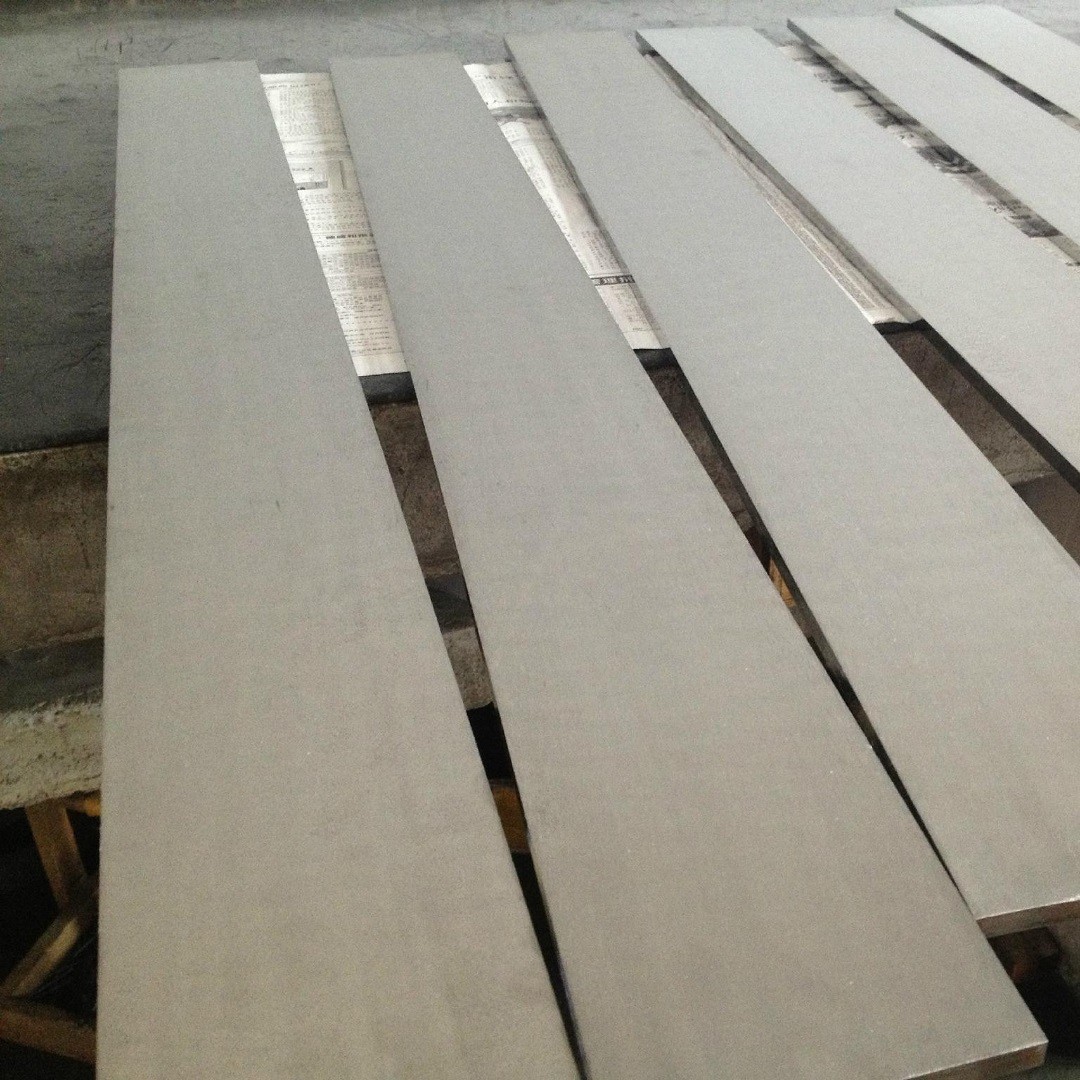

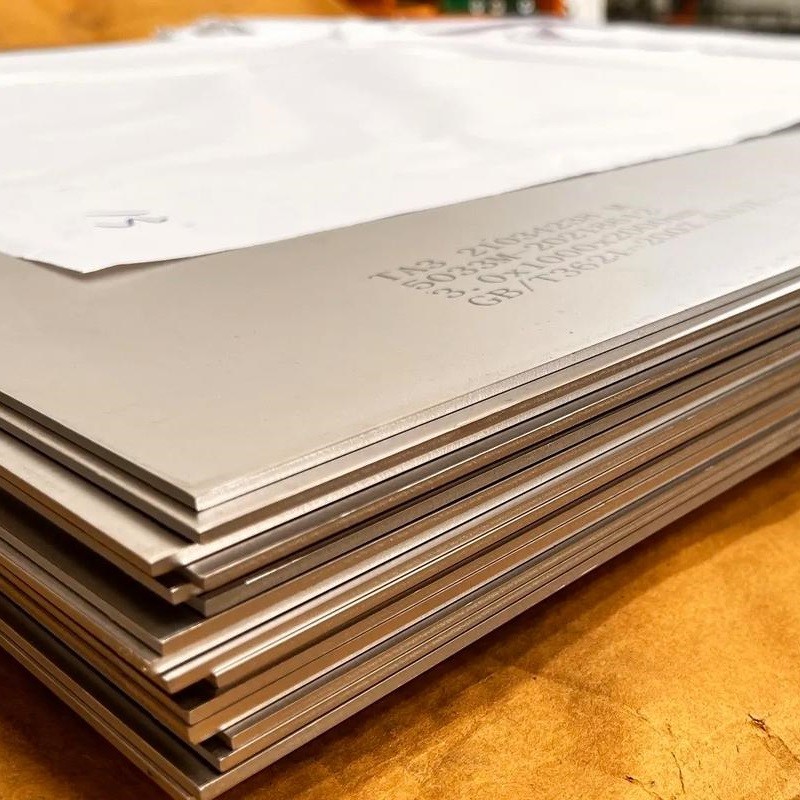

GR1 Titanium Plate & Sheet Pure Titanium Plate ASTM EN DIN GB JIS Standard Ti Plate
| Grade | TA1, TA2, TA3, TA4, TA10, TA15, TA17, GR1, GR2, GR3, GR4, GR5, GR7, GR9, GR11, GR12 |
| Size | T(3.0mm~120mm)*W(800mm~2200mm)*L T(0.4mm~3mm)*W(1500mm max)*L |
| Standard | ASTM B 265, ASME SB265 AMS491 |
| Application | Chemical, industry, sports etc. |
| Feature | High corrosion resistance, low density, good thermal stability |
| Surface | Bright, Polished, Pickling, Acid cleaning, Sandblasting |
| Quality and test | Hardness test, Bending test, Hydrostatic etc. |
| Finish | Roll-up(Hard) |
| Surface | Polished |
ASTM B265 Gr1 UNS R50250 Plates are corrosion resistant and have a stable dimension. Titanium alloy Grade 1 sheets have the best corrosion resistance to reducing media. Titanium Grade 1 sheets have high tensile strength and excellent machining properties. The best corrosion resistance for titanium alloy Grade 1 sheet is to oxidizing media, but it also shows excellent corrosion resistance to chlorides. The best corrosion resistance of titanium Grade 1 sheets is also found in neutral media. Titanium DIN 3.7025 Sheets are primarily used for chemical and seawater equipment. Titanium Grade 1 sheets are also mainly used for screws and shafts. A titanium alloy Grade 1 sheet can be used extensively in the pulp and paper industry as well as offshore oil drilling companies. Sheets of titanium alloy Grade 1 are often used in petrochemicals and condensers as well.
Standard Thickness of Titanium Plate & Sheet we can Supply
|
0.4mm |
0.5mm | 0.6mm | 0.8mm | 1.0mm |
| 1.2mm | 1.5mm | 2.0mm | 2.5mm | 3.0mm |
| 4.0mm | 5.0mm | 6.0mm | 8.0mm | 10.0mm |
| 12.0mm | 14.0mm | 15.0mm | 16.0mm | 18.0mm |
| 20.0mm | 22.0mm | 24.0mm | 25.0mm | 30.0mm |
Titanium Grade 1 Sheet And Plates Chemical Properties
| Grade | C | N | O | H | Ti | Fe |
| Titanium Gr 1 | .08 max | .03 max | .18 max | .015 max | bal | .20 max |
Titanium Gr 1 Sheet / Plate Mechanical Properties
| Tensile strength (min) | 0.2% yield strength (min) | |||
| Designation | MPa | ksi | MPa | ksi |
| Grade 4 | 240 | 35 | 170 | 25 |
Equivalent Grades Of Titanium Grade 1 Sheets And Plates
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 1 | 3.7025 | R50250 |
Types Of Titanium Grade 1 Sheet / Plate
-
Titanium Gr 1 Hot Rolled Sheet
ASTM B265 Titanium Alloy Grade 1 Hot Rolled Sheets, ASME SB265 Titanium Grade 1 HR Sheets, UNS R50250 Hot Rolled Sheets, 3.7025 Hot Rolled Sheets, Ti Alloy Grade 1 Hot Rolled Sheet Exporter, Titanium Grade 1 HR Plain Sheet , Titanium Grade 1 2B Finish HR Sheets, Titanium Gr.1 BA Finish HR Sheets, Titanium Gr 1 HR Sheets, Titanium Grade 1 Hot Rolled Sheets.
-
Titanium Gr 1 Cold Rolled Sheet
Titanium Alloy Gr.1 Cold Rolled Sheet, ASME SB265 Titanium Gr 1 Cold Rolled Sheets, UNS R50250 Cold Rolled Sheets, 3.7025 Cold Rolled Sheets, Ti Alloy Grade 1 Cold Rolled Sheet Exporter, Titanium Grade 1 CR Plain Sheet , Titanium Grade 1 2B Finish CR Sheets, Titanium Grade 1 BA Finish CRSheets, Titanium Gr.1 CR Sheets, Titanium Gr 1 Cold Rolled Sheets
-
Titanium Grade 1 Hot Rolled Plate
ASME B265 Titanium Alloy Gr.1 Hot Rolled Plates, UNS R50250 Hot Rolled Plates, 3.7025 Hot Rolled Plates, Ti Alloy Gr.1 Hot Rolled Plate Exporter, Titanium grade 1 HR Plain Plate Supplier, Titanium gr 1 2B Finish HR Plates, Titanium gr 1 BA Finish HR Plates, Titanium grade 1 HR Plates, Titanium Gr.1 Hot Rolled Plates
-
Titanium Gr.1 Cold Rolled Plate
ASME SB265 Titanium grade 1 Cold Rolled Plate, ASTM B265 Titanium gr 1 Cold Rolled Plate, UNS R50250 Cold Rolled Plates, 3.7025 Cold Rolled Plates, Ti Alloy Gr.1 Cold Rolled Plate Exporter, Titanium Grade 1 CR Plain Plate Supplier, Titanium Grade 1 2B Finish CR Plates, Titanium Grade 1 BA Finish CR Plates, Titanium Grade 1 CR Plates, Titanium Grade 1 Cold Rolled Plate.
Quality Assurance
Our Titanium Plate Sheets are manufactured and controlled to international standards such as ASTM, ASME, BS, MSS, EN, DIN
Material Testing
In addition to PMI Testing, Ultrasonic Testing, Mechanical Testing, Spectroscopic Tests for Chemical Analysis, Flaring Test, and IGC, we welcome stage-wise inspections from any of your representatives or third parties.
Packing and Delivery
No matter where the client is located, we deliver quality products on time, packed in wooden crates or carton boxes.
Titanium Gr 1 Sheets and Plates Application Industries
Titanium Gr 1 Sheets and Plates are used in a wide range of applications and industries. Below are a few.
- Petrochemical Industry
- Oil and Gas Industry
- Chemical Industry
- Power Plant Industry
- Energy Industry
- Pharmaceuticals Industry
- Pulp & Paper Indusry
- Food Processing Industry
- Aerospace Industry
- Refining Industry
