Nickel Alloy 617 Plate UNS N06617 Thickness 0.6 - 30.0mm High Temperature Strength And Oxidation Resistance
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 617 / UNS N06617 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Bars | Grade | 617 / UNS N06617 |
|---|---|---|---|
| Thickness | 0.6 - 20.0mm | Size | 1219*2438 1500*6000mm |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | 2B NO.1 |
| Highlight | Oxidation Resistance Nickel Alloy Plate,High Temperature Strength Nickel Alloy Plate,UNS N06617 Nickel Alloy Plate |
||
Product Description
Nickel Alloy 617 Plate UNS N06617 Thickness 0.6 - 30.0mm High-Temperature Strength And Oxidation Resistance
Products Description
| Product Name | Alloy 617 Plate UNS N06617 | |
| Technology | Hot rolled , Cold rolled | |
| Grade | Inconel 600, Inconel 601, Inconel 625, Inconel 617, Inconel 690, Inconel 718, Inconel X-750 | |
|
Incoloy A-286, Incoloy 800, Incoloy 800H, Incoloy 800HT
Incoloy 825, Incoloy 901, Incoloy 925, Incoloy 926
|
||
| Monel 400, Monel K-500 | ||
| Hastelloy C22, Hastelloy C-276, Hastelloy B-2, Hastelloy B-3, Hastelloy X | ||
| Specifications | ASTM, UNS, JIS, EN, AFNOR | |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | |
| Processing Service |
Machining : Turning / Milling / Planing / Drilling / Boring / Grinding / Gear Cutting / CNC Machining
Deformation processing : Bending / Cutting / Rolling / Stamping
|
|
| Delivery time | 10-30 days subject to the clients' requirement and quantity | |
| Package | clients' requirement and Standard export sea-worthy packing | |
| MOQ | 1 ton | |
Inconel 617 alloy plate is a nickel-chromium-cobalt alloy that is widely used in various high-temperature applications due to its excellent mechanical properties and resistance to corrosion. This alloy, developed by Special Metals Corporation, offers a unique combination of high strength, ductility, and oxidation resistance, making it ideal for use in demanding environments.
Product Features
Inconel 617 alloy plate offers a remarkable combination of properties:
- 1.High Temperature Resistance: Inconel 617 can withstand temperatures up to 1200°C, making it suitable for extreme heat environments. This property makes it a top choice for high-performance applications where temperature is a critical factor.
- 2.Excellent Corrosion Resistance: The alloy's protective oxide layer provides excellent resistance to acids, alkalis, and other corrosive substances. This makes it highly suitable for use in harsh chemical processing environments.
- 3.High Strength: Inconel 617 alloy plate offers high tensile strength and yield strength, making it suitable for load-bearing applications. It maintains its strength even at elevated temperatures, making it an excellent material for structural components.
- 4.Good Weldability: The alloy can be easily welded using standard welding techniques, making it easy to fabricate components. Post-weld heat treatment is generally not required, simplifying the manufacturing process.
- 5.Good Thermal Stability: The alloy maintains its mechanical properties across a wide range of temperatures, making it suitable for cyclic heating and cooling conditions.
Product Name: Inconel 617 Alloy Plate Chemical Composition
| Ni | Cr | Co | Mo | Fe | Mn |
| 44.5 % min | 20%-24% | 10%-15% | 8%-10% | 3.0% Max | 1.0% Max |
| Al | C | Cu | Si | S | Ti |
| 0.8%-1.5% | 0.05%-0.15% | 0.5 Max | 1.0 Max | 0.015 Max | 0.6 Max |
| Physical Properties | Density: 8.42 g/cm³ at 20°C |
| Thermal Conductivity: 13 W/m·K at 20°C | |
| Thermal Expansion: 12.2 µm/m·K at 20°C |
| Mechanical Properties | Tensile Strength: Up to 890 MPa |
| Yield Strength: Up to 825 MPa | |
| Elongation: Up to 18% | |
| Hardness: Brinell hardness of up to 350 HB |
Application of Inconel 617
Due to its exceptional combination of properties, Inconel 617 alloy plate finds applications in various industries:
- 1.Aerospace: Inconel 617 is widely used in the aerospace industry for components that require high-temperature strength and corrosion resistance. It is commonly used in aircraft engines, nacelles, and other critical components.
- 2.Energy: The energy industry relies heavily on Inconel 617 for applications such as boiler components, heat exchangers, and piping systems in power plants. Its high-temperature capability makes it suitable for use in gas turbines and other power generation equipment.
- 3.Chemical Processing: Inconel 617 is widely used in the chemical processing industry for reactors, piping systems, and other process equipment that require resistance to corrosive chemicals. It is commonly used in the production of acids, alkalis, and other corrosive substances.
- 4.Automotive: The automotive industry employs Inconel 617 for components that require high-temperature strength and corrosion resistance, such as exhaust systems and turbochargers.
- 5.Petroleum: The petroleum industry uses Inconel 617 for downhole tools, pipelines, and other equipment that must withstand corrosive environments and high temperatures associated with oil and gas production.
- In summary, Inconel 617 alloy plate offers a unique combination of high-temperature resistance, corrosion resistance, strength, and other beneficial properties. Its adaptability across various industries makes it a highly valuable material for a range of critical applications where performance is paramount.

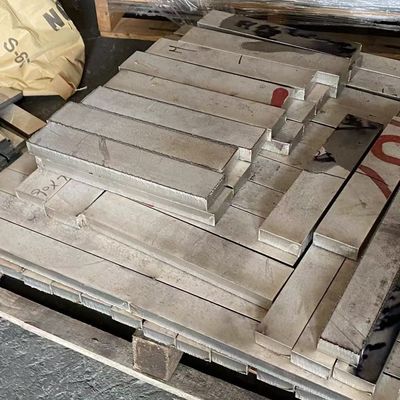

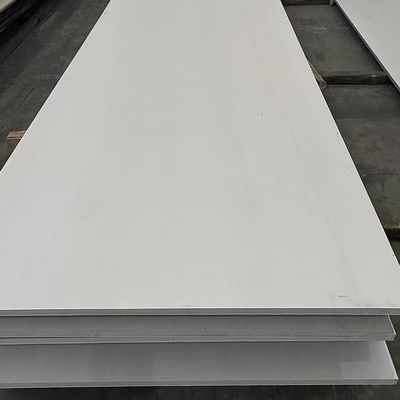

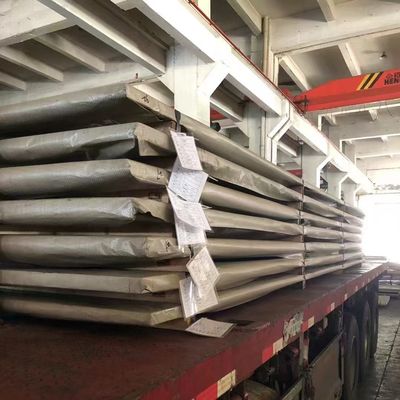

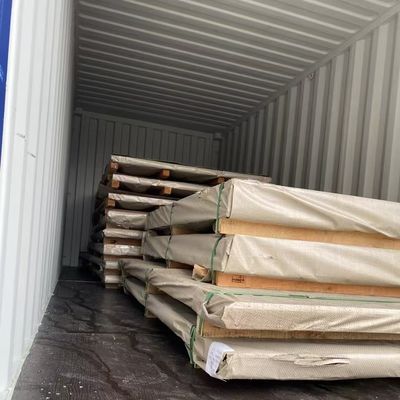

Products Show
