UNS N08810 Nickel Alloy Plate Thickness 3.0 - 20.0mm ASTM B409 Alloy 8810 Plate
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 8810 Alloy / UNS N08810 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Bars | Grade | 8810 Alloy / UNS N08810 |
|---|---|---|---|
| Diameter | 6 - 300mm | Length | 6000mm Or Custom Cutting Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | Black, Bright |
| Highlight | ASTM B409 Nickel Alloy Plate,Alloy 8810 Nickel Alloy Plate,Thickness 3.0 - 20.0mm nickel alloy plate |
||
Product Description

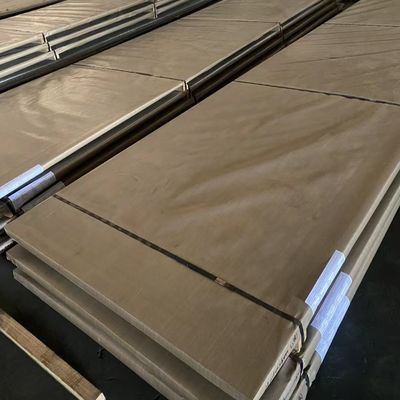

UNS N08810 Nickel Alloy Plate Thickness 3.0 - 20.0mm ASTM B409 Alloy 8810 Plate
| Form | UNS N08810 Nickel Alloy Plate |
| Grade | Alloy 8810 |
| Thickness | 3.0 - 20.0mm |
| Size | 1219*2438mm 1500 * 6000mm |
| Standard | ASTM, ASME, EN, JIS, DIN, GB/T, etc |
| Process Method | Hot Rolled, Cold Rolled, Forged |
| Surface Finish | Hot Rolled Pickled, Black |
| Other Grade |
Hastelloy : B2 B3 C22 C276 G30 X Incoloy: 800 800H 800HT 825 925 A286 330 Inconel: 600 601 617 625 718 725 X-750 Monel: 400 k-500 |
| Price Item | EXW FOB CFR CIF |
| Payment | 30% TT inadvance, 70% TT Balance against copy of B/L |
| Delivery Time | as usual 8 - 15 days |
| Quality Requirement | Mill test certificate will be offered with shipment, the third party inspection is available |
UNS N08810 Plate contains nickel, iron and chromium and is part of the 800 series alloy family. This means that Incoloy 800H plate has similar properties to 800 alloy. For example, Alloy 800H Plate has higher corrosion resistance when exposed to high temperatures. Nickel Alloy 800H Plates also have various other mechanical properties, such as their excellent resistance to oxidation, carburization and vulcanization.
Meanwhile, UNS N08810 Plate is a nickel-iron-chromium alloy with good corrosion resistance, high temperature carburization and reasonable power. In the power pack, re-radiator and super radiator tubing involves these Incoloy 800 boards. Also, if we talk about ASTM B409 Inconel 800H Plate, Alloy 800H Plate is a dual provable nickel iron chrome material that resists corrosion, carburization and other abnormal hot corrosion, as well as stratosphere that substitutes between plumbing and rusting.
Chemical Composition data
| Grade | Si | Fe | C | Cu | S | Al | Ni | Cr | Mn | Ti |
|---|---|---|---|---|---|---|---|---|---|---|
| 800 | 1.00 max | 39.50 min | 0.10 max | 0.75 max | 0.015 max | 0.15 – 0.60 | 30.00 – 35.00 | 19.00 – 23.00 | 1.50 max | 0.15 – 0.60 |
| 800H | 1.00 max | 39.50 min | 0.05 – 0.10 | 0.75 max | 0.015 max | 0.15 – 0.60 | 30.00 – 35.00 | 19.00 – 23.00 | 1.50 max | 0.15 – 0.60 |
ALLOY 800 COIL MECHANICAL PROPERTIES
| Element | Elongation | Tensile Strength | Yield Strength (0.2%Offset) |
|---|---|---|---|
| 800 / 800H | 30 % | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 |
DIN 1.4876 HOT ROLLED PLATE EQUIVALENT GRADE
| STANDARD | JIS | WNR | UNS | GOST | BS | EN | AFNOR | OR |
|---|---|---|---|---|---|---|---|---|
| Incoloy 800 | NCF 800 | 1.4876 | N08800 | ЭИ670 | NA 15 | X10NiCrAlTi32-20 | Z8NC32-21 | XH32T |
| Incoloy 800H | NCF 800H | 1.4958 / 1.4876 | N08810 | ЭИ670 | NA 15(H) | X5NiCrAlTi31-20 | Z8NC33-21 | XH32T |
APPLICATIONS OF ASME SB 409 ALLOY 800 CLAD PLATE
- Food processing
- Radiant tubes
- Muffles
- Heat Treat Trays
- Furnace equipment parts
- Cracker Tubes
- Manifolds
- Heat exchangers
