Heat Resistant 253MA Stainless Steel Seamless Pipe Tube UNS S30815 DN5 - DN400
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 253ma |
| Minimum Order Quantity | 500 kgs |
| Price | 4650-5760 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe | Grade | 253ma |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Industrial | Packing | Wooden Box Or PP Bag |
| Highlight | DN400 Stainless Steel Pipe,DN5 Stainless Steel Pipe,UNS S30815 Seamless Stainless Steel Pipe |
||
Product Description
Heat Resistant 253MA Stainless Steel Pipe Tube UNS S30815 DN5 - DN400 Seamless Pipe
| Product Name | 253ma Stainless Steel Pipe Ss Pipe |
| Fabrication Standard | ASTM A213/269/312/789 |
| Material Grade | TP304 TP316 TP310S SS32750 TP321 TP347L 2507 S32205 254SMo 253ma |
| Out Diameter | DN6 - DN400 |
| Wall Thickness | SCH10S - XXS |
| Length | <= 18 Mtr |
| Surface | anealling and pickles surface, polishing |
| Package | by piece, in bundles, with external pvc wrapped, wood crated |
| Minimum Order Quantiy | 1 Metric Tons |
| Our Advantage | 1.regular sizes in stock over 2000 tons for immediate delivery |
| 2.small quantity with factory rate | |
| 3.quality certificate as per EN10204 3.1b issued by manufacturer | |
| 4.expert technical and export/import document consultant and support | |
| 5.on-time response by email, skype, website and online messages |
Stainless Steel 253 MA Pipe has amazing chemical solutions that extend the capabilities to greater extents. Such elements are Sulfur (S) content is 2.0 max, Manganese (Mn) content is 0.80 max, Silicon (Si) content is 2.0 max, Cerium (Ce) content is 0.03 to 0.08, Nitrogen (N) content is 0.14 to 0.20, Iron (Fe) content is balanced, Chromium (Cr) content is 20.0 to 22.0, Phosphorus (P) content is 0.04 max, Nickel (Ni) content is 10.0 to 12.0, Carbon (C) content is 0.10 max. SS 253 MA Pipe is highly strengthening as they possess extreme capabilities such as its mechanical attributes are its density is 7.8 g/cm3 with the Yield Strength 0.2% Proof (MPa) min is 310. However, its Tensile Strength (MPa) min is 600 and its Hardness is HB – 217, as well as HR B – 95 whereas its tensile strength is 600 (MPa) min and the element is 253 MA. Stainless Steel 253MA Square Pipes are used in Heating, General Purpose Applications, Water Supply Systems, Oil and Gas Industry, Pulp Industry, Food Processing Industry, Plumbing, Construction industry, Power Plant, Defence Industry, Chemical Industry, Paper Industry, Fabrication Industry, and also in much more industry as well.
Characteristic of 253ma stainless steel pipe
- Corrosion resistance
- Resistance to oxidation and sulfidation
- Surface finish
- Magnetic properties
- Ductility
- Suitability for intended fabrication techniques
| Preview | Products | UNS | DIN |
|---|---|---|---|
 |
Stainless Steel 253 MA Seamless Pipe Stainless Steel 253 MA Seamless Tubes |
UNS S30815 Seamless Pipe UNS S30815 Seamless Tubes |
1.4835 Seamless Pipe 1.4835 Seamless Tube |
|
Stainless Steel 253 MA Welded Pipe Stainless Steel 253 MA Welded Tube |
UNS S30815 Welded Pipe UNS S30815 Welded Tubes |
1.4835 Welded Pipe 1.4835 Welded Tube |
|
Stainless Steel 253 MA EFW Pipe | UNS S30815 EFW Pipe | 1.4835 EFW Pipe |
|
Stainless Steel 253 MA ERW Pipe | UNS S30815 ERW Pipe | 1.4835 ERW Pipe |
|
Stainless Steel 253 MA Round Tube | UNS S30815 Round Tubes | 1.4835 Round Tubing |
EQUIVALENT GRADES OF STAINLESS STEEL 253 MA PIPES / TUBE :
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| 253 MA | 1.4835 | S30815 |
CHEMICAL COMPOSITION OF 2205 - DUPLEX PIPES / TUBE :
| Grade | C | Mn | Si | S | P | Fe | Ni | Cr | Ce | N |
|---|---|---|---|---|---|---|---|---|---|---|
| 253 MA | 0.10 max | 0.80 max | 2.0 max | 2.0 max | 0.04 max | Bal | 10.0 – 12.0 | 20.0 – 22.0 | 0.03 – 0.08 | 0.14 – 0.20 |
MECHANICAL PROPERTIES OF STAINLESS STEEL 253 MA PIPES/ TUBE :
| Element | Density | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness |
|---|---|---|---|---|---|
| 253 MA | 7.8 g/cm3 | 600 | 40 | 310 | HR B – 95, HB – 217 |

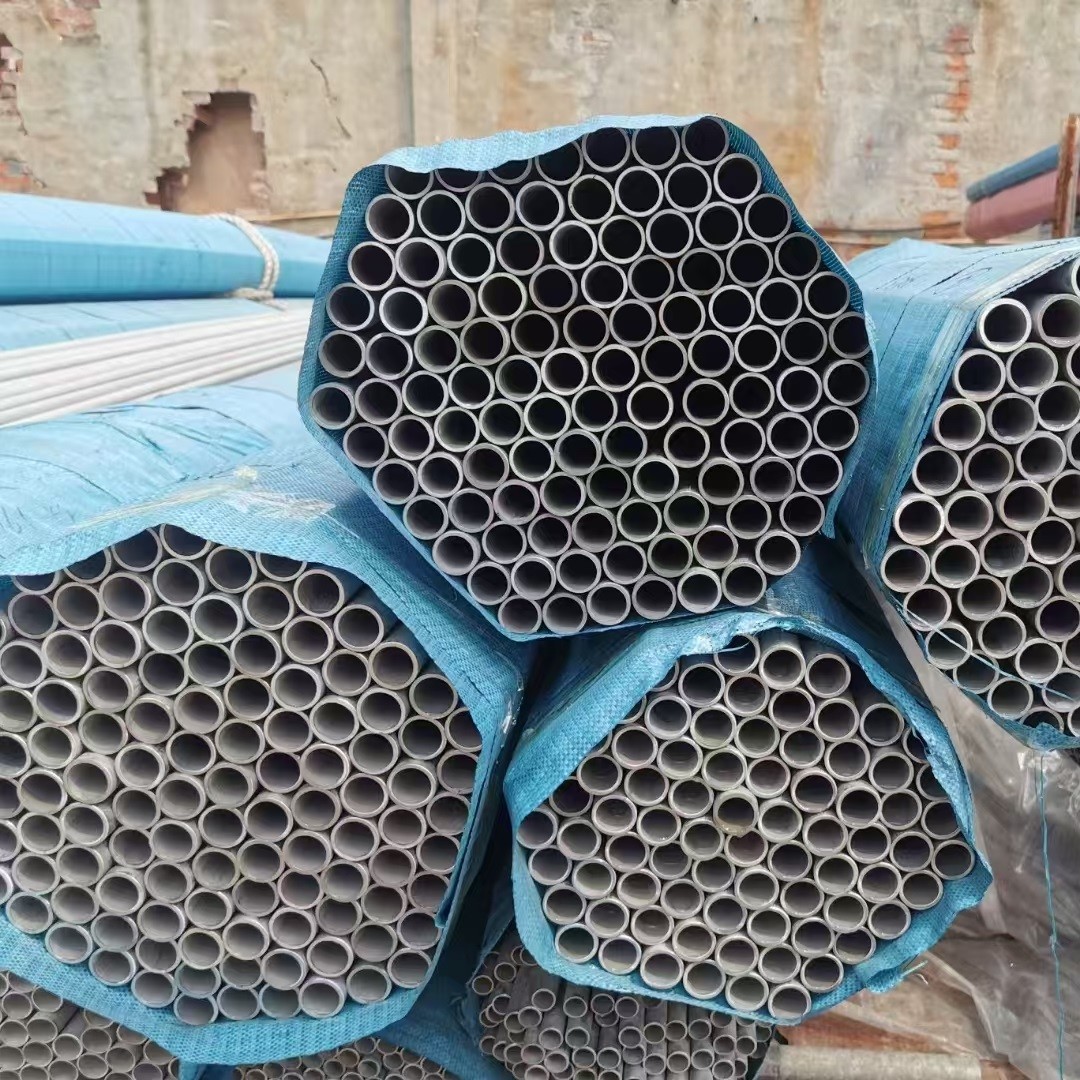

We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--
- Boxes and Crates
- Shrink-wrapped
- Carton boxes
- Wooden pallets
- Wooden boxes
- Wooden crates
