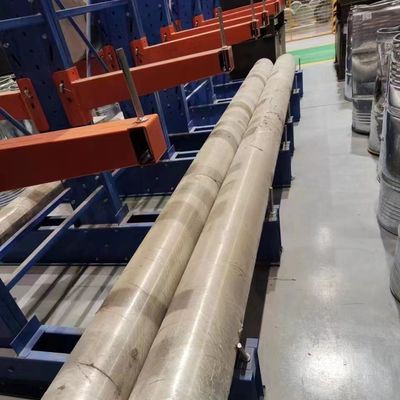

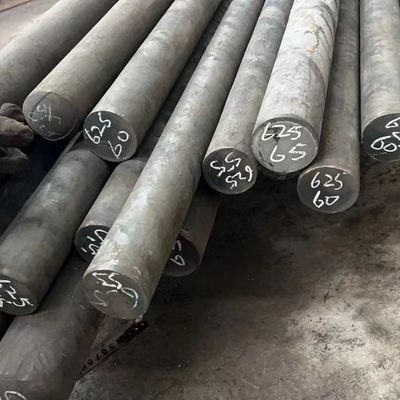

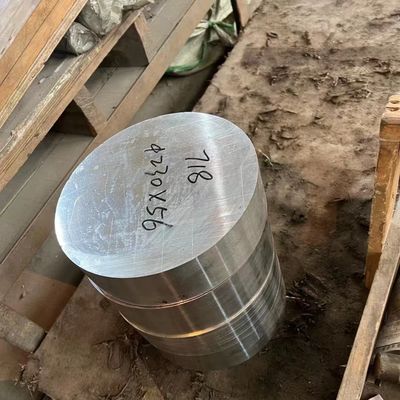

718 Nickel Alloy Round Bar Inconel 718 Bright Bar / Hot Rolled Nickel Alloy Bars Diameter 6 - 350mm
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | Inconel 718 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Bars | Grade | Inconel 718 |
|---|---|---|---|
| Diameter | 6 - 300mm | Length | 6000mm Or Custom Cutting Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | Black, Bright |
| Highlight | Hot Rolled Nickel Alloy Round Bar,Inconel 718 Nickel Alloy Round Bar,350mm Nickel Alloy Round Bar |
||
Product Description
718 Nickel Alloy Round Bar Inconel 718 Bright Bar / Hot Rolled Nickel Alloy Bars Diameter 6 - 350mm
| Form | Nickel Alloy Bars |
| Grade | Inconel 718 |
| Outer Diameter | 6mm-300mm or according to customer’s requirement |
| Length | custom cutting any length as request |
| Standard | ASTM, ASME, EN, JIS, DIN, GB/T, etc |
| Process Method | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar & Rod |
| Surface Finish | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Other Grade |
Hastelloy : B2 B3 C22 C276 G30 X Incoloy: 800 800H 800HT 825 925 A286 330 Inconel: 600 601 617 625 718 725 X-750 Monel: 400 k-500 |
| Price Item | EXW FOB CFR CIF |
| Payment | 30% TT inadvance, 70% TT Balance against copy of B/L |
| Delivery Time | It depends on your bars order total quantity and stock of these mother origin materials. Usually from the start of the order to the completion of production is about 3-4 weeks |
| Quality Requirement | Mill test certificate will be offered with shipment, the third party inspection is available |
| Main Markets | Europe, North America, Middle East, Southeast Asia |
| Metal Test | High or low temperature impact test, metallographic analysis |
| Chemical Analysis | As nickel alloy 718 bars standard |
Our Service
- Cutting: custom cutting our bars into any length as request
- Polishing: Bright polishing , cold drawn finishing
- Heat Treatment: Solid Solution , aging, Q+T
Specifications
- AMS 5662; Capable Of AMS 5663
- B50TF15 Class A & D; Capable Of Class B/C/E/F
- GE S-400; GE S-1000
- PWA-S-5662; Capable of PWA-S-5663
- P&W MCL F-14; MCL F-17; PWA 300
- ASTM-B637; ASME-SB637
- Mat.-No. 2.4668 UNS N07718, partially DMD 424
Our Inconel 718 Round Bar
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8” – 3.00” | h8-h9-h10-h11, ASTM B637 |
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6” – 2.50” | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50” – 6.00” | h11, ASTMA-484 h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00” | h9-h10-h11, ASTM B637 |
Regular size of our Inconel 718 bars in stock
| 5.0 mm | 45.0 mm |
| 6.0 mm | 50.0 mm |
| 7.0 mm | 55.0 mm |
| 8.0 mm | 60.0 mm |
| 9.0 mm | 65.0 mm |
| 10.0 mm | 70.0 mm |
| 12.0 mm | 75.0 mm |
| 16.0 mm | 80.0 mm |
| 20.0 mm | 90.0 mm |
| 25.0 mm | 100.0 mm |
| 30.0 mm | 130.0 mm |
| 35.0 mm | 160.0 mm |
| 40.0 mm | 200.0 mm |

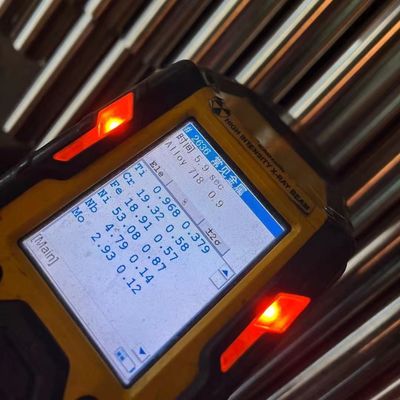

Inconel Alloy 718 Round, Bright, Hex, Threaded Bar Chemical Composition
| Ni | Cr | Fe | Mo | Nb+Ta | C | Mn | Si | Ph | S | Ti | Cu | B | Al | Co | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | 50 | 17 | Bal | 2.8 | 4.75 | - | - | - | - | - | 0.65 | - | - | 0.20 | - |
| Max | 55 | 21 | - | 3.3 | 5.50 | 0.08 | 0.035 | 0.35 | 0.015 | 0.015 | 1.15 | 0.30 | 0.0006 | 0.80 | 1.00 |
718 Inconel Alloy Round Bars Mechanical Properties
Mechanical Properties in Solution Annealed and Aged Condition for Aerospace bar
| 0.2% Proof Stress | Tensile Strength | Elongation | Reduction of area | Hardness |
|---|---|---|---|---|
| MPA | MPA | % | % | HB |
| Min | Min | Min | Min | Min |
| 1034 | 1275 | 12 | 15 | 331 |
Mechanical Properties in Solution Annealed and Aged Condition for Oil patch bar
| 0.2% Proof Stress | Tensile Strength | Elongation | Reduction of area | Hardness |
|---|---|---|---|---|
| MPA | MPA | % | % | HRC |
| Min | Min | Min | Min | Min |
| 827 | 1034 | 17 | 25 | 40 |
ASTM B637 Inconel 718 Bars Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Inconel 718 | 2.4668 | N07718 |
