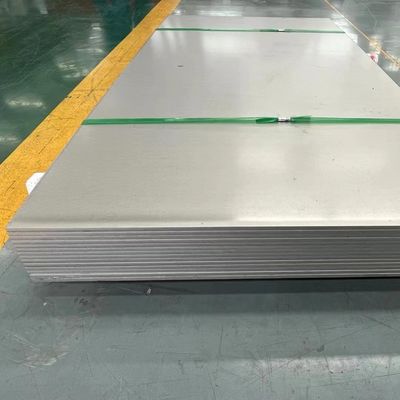

Alloy 317LMN Stainless Steel Plate for Chemical Industrial Thickness 0.4 - 30.0mm 2B NO.1 Finishing
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 317LMN |
| Minimum Order Quantity | 500 kgs |
| Price | 3300 - 3480 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Sheet | Grade | 317LMN |
|---|---|---|---|
| Standard | ASTM EN JIS GB | Size | 1219*2438mm 1500*3000mm |
| Thickness | 0.5 - 3.0mm | Type | Cold Rolled |
| Service | Cutting, Surface Treatment | Application | Auto Exhaust Pipe |
| Packing | Wooden Pallets | ||
| Highlight | Alloy 317LMN Stainless Steel Plate,Chemical Industrial Stainless Steel Plate,2B NO.1 Finishing Stainless Steel Plate |
||
Product Description
Alloy 317LMN Stainless Steel Plate for Chemical Industrial Thickness 0.4 - 30.0mm 2B NO.1 Finishing
Products Specification
|
Product Name
|
317LMN Stainless Steel Sheets
|
|
Material Type
|
Ferrite stainless steel, magnetic; Austenitic stainless steel, Non-magnetic.
|
|
Grade
|
300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347
|
|
200series:201,202,202cu,204
|
|
|
400series:409,409L,410,420,430,431,439,440,441,444
|
|
|
Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc
|
|
|
Duplex stainless steel:S22053,S25073,S22253,S31803,S32205,S32304
|
|
|
Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo
|
|
|
Technology
|
Cold Rolled /Hot Rolled
|
|
Length
|
2000/2438/2500/3000/3048 mm
|
|
Width
|
1000/1219/1250/1500 mm
|
|
Thickness
|
0.4-3mm(cold Rolled), 3-200mm(hot Rolled)
|
|
|
BA, 2B, NO.1,2D, 4K, 6K, 8K, NO.4, HL, SB, Embossed,perforated etc.
|
|
Leveling: improve flatness, esp. for items with high flatness request.
|
|
|
Skin-Pass: improve flatness, higher brightness
|
|
|
Other Choices
|
Cutting:Laser cutting, help the customer to cut the required size
|
|
Protection
|
1. Inter paper available
|
|
2. PVC protecting film available
|
|
|
Price Item
|
FOB,CIF,DDU,FCA,EXW ,.etc
|
|
Quality Assurance
|
1.Provide MTC (Mill Test).
2.Accept the inspection by the third party agent
|
Product information
Alloy 317LMN (UNS S31726) is an austenitic chromium-nickel-molybdenum stainless steel with corrosion resistance superior to 316L and 317L. The higher molybdenum content, combined with an addition of nitrogen, provides the alloy with its enhanced corrosion resistance, especially in acidic chloride containing service. The combination of molybdenum and nitrogen also improves the alloys resistance to pitting and crevice corrosion.
The nitrogen content of Alloy 317LMN acts as a strengthening agent giving it a higher yield strength than 317L .Alloy 317LMN is also a low carbon grade which enables it to be used in the as-welded condition free from chromium carbide precipitation on the grain boundaries.
Alloy 317LMN is non-magnetic in the annealed condition. It cannot be hardened by heat treatment, only by cold working. The alloy can be easily welded and processed by standard shop fabrication practices.
Technical data
Stainless Steel SA 240 Gr 317L Composition
| SS | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| A240 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 - 20.00 | 3.00 - 4.00 | 11.00 - 15.00 | 57.89 min |
Stainless Steel 317L Properties
| Melting Range | Density | Tensile Strength (PSI/MPa) | Yield Strength (0.2%Offset) (PSI/MPa) | Elongation % |
| 1400 °C (2550 °F) | 7.9 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
FAQ
Q:Are you trading company or manufacturer?
A:We are a trading company with more than 15 years experience in steel export business,have the long term cooperation with big mills in China.
Q:Will you delivery the goods on time?
A:Yes,we promise to provide best quality products and delivery on time.Honesty is our company's tenet.
Q:Do you provide samples?is it free or extra?
A:The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q:Do you accept the third party inspection?
A:Yes absolutely we accept.
Q:What are your main products?
A:Carbon steel,alloy steel,stainless steel plate/coil,pipe and fittings,sections etc.
Q:Can you accept the order of customzied?
A:Yes,we assure.
