ASTM EN DIN Duplex 2205 Stainless Steel Seamless Pipe Length 6m DN10 - DN500
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 2205 |
| Minimum Order Quantity | 500 kgs |
| Price | 4650-5760 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe | Grade | 2205 |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Industrial | Packing | Wooden Box Or PP Bag |
| Highlight | ASTM duplex 2205 pipe,DIN duplex 2205 pipe,EN duplex 2205 pipe |
||
Product Description
ASTM EN DIN Duplex 2205 Stainless Steel Seamless Pipe Length 6m DN10 - DN500
Duplex 2205 Stainless Steel Seamless Pipe Specifications
| Duplex 2205 Stainless Steel Seamless Pipe | |
| Form | Seamless |
| Application | Pressure vessels, high pressure storage tanks, high pressure pipelines Heat exchangers and chemical processing industry Oil and gas pipelines Sewage treatment system Pulp and paper industry classifiers, bleaching equipment, storage and processing systems Food processing equipment |
| Outer Diameter (mm) | 6.0mm-1174mm or according to customer’s requirement |
| Wall Thickness (mm) | 1.0-80.0mm or according to customer’s requirement |
| Length | 5.8meters, 6meters or customer’s requirement |
| End | PE(Plain End), BE(Beveled End), NPT, BW(Butt Weld End) |
| Standard | ASTM A790 UNS ( ASME, EN, JIS, DIN, GB/T, etc can be produced as buyer’s requests) |
| Process Method | Hot Rolled, Cold Drawn or Cold Rolled |
| Surface | Pickling, Polished, Brushed, Sandblast, BA, EP |
| Price Item | EXW, FCA, FOB, CFR, CIF, DDU or as negotiation |
| Payment | Our company accepts normally Paypal, T/T, and L/C payments. Call or email us if you need to use any new payment procedures |
| Delivery Time | It depends on your pipes order total quantity and stock of these mother origin materials. Usually from the start of the order to the completion of production is about 3-4 weeks |
| Quality Requirement | Mill test certificate will be offered with shipment, the third party inspection is available |
| Main Markets | Europe, North America, Middle East, Southeast Asia |
| Machanical Test | Tension test, flaring test, flattening test, hardness test, hydraulic test, etc. |
| Metal Test | High or low temperature impact test, metallographic analysis |
| Chemical Analysis | As pipes standard |
Duplex 2205 Stainless Steel Seamless Pipe: The Complete Guide
Duplex 2205 stainless steel seamless pipe has high strength, good impact toughness and good overall and local stress corrosion resistance.
Therefore, at any given time, you must choose high quality and reliable 2205 stainless steel seamless pipe.
To do that, you must consider the applications, specifications, surface treatment, production process, etc.
The best part?
You will learn all that in this 2205 stainless steel seamless pipe guide.
So, let’s get straight to the main subject of this guide.
More Guide for stainless steel pipe
-
What is Duplex 2205 Stainless Steel Seamless Pipe
-
Duplex 2205 Stainless Steel Seamless Pipe Applications
-
Duplex 2205 Stainless Steel Seamless Pipe Chemical Composition
-
Duplex 2205 Stainless Steel Seamless Pipe Mechanical Properties
-
Duplex 2205 Stainless Steel Seamless Pipe Standards Comparison Table
-
Duplex 2205 Stainless Steel Seamless Pipe Surface Treatment
-
Duplex 2205 Stainless Steel Seamless Pipe Packaging
-
How to Choose Your Duplex 2205 Stainless Steel Seamless Pipe Manufacturer from China?
-
Conclusion
What is Duplex 2205 Stainless Steel Seamless Pipe
Duplex 2205 stainless steel seamless pipe is a duplex stainless steel composed of 22% chromium, 2.5% molybdenum and 4.5% nickel-nitrogen alloy.
The yield strength of duplex 2205 stainless steel seamless pipe is more than twice that of normal austenitic stainless steel pipe.
This pipe is especially suitable for the temperature range of from -50°F to +600°F.
Duplex 2205 Stainless Steel Seamless Pipe Applications
Duplex 2205 stainless steel seamless pipes are used in many fields, such as:
- Pressure vessels, high pressure storage tanks, high pressure pipelines
- Heat exchangers and chemical processing industry
- Oil and gas pipelines
- Sewage treatment system
- Pulp and paper industry classifiers, bleaching equipment, storage and processing systems
- Food processing equipment
Duplex 2205 Stainless Steel Seamless Pipe Chemical Composition
| Specification values in %, according to ASTM | |||||||||
| Grade | C | Mn | P | S | Si | Ni | Cr | Mo | N |
| 2205/UNS S31803 | ≤0.03 | ≤2.0 | ≤0.03 | ≤0.02 | ≤1.0 | 4.5-6.5 | 21-23 | 2.5-3.5 | 0.08-0.2 |
Duplex 2205 Stainless Steel Seamless Pipe Mechanical Properties
| Grade | Tensile Strength,min. | Yield Strength 0.2% Proof,min. |
Elongation (% in 50mm),min. |
Hardness Brinell, max |
| 2205/UNS S31803 | Mpa | Mpa | % | HB |
| 655 | 450 | 25 | 293 |
Duplex 2205 Stainless Steel Seamless Pipe Standards Comparison Table
- ASTM/ASME: A240 UNS S32205/S31803
- EURONORM: 1.4462/X2CrNiMoN22-5-3
- AFNOR: Z3 CrNi 22.05 AZ
- DIN: W. Nr 1.4462
- JIS: SUS329J3L
Duplex 2205 Stainless Steel Seamless Pipe Surface Treatment
We provides a wide range of surface finishing services to your 2205 stainless steel seamless pipe. Such as: pickling, polishing, painting, brushing, logo printing, etc.
Contact our customer service team for a quick quote if you need a perfect finish for your tubing products or other market-ready piping products.
Our skilled expert team handles the finishing process with the utmost care and efficiency.

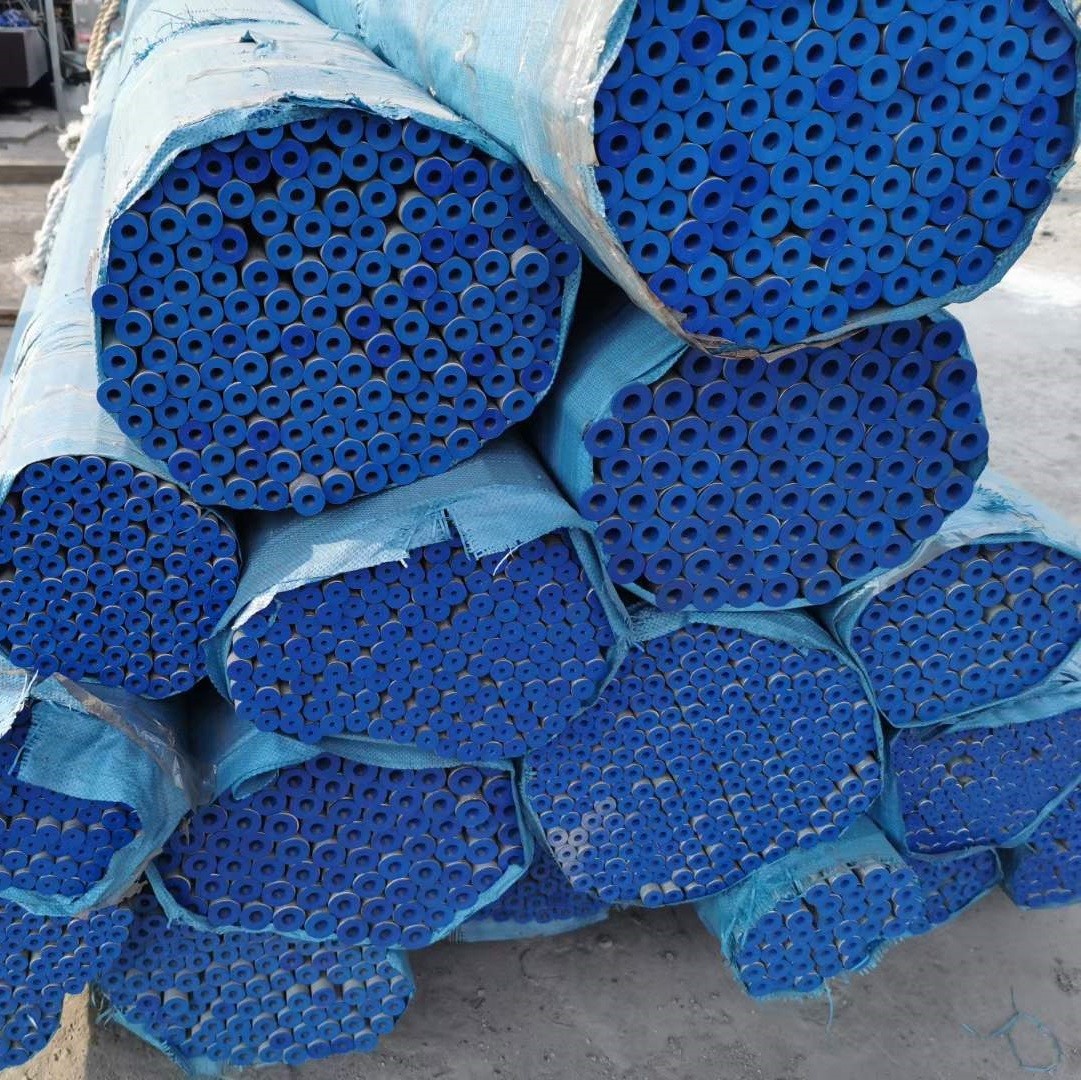

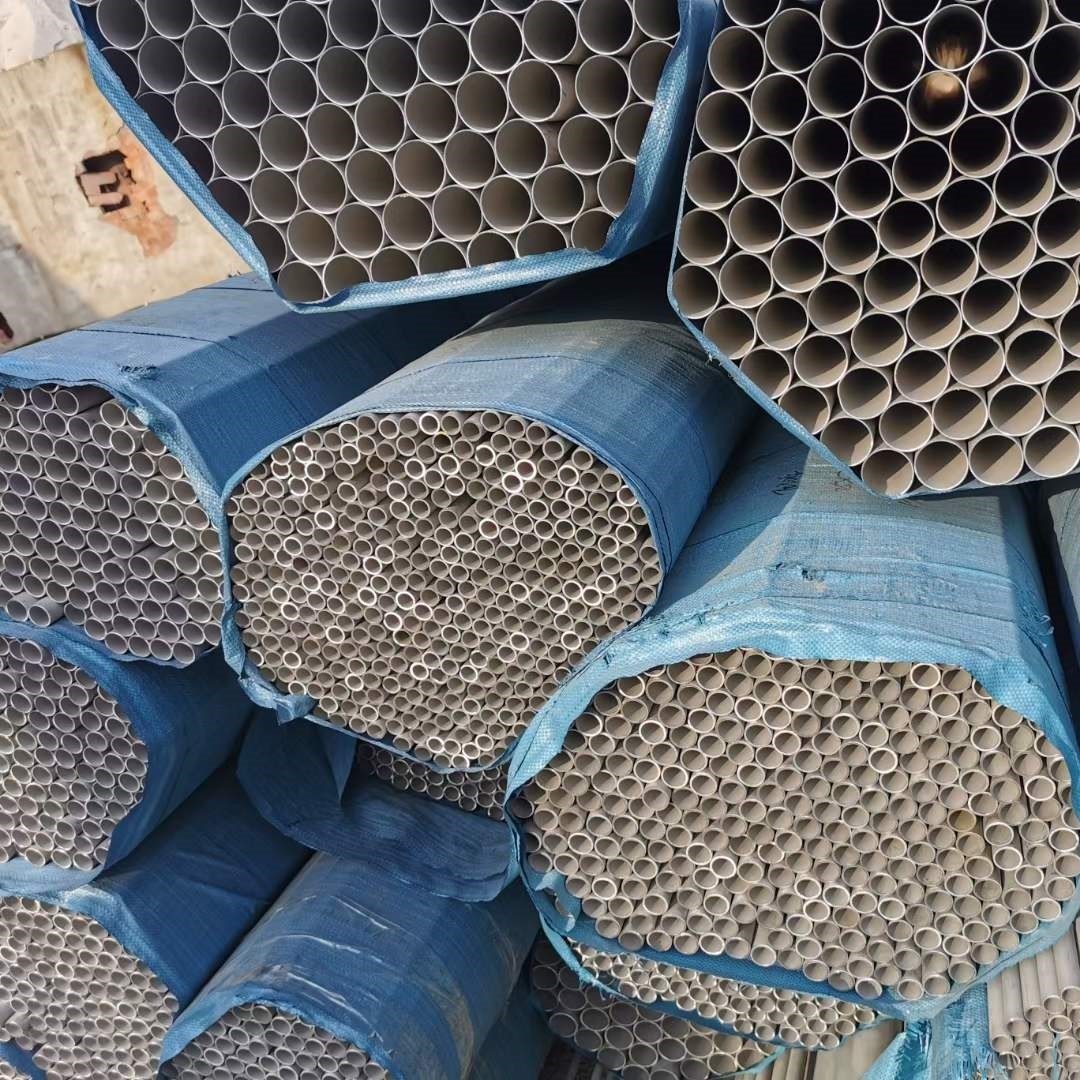

Duplex 2205 Stainless Steel Seamless Pipe Packaging
Our professional team are experienced at your 2205 stainless steel seamless pipe packaging to assure no any damages of products during transportation.
- Standard Export Packaging;
- In bundles with waterproof material, in wooden cases;
- Customized packaging as your request (Logo or other contents accepted to be printed on the pipes packaging);
- Other special packaging will be designed as customer’s request;
- Shipping port: Shanghai, Ningbo or as your request.
How to Choose Your Duplex 2205 Stainless Steel Seamless Pipe Manufacturer from China?
We are the best choice for your 2205 stainless steel seamless pipe production!
As one of the leading nickel alloy tubes and stainless steel pipes manufacturer in China, We will always bring you quality tubing products and solutions for you.
We have a wide list of satisfied global clients that prove our excellent work and efforts that is depicted in our nickel alloy and stainless steel pipes and services.
We have a wonderful team which values your time and money that you hand over to us. Our services are unmatched.
We ensure great quality work and provide guarantee concerning the durability of our goods.
