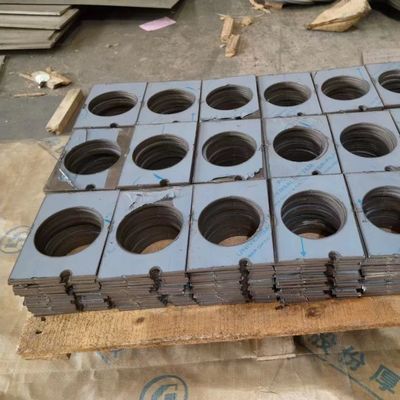

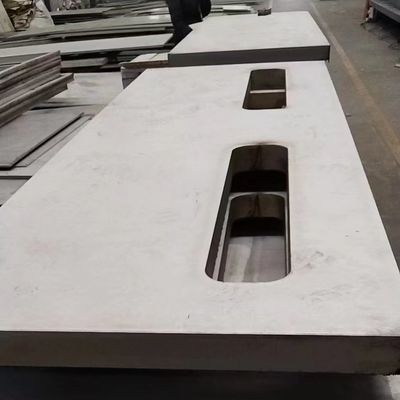

Incoloy 800H Plate Sheet Alloy 800H/HT Thickness 0.4 - 40.0mm 4ft 5ft Width Custom Cutting
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | UNS N08810 / 1.4958 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Sheet & Plate | Grade | UNS N08810 |
|---|---|---|---|
| Thickness | 0.5 - 30.0mm | Standard Size | 1000*2000mm 1219*2438mm |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | 2B NO.1 NO.4 NO.8 |
| Highlight | 4ft 5ft Incoloy 800H Plate Sheet,800H/HT Incoloy 800H Plate Sheet,Custom Cutting Incoloy 800H Plate Sheet |
||
Product Description
Incoloy 800H Plate Sheet Alloy 800H/HT Thickness 0.4 - 40.0mm 4ft 5ft Width Custom Cutting
|
Material
|
Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy
|
|
Shape
|
Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet
|
|
Grade |
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L
|
|
Others:253Ma,254SMo,654SMo,F50(UNSS32100)F60,F61,F65,1J22,N4,N6 etc
|
|
|
Alloy : Alloy 20/28/31
|
|
|
Hastelloy:HastelloyB/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g
|
|
|
Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617,Hastelloy C,
Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602, Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665 |
|
|
Haynes: Haynes 230/556/188
|
|
|
Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20
|
|
|
Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851,
Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816 |
|
|
Incoloy: Incoloy 800/800H/800HT/825/925/926;
|
|
|
GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044
|
|
|
Monel: Monel 400/K500/R405
|
|
|
Nitronic: Nitronic 40/50/60;
|
|
|
Nimonic: Nimonic 75/80A/90/A263 ;
|
|
|
Specification |
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
|
Product Characteristics |
1.According to the preparation process can be divided into deformation superalloys,
casting superalloys and powder metallurgy superalloys. 2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc.. |
|
Standard
|
GB,AISI,ASTM,DIN,EN,SUS,UNS etc
|
|
Inspection
|
ISO,SGS,BV and so on.
|
OVERVIEW OF INCOLOY 800H
Incoloy 800H, with its unique composition and exceptional performance, has cemented its reputation as a versatile industrial material. This superalloy is renowned for its remarkable properties and diverse applications. When it comes to sourcing Incoloy 800H, MV Super Alloys is the premier choice in India. As the leading Incoloy 800H supplier, trader, stockist, importer, dealer, and exporter, we offer a comprehensive range of Incoloy 800H products, meticulously adhering to Incoloy 800 specifications and ASTM standards. Our inventory includes various forms such as pipes, tubes, round bars, coils, shims, strips, wires, sheets, and plates. Whether you’re in search of Incoloy 800H composition details or specific Incoloy 800H pipes in accordance with Incoloy 800 ASTM specifications MV Super Alloys is your ultimate destination.
What is Incoloy 800H?
Incoloy 800H is a nickel-iron-chromium alloy that belongs to the class of superalloys. This alloy is derived from Incoloy 800, with the letter ‘H’ signifying the modification that distinguishes it. The primary modification in 1.4958 / 1.4876 alloy is its higher carbon content (0.05-0.10%), which enhances its high-temperature strength and resistance to oxidation, carburization, and sulfidation. This makes it a valuable material for applications involving elevated temperatures and aggressive environments.
Key Properties of Incoloy 800H
- High-Temperature Resistance: Incoloy 800H excels in environments where temperatures can soar to 1100°C (2000°F) and beyond. It retains its structural integrity and mechanical properties even at extreme temperatures, making it ideal for furnace components and heat exchangers.
- Corrosion Resistance: The alloy exhibits excellent resistance to oxidation, carburization, and sulfidation, making it suitable for applications in chemical processing, petrochemical, and power generation industries.
- Creep and Rupture Strength: N08810 alloy maintains its mechanical strength over extended periods, offering superior resistance to creep and rupture at high temperatures. This property is invaluable in applications involving sustained stress, such as pressure vessels and power plant components.
- High Thermal Stability: The alloy’s ability to maintain its properties at elevated temperatures makes it an excellent choice for applications requiring long-term thermal stability.
Benefits of Incoloy 800H
- Longevity: Its resistance to high-temperature degradation and corrosion ensures a longer service life in challenging environments.
- Versatility: The alloy’s wide range of applications across various industries showcases its versatility.
- Low Maintenance: Incoloy 800H components often require less maintenance due to their robust nature.
- Cost-Effective: While it may have a higher initial cost, the longer lifespan and lower maintenance requirements make it a cost-effective choice in the long run.
Incoloy 800 Specification & Standards
| Form | ASTM | ASME | DIN |
| Plate, Sheet, and Strip | A 240 B 409 |
SA 240 SB 409 |
17460 |
| Rod, Bar, Wire, Forings, and Foring Stock | B 408 B 564 |
SB 408 SB 564 |
17460 |
| Pipe and Tube | B 163 B 407/B 829 B 514/B 775 B 515 / B 751 |
SB 163 SB 407 / SB 829 SB 514 / SB 775 SB 515 / SB 751 |
17459 |
Incoloy 800H Alloy Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
Incoloy 800H composition
| Grade | C | Mn | Si | Fe | S | Cr | Al-Ti | Ni | |
| 800H | min | 0.05 | – | – | 39.5 | – | 19.0 | 0.15 | 30.0 |
| max | 0.1 | 1.5 | 1.0 | – | 0.015 | 23.0 | 0.60 | 35.0 | |
Incoloy 800H Alloy Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength (Mpa) Min | Yield Strength 0.2% Proof (Mpa) min | Elongation (% in 50mm) min |
| 800-H-HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000, MPa – 520 | Psi – 30,000, MPa –205 | 30 |
Applications of Incoloy 800H
Incoloy 800H is a high-temperature, corrosion-resistant alloy that is used in various industrial applications. It offers excellent resistance to oxidation, carburization, and other high-temperature environments. Here are some common applications of 1.4958 / 1.4876 alloy:
- Heat Exchangers
- Furnace Components
- Petrochemical Industry
- Power Generation
- Chemical Processing
- Aerospace Industry
- Oil and Gas Industry
- Food Processing
- Industrial Heating Elements
- Nuclear Industry
- Waste Incineration
- Other Applications
