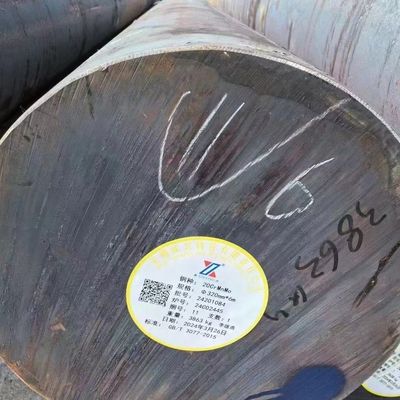

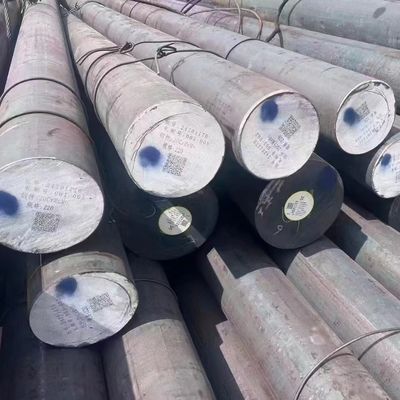

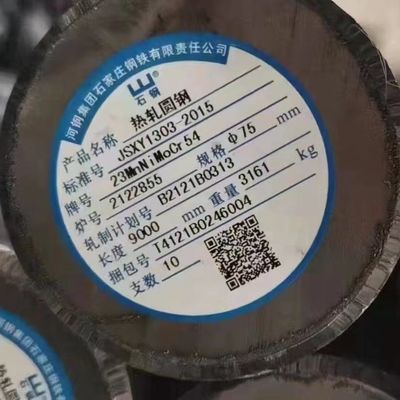

Alloy 23MnNiMoCr5-4 Round Bar DIN 17115 Diameter 10 - 300mm Steel Round Rod & Shaft
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | Alloy 23MnNiMoCr54 |
| Minimum Order Quantity | 1 Ton |
| Price | 600-885USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Alloy Steel Round Bar | Diameter | 10 - 350mm |
|---|---|---|---|
| Length | 6m | Tech | Hot Rolled |
| Service | Cutting | MOQ | 1 Ton |
| Loading Port | Shanghai Port | Standard | ASTM EN GB |
| Highlight | DIN 17115 Alloy Steel Round Bar,23MnNiMoCr5-4 Alloy Steel Round Bar,300mm Alloy Steel Round Bar |
||
Product Description
Alloy 23MnNiMoCr5-4 Round Bar DIN 17115 Diameter 10 - 300mm Steel Round Rod & Shaft
Products Specification
| Products Name |
Alloy 23MnNiMoCr54 Steel Round Bar |
| Diameter | 10 - 300mm |
| Length | 6m or custom cutting any length as request |
| Type | Hot Rolled |
| Brand | BAOSTEEL DELTA DONGBEI HUAXI SHAGANG.etc |
| MOQ | 1 Ton |
| Loading Port | Shanghai Port |
| Packing | packing by steel wire rope |
| Deliver time | 5 - 7 days for stock materials |
| Other Grade |
Q195,Q235,10#,20#,35#,45#,Q215,Q345,12Cr1Mov, 15CrMo,304,316,20Cr,40Cr,20CrMo,35CrMo,42CrMo, 40CrNiMo,GCr15,65Mn,50Mn,50Cr,3Cr2W8V,20CrMnTi,5CrMnMo |
| Standard | ASTM GB EN DIN |
| Application | Structure and Industrial |

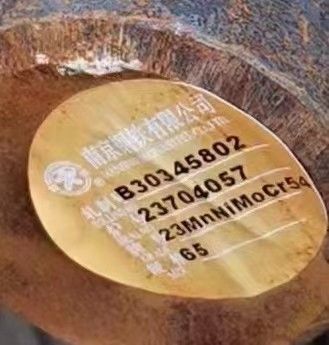

23MNNIMOCR5-4 bar for connecting rod chain is a high-quality steel, with high strength, high toughness, wear resistance and weldability and processability, widely used in the production of connecting rod chain.
(1)High strength and toughness:
It has high yield strength and good ductility, enabling it to withstand heavy loads and resist deformation. In addition, it has high impact resistance, which makes it suitable for use in harsh environments.
(2)23MNNIMOCR5-4 has excellent wear resistance:
It has a high surface hardness, which means it can withstand severe wear. This makes it ideal for use with chain links, as constant friction and rubbing can cause damage over time.
(3)The steel bar has good weldability and machinability, making it easy to process in the manufacturing process.
It can be easily welded and formed into different shapes and sizes, making it highly versatile.
Chemical composition
| C% |
si% max |
Mn% | P% |
S% max |
Cr% | Mo% | Ni% | Ai% |
Cu% max |
N% max |
| 0.20-0.26 | 0.25 | 1.10-1.40 | 0.020 | 0.020 | 0.40-0.60 | 0.50-0.60 | 0.90-1.10 | 0.020-0.050 | 0.25 | 0.012 |
| others | P+S max 0.035% | |||||||||
Mechanical properties DIN 17115
| Condition of delivery |
Cold-drawn +C |
Soft annealed or Cold-drawn + soft annealed +C+A |
Cold-drawn soft annealed and Cold-drawn +C+A+C |
Spheroidized +GKZ or Cold-drawn Spheroidized +C+GKZ |
Cold drawn spheroidized and Cold-drawn +C+GKZ+C |
| Rm N/mm2 | max 860 | max 790 | max 930 | max 710 | max 850 |
| HB 30 | max 255 | max 235 | max 275 | 150- 210 | max 250 |
| HV 10 | max 268 | max 247 | max 289 | max 221 | max 263 |
Hot rolled mechanical properties, values at room temperature for round 0 20 mm after quenching at 880°C in water and
tempering at 400*C DiIN 17115
|
size mm |
Testing at room temperature (longitudinal) | ||||
| R | Rp0.2 | A% | Z% | Kv | |
| ＜30 | N/mm² min. | N/mm² min. | min. | min. | J min. |
| 1180 | 980 | 10 | 50 | 40 | |
Similar steel grade & equivalent steel materials:
| USA | Japanese | Gemany | British | France | heat treatment | Chinese |
| ASTM&AISI&SAE | JIS | EN DIN | EN BS | EN NF | ISO | GB |
| 23MNNIMOCR5-4 1.6758 | ------ | Cr12Mo1v1 | ||||
