ASTM A240 304 304L 309S 316 316L 316Ti Stainless Steel Plate With EN 10204-3.1 Certificate
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 304 316L 309S 310S 321 347 904L 2205 2507 254SMO |
| Minimum Order Quantity | 400 kgs |
| Price | 2200 -3220 USD/Ton |
| Packaging Details | wooden pallets + waterproof paper |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Plates | Grade | 304 316L 309S 310S 321 347 904L 2205 2507 254SMO |
|---|---|---|---|
| Standard Size | 1000*2000mm 1219*2438mm 1500*6000mm | Thickness | 1.0 - 30.0mm |
| Brand | TISCO BAOSTEEL POSCO LISCO | Loading Port | Shanghai Port |
| MOQ | 200 Kgs | Packing | Wooden Pallets + Waterproof Paper |
| Highlight | EN 10204-3.1 Stainless Steel Plate,304L Stainless Steel Plate,A240 Stainless Steel Plate |
||
Product Description
ASTM A240 304 304L 309S 316 316L 316Ti Stainless Steel Plate With EN 10204-3.1 Certificate
|
Material
|
200 300 400 Series stainless steel
|
|
Grade
|
201 202 301 303 304 304L 2205 2507 309 309S 310 310S 314 316L 316Ti 317L 321 2205 2507 409 409l 410 410S 420 420J1 420J2 430 441 444 904L
|
|
Standard
|
AISI ASTM JIS DIN EN BS
|
|
Tech
|
Cold rolled / Hot rolled
|
|
Thickness
|
Hot rolled: 3mm-16mm 16-150mm
Normal: 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0
As per customer's request: 16-150mm Cold rolled: 0.3-6mm
Normal:0.3/0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0 As per customer's request: 4.0/5.0/6.0 |
|
Width&Length
|
1000mm-6000mm, or as per customer's request
Hot rolled: 1250*3000mm (4.1*10ft) 1500*3000mm (5*10ft) 1250*6000mm (4.1*19.6ft) 1500*6000mm (5*19.6ft) 1800*6000mm (5.9*19.6ft) 2000*6000mm(6.5*19.6ft) Cold rolled: 1000*2000mm (3.2*6.5ft) 1219*2438mm (4*8ft) 1500*3000mm (5*10ft) 1800 available 2000 available |
|
Place of Origin
|
Jiangsu China
|
|
Processing Service
|
Bending, Welding, Recoiling, Punching, Cutting
|
|
Tolerance
|
±1%
|
|
Surface Treatment
|
N0.1,2B,BA,6K, 8K, 12k, N0.4, HL, Mirrored,checkered etc
|
|
Payment
|
T/T terms, 30% pre-payment, 70% balance see B/L copy LC Western Union Paypal
|
|
Delivery Time
|
5-15 days for ordinary orders (standard orders <=50 ton); specified orders needs final confirmation as per customer's request
|

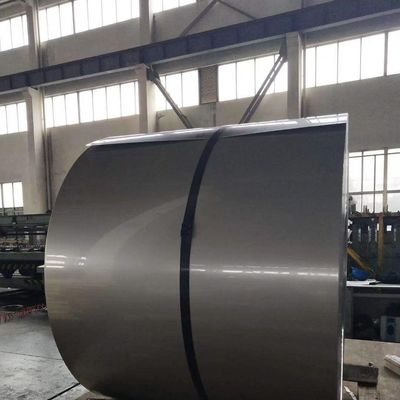

Stainless steel coil plate – ASTM A240M
The most efficient route for a stainless steel production mill to produce plate (5mm and over) is in coil form. The coil is then further downstream processed by the mill or through a service centre with equipment to flatten (often called ‘levelling’) and cut to length.
The maximum plate width produced by mills from coil is 2000mm and the maximum thickness is 13mm for hot rolled and 8mm for cold rolled.
| Grade | Thickness (mm) | Coil width (mm) | Finish |
| 304/304L | 0.4-40.0 | 1000 1219 1500 | NO.1 |
| 316/316L | 0.4-40.0 | 1000 1219 1500 | No. 1 |
| 309S | 0.6-30.0 | 1000 1219 1500 | No. 1 |
| 310S | 0.5-40.0 | 1000 1219 1500 | No.1 |
| 321 | 0.8-80.0 | 1000 1219 1500 | No.1 |
| 347 | 3.0-30.0 | 1000 1219 1500 | No. 1 |
Stainless steel quarto plate products – ASTM A240M
Another method of producing stainless steel plate within and beyond the thickness range of coil production is from a slab of steel that is rolled in the flat condition to a specified length, width and thickness. The product of this process is commonly referred to as quarto plate and is available from mills in thickness from 5mm and above and widths to 4000mm in some thicknesses.
The standard grades and thickness for quarto plate are as follows:
| Grades | 304/304L, 316/316L, 3CR12. |
| Thickness (mm) | 5.0, 6.0, 8.0, 10.0, 12.0, 16.0 & 20.0. |
| Width (mm) | 1500 & 2000. |
| Length (mm) | 6000. |
| Finish | No. 1 (HRAP). |
Quarto plate is commonly stocked as a dual certified grade, i.e. 304/304L and 316/316L.
Stainless steel chequer (floor) plate
| Grades | 304. |
| Thickness (mm) | 3.18 & 4.76 . |
| Width (mm) | 1219 & 1250. |
| Length (mm) | 2438. |
