UNS S31635 / AISI316Ti / TP316Ti Stainless Steel Seamless Pipe Tube DN10 - DN500
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 316Ti / UNS S31635 |
| Minimum Order Quantity | 500 kgs |
| Price | 4650-5760 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe | Grade | 316Ti / UNS S31635 |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN500 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Industrial | Packing | Wooden Box Or PP Bag |
| Highlight | S31635 Stainless Steel Seamless Pipe,AISI316Ti Stainless Steel Seamless Pipe,316Ti Stainless Steel Seamless Pipe |
||
Product Description

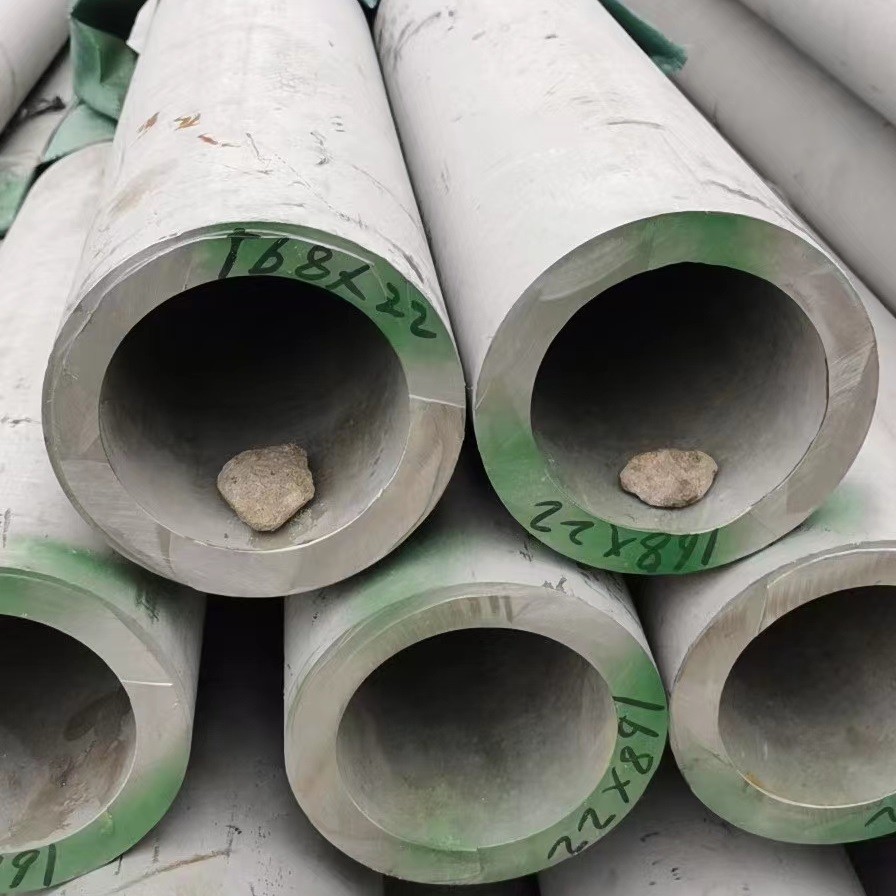

UNS S31635 / AISI316Ti / TP316Ti Stainless Steel Seamless Pipe Tube DN10 - DN500
|
Product Name
|
Stainless steel pipe
|
|
Standard
|
ASTM AISI DIN, EN, GB, JIS
|
|
Steel Grade
|
200 Series: 201,202
300 Series: 301,304,304L,316,316L,316Ti,317L,321,309s,310s 400 Series: 409L,410,410s,420j1,420j2,430,444,441,436 Duplex Steel: 904L,2205,2507,2101,2520,2304 |
|
Outer Diameter
|
6-2500mm(as required)
|
|
Thickness
|
0.3mm-150mm (as required)
|
|
Length
|
2000mm/2500mm/3000mm/6000mm/12000mm(as required)
|
|
Technique
|
Seamless/Welded
|
|
Surface
|
No.1 2B BA 6K 8K Mirror No.4 HL
|
|
Tolerance
|
±1%
|
|
Price Terms
|
FOB,CFR,CIF
|
Introduce of 316Ti stainless steel pipe
316ti stainless steel pipe is a hollow long round steel, mainly is widely used in petroleum, chemical, medical, food, light industry, machinery, instrument and other industrial pipeline and mechanical structure parts, etc. In addition, in bending and torsion strength, the weight is lighter, so it is also widely used to make mechanical parts and engineering structures. It is also used to produce all kinds of conventional weapons, guns and shells.
Specification of 316Ti Stainless Steel Pipe
| Standard: | AISI, ASTM, DIN,EN etc | Place of Origin: | Zhejiang, China | Brand Name: | DELTA |
| Model Number: | Seamless Pipes/Tubes | Type: | TP316ti Seamless pipes/Tubes | Steel Grade: | TP316ti,SS316ti,1.4571 |
| Application: | Heat exchanger and condenser, etc | Surface: | as customer’s required | Meterial: | austenitic stainless steel |
| Thickness: | SCH5~SCH160 | Outer Diameter: | 1/8″-48″ | Surface: | pickled&annealed |
| Shape: | Round,Square,rectangular | Technique: | Cold finish | Length: | 16m max(fixed or random) |
| Payment terms: | T/T | Sample: | free | Delivery condition: | Pickled&annealed/polished |
| MOQ: | 500kgs | Packing: | as pe your request | inspection: | 100% |

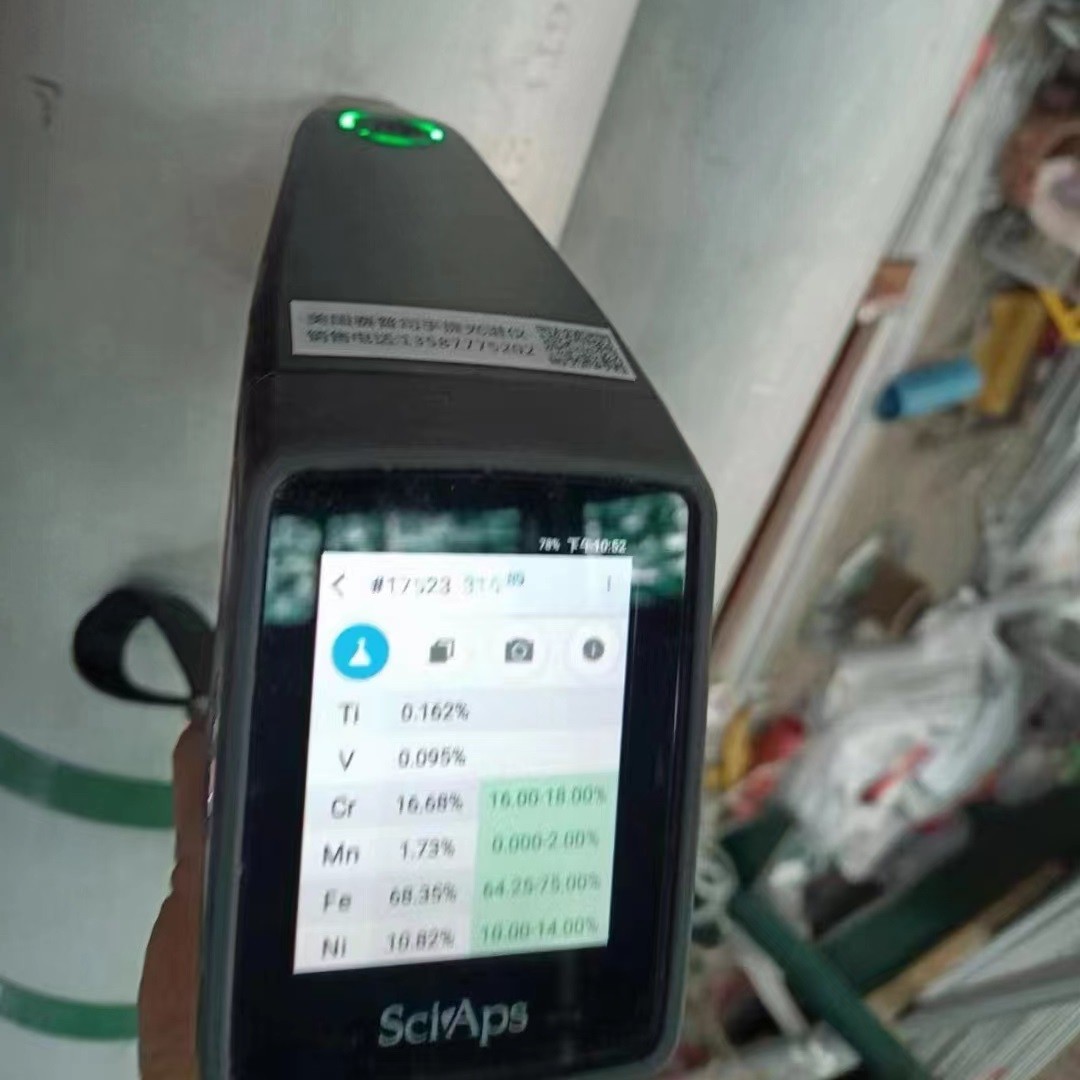

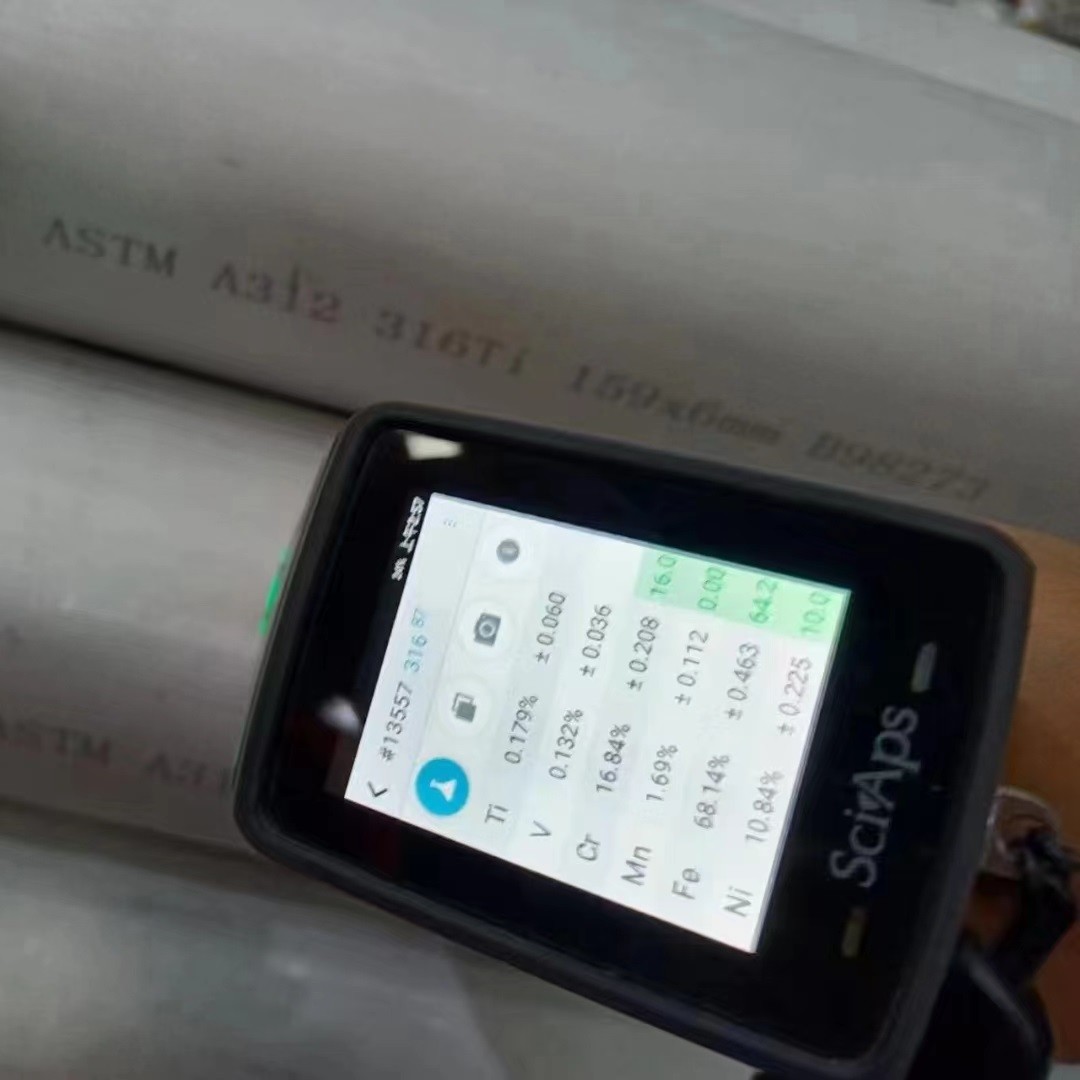

316Ti Stainless Steel Chemical Composition, % Max
The chemical composition of stainless steel 316H is generally composed of 16 to 18% chromium, 10 to 14% nickel, 2 to 3% molybdenum, and the minimum amount of titanium is 5 x (C + N), the maximum amount is 0.70%, titanium is strong carbide and nitride former, which helps prevent chromium from being consumed.
| C | Mn | P | S | Si | Ni | Cr | Mo | Ti | N | Fe | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 316Ti | 0.08 | 2.00 | 0.045 | 0.030 | 1.0 | 10-14 | 16-18 | 2-3 | 5x(C+N)-0.7 | 0.1 | Balance |
316Ti Stainless Steel Mechanical Properties
| Tensile Strength(Mpa) | Yield Point(Mpa) | Elongation(%) | Hardness, HRB | |
|---|---|---|---|---|
| 316Ti | 515 | 205 | 35 | 86 |
316Ti Stainless Steel Equivalent Grades
| AISI | UNS | DIN | EN | JIS | GB |
|---|---|---|---|---|---|
| 316Ti | S31635 | 1.4571 | X6CrNiMoTi17-12-2 | SUS316Ti | 1Cr18Ni12Mo2Ti |
SA312/213 TP 316TI STAINLESS STEEL PIPE SEAMLESS APPLICATIONS:
- Ship Builders,
- Automotive Industry,
- Power Generation,
- Food Industry,
- Paper Industry,
- Chemical Industry,
- Oil and Gas Industry,
- Heat Exchanger
- Chemical process vessels,
- piping and heat exchangers
- Pulp mill digesters,
- bleach washers,
- chip pre-steaming vessels
- Food processing equipment
- Oil field piping and heat exchangers
- Flue gas desulfurization equipment
