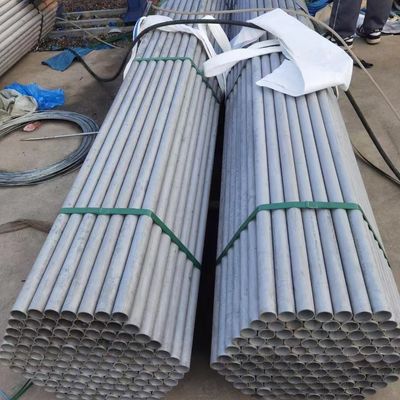

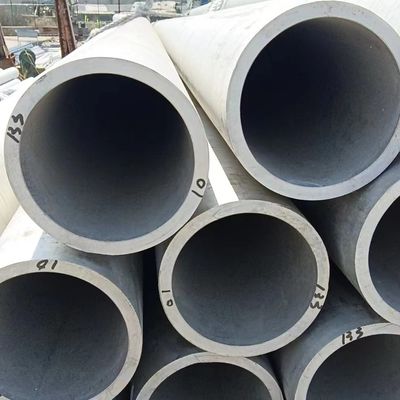

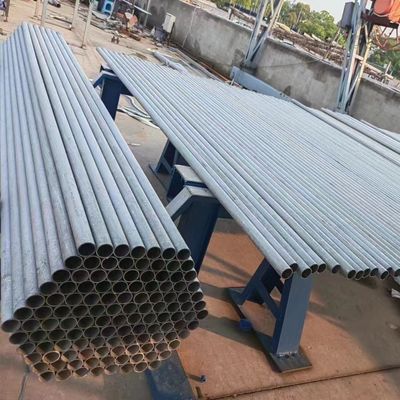

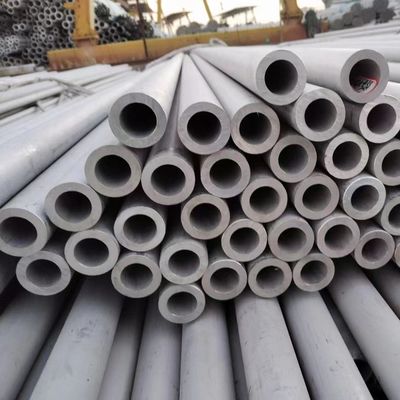

Alloy 926 UNS N08926 Hot Rolled Seamless Nickel Alloy Pipe Tubing / EN 1.4529 Alloy Pipe
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | EN 1.4529 / UNS N08926 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Bars | Grade | EN 1.4529 / UNS N08926 |
|---|---|---|---|
| Diameter | DN6-DN400 | Length | 6000mm Or Custom Cutting Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | Black, Bright |
| Highlight | Seamless Nickel Alloy Pipe,N08926 Nickel Alloy Pipe,EN 1.4529 Nickel Alloy Pipe |
||
Product Description
Alloy 926 UNS N08926 Hot Rolled Seamless Nickel Alloy Pipe Tubing / EN 1.4529 Alloy Pipe
| Material | Inconel,Hastelloy,Monel,Incoloy,GH,Precision alloy,Stainless steel | |
| Standard | GB,AISI,ASTM,DIN,EN,SUS,UNS etc | |
| Shape | Sheet ,Coil, Bar,Pipe,Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square | |
| Surface | Mirror,Brushed,Mil Finished,Polished etc | |
| Material Grade | Inconel | Inconel600(N06600 GH3600), Inconel601(N06601 GH3600), Inconel625(N06625 GH3625), InconelX-750(N07750 GH4145), Inconel 718(N07718 GH4169), Inconel690 |
| Hastelloy | Hastelloy B-2,Hastelloy C,Hastelloy C-267(N10276),Hastelloy C-4, Hastelloy C-22(N06022),Hastelloy G30(N06030) |
|
| Monel | Monel 400(N04400),Monel K500(N05500) | |
| Incoloy | Incoloy A-286(GH2132 N662),Incoloy800 800H 800HT,Incoloy725, Incoloy825,Incoloy925,Incoloy926(N08926 1.4529) |
|
| GH | GH2132(N66286 A286 Gr6),GH3625(Inconel625 UNS N0), GH4169(Inconel718 UNS N0),GH3030,GH3039,GH4033,GH3128 |
|
| Precision alloy | 4J36,4J29,1J79 | |
| Stainless steel | Alloy 20(N08020),904L(N08904),254SMo(F44 S31254) | |
| Specification | Sheet | Thickness 0.8-36mm; Width 650-2000mm; Length 800-4500mm |
| Strip | 0.05*5.0-5.0*250mm | |
| Pipe | φ 6-273mm; Thickness 1-30mm; Length 1000-8000mm | |
| Bar | φ4-50mm; Length 2000-5000mm | |
| Wire | 0.01-10mm | |
| Application | It is widely used in high-temperature and electric industry, medical devices, construction, chemistry, food industry, agriculture, and ship components. It also applies to food and beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen mesh etc |
|
| Trade Terms | EXW,FOB,CIF CFR | |
| Loading Port | Shanghai port, Tianjin port, Qindao port | |
| Payment terms | 1) 30% deposit by T/T, the balance against copy of B/L by T/T. | |
| 2) 30% deposit by T/T, the balance by L/C at sight. | ||
| 3) 100% L/C at sight. | ||
| MOQ | 1Ton | |
| Packing Detail | Standard Seaworthy Package or customer requirements | |
| Delivery time | 1.Usually,within10-20days after receiving deposit or LC. 2.According to the order quantity |
|
| Samples | Free samples are provided but the fright is borne by the buyer | |
UNS N08926 is an austenitic stainless steel alloy has a similar chemical composition with 904L alloy
We could delivery UNS N08926 forging material as per the standard of ASTM B564
We use EAF+VOD-ESR melting methods to melt the material of UNS N08926
As per heat treatment of UNS N08926 forged parts, We could do solution treatment and ageing treatment together.
The chemical composition of UNS N08926 is as follows:
| Alloy | % | Ni | Cr | Fe | C | Mn | Si | Cu | Mo | N | Ti | P | S |
| UNS N08926 | Min. | 24 | 19 | Balance | 0.5 | 6.0 | 0.15 | 0.6 | |||||
| Max. | 26 | 21 | 0.02 | 2 | 0.5 | 1.5 | 7.0 | 0.25 | 1.2 | 0.03 | 0.01 |
The mechanical property of UNS N08926 is as follows:
| Alloy state | Tensile strength Rm N/mm2 |
Yield strength RP0.2N/mm2 |
Elongation A5 % |
| UNS N08926 | 650 | 295 | 35 |
- Due to special mechanical properties of UNS N08926 forging parts, there are many wide uses as followings:
- UNS N08926 seamless rolled rings and UNS N08926 forging shafts that is used in chemical pump,plunger pumps.
- UNS N08926 forged shafts,UNS N08926 forging pipes, UNS N08926 forged tubes ,forged tube sheets, forged flanges that are used in pressure vessel ,air receivers,Shell & Tube Heat Exchangers
- UNS N08926 forging shafts,UNS N08926 forging flanges ,UNS N08926 forged rings,UNS N08926 forging pipes that is used inColumns & Towers,Tanks ,Silos,Process Modules,Preheaters
- UNS N08926 forged bushing,UNS N08926 forged sleeves,UNS N08926 forged disks,UNS N08926 forged discs that is used in Offshore and onshore industry, such as subsea and deepwater offshore oil production systems, industrial air compressors, power generators and nitrogen generators
- UNS N08926 open die forging parts,forging pieces,forged nozzles forged crankshaft that is used in Cement Mill ,sugar Mill,concrete mills and mixers.
- UNS N08926 forged valve stem, forged valve parts, forged valve seat ring,forged valve blocks,forged bodies that are used in ball valves, check valves, strainers ,globe valve, gate valve,Plug valve and so on
- UNS N08926 forging rings, UNS N08926 forging spindles, UNS N08926 forging bars,UNS N08926 forging gears that are used in power transmission, turbine,gas compressor,gear boxes and so on
- UNS N08926 forged products,UNS N08926 forged nozzles,UNS N08926 forging eccentric shaft that are used on processing units,mechanical equipment, crystalizer equipment,Wellhead and Christmas tree
- UNS N08926 forged wheels, forged manifold,forging rolls that are used in shipping building,heavy machinery.Paper and Pulp Industries,Pharmaceutical & Biochemistry
- Our UNS N08926 forged parts will be Ultrasonic testing as per standard, EN10228-3,Sep1921,ASTM A388 and so on
- We could supply UNS N08926 super allloy forged parts certificate as per the standard of EN10204-3.1 or EN10204-3.2 of third party
- Please send us the size or drawing of UNS N08926 forged material that you need, we are glad to quote the best price for your side
