DN6 - DN400 Nickel Alloy C276 Seamless Pipe UNS N10276 SCH40S SCH80S Alloy 276 Pipe
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | Hastelloy C276 / UNS N10276 |
| Minimum Order Quantity | 500 kgs |
| Price | 40-45 USD/Kg |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Nickel Alloy Bars | Grade | Hastelloy C276 |
|---|---|---|---|
| Diameter | DN6-DN400 | Length | 6000mm Or Custom Cutting Any Length As Request |
| Standard | ASTM EN | Service | Cutting |
| Loading Port | Shanghai Port | Surface | Black, Bright |
| Highlight | SCH40S SCH80S Nickel Alloy Pipe,DN6 DN400 Nickel Alloy Pipe,N10276 Nickel Alloy Pipe |
||
Product Description

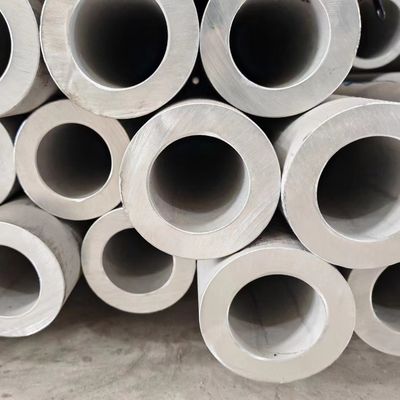

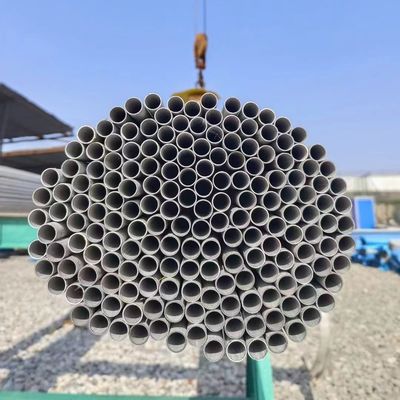

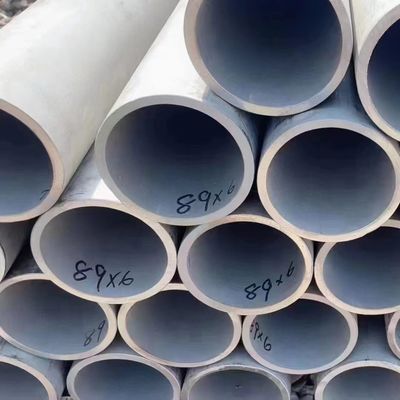

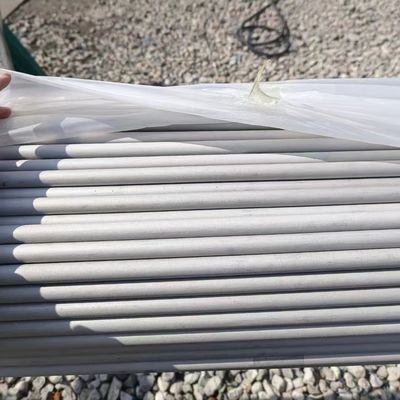

DN6 - DN400 Nickel Alloy C276 Seamless Pipe UNS N10276 SCH40S SCH80S Alloy 276 Pipe
| Name | N10276 Nickel Based Alloy Seamless Round Pipe |
| Grade |
Incoloy800H/(N088100/1.4958/NS112)/Incoloy825(N08825/2.4858/NS142)/ Incoloy925(N09925)/Incoloy 926(N08926/1.4529) Hastelloy C276,C4,C22,Monel400 500 |
| Out diameter | DN6-DN400 as request or customized |
| Thickness | 0.4-80mm as request or customized (Sch5S-XXS) |
| Length | 3m-12m or customized |
| Surface | NO.1/Pickling/Bright/Polished |
| Lead time | 7 to 10 working days after the receipt of deposit |
| Quality test | Mill Test Certificate is supplied with shipment, Third Part Inspection is acceptable |
| MOQ | 3 ton or as request. |
| Sample | Free provided, trial order can be acceptable |
| Payment terms | 30%TT for deposit, 70% balance before shipment or LC at sight |
| Price Term | FOB,CIF,EXW |
| Port of Loading | Shanghai Port/Guangzhou port |
| Packing | standard packing with plastic bags and strapped bundles, and can be customized; In bundles tied with steel strips. End plastic |
| caps, external packing by PVC or according to customer's request | |
| Export to | Turkey, Chile, Colombia, Dubai, Congo, Brazil,,Malaysia,Vietnam,Jordan,Indonesia, Iran, UAE, Peru, etc |
| Application | Interior/exterior/architectural/bathroom decoration, elevator decoration, hotel decoration, kitchen equipment, ceiling, cabinet, |
| kitchen sink, advertising nameplate | |
| Container Size | 20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High) |
| 40ft GP: 12032mm(Length)x2352mm(Width)x2393mm(High) | |
| 40ft HC: 12032mm(Lengh)x2352mm(Width)x2698mm(High) |
HASTELLOY C276 (UNS N10276/2.4819) is a Nickel-chromium-molybdenum wrought alloy, this alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, that is considered the most versatile corrosion resistant alloy available. This material is especially suitable for use in high temperature, inorganic and organic acids mixed with impurities (such as formic acid and acetic acid), and seawater corrosive environments.
Hastelloy C276 Seamless Pipe Chemical Composition
| Alloy C276 | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr |
|---|---|---|---|---|---|---|---|---|---|---|
| Balance | 0.010 max | 15.00 – 17.00 | 1.00 max | 0.08 max | 4.00 – 7.00 | 0.04 max | 0.03 max | 2.5 max | 14.50 – 16.50 |
C276 Hastelloy Hexagonal Pipe Mechanical Strength Table
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
|---|---|---|---|---|
| 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 52,000 , MPa – 355 | Psi – 1,15,000 , MPa – 790 | 40 % |
Detail of covered material/Grade
- 300 series austenitic: 304 304/304L 304H 30432(super 304H)321 321H 316 316L 316/316L 316H 317 317L 317LN 347 347H 310S 310H 310 314 S30815(253MA)
- Duplex Grade and super duplex grade: 31803 UNS S31803 32205 2205 UNS S32205 32304 UNS S32304
- Super duplex: 2507 32750 UNS S32750 32760 UNS S32760
- Super austenitic: AL6XN N08367 N08904 904 904L S31254(254SMO)
- Ferritic/Ferrite and Martensitic/Martensite 400 series: 405 410 430 409 439 429 430Ti
- Nickel and Nickel alloy series:
- Inconel: Inconel 600 N06600 Inconel 601 N06601 Inconel 625 N06625 Inconel 690 N06690
- Hastelloy : Hastelloy B3 N10675 Hastelloy C 276 N10276 Hastelloy C 22 N06022 Hastelloy G35 N06035 Hastelloy G30 N06030
- Monel: Monel 400 N04400
- Incoloy: Incoloy800 N08800 800 Incoloy800H 800H N08811 Incoloy825 825 N08825 N08810 8810 Incoloy718 N07718 GH4169
- Alloy: Alloy 20 N08020 incoloy 20 Alloy 28 N08028 inc oloy 28 Alloy 31 N08031 incoloy 31
- Nickel: N02200 Ni200 N02201 Ni 201
FAQ
Q: Are you trading company or manufacturer?
A: We are professional manufacturer for steel pipes,and our company also is a very professional and technical foreign trade company for steel products. We have more export experience with competitive price and best after-sales service. Apart from this,we can provide a wide range of steel products to meet the requirement of customer.
Q:Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time no matter if the price change lot or not. Honesty is our company's tenet.
Q: Do you provide samples ? is it free or extra?
A: The sample could can provide for customer with free,but the freight will be covered by customer account. The sample freight will be returned to customer account after we cooperate.
Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours. Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.
Q: Do you have any certifications?
A: Yes,that's what we guarantee to our clients. we have IS09000,IS09001 certinicate,APISL PSL-1 CE certificates etc.Our products are of high quality and we have professional engineers and development team.
Q: What is your terms of payment?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipmenit or paid against copy of B/L within 5 working days. 100% Irrevocable L/C at sight is favorable payment term as well.
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
