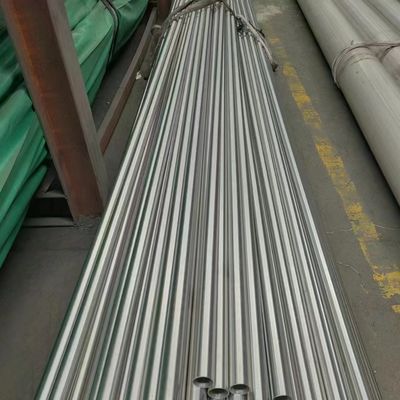

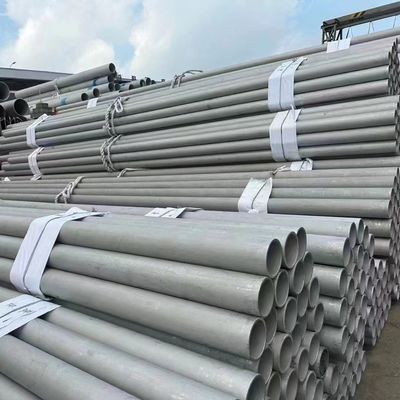

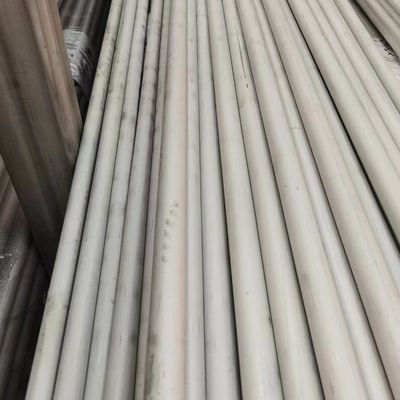

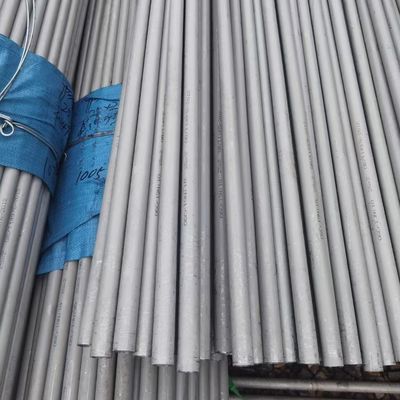

Super Duplex 2507 / UNS S32750 Stainless Steel Pipe DN100 DN200 DN300 Duplex SS Pipe
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | 2507 / UNS S32750 |
| Minimum Order Quantity | 500 kgs |
| Price | 4650-5760 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Pipe | Grade | 2507 / UNS S32750 |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Industrial | Packing | Wooden Box Or PP Bag |
| Highlight | S32750 Stainless Steel Pipe,DN300 Stainless Steel Pipe,DN100 Stainless Steel Pipe |
||
Product Description
Super Duplex 2507 / UNS S32750 Stainless Steel Pipe DN100 DN200 DN300 Duplex SS Pipe
|
Item
|
Seamless Stainless Steel Pipe/Tube
|
|||
|
Steel Grade
|
201,202,301,302,303,304,304L,309,309S,310S,316,316L904L,2205 2507ect.
|
|||
|
Standard
|
ASTM/DIN/JIS/EN/GB/BS
|
|||
|
Surface
|
2B/BA/8K/NO.4/SB/Hairline/Embossed
|
|||
|
Wall thickness
|
0.3mm-250mm
|
|||
|
Outer diameter
|
5mm-2500mm
|
|||
|
Length
|
800mm,4000mm,5800mm, 6000mm,12000mm or as required
|
|||
|
Price terms
|
FOB,CIF,CFR,CNF,Ex-work,DDU
|
|||
|
Payment terms
|
T/T,L/C,Global Pay
|
|||
|
Delivery Time
|
5-15 days depends on customer's request and quantity
|
|||
|
Export to
|
Philippines,Saudi Arabia,Canada,Brazil,Korea,Canada,Viet Nam,Peru,Mexico,Russia,etc
|
|||
|
Package
|
Standard export seaworthy package, or required.
|
|||
UNS S32750 is a super duplex stainless steel designed for applications that demand exceptional strength and corrosion resistance. Super Duplex stainless UNS S32750 is a mixed microstructure of austenite and ferrite (50/50) which has improved strength over ferritic and austenitic steel grades. Super Duplex has a higher molybdenum and chromium content which gives the material greater corrosion resistance than standard duplex grades.
Super Duplex UNS S32750 is the most common super duplex grade in the market. UNS S32750 is duplex stainless steel specially designed for service in aggressive chloride-containing environments. It has very good resistance to localized corrosion and stress corrosion cracking in combination with high mechanical strength. It is widely used in oil & gas, hydropower, pressure vessels, pulp & paper, structural components and chemical tankers.
UNS S32750 Super Duplex (2507) Features
- Super duplex grade with combination of properties given by austenitic and ferritic structure
- High mechanical strength.
- High resistance to stress corrosion cracking in halide-containing environments.
- High resistance to pitting and crevice corrosion.
- High resistance to general corrosion.
- High resistance to erosion corrosion and corrosion fatigue.
- Good weldability and workability
- Low rate of thermal expansion
- Suggested for applications up to 600° F
S32750 Super Duplex Chemical Composition
The Chemical Composition of UNS S32750 (2507) consists of 25% chromium, 4% molybdenum, and 7% nickel. This high molybdenum, chromium and nitrogen contents provide excellent resistance to chloride pitting and crevice corrosion attack and the duplex structure provides 2507 with exceptional resistance to chloride stress corrosion cracking.
| Alloy | C | Si | Mn | P | Cr | Ni | N | Mo | S | Cu | Fe |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S32750 | 0.03 | 0.8 | 1.2 | 0.035 | 24.0-26.0 | 6.0-8.0 | 0.24-0.32 | 3.0-5.0 | 0.02 | 0.5 | Bal |
S32750 Super Duplex Mechanical Properties
| Tensile Strength, Mpa (Ksi), Min | Yield Strength, MPa (Ksi), Min | Elongation, %, Min | Hardness, Brinell HB |
|---|---|---|---|
| 795 (116) | 550 (80) | 15 | 310 Max |
Duplex S32750 possesses excellent mechanical properties. Often a light gauge of S32750 material can be used to achieve the same design strength of a thicker nickel alloy. The resulting savings in weight can dramatically reduce the overall cost of fabrication.
Equivalent Grades Of S32750
| EU EN |
USA ASTM |
Germany DIN |
|---|---|---|
| X2CrNiMoN25-7-4 | UNS S32750 | 1.4410 |
FAQ
Q1: Do you offer free samples?
A: Sure,we are glad to send you free samples for your evaluation.But currently we need you to kindly pay the delivery charge on your side if you'd like to have our samples.
Q2:How long does your delivery time take?
A:In general, our delivery time is within 7 days, and may be longer if the quantity is extremely large or special circumstances occur.
Q3:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q4:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint third parties to inspect the products before loading too.
Q5:How to pack the products?
A: Standard export sea-worthy packaging, the inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.
