EN 10088 Grade 316Ti Stainless Steel Pipe Hollow Tube DN10 - DN500 SCH40S SCH80S
| Place of Origin | China |
|---|---|
| Brand Name | DELTA |
| Certification | ISO |
| Model Number | AISI316Ti / UNS S31636 |
| Minimum Order Quantity | 500 kgs |
| Price | 4650-5760 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Duplex Stainless Steel Pipe | Grade | AISI316Ti / UNS S31636 |
|---|---|---|---|
| Standard | ASTM GB EN | Length | 6m Or Custom Cutting Any Length As Request |
| Diameter | DN10 - DN400 | Wall Thickness | SCH10 - XXS Or Unstandard Size |
| Type | Seamless Pipe | Service | Cutting, Polishing |
| Application | Industrial | Packing | Wooden Box Or PP Bag |
| Highlight | SCH40S SCH80S Stainless Steel Pipe,DN10 DN500 Stainless Steel Pipe,EN 10088 Stainless Steel Pipe |
||
Product Description

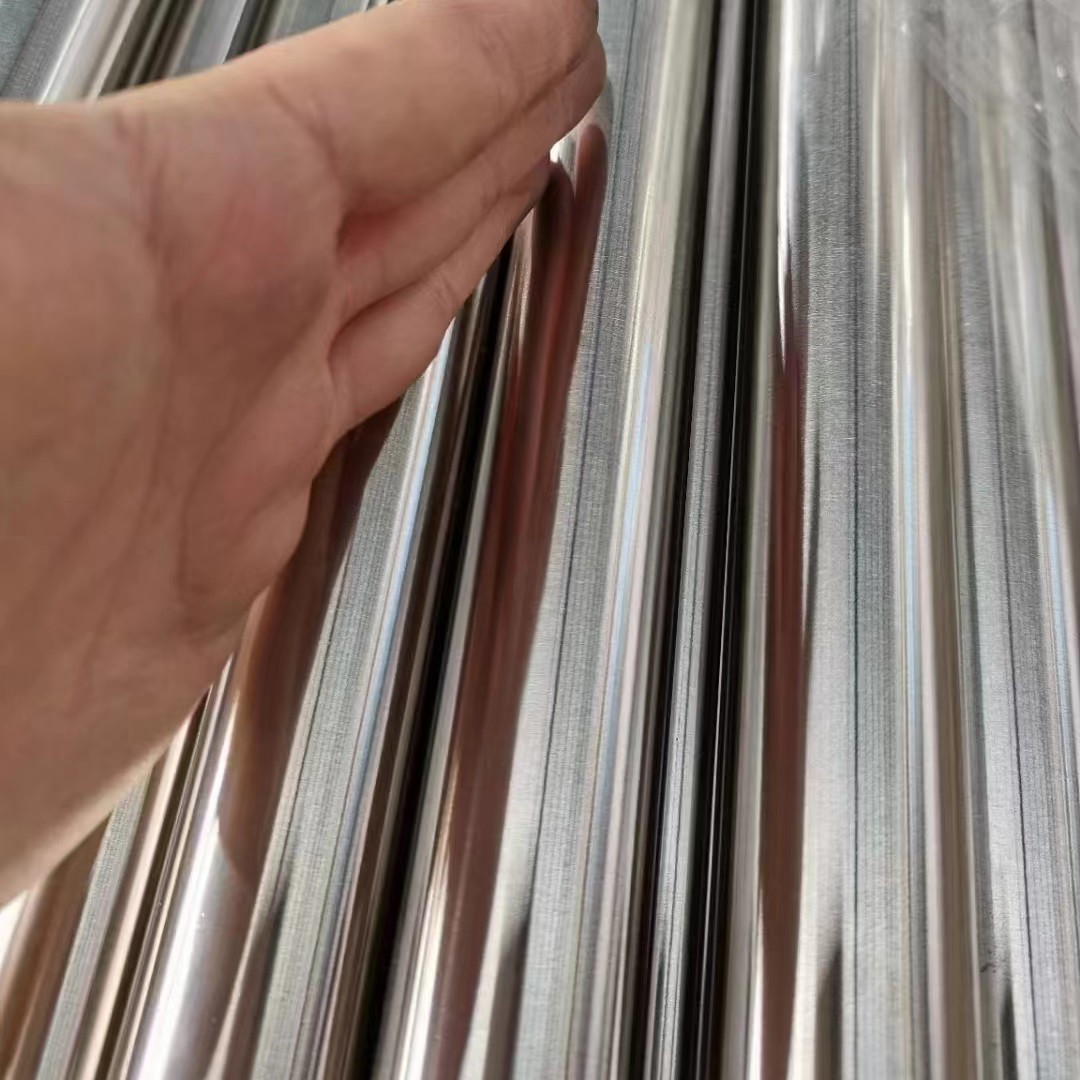

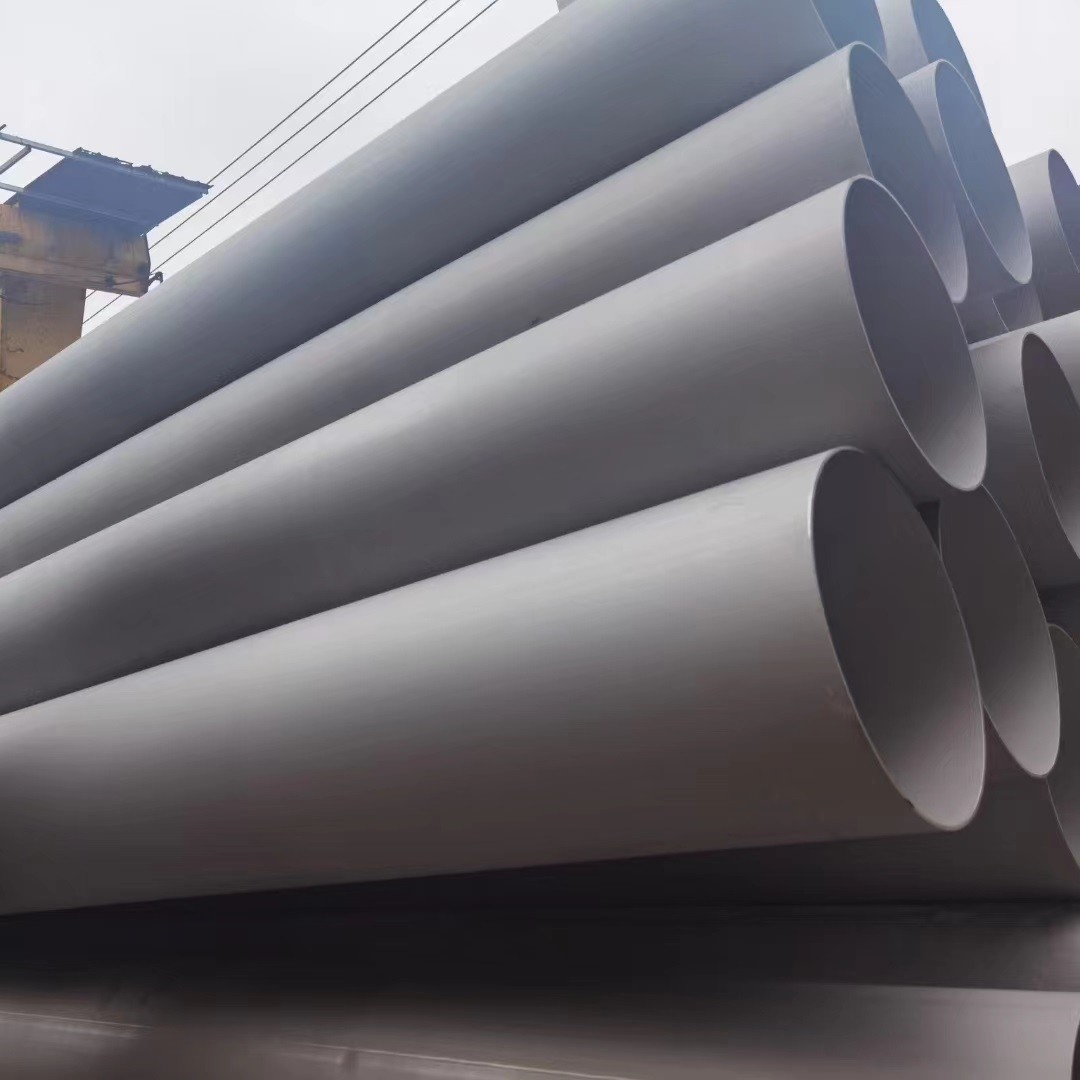

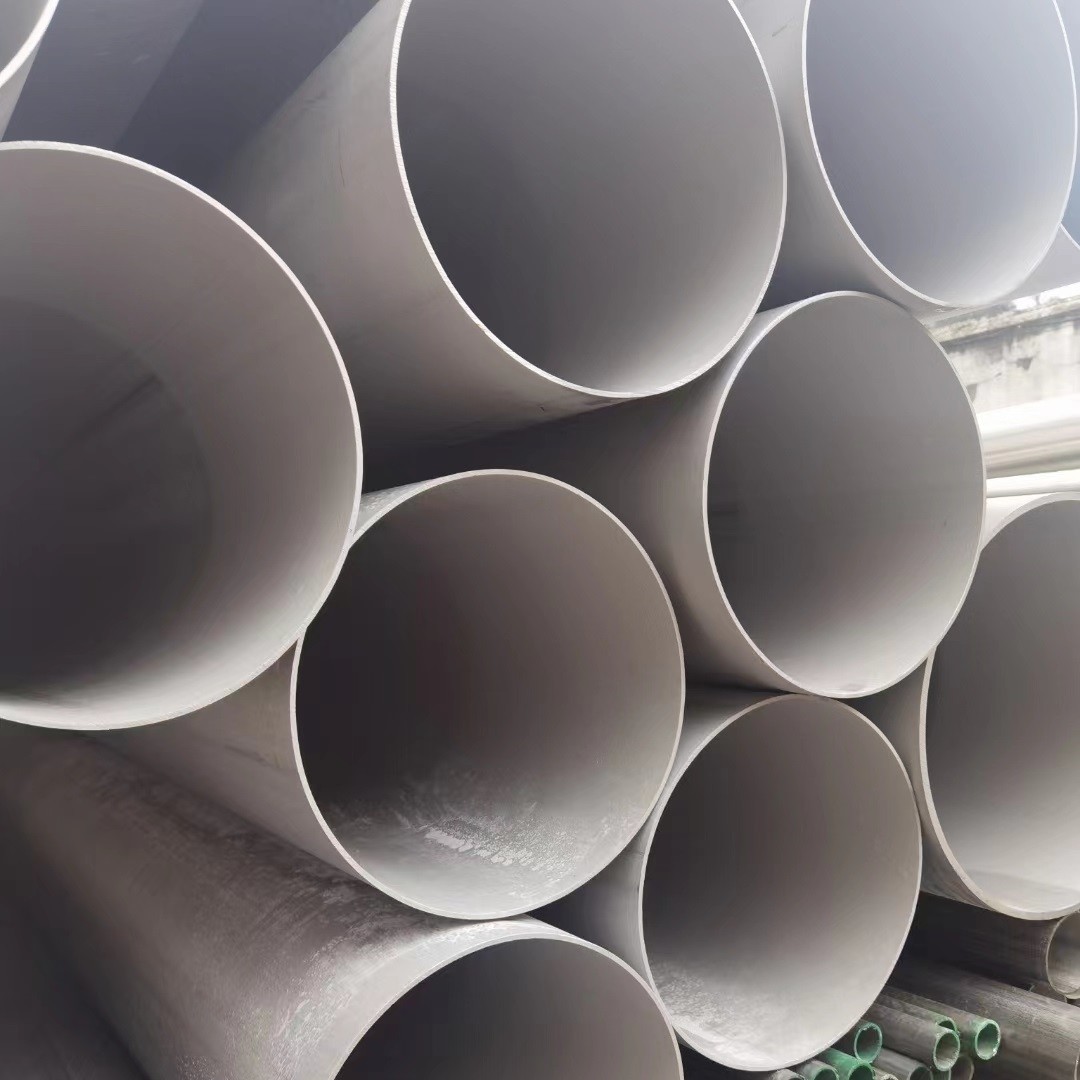

EN 10088 Grade 316Ti Stainless Steel Pipe Hollow Tube DN10 - DN500 SCH40S SCH80S
|
Product Name
|
Pickling Industry Stainless Steel Seamless Pipe/Tube
|
|
Length
|
1m~12m or as required
|
|
Size
|
1/8''-80'' Or Customized
|
|
Outside Diameter
|
10.3mm-2032mm Or Customized
|
|
Diameter
|
DN6-2000mm Or Customized
|
|
Wall Thickness
|
SCH5S-XXS Or Customized
|
|
Standard
|
ASTM A269,ASTM A268M,ASTM A789/A789M,ASTM A213/A213M,ASTM A249/A249M,ASTM A312/A312M,ASTM A376/A376M,JIS G3463,JIS G3459,
GB/T 14976,GB/T 3089,GB13296,GB/T 12771,BS3605-1, DIN 17456,DIN 17459, EN 10296,EN 10217,EN 10297,EN 10216,etc |
|
Grade Material
|
200 series: 201,202,202Cu,204Cu
300 series: 301,303/Cu,304/L/H,304Cu,305,309/S,310/S,316/L/H/Ti,321/H,347/H,330
400 series: 409/L,410,416/F,420/F,430,431,440C,441,444,446
600 series: 13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/D
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760,2304,LDX2101.LDX2404,LDX4404,904L
Others: 153Ma,254SMo,253Ma,654SMo,F15,Invar36,1J22,N4,N6 etc
Alloy : Alloy 20/28/31
Hastelloy: Hastelloy B / B-2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N
Haynes: Haynes 230/556/188
Inconel: Inconel 100/600/601/602CA/617/625713/718738/X-750,Carpenter 20
Incoloy: Incoloy 800/800H/800HT/825/925/926
GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044
Monel: Monel 400/K500
Nitronic: Nitronic 40/50/60
Nimonic: Nimonic 75/80A/90
Nickle: Nickle 200/201
|
|
Surface Treatment
|
Pickling/Polished/HL/Mirror and so on
|
|
Technique
|
Hot rolled/Cold drawn/Annealed
|
|
Thickness Tolerance
|
±0.01mm
|
|
Application
|
Industry/Large buildings
|
|
Packing
|
Wrapping stretch film,Woven bag packaging,Wooden pallet,Batten
|
|
Delivery time
|
Within 3-15 days after recieve 30% desipot or as your requirement
|
|
Terms of Delivery
|
EX-WORK,FOB, CFR, CIF ,CPT,CIP,FCA,DDP,DDU,etc
|
|
MOQ
|
1 Ton
|
About 316Ti Stainless Steel
316Ti is a variant of 316 stainless steel alloyed with titanium for improved corrosion resistance, particularly in high temperature environments.
316Ti is a variant of 316 stainless steel that is alloyed with titanium. The addition of titanium to the steel gives it improved resistance to corrosion, particularly in environments with high temperatures and high concentrations of chlorides. The titanium content of 316Ti is typically around 0.5%.
316Ti is often used in the construction of heat exchangers, furnace parts, and chemical and petrochemical equipment. It is also used in the food and pharmaceutical industries, as well as in marine environments. The high resistance to corrosion makes it suitable for use in applications where the steel will be exposed to saltwater or other corrosive substances.
The mechanical properties of 316Ti are similar to those of standard 316 stainless steel, with a slightly higher yield strength and a lower elongation at break. The material is also non-magnetic and has a good weldability and formability.
316Ti has better resistance to intergranular corrosion than regular 316 stainless steel. This makes it less prone to sensitisation caused by high temperatures. This can cause the steel to become brittle and susceptible to cracking.
When it comes to welding 316Ti, it is best to use a filler metal with a higher titanium content than the base metal. This will help to prevent the formation of carbides in the weld zone and ensure that the weld has the same corrosion resistance as the base metal.
Overall, 316Ti is a versatile stainless steel that is well suited for a wide range of applications in harsh environments. Its strong resistance to rust, along with its good strength, makes it perfect for many different industries.
Standard and Grade Specification
|
Standard
|
ASTM A269,ASTM A268M,ASTM A789/A789M,ASTM A213/A213M,ASTM A249/A249M,ASTM A312/A312M,ASTM A376/A376M,JIS G3463,JIS G3459,
GB/T 14976,GB/T 3089,GB13296,GB/T 12771,BS3605-1, DIN 17456,DIN 17459, EN 10296,EN 10217,EN 10297,EN 10216,etc |
|
Finish
|
Pickling/Polished/HL/Mirror and so on
|
|
ASTM Material
|
201 202 301 302 303 304 304L 309 309S 310 310S 316 316L 316Ti 317 317L 321 347 347H 2205 2507 904L 409 409L 410 410S 420 430 441 C-276 Inconel800H
|
|
UNS Material
|
S20100 S20200 S30100 S30400 S30403 S30408 S30908 S31008 S31600 S31635 S31603 S31700 S31703 S32100 S34700 S31803 S40900 S43000 S43400 S43940 S44400 S40300 S41000 S42000 S44002 Duplex2205 Duplex2507 S32205 S32750 S32760
|
|
JIS Material
|
SUS201 SUS202 SUS301 SUS304 SUS304L SUS309S SUS310S SUS316 SUS316Ti SUS316L SUS317 SUS317L SUS321 SUS347 SUS329J1 SUS329J3L SUS405 SUS409 SUS410L SUS430 SUS434 SUS444 SUS403 SUS410 SUS420J1 SUS420J2 SUS440A
|
|
EN Material
|
1.4372 1.4373 1.4379 1.4301 1.4306 1.4948 1.4315 1.43031.4828 1.4833 1.4821 1.4845 1.4401 1.4571 1.4404 1.4436 1.4429 1.4438 1.4541 1.455 1.4912 1.4462 1.4477 1.4462 1.4002 1.4512 1.4016 1.4113 1.4509 1.4521 1.4006 1.4021 1.4028
|
The physical and mechanical properties of 316Ti, also known as 1.4571, are as follows:
Physical Properties:
- Density: 8.03 g/cm3
- Melting point: 1399-1454 °C (2550-2650 °F)
- Specific heat: 500 J/kg·K
- Thermal conductivity: 16.3 W/m·K
Mechanical Properties:
- Tensile strength: 515-690 MPa (75-100 ksi)
- Yield strength: 205-450 MPa (30-65 ksi)
- Elongation at break: 40-50%
- Hardness: Rockwell B: 95 max
- Modulus of Elasticity: 193 GPa (28 x 106 psi)
- Poisson's ratio: 0.29
Please note that the mechanical properties may vary slightly depending on the specific grade of 316Ti being used, and also the testing condition. The physical and mechanical properties of 316Ti are similar to those of standard 316 stainless steel, but with a slightly higher yield strength and a lower elongation at break.
The material is also non-magnetic and has a good weldability and formability. It is more resistant to intergranular corrosion, making it less likely to be affected by sensitisation caused by high temperatures. The high resistance to corrosion and high temperature environments makes it suitable for use in a wide range of applications.
Chemical Composition of 316Ti / 1.4571
The chemical composition of 316Ti, also known as 1.4571, is typically as follows:
- Iron (Fe): balance
- Chromium (Cr): 16-18%
- Nickel (Ni): 10-14%
- Molybdenum (Mo): 2-3%
- Titanium (Ti): 0.5-0.7%
- Manganese (Mn): 2% max
- Silicon (Si): 1% max
- Phosphorus (P): 0.045% max
- Sulfur (S): 0.03% max
- Carbon (C): 0.08% max
- Nitrogen (N): 0.1% max
Please note that the chemical composition may vary slightly depending on the manufacturer or the specific grade of 316Ti being used. The chemical composition of the 316Ti is specifically designed to improve the steel's resistance to corrosion, particularly in high temperature environments.
Different Grade of 316 Series Stainless Steel
There are different types of 316 stainless steel made for specific uses or to enhance certain material qualities. Some of the most common variants include:
- 316Ti: This variant of 316 is alloyed with titanium to improve its resistance to corrosion, particularly in environments with high temperatures and high concentrations of chlorides.
- 316L: This variant of 316 is low carbon, for improved resistance to intergranular corrosion and improved welding characteristics
- 316H: This variant of 316 is a high carbon version, which improves its strength and hardness. It is often used in high-stress applications such as valves and pumps.
- 316LN: This variant of 316 is nitrogen-alloyed to improve its strength and toughness. It is often used in high-stress applications such as aerospace and nuclear power plants.
- 316F: This variant of 316 is free-machining, with added sulfur, it is often used in the manufacture of gears, bearings, and other precision components.
- 316L Mod: This variant of 316 is modified to improve its machinability. It is often used in the manufacture of gears, bearings, and other precision components.
- 316L-Si: This variant of 316 is alloyed with silicon to improve its resistance to corrosion and oxidation. It is often used in high-temperature applications such as furnace components and heat exchangers.
FAQ
Q1. What are the advantages of your company ?
A1: We guarantee that the quantity and specification of products are in full compliance with the standards of customer orders. We support any kinds of test. In addition, We also have more professional service and competitive price.
Q2. How do you control quality ?
A2: We provide Factory Test Report, also support Third Party Inspection.
Q3. How many coutries you already exported ?
A3: Exported to more than 50 countries mainly from Middle East, Russia, United States, Canada, Italy, Germany, Australia, Egypt, Chile, Mexico, Venezuela, Argentina, Kuwait, Saudi Arabia, UAE, Sri Lanka, Indonesia, Bangladesh, Turkey, India, etc.
Q4. Can you provide sample ? Do you support OEM ?
A4: Yes. Small samples in store can be provided for free. Customized samples will take about 2-3days.
