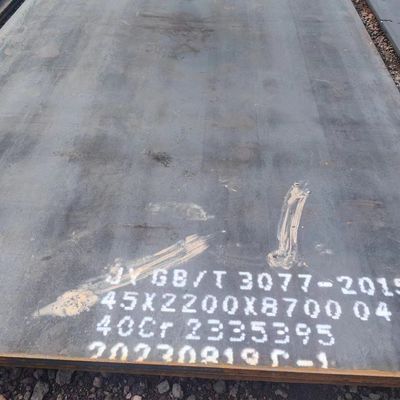

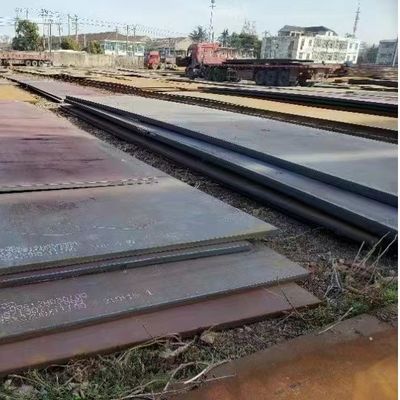

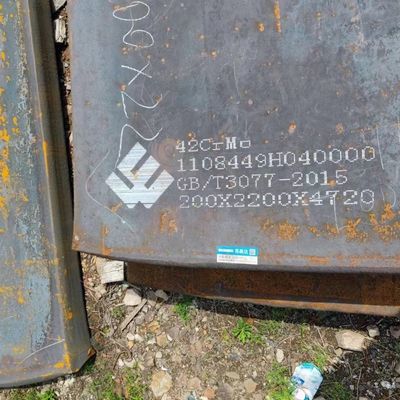

EN 10083 41Cr4 / 1.7035 Alloy Structure Steel Plates EN 10204-3.1 Certificated Steel Plate
| Place of Origin | China |
|---|---|
| Brand Name | BAOSTEEL BENSTEEL HBIS XINGCHENG |
| Certification | ISO 9001 |
| Model Number | AISI5140 / 1.7035 / 40Cr / 41Cr4 |
| Minimum Order Quantity | 500 kgs |
| Price | 780 - 940USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | AISI5140 Alloy Steel Plate | Thickness | 4.0 - 150.0mm |
|---|---|---|---|
| Width | 1000-2200mm | Length | 2000-12000mm |
| Standard | ASTM EN GB | Other Grade | 4140 / 5140 / |
| Brand | BAOSTEEL XINYU XINGCHENG HBIS | Service | Cutting |
| Highlight | 41Cr4 Steel Plate,EN 10083 Steel Plate,EN 10204-3.1 Certificated Steel Plate |
||
Product Description
EN 10083 41Cr4 / 1.7035 Alloy Structure Steel Plates EN 10204-3.1 Certificated Steel Plate
Products Specification of Steel Plate
| Products Name | AISI 5140 / 1.7035 / 41Cr4 Alloy Steel Plate |
| Thickness | 4.0 - 150.0mm |
| Width | 100 - 2200mm custom cutting any size as request |
| Length | 6m 8m 10m 11.5m 12m or cutting any length as request |
| Standard | ASTM JIS GB EN |
| MOQ | 500 Kgs |
| Deliver time | 7 - 14 days |
| Loading Port | Shanghai Port |
| Packing | wooden pallets |
| Other Grade | AR400 / AR450 / AR500 / AR600 NM400 NM450 NM500 NM600 |
| Service | Cutting, Heat treatment |
Product introduction
What is AISI 5140 steel ?
ASTM grade 5140 is one structural alloy steel grade in ASTM A29 standard for general application. 5140 steel plate is widely used in low and moderately stressed parts for vehicles, engines and machines where hard, wear resisting surface is needed. Gnee is professional 5140 plate & round bar supplier and we keep wide size range for 5140 plate in stock for immediate shipment. Contact us for any AISI 5140 plate material request and best 5140 grade steel price.
Competitive Advantage for AISI 5140 material steel plate in Otai:
- Available in stock for immediate shipment
- High strength,
- High tenacity
- Good hardenability
- High resistance to thermal properties.
- Competitive price
1. Supply Range of AISI/ASTM 5140
Round Bar: diameter 20mm – 300mm
Steel Plate and Steel Block: thickness 10-200mm x width 300-2000mm
- 10-80mm thickness 5140 plate are available all the time in stock,
- 90-200mm thickness plate to be newly production in 15-30 days lead time.
Surface Finish: Black Surface, Milled Surface or Polished Surface as per given requirements.
2. Relevant AISI 5140 Specification and Equivalent Steel Grades| Country | USA | German | Japan |
| Standard | ASTM/AISI A29 | EN 10083-3 | JIS G4053 |
| Grades | 5140 | 41Cr4 | SCr440 |
3. ASTM 5140 Material Chemical Composition and Equivalent
| Standard | Grade/Steel Number | C | Mn | P | S | Si | Cr | Ni |
| ASTM A29 | 5140 | 0.38-0.43 | 0.70-0.90 | ≤0.035 | ≤0.040 | 0.15-0.35 | 0.70-0.90 | – |
| EN 10083-3 | 41Cr4 / 1.7035 | 0.38-0.45 | 0.60-0.90 | ≤0.025 | ≤0.035 | ≤0.40 | 0.90-1.20 | – |
| JIS G4053 | SCr440 | 0.38-0.43 | 0.60-0.90 | ≤0.030 | ≤0.030 | 0.15-0.35 | 0.90-1.20 | ≤0.25 |
4. AISI 5140 Steel Properties
| Property | Value in metric unit | Value in US unit | ||
| Density | 7.872 *10³ | kg/m³ | 491.4 | lb/ft³ |
| Modulus of elasticity | 205 | GPa | 29700 | ksi |
| Thermal expansion (20 ºC) | 12.6*10-6 | ºCˉ¹ | 7.00*10-6 | in/(in* ºF) |
| Specific heat capacity | 452 | J/(kg*K) | 0.108 | BTU/(lb*ºF) |
| Thermal conductivity | 44.7 | W/(m*K) | 310 | BTU*in/(hr*ft²*ºF) |
| Electric resistivity | 2.28*10-7 | Ohm*m | 2.28*10-5 | Ohm*cm |
| Tensile strength (annealed) | 572 | MPa | 83000 | psi |
| Yield strength (annealed) | 293 | MPa | 42500 | psi |
| Elongation (annealed) | 29 | % | 29 | % |
| Hardness (annealed) | 85 | RB | 85 | RB |
| Tensile strength (normalized) | 793 | MPa | 115000 | psi |
| Yield strength (normalized) | 472 | MPa | 68500 | psi |
| Elongation (normalized) | 23 | % | 23 | % |
| Hardness (normalized) | 98 | RB | 98 | RB |
