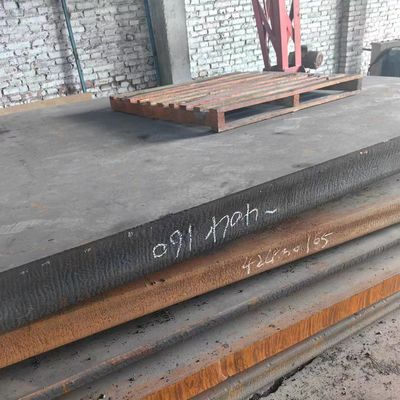

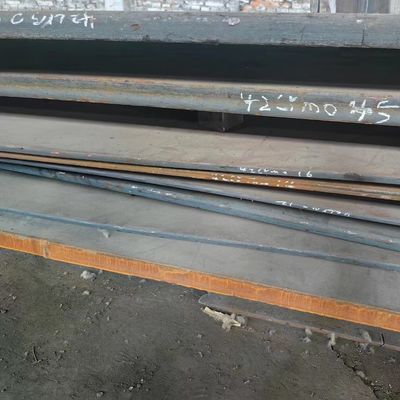

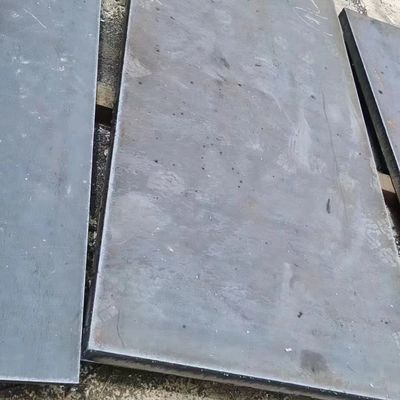

AISI 5140 Steel 1.7035 Structural Alloy Steel Plate With EN 10204-3.1 Certificate
| Place of Origin | China |
|---|---|
| Brand Name | BAOSTEEL BENSTEEL HBIS XINGCHENG |
| Certification | ISO 9001 |
| Model Number | AISI5140 / 1.7035 / 40Cr |
| Minimum Order Quantity | 500 kgs |
| Price | 780 - 940USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | AISI5140 Alloy Steel Plate | Thickness | 4.0 - 150.0mm |
|---|---|---|---|
| Width | 1000-2200mm | Length | 2000-12000mm |
| Standard | ASTM EN GB | Other Grade | 4140 / 5140 / |
| Brand | BAOSTEEL XINYU XINGCHENG HBIS | Service | Cutting |
| Highlight | EN 10204-3.1 Certificate Steel Plate,Structural Alloy Steel Plate,1.7035 Steel Plate |
||
Product Description
AISI 5140 Steel 1.7035 Structural Alloy Steel Plate With EN 10204-3.1 Certificate
Products Specification of Steel Plate
| Products Name | AISI 5140 / 1.7035 Alloy Steel Plate |
| Thickness | 4.0 - 150.0mm |
| Width | 100 - 2200mm custom cutting any size as request |
| Length | 6m 8m 10m 11.5m 12m or cutting any length as request |
| Standard | ASTM JIS GB EN |
| MOQ | 500 Kgs |
| Deliver time | 7 - 14 days |
| Loading Port | Shanghai Port |
| Packing | wooden pallets |
| Other Grade | AR400 / AR450 / AR500 / AR600 NM400 NM450 NM500 NM600 |
| Service | Cutting, Heat treatment |
Introduce of AISI 5140 Alloy Steel Plate
5140 steel has good comprehensive mechanical properties and is one of the most widely used steel types, used for manufacturing parts of medium speed and medium load, such as machine tool gear, shaft, worm, spline shaft and so on. The tensile strength, yield strength and hardenability of 5140 alloy steel are higher than 1045 steel, with higher fatigue strength and good toughness, normalizing or tempering machinability are very good, annealing machinability is also good, generally used after tempering treatment.

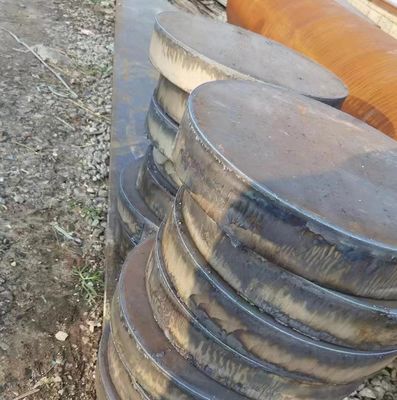

Our Cutting Service
- Cutting method: Plasma cutting
- Cutting tolerance: ±5mm
- Cutting Width: within 3000mm
- Cutting Length: within 12000mm
- Cutting Edge: Smooth without burr
Chemical Composition of AISI 5140 / 1.7035 Alloy Steel
| Grade | C(％) | 0.38～0.43 | Si(％) | 0.15～0.35 | Mn(％) | 0.70～0.90 | P(％) | ≤0.025 |
| AISI5140 / 1.7035 | S(％) | ≤0.040 | Cr(％) | 0.70～0.90 | Mo(％) | 0.06Max | Ni(％) | 0.25Max |
Equal Grad of AISI5140 / 1.7035 Alloy Steel
| USA | Germany | China | Japan | France | England | Italy | Poland | ISO | Austria | Sweden |
| ASTM/AISI/UNS/SAE | DIN,WNr | GB | JIS | AFNOR | BS | UNI | PN | ISO | ONORM | SS |
| 5140 / G51400 | 41Cr4 / 1.7035 | 40Cr | SCr440 | 42C4 | 530A40 / 530M40 | 41Cr4 | 2245 |
Our Carbon Steel Plate Grade
- (1)Carbon structural steel: Q235, Q255, Q275, SS400, A36, SM400A, St37-2, SA283Gr, S235JR, S235J0, S235J2
- (2)10-50#,20Mn,50Mn,1025
- (3)Low-alloy high-strength steel plate: Q295, Q345, Q390, Q420, Q460, A572Gr50, A588GrB, SM490, St52-3, S275JR, S355JR, WH60, WH70, A709Gr50, BB41BF, BB503, CoetenB, SHT60, A633D, SM520, SM570, Q550CFC, StE355, StE460, 1E0650, 1E1006, S275J0, S275J2, S275NL, S355J0, S355J2, S355K2, S355NL, WH70Q, WQ590D, Q550D, WQ690, WQ700, A514, A517, S690Q, S690QL, S890Q, S960Q, WQ890, WQ960, WDB620
- (4)Alloy structural steel plate: 50Mn2V, 15CrMo, 20Mn2, 40Mn2, 20MnSi, 20CrMo, 30CrMo, 35CrMo, 42CrMo, 20Cr, 40Cr, 10CrMoAL, 20CrMnMo, 12CrMoVNi, 30CrMnSiA
- (5)Boiler and pressure vessel plate: AISI4140, SA285Gr, SB410, 410B, KP42, Q245R, Q345R, 16MnDR, SPV355, Q370R, SA515Gr60, SA515Gr70, SA516Gr60, SA516Gr70, P235GH, HII/P265GH, P295GH, P355GH, P355NH, 19Mn6, P355NL1, 19Mn6, 15Mo3, 16Mo3, A537CL1, 09MnNiDR, SA662GrC, 18MnMoNbR, 15MnNiDR, A48CPR, SA515Gr65, SA516Gr65, SA612M, SA537CL2, 07MnNiMoVDR, 07MnCrMoVR,12MnNiVR, WDB620/Q500FC,13MnNiMoR, 20MnMoR, 20MnMo, 20MnMoNi55, SA612, A/SA533, A/SA302, SA299,13MnNiMo54(BHW35, DIWA353), SA203, SB450
- (6)Bridge Steel Plate: Q235q,Q345q,Q370q,Q420q,14MnNbq,A709-HPS-485W
- SS330, SPHC, SS400
