AISI4140 Alloy Steel Plate Structure Carbon Steel Plate 42CrMo / 42CrMo4 ASTM GB EN Standard
| Place of Origin | China |
|---|---|
| Brand Name | BAOSTEEL BENSTEEL HBIS XINGCHENG |
| Certification | ISO |
| Model Number | AISI4140 |
| Minimum Order Quantity | 500 kgs |
| Price | 780 - 940USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | AISI4140 Alloy Steel Plate | Thickness | 4.0 - 150.0mm |
|---|---|---|---|
| Width | 1000-2200mm | Length | 2000-12000mm |
| Standard | ASTM EN GB | Other Grade | AR400 / AR450 / AR500 / AR600 |
| Brand | BAOSTEEL XINYU XINGCHENG HBIS | Service | Cutting |
| Highlight | ASTM GB EN Standard Steel Plate,Structure Carbon Steel Plate,42CrMo 42CrMo4 Steel Plate |
||
Product Description
AISI4140 Alloy Steel Plate Structure Carbon Steel Plate 42CrMo / 42CrMo4 ASTM GB EN Standard
Products Specification of Steel Plate
| Products Name | AISI4140 Steel Plate |
| Thickness | 4.0 - 150.0mm |
| Width | 100 - 2200mm custom cutting any size as request |
| Length | 6m 8m 10m 11.5m 12m or cutting any length as request |
| Standard | ASTM JIS GB EN |
| MOQ | 500 Kgs |
| Deliver time | 7 - 14 days |
| Loading Port | Shanghai Port |
| Packing | wooden pallets |
| Other Grade | AR400 / AR450 / AR500 / AR600 NM400 NM450 NM500 NM600 |
| Service | Cutting, Heat treatment |
Regular Thickness of our aisi4140 Steel Plate in stock
| AISI4140 Steel Plate in Stock | |||
| 4.0mm | 5.0mm | 6.0mm | 8.0mm |
| 10.0mm | 12.0mm | 14.0mm | 16.0mm |
| 20.0mm | 25.0mm | 30.0mm | 32.0mm |
| 35.0mm | 38.0mm | 40.0mm | 42.0mm |
| 45.0mm | 50.0mm | 55.0mm | 60.0mm |
| 65.0mm | 70.0mm | 75.0mm | 80.0mm |
| 85.0mm | 90.0mm | 95.0mm | 100.0mm |
| 110mm | 120mm | 130mm | 140mm |
Introduce of AISI4140 / 42CrMo Alloy Steel
AISI SAE 4140 alloy steel can be made into round steel bar, flat & square steel bar, steel plate, steel tube, and has many uses in the aerospace, oil and gas and automotive industries, typical uses are thin-walled pressure vessels, forged gears and shafts (Motor shafts, pump shafts, hydraulic shafts, etc.), spindles (lathe spindles, milling spindles, etc.), collars, clamps, high strength bolts, valve bonnet, screws, nuts, worms, collets, torsion bars and various carburized parts.
Our Service for our AISI4140 Allot Steel Plate
- Cutting

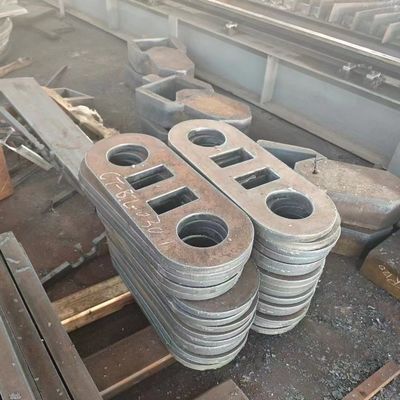

We have several cutting machine for customer cutting request. Our cutting thickness from 4mm to 150mm. Cutting tolerance within ±5mm, Cutting width range within 2500mm, cutting length within 10 meters.
Our cutting method is plasma cutting. The cutting edge is very smooth without burr. We can cutting our plate into any shape as clients request. If you have request on cutting plate. Please free contact with me and send me your drawning of the cutting items.
Chemical Composition of our AISI4140 Alloy Steel
- C :0.38～0.45%
- Si:0.17～0.37%
- Mn:0.50～0.80%
- S :≤0.035%
- P :≤0.035%
- Cr:0.90～1.20%
- Ni:≤0.30%
- Cu:≤0.30%
- Mo:0.15～0.25%
Mechanical Properties Data of 42CrMo Alloy Steel
- TS.σb (MPa):≥1080(110)
- YS. σs (MPa):≥930(95)
- EL δ5 (%):≥12
- ψ (%):≥45
- Impact Akv (J):≥63
- Hardness :≤217HB
FAQ
Q1. Are you trading company or manufacturer ?
A: We are professional manufacturer, providing a wide range of steel products.
Q2. Do you provide samples ?
A: Yes ,we would provide samples For Free . The courier freight will be covered by customer's account.
Q3.what about the payment terms ?
A: We accept different payment terms like T/T, L/C , Cash, Western Union, Alibaba online paying etc .
Q4.How about the delivery time?
A: Normally it takes 15-35 days since order confirmation.
Q5. Could you customized as our request?
A: Yes, just tell your demands, we can offer the customized solution for you, such as material, hardness, thickness,width and so
on.
Q6.How can I visit your factory ?
A: Welcome to visit our factory at any time. We will help you accessing the business visa to China . Assist arranging your
schedule in China ,including the factory visiting , products quality checking , car picking up, hotel booking , food service etc
