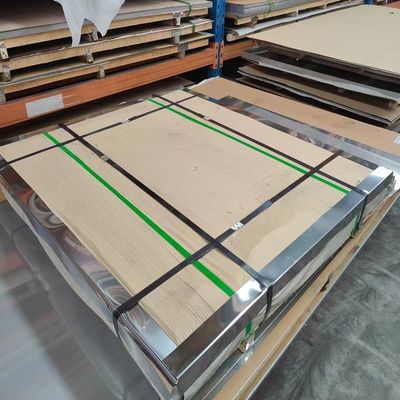

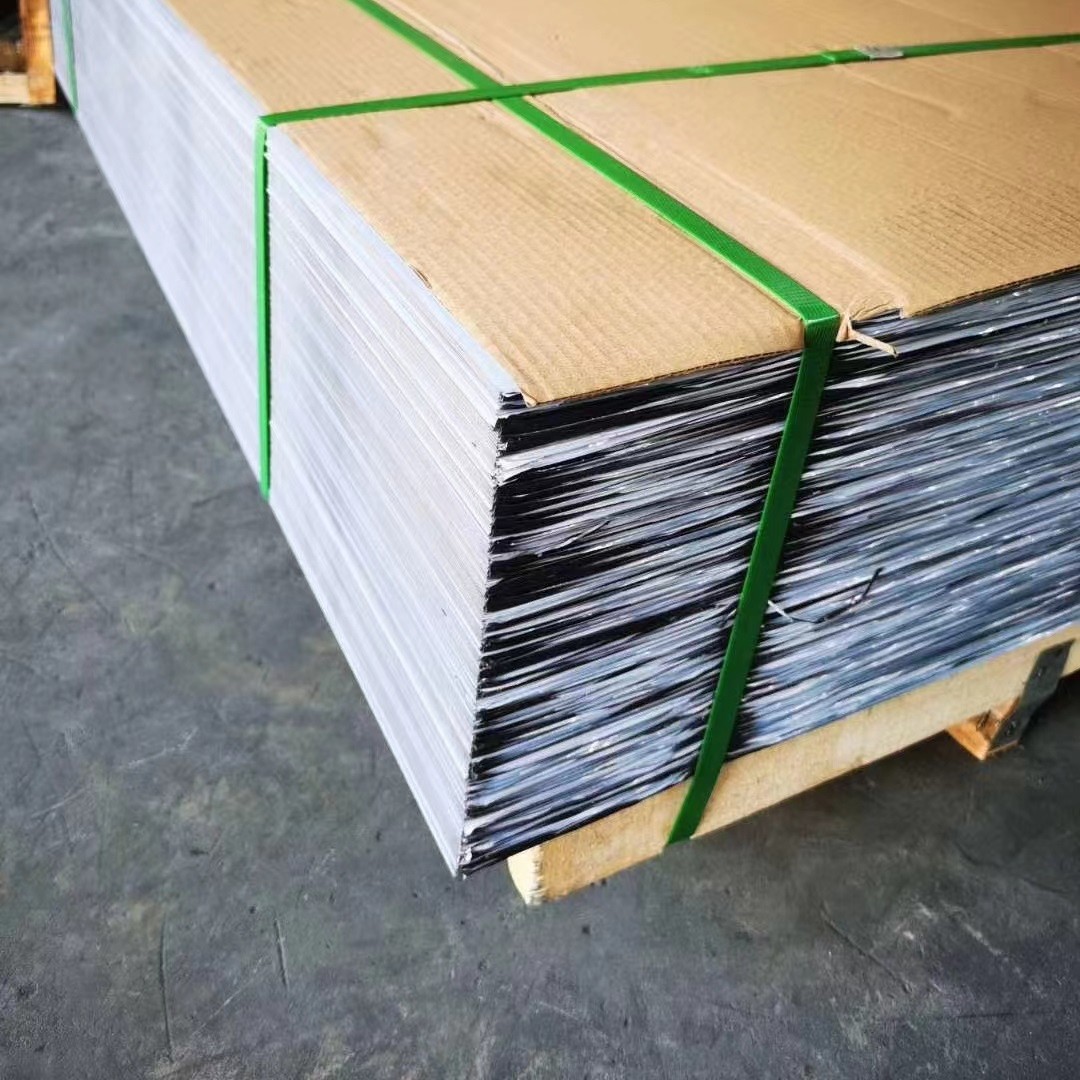

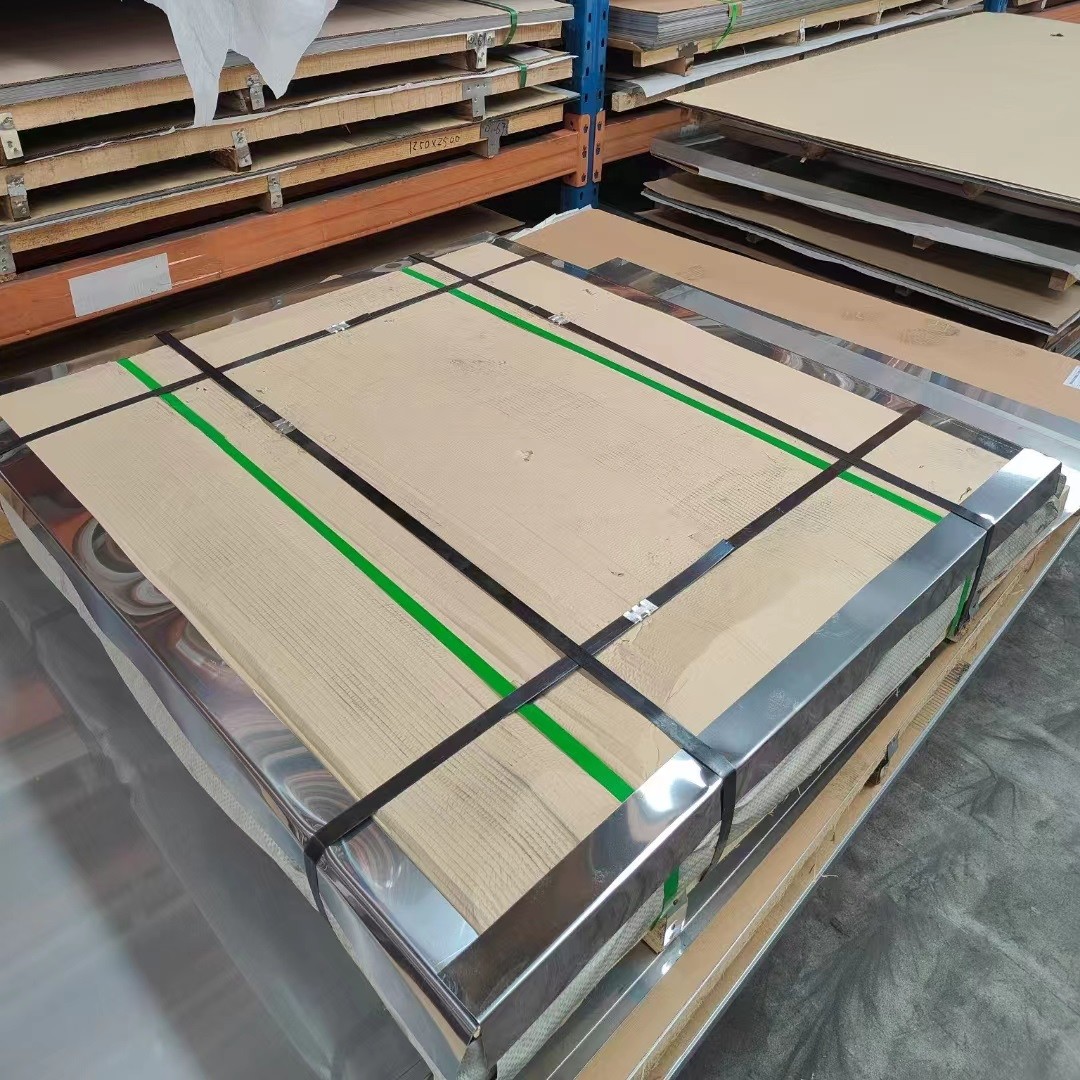

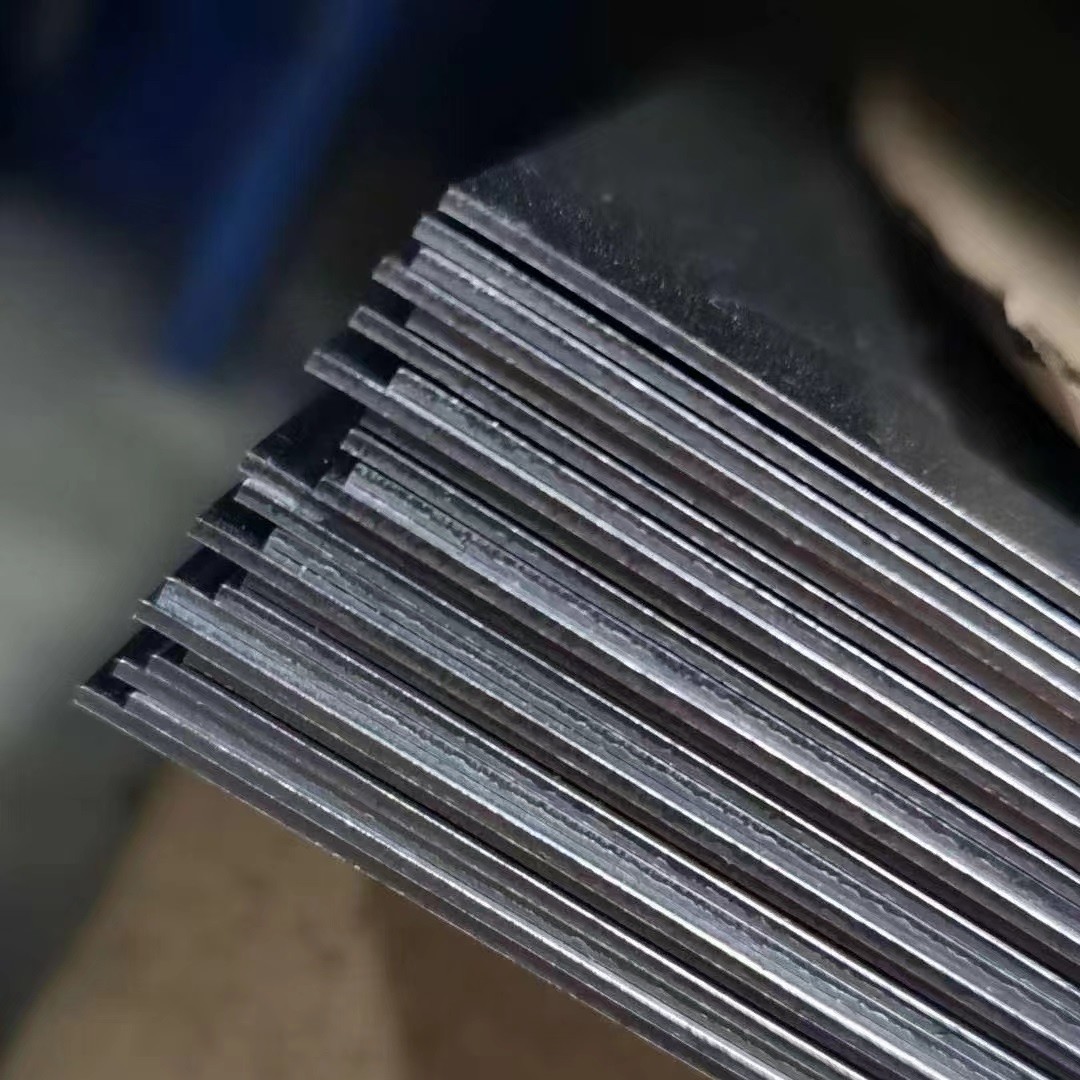

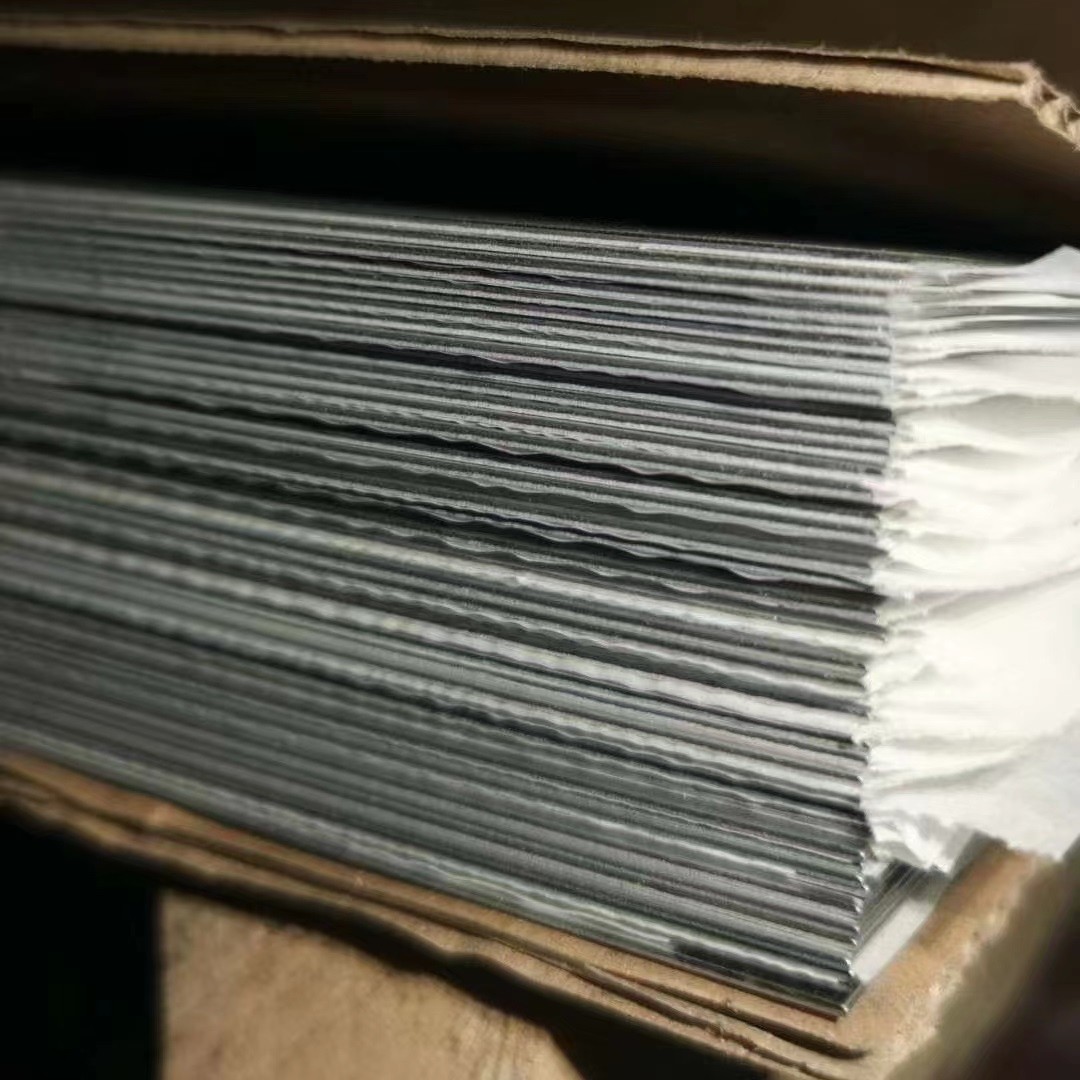

Heat Resistant 321H Stainless Steel Sheets SS Sheets UNS S32109 ASTM A240
| Place of Origin | China |
|---|---|
| Brand Name | TISCO |
| Certification | ISO |
| Model Number | 321H |
| Minimum Order Quantity | 500 kgs |
| Price | 1300 - 3480 USD/Ton |
| Packaging Details | standard packing for export |
| Delivery Time | 5 - 12 days based on the quantity |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 10 Ton per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Stainless Steel Sheet | Grade | 321H |
|---|---|---|---|
| Standard | ASTM EN JIS GB | Size | 1219*2438mm |
| Thickness | 0.5 - 3.0mm | Type | Cold Rolled |
| Service | Cutting, Surface Treatment | Application | Auto Exhaust Pipe |
| Packing | Wooden Pallets | ||
| Highlight | Heat Resistant 321H Stainless Steel Sheets,321H Stainless Steel Sheets,UNS S32109 321H Stainless Steel Sheets |
||
Product Description
Heat Resistant 321H Stainless Steel Sheets SS Sheets UNS S32109 ASTM A240 from BAOSTEEL
Products Specification
|
Product Name
|
321H Stainless Steel Sheets
|
|
Material Type
|
Ferrite stainless steel, magnetic; Austenitic stainless steel, Non-magnetic.
|
|
Grade
|
300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347
|
|
200series:201,202,202cu,204
|
|
|
400series:409,409L,410,420,430,431,439,440,441,444
|
|
|
Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc
|
|
|
Duplex stainless steel:S22053,S25073,S22253,S31803,S32205,S32304
|
|
|
Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo
|
|
|
Technology
|
Cold Rolled /Hot Rolled
|
|
Length
|
2000/2438/2500/3000/3048 mm
|
|
Width
|
1000/1219/1250/1500 mm
|
|
Thickness
|
0.4-3mm(cold Rolled), 3-200mm(hot Rolled)
|
|
|
BA, 2B, NO.1,2D, 4K, 6K, 8K, NO.4, HL, SB, Embossed,perforated etc.
|
|
Leveling: improve flatness, esp. for items with high flatness request.
|
|
|
Skin-Pass: improve flatness, higher brightness
|
|
|
Other Choices
|
Cutting:Laser cutting, help the customer to cut the required size
|
|
Protection
|
1. Inter paper available
|
|
2. PVC protecting film available
|
|
|
Price Item
|
FOB,CIF,DDU,FCA,EXW ,.etc
|
|
Quality Assurance
|
1.Provide MTC (Mill Test).
2.Accept the inspection by the third party agent
|
Introduce of 321H Stainless Steel Sheets
Stainless steel 321H is a general purpose austenitic stainless steel that is stabilized against carbide precipitation and designed to work within the carbide precipitation temperature range 427 to 816°C (800 to 1500°F). It is non-magnetic in the annealed condition and can be hardened only by cold working. Titanium is added to the alloy's composition to suppress grain boundary chromium carbide precipitation and reduce susceptibility to intergranular corrosion.
Chemical Properties of 321H Stainless Steel Sheets
| % | Cr | Ni | C | Si | Mn | P | S | N | Ti | Fe |
|---|---|---|---|---|---|---|---|---|---|---|
| 321 | min:17.0 max:19.0 |
min: 9.0 max:12.0 |
max:0.08 | max:0.75 | max:2.0 | max:0.045 | max:0.03 | max:0.10 | min:5*(C+N) max:0.70 |
Balance |
| 321H | min:17.0 max:19.0 |
min: 9.0 max:12.0 |
min:0.04 max:0.10 |
min:18.0 max:20.0 |
max:2.0 | max:0.045 | max:0.03 | max:0.10 | min:5*(C+N) max:0.70 |
Balance |
Mechanical Properties of 321H Stainless Steel Sheets
| Grade | Tensile Strength ksi (min.) |
Yield Strength 0.2% Offset ksi (min.) |
Elongation - % in 50 mm (min.) |
Hardness (Brinell) MAX |
|---|---|---|---|---|
| 321 | 75 | 30 | 40 | 217 |
321H Stainless Steel Sheets and Plates in Stock
| Cold Rolled 321H Stainlesss Steel Sheets | |||
| 0.3*1219*2438mm | 0.4*1219*2438mm | 0.5*1219*2438mm | 0.6*1219*2438mm |
| 0.8*1219*2438mm | 1.0*1219*2438mm | 1.2*1219*2438mm | 1.5*1219*2438mm |
| 2.0*1219*2438mm | 2.5*1219*2438mm | 3.0*1219*2438mm | |
| Hot Rolled 321H Stainless Steel Plates | |||
| 3.0*1500*6000mm | 4.0*1500*6000mm | 5.0*1500*6000mm | 6.0*1500*6000mm |
| 8.0*1500*6000mm | 10.0*1500*6000mm | 12.0*1500*6000mm | 14.0*1500*6000mm |
| 16.0*1500*6000mm | 18.0*1500*6000mm | 20.0*1500*6000mm | 25.0*1500*6000mm |
| 30.0*1500*6000mm | 35.0*1500*6000mm | 40.0*1500*6000mm | 45.0*1500*6000mm |
Our Service for Stainless Steel Sheets and Plates
- Cutting Service: we provude cutting service, include laser cutting , waterjet cutting , plasma cutting, sawing cutting
- Surface process service: we can processing NO.4 8K HL SB titanized finishing
- Packing: we provide wooden pallets packing , wooden box packing, carton box
Applications of 321H Stainless Steel Sheets
Type 321, 321H and TP321 can be used in places where solution treatment after welding is not possible, such as steam lines and superheater pipes and exhaust systems in reciprocating engines and gas turbines with temperatures ranging from 425 to 870 °C (800 to 1600 °F). And fuel injection lines and hydraulic systems for aircraft and aerospace vehicles.
